TRENDnet TEG-2248WS - Gigabit Web Smart Switch Bedienungsanleitung

Quick Installation Guide

TEG-2248WS

H/W: B1

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation ........................................................................

3. Web Smart Switch Management Utility ..............................................

................................................................................

Table of Contents

Version 07.25.2008

System Requirements

Application

?TEG-2248WS

?Quick Installation Guide

?Utility & User Guide CD-ROM

?2 Mounting Brackets with Screws

?Power Cord

?Web Browser: Internet Explorer (5.0 or above), Netscape (6.0 or above)

?Computer with Network adapter installed

?Optional Mini-GBIC modules (e.g. TEG-MGBSX, TEG-MGBS10,

TEG-MGBS40, TEG-MGBS80, TEG-MGBS10D3_5, TEG-MGBS40D3_5)

for Mini-GBIC slots

Package Contents

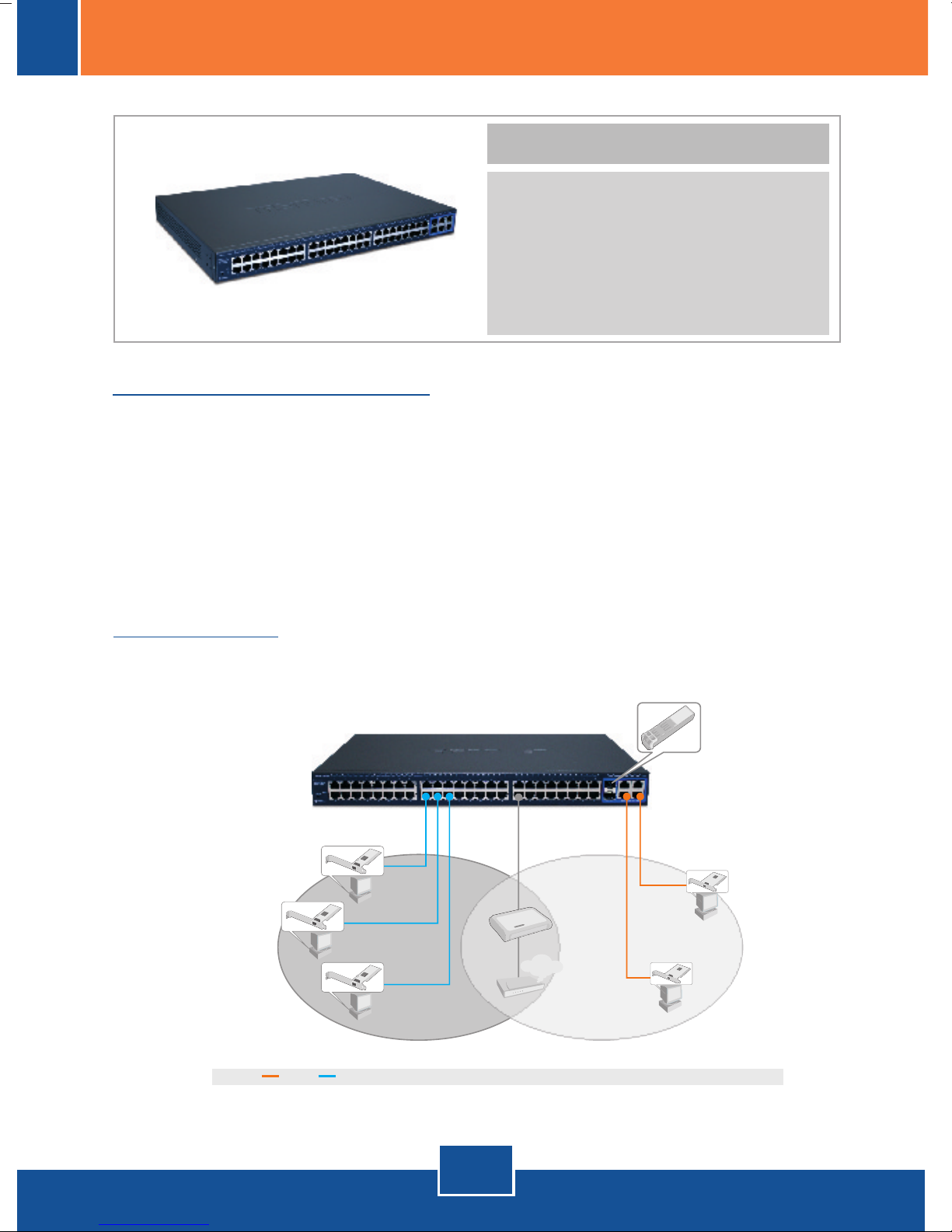

1. Before You Start

English

1000Mbps

Mini-GBIC Module

(TEG-MGBSX)

Workstations with

Fast Ethernet PCI Adapter

(TE100-PCIWN)

10/100Mbps

52-Port 10/100/1000Mbps Gigabit Web Smart Switch

(TEG-2248WS)

Cable/DSL 4-Port

Broadband Router

(TW100-S4W1CA)

Internet

Workstations with

Copper Gigabit PCI Adapter

(TEG-PCITXR)

VLAN Group 2VLAN Group 1

Cable/DSL

Modem

10/100Mbps

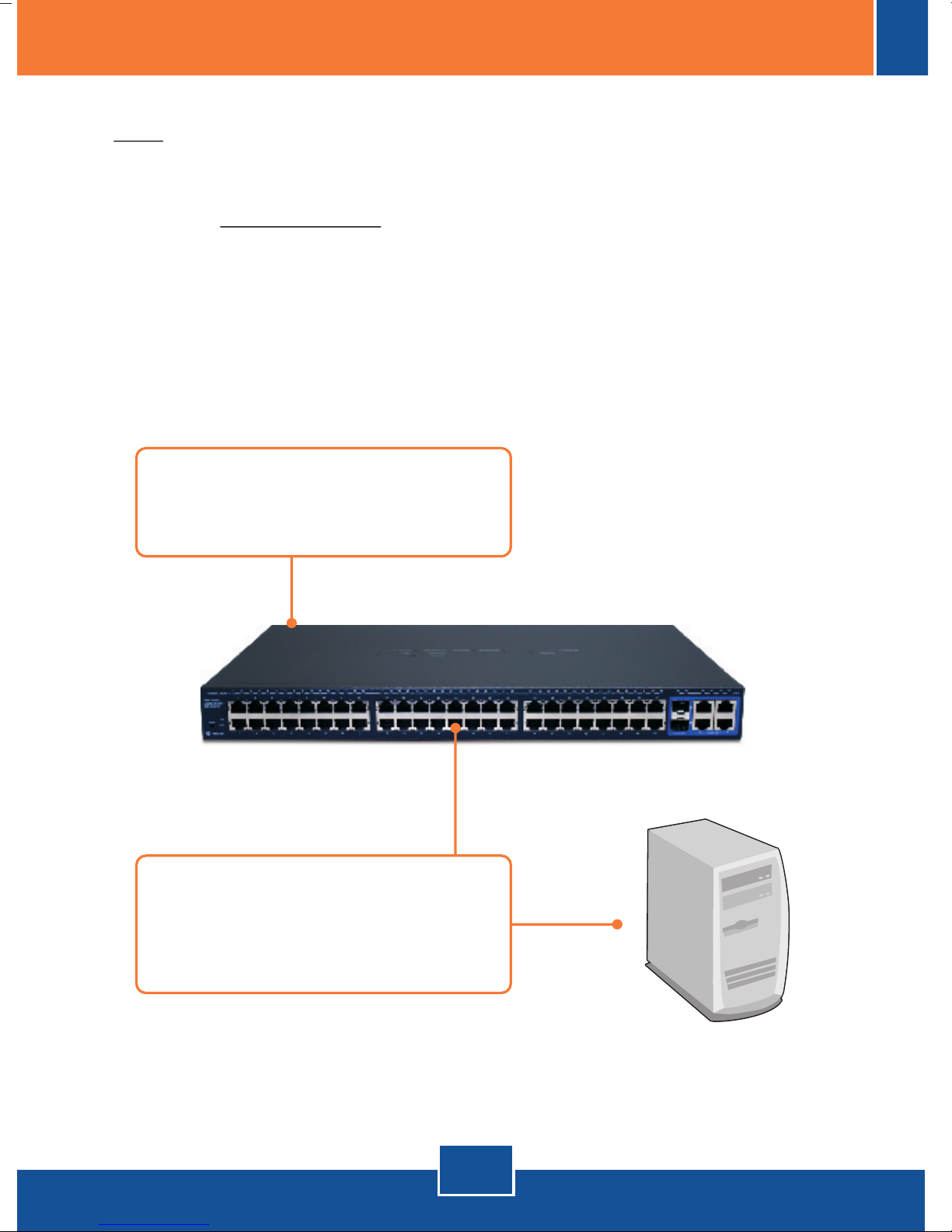

2. Hardware Installation

English

2. Connect a CAT-5, CAT-5e or CAT-6

RJ-45 network cable from the

computer to an available Ethernet

port of the TEG-2248WS.

1. Connect the Power Cord to the

rear of the TEG-2248WS and then

to a power outlet.

Note:

1. After hardware installation is complete, use the Web Browser to configure

the TEG-2248WS. Open your web browser, and enter the default IP

Address http://192.168.0.1 and default password "admin". Make sure your

computer and the TEG-2248WS are configured to the same network

segment.

2. The Mini-GBIC slots are shared with Port 49 and 50 Gigabit Ethernet ports.

When the Mini-GBIC slots are in use, port 49 and 50 Gigabit Ethernet ports

are disabled.

English

Note: If you would like to easily discover all the Web Smart Switches on the

network, assign IP Address, change the password, and upgrade to new

firmware, then install the Web Smart Switch Management Utility. Follow the

steps below.

3. Click Start > Programs >

TRENDnet > Web Smart Switch

Management Utility, and then

click Web Smart Switch

Management Utility.

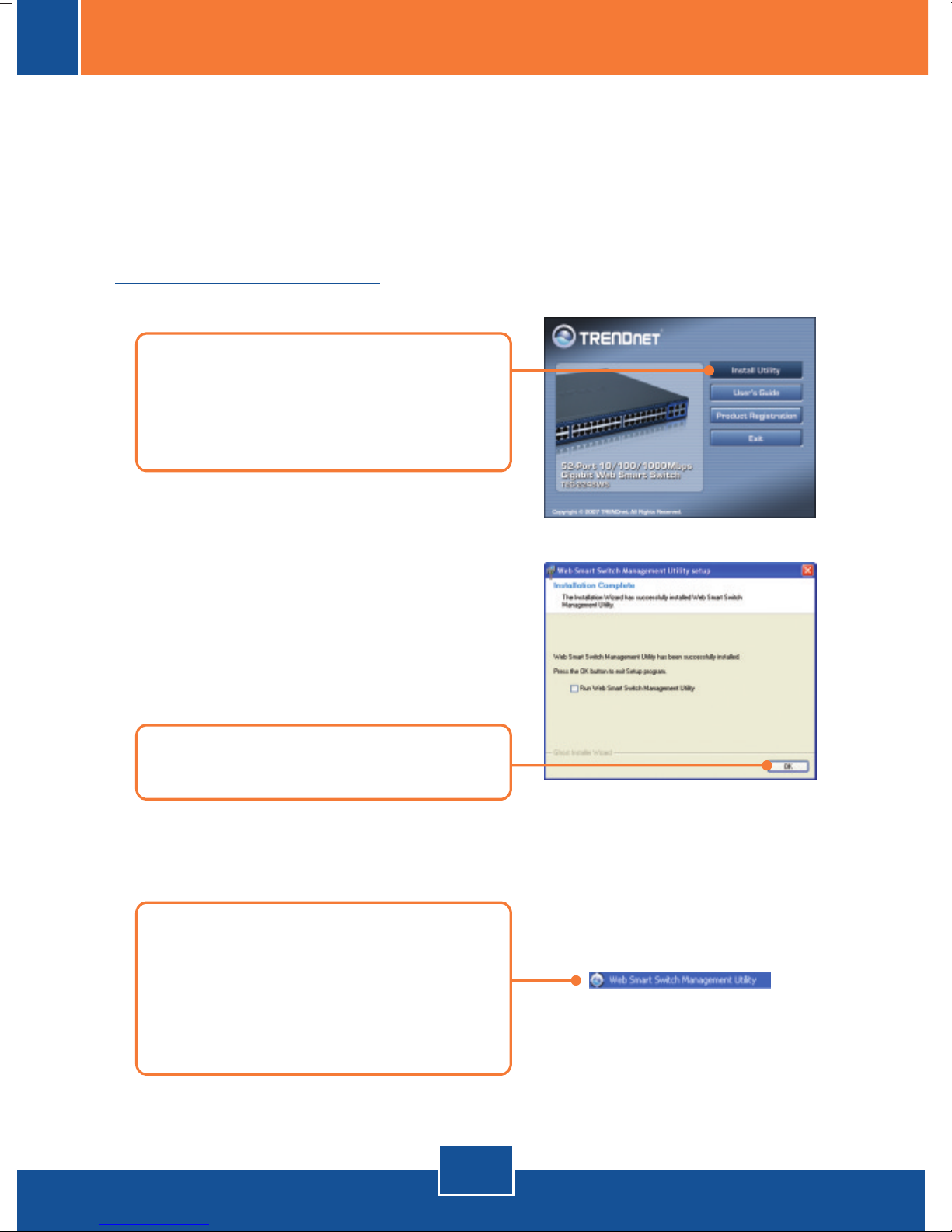

3. Web Smart Switch Management Utility

For Windows User

1. Insert the Utility & User’s Guide

CD-ROM into your computer's

CD-ROM Drive and then click

Install Utility.

2. Follow the Installation Wizard

instructions. Click OK.

English

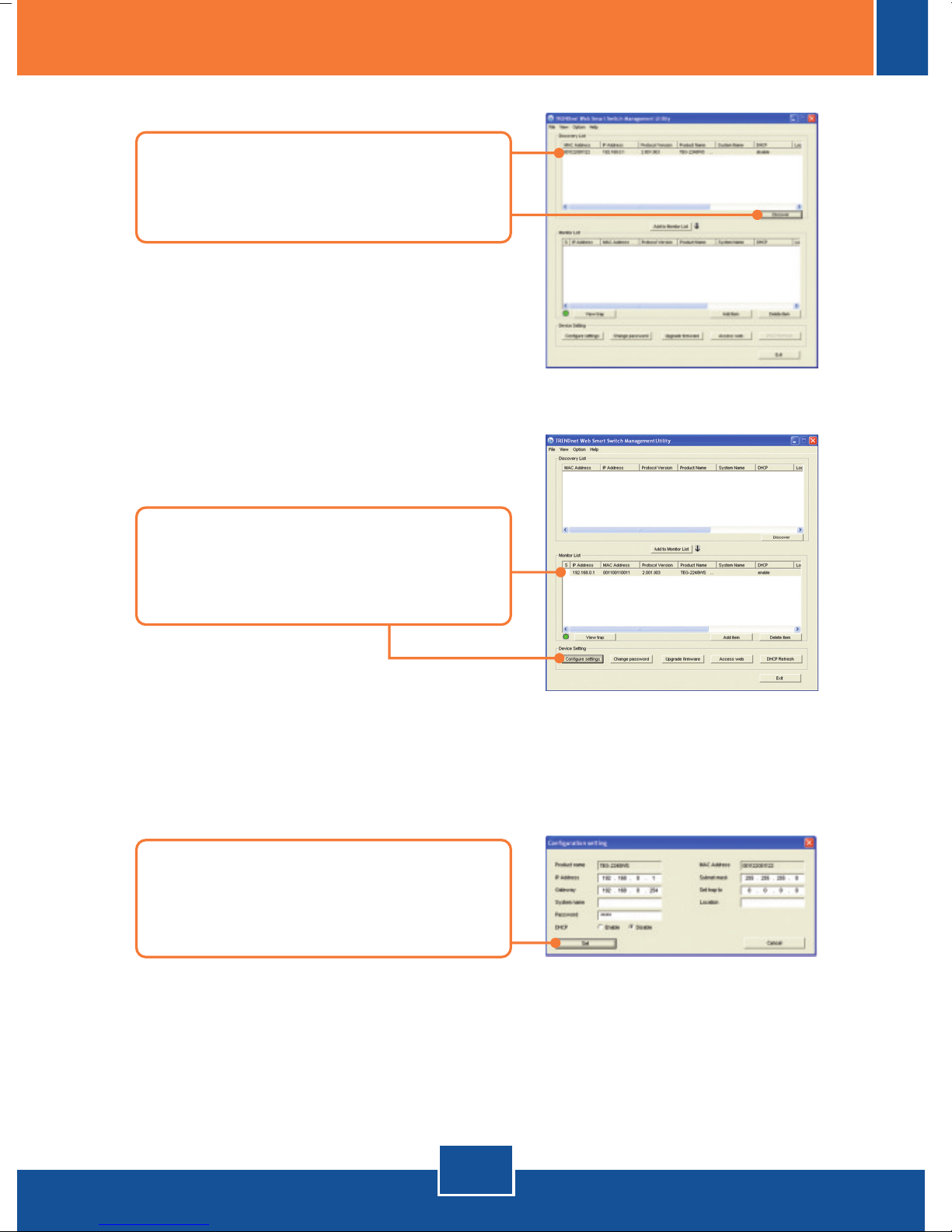

4. Click Discovery, and then double-

click the Switch that appears in

the Discovery List.

5. Click the Switch in the Monitor

List and then click Configuration

setting.

6. Configure the IP Address, Subnet

mask, Gateway, and Password.

Click Set.

English

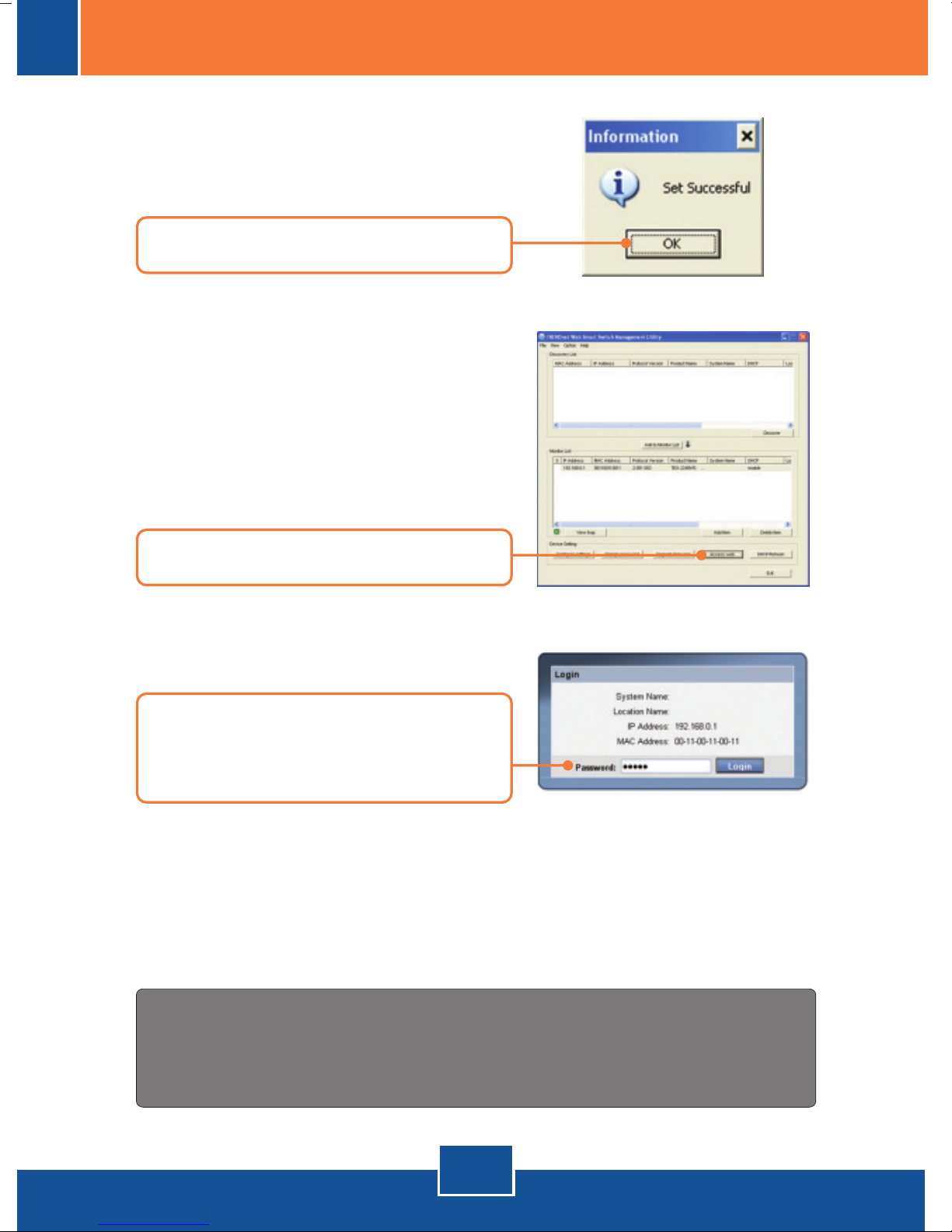

7. Click OK.

8. Click Access Web.

9. Type in your Password and then

click Login. By default, the

Password is admin.

For more information regarding the Web Smart Switch Management Utility

configuration and advanced settings, please refer to the User's Guide included

on the Utility CD-ROM or TRENDnet's website at www.trendnet.com

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

After connecting the TEG-2248WS to a power outlet, the LEDs do not turn on.

Check the connection of the power cord to the TEG-2248WS and the power

outlet. Also check that the power outlet is receiving power.

After installing the Web Smart Switch Management Utility, I clicked Discovery and the

Utility is unable to discover the TEG-2248WS. What should I do?

Make sure that the TEG-2248WS is powered on and that all connections are secure.

Also check that your computer's IP Address is on the same network segment as the

TEG-2248WS. The default IP Address of the Switch is 192.168.0.1 and the default password

is admin.

When I access the TEG-2248WS using a web browser, I get a screen that tells me “only

one user can login”. What should I do?

Another computer is configuring the TEG-2248WS. Please wait until the user logs off. If

the other user has already logged off and you still get the same screen, then disconnect the

power cord from the TEG-2248WS, wait for 5 seconds, reconnect the power cord to the

TEG-2248WS, allow 5 seconds for the Switch to power on, and then attempt to access the

web configuration page to login.

I forgot the administration password. How do I reset my TEG-2248WS?

Press on the reset button using a pen or paperclip for 10 seconds. The default

password is admin.

When I connect a computer to the Switch’s Gigabit port, I am not getting Gigabit

speeds. What should I do?

Check the LED on the Switch. When the LED is amber, the computer’s connection

speed is 10 or 100Mbps. Make sure that you have a Gigabit Ethernet adapter installed. Also

make sure to use a Cat-5e or Cat 6 Ethernet cable. Some Cat-5 cables are not rated to run

in Gigabit.

If you still encounter problems or have any questions regarding the TEG-2248WS, please refer to

the User's Guide included on the Utility CD-ROM or contact TRENDnet’s Technical Support

Department.

Troubleshooting

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón

necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir

daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y

frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

20675 Manhattan Place

Torrance, CA 90501

USA
