TRENDnet TU2-700 - DATA SHEETS Bedienungsanleitung

TRENDnet

TRENDware, USA

What's Next in Networking

TU2-700

Version 10.27.04

7-port USB 2.0 Hub

Quick Installation Guide

Guide d'installation rapide du

Hub USB 2.0 à 7 ports

Anleitung zur Schnellinstallation des

7-Port USB-2.0-Hub

Guía de instalación rápida del

Hub USB 2.0 de 7 puertos

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Prepare for Installation ......................................................................

2. Product Detail ....................................................................................

3. Hardware Installation .........................................................................

4. Verify Installation ...............................................................................

Thank you for purchasing the TRENDnet TU2-700 7-port USB 2.0 Hub.

This guide will help you setup your 7-port USB 2.0 Hub. Following the

installations should be quick and easy. If you run into problems, please refer to

the Troubleshooting section. If you need further technical support, please visit

www.TRENDNET.com or call technical support by phone.

Verify Package Contents

Please make sure you have everything in the box:

1. Prepare for Installation

English QIG

English

Minimum System Requirements

1. Pentium 300Mhz or faster with at least 64MB RAM

2. Computer with an available USB port

3. Windows XP, 2000, ME, 98SE or Mac OS X or later

TU2-700 Quick Installation Guide

USB Cable

(Type-A to Mini-B, Male) Power Adapter

TRENDnet

TRENDware, USA

What's Next in Networking

TU2-700

Version 10.27.04

7-port USB 2.0 Hub

Quick Installation Guide

Guide d'installation rapide du

Hub USB 2.0 à 7 ports

Anleitung zur Schnellinstallation des

7-Port USB-2.0-Hub

Guía de instalación rápida del

Hub USB 2.0 de 7 puertos

2. Product Detail

The USB 2.0 Host hub has 7 high speed USB ports.

7 USB 2.0 ports for connecting

external USB peripherals

English

Port for connecting USB Cable

3. Hardware Installation

English

1. Turn on your computer and allow your operating system to fully load into the

system.

2. Connect the mini-B connector of the USB cable into your TU2-700, and

connect the Type-A connector into your desktop or notebook's USB port.

3. Connect any device with a USB connection into a TU2-700 USB port.

4. If you are using multiple, self-powering USB devices on the TU2-700, then

connect the external power adapter into the TU2-700.

Your hardware installation is now complete.

Note: If you would like to verify that the TU2-700 has been installed

properly for your windows, go to the Verify Installation section.

4English

4. Verify Installation

1. Click Start, and then click Control Panel.

2. Double-click the System icon. On the Hardware tab, click the Device

Manager button.

3. Expand the “Universal Serial Bus controller” heading to verify that the

Generic USB Hub has been installed.

Windows XP

5English

1. Click Start, highlight Settings, and then click on Control Panel.

2. Double-click the System icon. On the Hardware tab, click the Device

Manager button.

3. Expand the “Universal Serial Bus controller” heading to verify that the

Generic USB Hub has been installed.

Windows 2000

6English

1. Click Start, highlight Settings, and then click on Control Panel.

2. Double-click the System icon, and click the Device Manager tab.

3. Expand the “Universal Serial Bus controller” heading to verify that the

Generic USB Hub has been installed.

Windows ME

7English

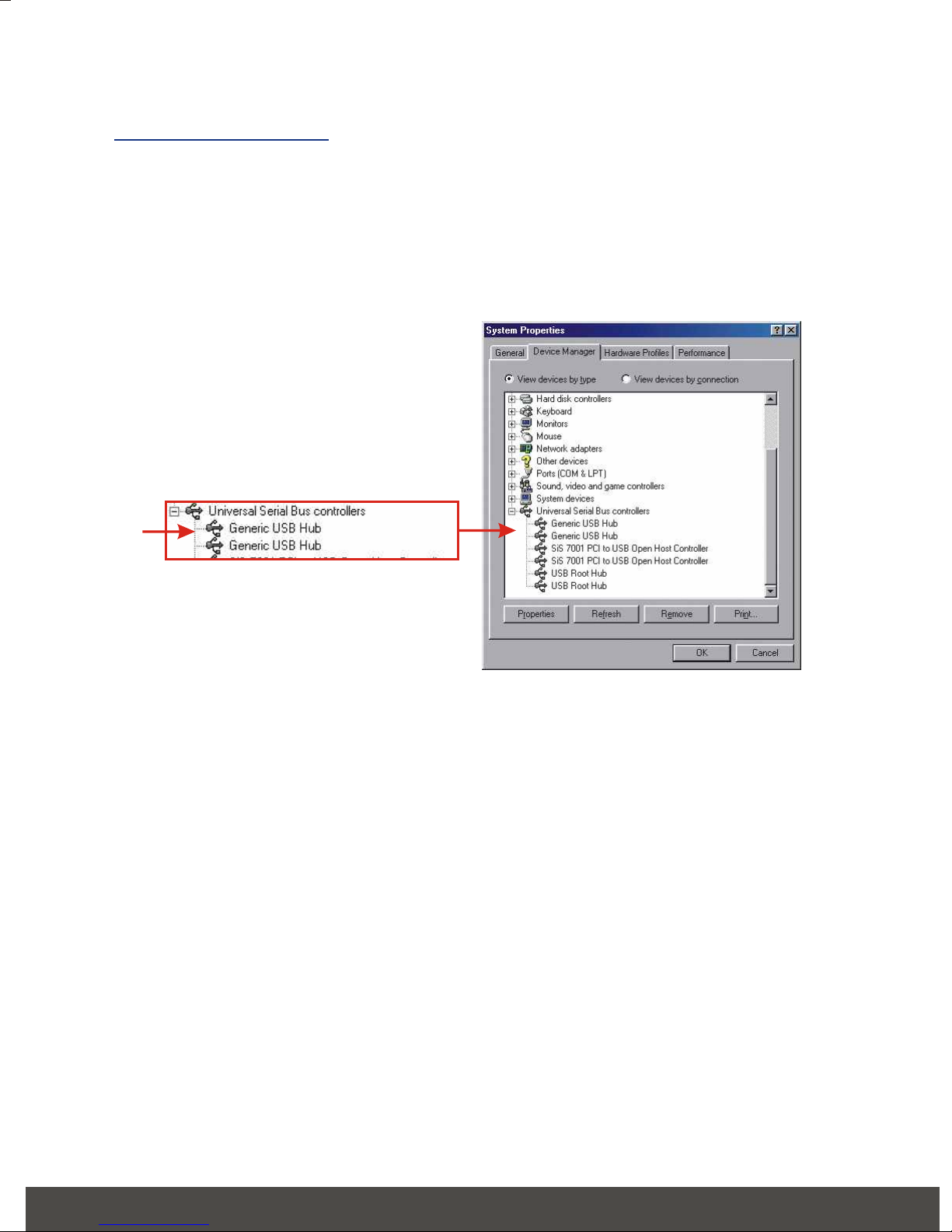

1. Click Start, highlight Settings, and then click on Control Panel.

2. Double-click the System icon, and click the Device Manager tab.

3. Expand the “Universal Serial Bus controller” heading to verify that the

Generic USB Hub has been installed.

Windows 98SE

Q1.

A1.

Q2.

A2.

Q3.

A3.

Can I connect or disconnect the USB cable while the computer is on?

Yes, you can connect or disconnect the USB cable, or any external USB

device while the computer is on becauase the USB interface if Plug-and-Play and

hot-pluggable.

I have a USB 1.1 cable, can it work with USB 2.0 devices?

Yes, it works but it may cause problems for connecting high-speed USB 2.0

external peripherals. Therefore it is recommended that you use certified USB 2.0

cable.

After successful installation of the TU2-700 USB 2.0 Hub, I connected my

external USB device to the USB port, but it doesn’t seem to work. What should I

do?

If you have an external AC power adapter that came with the external USB

device, connect the AC power adapter to the device and power on the device.

Also make sure that you have installed the correct driver for your external USB

device in Windows.

If you have any questions regarding the TU2-700 USB 2.0 Hub, please contact

Trendware Technical Support Department.

Troubleshooting

Technical Support Hours

7:00AM ~ 6:00PM, Monday through Friday

Pacific Standard Time (except holidays)

Contact Technical Support

Telephone: +1-310-626-6252

Fax: +1-310-626-6267

Website: www.TRENDNET.com

E-mail: [email protected]

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.
