TRENDnet TEW-611BRP Bedienungsanleitung

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This publication, including all photographs, illustrations and software, is protected under international

may be reproduced without written consent of the author.

Trademark recognition

All product names used in this manual are the properties of their respective owners and are

acknowledged.

Table of Contents

Getting Started with the TEW-611BRP………….....................3

Package Contents ......................................................................4

Minimum System Requirements ................................. …………4

Wireless LAN Networking ........................................................6

Introduction ...............................................................................7

Features ..................................................................................... 7

Hardware Overview ...................................................................8

Rear Panel……………………………………………………………8

LEDs .........................................................................................9

Installation Considerations ........................................................10

Getting Started ..........................................................................10

Using the Configuration Menu............................................... 11

Basic .......................................................................................12

Advanced ................................................................................25

Tools ..........................................................................................47

Status..........................................................................................58

Glossary ....................................................................................65

Getting Started with the TEW-611BRP

Congratulations on purchasing the TEW-611BRP! This manual provides information for setting up and

configuring the TEW-611BRP. This manual is intended for both home users and professionals.

The following conventions are used in this manual:

THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE

TOPIC AT HAND.

THE TIP SYMBOL INDICATES HELPFULL INFORMATION AND TIPS TO

IMPROVE YOUR NETWORK EXPERIENCE.

THE CAUTION SYMBOL ALERTS YOU TO SITUATIONS THAT MAY

DEGRADE YOUR NETWORKING EXPERIENCE OR COMPROMISE

LIKE NOTES AND TIPS, THE IMPORTANT SYMBOL INDICATES

INFORMATION THAT CAN IMPROVE NETWORKING. THIS INFORMATION

SHOULD NOT BE OVERLOOKED.

Package Contents

zTEW-611BRP 108Mbps 11g MIMO Wireless Router

zPower Adapter (5V DC, 2A)

zCD-ROM with Software and Manual

zQuick Installation Guide

zCat.5 Ethernet Cable

Using a power supply with a different voltage than the one included with your product

will cause damage and void the warranty for this product.

Minimum System Requirements

zEthernet-Based Cable or DSL Modem

zComputers with Windows, Macintosh, or Linux-based operating systems with an installed

Ethernet adapter and CD-ROM Drive

zInternet Explorer Version 6.0 or Netscape Navigator Version 7.0 and Above

Wireless LAN Networking

This section provides background information on wireless LAN networking technology. Consult the

“Glossary” for definitions of the terminology used in this section.

THE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. CHANGING NETWORK

SETTINGSAND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BYAN

AUTHORIZED ADMINISTRATOR.

Introduction

The TEW-611BRP MIMO Wireless Router is an 802.11g high-performance, wireless router that

supports high-speed wireless networking at home, at work or in public places.

Unlike most routers, the TEW-611BRP provides data transfers at up to 108 Mbps (compared to the

standard 54Mbps) when used with other Super G MIMO products. The 802.11g standard is backwards

compatible with 802.11b products. This means that you do not need to change your entire network to

maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b and 802.11g

devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard

into your 802.11b network. You may choose to slowly change your network by gradually replacing the

802.11b devices with 802.11g devices.

Features

¾Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards

¾4 x 10/100Mbps Auto-MDIX LAN Port and 1 x 10/100Mbps WAN Port (Internet)

¾Supports Cable/DSL Modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP or BigPong

Connection Types

¾Supports Super G Technology with Data Rate up to 108Mbps (8X Faster)

¾Enhance Wireless Coverage up to 800% More Coverage with MIMO Technology

¾DHCP Server FeatureAllocates up to 252 Client IP Addresses and up to 64 Reservations

¾Supports 64/128-bit WEP(Hex), WPA/WPA2 & WPA-PSK/WPA2-PSK Encryptions

¾Firewall features Network Address Translation (NAT), and Stateful Packet Inspection (SPI)

protects against Dos attacks

¾Traffic Control with Virtual Server (max 64 configurable servers) and DMZ

¾UPnP (Universal Plug & Play) and ALGs Support for Internet applications such as Email, FTP,

Gaming, Remote Desktop, Net Meeting, Telnet, and more

¾Provides Additional Security of Enable/Disable SSID, Internet Access Control (Services, URL and

MAC Filtering)

¾Supports Static DHCP Client, Static Routing (RIP v1 Announcer) and Dynamic DNS (8 Verified

Services)

¾Supports Multiple and Concurrent IPSec, L2TP and PPTP VPN Pass-Through Sessions

¾Flash Memory for Firmware Upgrade, Save/Restore Settings

¾Easy Management via Web Browser (HTTP) and Remote Management

¾Compliant with Windows 95/98/NT/2000/XP/2003 Server, Linux and Mac OS

Hardware Overview

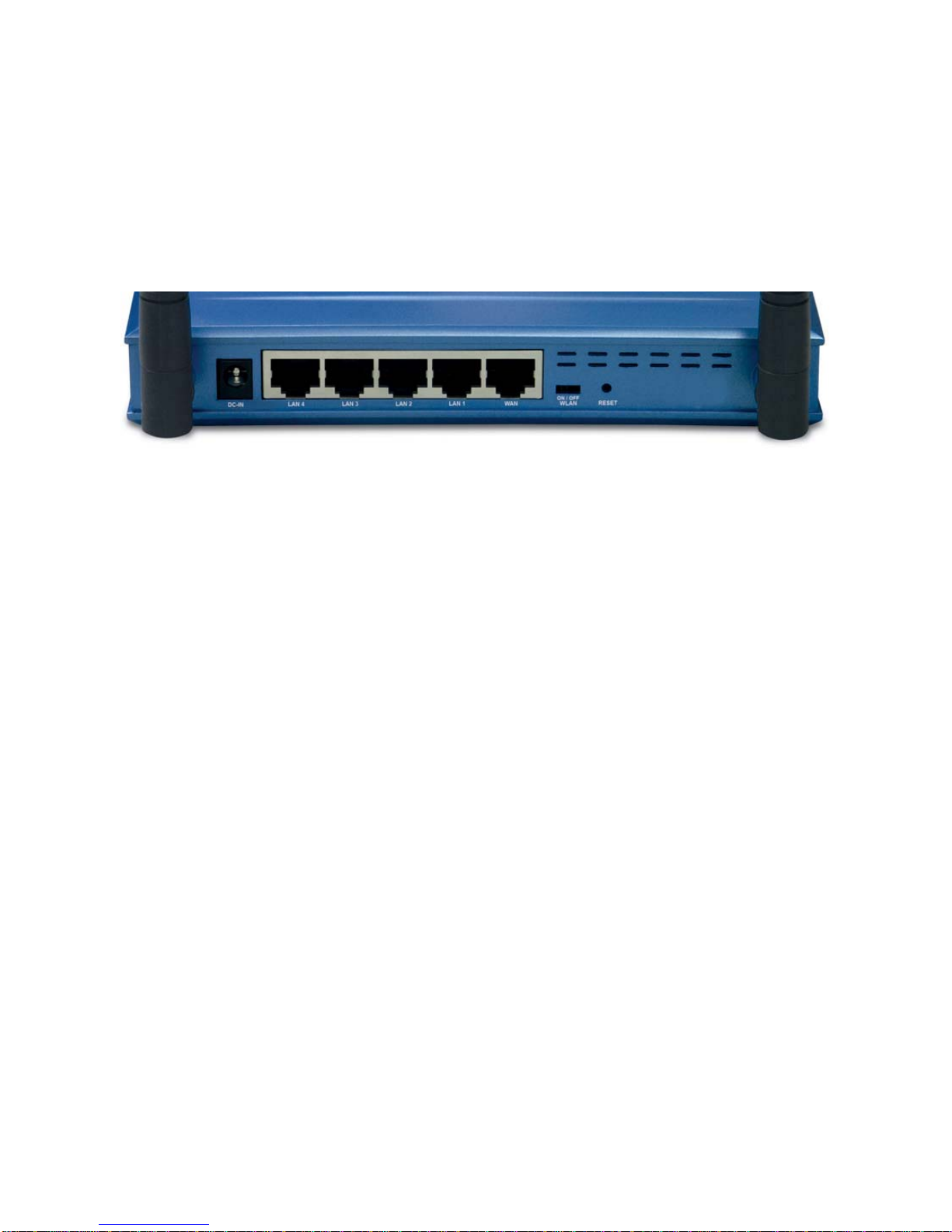

Real Panel

DC-IN

The DC power input connector is a single jack socket to supply power to the TEW-611BRP.

Please use the Power Adapter provided on the TEW-611BRP package.

Auto-MDIX LAN Ports

These ports automatically sense the cable type when connecting to Ethernet-enabled computers.

Auto-MDIX WAN Port

This is the connection for the Ethernet cable to the Cable or DSL modem

WLAN Slide Switch

Turn ON/OFF of wireless function.

Reset Button

Pressing the reset button restores the router to its original factory default settings.

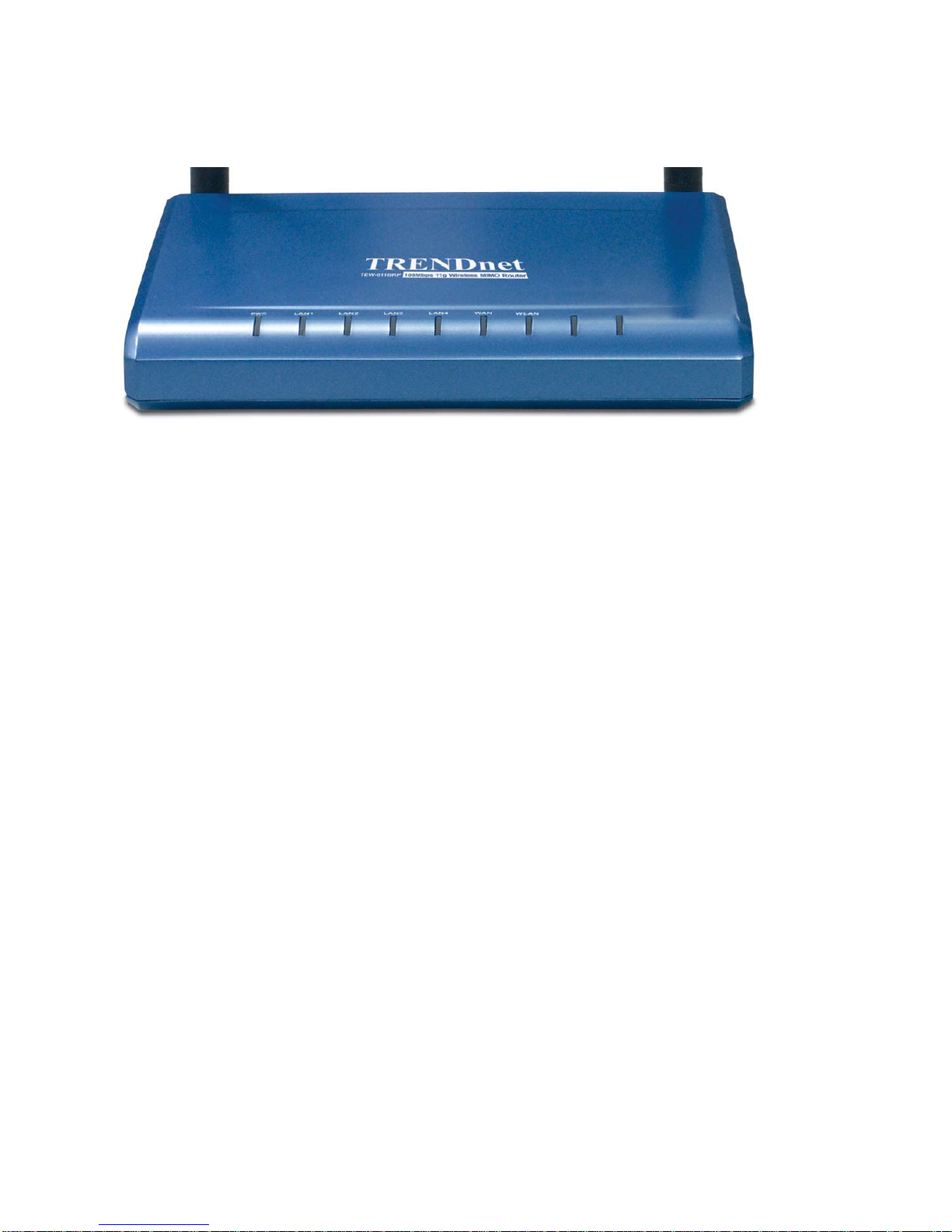

LEDs

POWER LED

A solid light indicates a proper connection to the power supply.

LAN1~LAN4 LED

A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks

during data transmission.

WAN LED

A solid light indicates connection on the WAN port. This LED blinks during data transmission.

WLAN LED

A solid light indicates that the wireless segment is ready. This LED blinks during wireless data

transmission.

Installation Considerations

The TEW-611BRP MIMO Wireless Router lets you access your network, using a wireless connection,

from virtually anywhere within its operating range. Keep in mind, however, that the number, thickness

and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit

the range. Typical ranges vary depending on the types of materials and background RF (radio

frequency) noise in your home or business. The key to maximizing wireless range is to follow these

basic guidelines:

1 Keep the number of walls and ceilings between the TEW-611BRP and other network devices

to a minimum - each wall or ceiling can reduce your wireless product’s range from 3-90 feet

(1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2 Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at

a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks

over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a

wall or ceiling (instead of at an angle) for better reception.

3 Building Materials can impede the wireless signal - a solid metal door or aluminum studs may

have a negative effect on range. Try to position wireless devices and computers with wireless

adapters so that the signal passes through drywall or open doorways and not other materials.

4 Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances

that generate extreme RF noise.

Getting Started

For a typical wireless setup at home, please do the following:

1. You will need broadband Internet access (a Cable or DSL-subscriber line into your home or

office)

2. Consult with your Cable or DSL provider for proper installation of the modem.

3. Connect the Cable or DSL modem to the TEW-611BRP Wireless Broadband Router (WAN port).

4. Ethernet LAN ports of the TEW-611BRP are Auto-MDIX and will work with both Straight-Through

and Cross-Over cable.
