TRENDnet TEW-635BRM - Wireless Router Bedienungsanleitung

TEW-635BRM

rev: 01.20.2009

• Wi-Fi compliant with IEEE 802.11n draft 2.0 standard

• Router + modem or modem only mode

• Compliant with ADSL, ASDL2 and ADSL2+

• Auto detection for PPPoE, PPPoA and IPoA Internet connection types

• 2 fixed 2dBi antennas support high speed performance and expanded coverage with MIMO technology

• Wireless Distribution System (WDS)

• Multiple SSID support with isolation

• Wireless on/off button

• Power on/off button

• Backwards compatible with IEEE 802.11b/g devices

• Supports Wi-Fi Protected Setup (WPS) to quickly connect wireless peripheral devices

• Universal Plug and Play (UPnP) and Application Level Gateway (ALG) support for Internet applications such as e-mail, FTP,

gaming, remote desktop, Net Meeting and telnet

• Internet Access Control via MAC Address, URL and IP Filtering

• Easy Web-browser configuration and remote management

• Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported

• Multiple VPN Pass-through sessions for IPSec, PPTP and L2TP

• Advanced wireless encryption : WEP, WPA-PSK, WPA2-PSK and 802.1x

• 3-year limited warranty

FEATURES

The 300Mbps Wireless N ADSL 2/2+ Modem Router delivers both

Internet access and a high-performance wireless n network in a single

solution.

No need to buy a separate modem and router. Install this device easily

and surf the Internet, download files, play games and talk online with

300Mbps wireless n technology.

Connect computers, gaming consoles, media players and storage

devices to the built in 4-port switch. The latest in wireless encryption

and a double firewall protect your valuable data. Advanced antenna

technology (MIMO) delivers broad coverage and minimizes dead spots.

One-touch Wi-Fi Protected Setup (WPS) synchronizes WPS peripheral

devices at the touch of a button.

TEW-635BRM(V1.0R)

300Mbps Wireless N ADSL2/2+ Modem Router

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will

vary depending on interference, network traffic, building materials and other conditions.

WPS Button

VPN Pass-Through

Protocol

ATM

Power Consumption

• Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) • Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)

• Cross Segment Static Route, RIP1, RIP2

• DHCP (Client/Server), SMTP, NTP

• PPTP, IPSec, L2TP (up to 100 sessions)

• Supports TM Cell over AAL5, UBR/CBR/VBR, VPI range (0-255) and VCI range (32 ~65535 ), multiple-PVC and OAM F4/F5

loopback

• 4 x 10/100Mbps Auto-MDIX port

• Web-browser configuration or remote management

• NAT Firewall with ALGs, Denial of Service(DoS) attack firewall, email alerts and log, access control, port forwarding, port range

forwarding and schedule-based URL filtering

Firewall

LAN

Standards

Hardware

SPECIFICATIONS

TEW-635BRM(V1.0R)

300Mbps Wireless N ADSL2/2+ Modem Router

• ADSL : ANSI T1.413 and multi-mode

• ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 G.lite, ITU G.992.3 Annex A ADSL2, ITU G.992.3 Annex A DELT, ITU G.992.3 Annex

L READSL2, ITU G.992.5 Annex A ADSL2+, ITU G.994.1 (G.hs) ver.3

• RFC2684 (RFC1483/2684), Multiprotocol over ATM

• Payload encapsulation

• RFC2684 (RFC1483/2684), Bridge mode

• RFC2364, PPP over ATM (CHAP and PAP supported)

• Supports auto-detection for VPI/VCI (VPI :0 ~10, VCI : 32 ~ 90) and multiplexing method (VC/LLC based)

• RFC2516, PPP over Ethernet

Routing

WAN

Management

Weight

Certification

Dimensions (LxWxH)

• 1 x RJ-11 port

• Wi-Fi Protected Setup button

• 6W (max)

• 175 x 130 x 30mm (6.90 x 5.12 x 1.18in.)

• 255g (8.99oz)

• Operating: 0°C ~ 40°C (32°F ~ 10°4F); Storage: -20°C ~ 70°C (-4°F ~ 158° F)

• FCC, CE

Temperature

Wireless Button

LED

Power

Power Button

• On/off wireless

• On/off power

• Power, Status, 10/100Mbps, Wireless, ADSL, Internet and WPS

• Internet Explorer v5.5 or higher, Netscape 7.0 or higher, Mozilla 1.6 or higher

• 12VDC, 1A external power adapter

Supported Browser

Humidity • Max 95% (non-condensing)

TEW-635BRM

rev: 01.20.2009

NETWORKING SOLUTIONS

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

RELATED PRODUCTS

PACKAGE CONTENTS

TEW-621PC

TEW-624UB 300Mbps Wireless N USB 2.0 Adapter

• CD-ROM (User's guide)

Wireless N PC Card

• TEW-635BRM

• Multi-Language Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

SPECIFICATIONS

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

TEW-623PI 300Mbps Wireless N PCI Adapter

• 1 x RJ-11 cable (0.9m,3ft.)

TEW-635BRM(V1.0R)

300Mbps Wireless N ADSL2/2+ Modem Router

• 1 x RJ-45 Ethernet cable (1.5m,4.92ft.)

• Power adapter (12VDC, 1A)

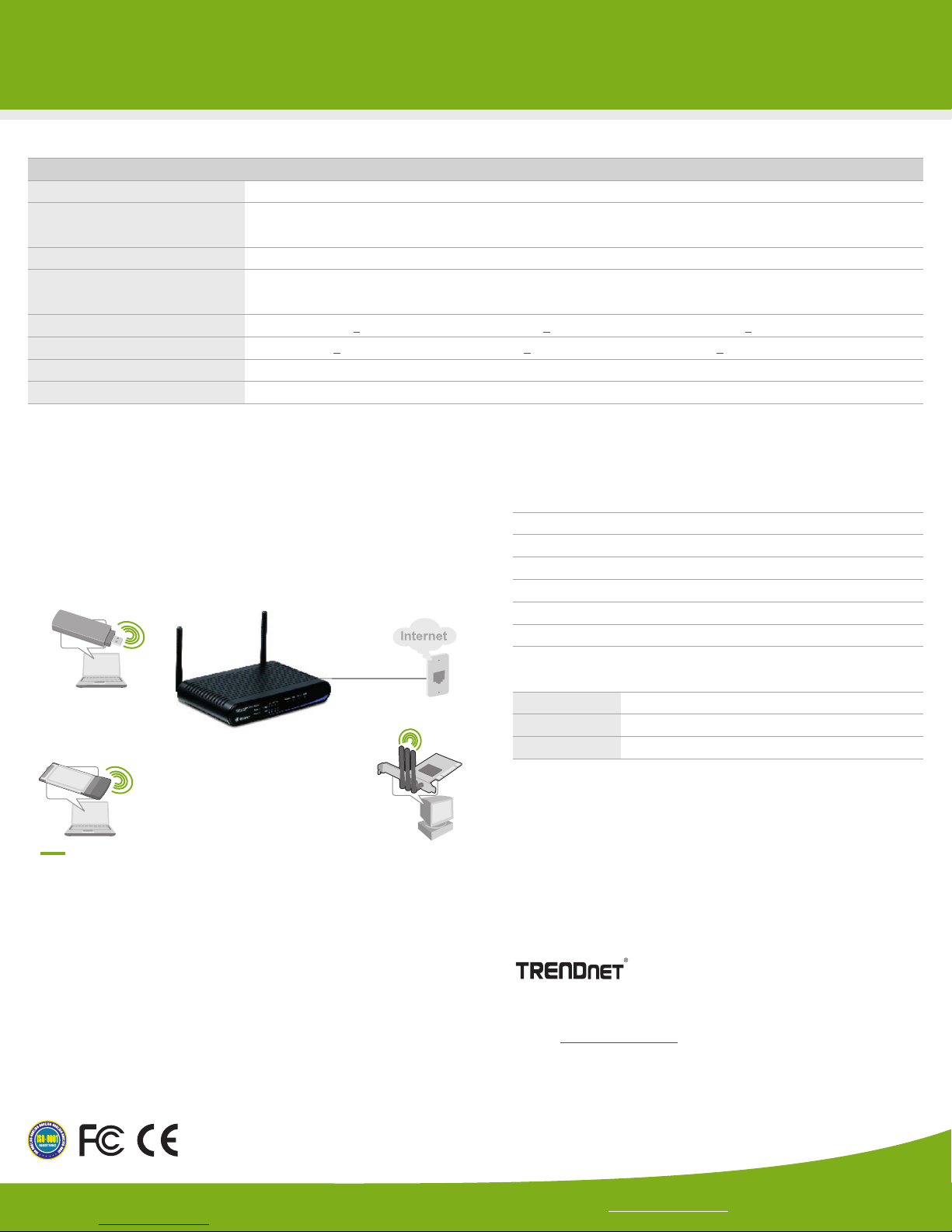

300Mbps

Phone Jack

Notebook with 300Mbps

Wireless N PC Card

(TEW-621PC)

300Mbps Wireless N

ADSL2/2+ Modem Router

(TEW-635BRM)

Workstation with 300Mbps

Wireless N PCI Adapter

(TEW-623PI)

ADSL Ready Line

Workstation with 300Mbps

Wireless N USB Adapter

(TEW-624UB)

Wireless

Frequency • 2.412 ~ 2.4835 GHz

Modulation Technique • 802.11n: BPSK, QPSK, 16QAM, 64QAM, OFDM • 802.11g: BPSK, QPSK, 16-QAM, 64-QAM, OFDM

• 802.11b: DBPSK, DQPSK, CCK

• 2 x fixed 2dBi antennas

Antenna

• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps

Data Rate (auto fallback) • 802.11n: up to 300Mbps

• 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

• 802.11b: 17dBm + 1.5 (typical)

Output Power • 802.11g: 15dBm + 1.5 (typical)

• 802.11n : 12.5dBm + 1.5 (typical)

Receiving Sensitivity • 802.11b: -86 + 1.5 dBm (typical) • 802.11g: -70 + 1.5 dBm (typical) • 802.11n: -69 + 1.5 dBm (typical)

Encryption • 64/128-bit WEP (Hex), WPA-PSK(TKIP), WPA2-PSK(AES), WPA-PSK/WPA2-PSK mixed (TKIP/AES) and WPA-802.1x

• 1 ~ 14 Channel (Universal Domain Selection)

Channels
