Trojan Iginte 370 Bedienungsanleitung

CAUTION

READ ALL PRECAUTIONS AND

INSTRUCTIONS INTHIS MANUAL

BEFORE USING THIS EQUIPMENT.

KEEP THIS MANUAL FOR

FUTURE REFERENCE.

Visit facebook.com/trojanhealth

www.trojanhealth.co.za

IGNITE 370

TREADMILL

USER MANUAL

10334

INDEX

• Important Safety Instructions ______________________________________ 3

• Grounding Instructions ___________________________________________ 5

• Pre Assembly Check List __________________________________________ 6

• Hardware & Tools List ____________________________________________ 7

• Assembly Steps _________________________________________________ 8

• Operation Instructions ___________________________________________ 11

• Pre-Set Programs _______________________________________________ 16

• Maintenance ___________________________________________________ 22

• Fitness Tips & Techniques__________________________________________ 24

• Conditioning Guidelines __________________________________________ 25

• Warm Up & Cool Down _________________________________________ 26

• Trouble Shooting _______________________________________________ 27

• Exploded Drawing ______________________________________________ 28

• Parts List ______________________________________________________ 29

• 1 Year Limited Warranty __________________________________________ 34

• Repairs Procedure ______________________________________________ 35

10334

IMPORTANT SAFETY

INSTRUCTIONS

It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and

instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest

is important. If any of these instructions or warnings are unclear, please contact our Trojan Call Centre on

0861 TROJAN (0861 876526), within the Republic of South Africa. International Consumers can contact us

on: +27 10 206 4405

The equipment is only intended for HOME USE and is NOT INTENDED FOR COMMERCIAL,

INSTITUTIONAL AND/OR STUDIO FACILITIES USE.

Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be

informed of the following information prior to use.

HEALTH WARNING

• Before starting any exercise or conditioning program you should consult with your personal physician to

see if you require a complete physical exam.This is especially important if you are inactive, pregnant or

suffer from any illness.

• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and

consult your physician.

• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each

session by cooling down and stretching.

ACCESS CONTROL

• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that

the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep

children away from all equipment.

• Parents or other supervising adults must provide close supervision of children if the equipment is used in

the presence of children.

INSTALLATION

Trojan recommends that all equipment:

• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over

during training.

• Be set up inside your home away from moisture and dust (the equipment is not designed for

outdoor use).

• Be set up with sufcient ventilation to ensure proper operation.

• Be set up with sufcient space around the equipment so that all exercises can be completed safely.

It is recommended that there should be at least 1 m of space around the equipment where access is

required to exercise.

10334

IMPORTANT SAFETY

INSTRUCTIONS

PROPER USAGE

• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is

imperative that Trojan equipment is used properly to avoid injury.

• Injuries may result from exercising improperly or excessively.

• Your Trojan equipment should only be used by one person at a time.

• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan

equipment to avoid injury.

• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.

• Servicing other than the procedures in this manual should be performed by an authorised service

representative only.

INSPECTION

• Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan

Equipment use only replacement parts supplied by Trojan.

• Always make sure that all nuts and bolts are tightened prior to each use.

• Maintain labels and nameplates – do not remove labels for any reason.They contain important

information.

• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please

ensure that you follow our maintenance tips to ensure the continued correct function of your Trojan

equipment.

• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.

• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the equipment

yourself.

• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.

OPERATING WARNINGS

• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all Trojan

equipment.

• Keep children away from all moving parts. Parents must provide close supervision of children if the

equipment is used in the presence of children.

• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that

users tie up long hair to avoid contact with moving parts.

• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while

the machine is in operation.

USER WEIGHT LIMITATIONS

• This Trojan Ignite 370 Treadmill may not be used by persons weighing more than 120 kg.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE

If any of these instructions or warnings are unclear please contact Trojan Customer Services on

0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.

10334

GROUNDING INSTRUCTIONS

WARNING

• Never use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord

away from any moving parts of the treadmill including the elevation mechanism and transport wheels.

• Never remove any cover without rst disconnecting AC power.

• Never expose this treadmill to rain or moisture.This treadmill is not designed for use outdoors, near a

pool, or in any other high humidity environment.

This product must be grounded. If a malfunction or breakdown occurs, grounding provides a path of

least resistance for electric current to reduce the risk of electric shock.This product is equipped with a

cord having an equipment-grounding conductor and a grounding plug.The plug must be plugged into

an appropriate outlet that is properly installed and grounded in accordance with all local codes and

ordinances.

DANGER – improper connection of the equipment-grounding conductor can result in a risk of electric

shock. Check with a qualied electrician or serviceman if you are in doubt as to whether the product is

properly grounded. Do not modify the plug provided with the product. If it will not t the outlet have a

proper outlet installed by a qualied electrician.

This product is for use on a nominal 220-240 volt circuit and has a grounding plug that looks like

the plug illustrated in the gure. Make sure that the product is connected to an outlet with the same

conguration as the plug. No adaptor should be used with this product.

GROUNDED OUTLET

GROUNDING PIN

610334

PRE ASSEMBLY CHECK LIST

Thank you for choosing the Trojan Ignite 370 Treadmill.We take great pride in producing this

product and hope it will provide many hours of quality exercise to make you feel better, look

better and enjoy life to its fullest.Yes, it’s a proven fact that a regular exercise program can improve

your physical and mental health.Too often, our busy lifestyles limit our time and opportunity to

exercise.The Trojan Ignite 370 Treadmill provides a convenient and simple method to begin your

assault on getting your body in shape and achieving a healthier lifestyle. Before reading further,

please review the drawing below and familiarise yourself with the parts that are labelled.

Read this manual carefully before using the Trojan Ignite 370 Treadmill.

Side Cover

Console Display

Safety Key

Heart Rate Sensor

Hand Rail

Running Deck

Side Rail

Power Switch

Speed: 1-16 km/h

Functions: Time / Speed / Distance / Incline / Calories / Pulse

Programs: 25 Pre-set

Elevation: 10 Levels

Running deck (mm): 1200 mm (l) x 450 mm (w)

Set-up size (mm): 1730 mm (l) x 780 mm (w) x 1340 mm (h)

User weight (mm): 120 kg (maximum)

10334

HARDWARE & TOOLS LIST

INSTRUCTIONS FOR ASSEMBLY

• Before you start to assemble, please check the hardware packaging to make sure all parts are included.

• Basic tools, such as spanners will be required for assembly.

No. Description Qty

57 Cross Head Screw ST4.2 x 13 mm 8 pcs

44 Cup Head Hex Screw M8 x 50 mm 4 pcs

55 Lock Nut M8 4 pcs

45 Cup Head Hex Screw M6 x 16 mm 8 pcs

51 Flat Washer Ø8 mm 4 pcs

52 Saddle washer Ø8 mm 12 pcs

Spanner 1 pcs

Hex Key 5 mm 1 pcs

Hex Key 6 mm 1 pcs

Hardware Kit B01154500

ST4, 2 x 13 mm Cross

Head Screw (57) 8 pcs

M8 x 16 mm Cup Head

Hex Screw (45) 8 pcs

M8 x 50 mm Cup Head

Hex Screw (44) 4 pcs

Spanner 1 pcs

6 mm Hex Key 1 pcs

Ø8 Flat Washer-C

(51) 12 pcs

Ø8 Saddle Washer

(52) 4 pcs

M8 Non-Metal Hex

Nut (55) 4 pcs

5 mm Hex Key 1 pcs

10334

ASSEMBLY STEPS

INSTRUCTIONS FOR ASSEMBLY

• Unpack the carton and use the parts check list to check that all parts are accounted for.

• Do not dispose of the packaging material until assembly is completed.

• Tools are provided for use in assembly.

• Majority of the parts here have been preassembled at the factory.

STEP 1: UPRIGHT BAR ASSEMBLY

• Pull the Base Frame Connect Wire (85) up through the Right Upright Bar (4). Connect the Left / Right

Upright Bar (3 / 4) to the Base Frame (1) with one Cup Head Hex Screw (45) and one Flat Washer

(52) on the back of the Upright Bars.

• Insert two Cup Head Hex Screw (44) and two Flat Washers (51) on the outsides of the

Upright Bars (3 / 4).

Note: Take care not to pinch the wires during this step.

10334

ASSEMBLY STEPS

STEP 2: CONSOLE ASSEMBLY

• Connect Console Wire (84) to the Base Frame Connect Wire (85) that has been pulled up through the

Right Upright Bar (4).

• Place the Console (5) on top of the Upright Bars and secure in place with one Cup Head Hex Screw

(45) and one Flat Washer (52) on the back of the Upright Bars (3 / 4).

10334

ASSEMBLY STEPS

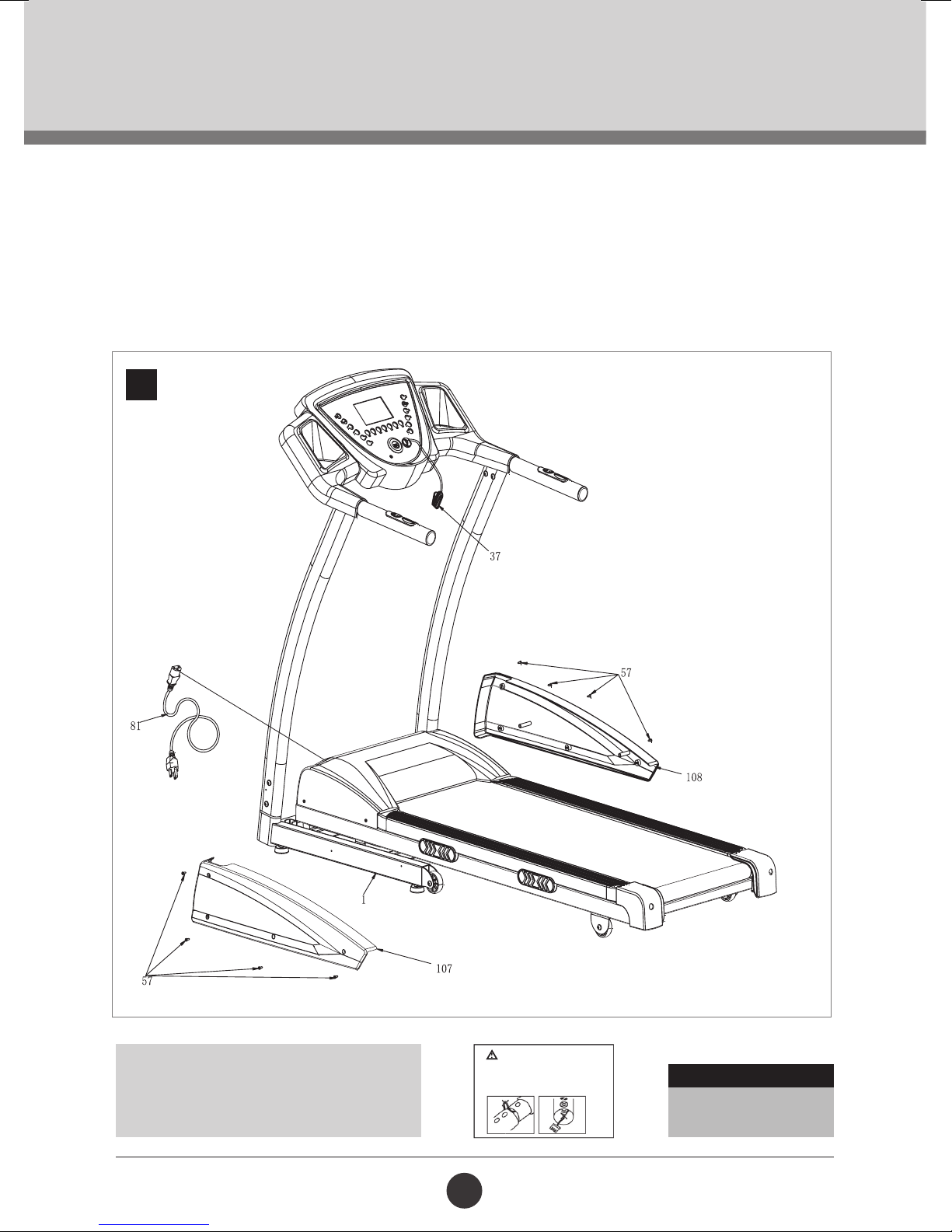

STEP 3: UPRIGHT LOWER COVER ASSEMBLY

• Attach the Left Upright Lower Cover (107) and Right Upright Cover (108) with four Cross Head

Screws (57) on either side of the Base Frame (1).

• Insert the Safety Key (37) into the slot on the Console.

• Insert the Power Cord into the slot on the rear of the Motor Cover.

CAUTION:

Ensure that cables are not damaged

during assembly or when

tightening screws.

Recheck

All bolts and nuts are

tightened securely

before using the machine

• Assemble product carefully

• Do not pinch or damage the wires

• Avoid damaging wires with bolts

CAUTION:
