QUAD CPU Card ///

M4985

Revision 1.00

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, QUAD CPU Cardsare trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Phoenix BIOS is a trademark of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark ofSuSE AG.

Linux is a trademark of LinusTorvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin… Page 4

Chapter 1: Introduction

Congratulations Page 4

Hardware Specifications Page 4

Chapter 2: Board Installation

2.00 Board Image Page 6

2.01 Block Diagram Page 7

2.02 Board Parts,Jumpers and Connectors Page 8

2.03 Power SwitchJumper (J1) Page 9

2.04 CPU Fan Connectors Page 10

2.05 Chassis 3-PIN FAN Connectors Page 10

2.06 OEM Reserved Connectors and Jumpers Page 10

2.07 Installing the Processor(s) Page 11

2.08 Heatsink Retention Frame Installation Page 12

2.09 Thermal Interface Material Page 13

2.10 Heatsink Installation Procedures Page 14

2.11 Finishing Installing the Heatsink Page 15

2.12 Installing the Memory Page 16

2.13 Installing the Power Supply Page 19

2.14 Finishing up Page 20

Chapter 3: InstallM4985 to S4985

3.01 Installing HT4881 Cards into M4985 Page 21

3.02 Installing Heat Sinks of S4985 Page 21

3.03 Installing M4985 onto S4985 Page 21

Chapter 4: Diagnostics Pare 22

Technical Support Page 23

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x QUAD CPU Cards motherboard

1x QUAD CPU Cards user’s manual

2x HT4881 card

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

Congratulations

You have purchased one of the most powerful AMD OpteronTM

processor solutions, the

M4985 processor expansion card. It is the expansion board of Tyan Thunder n4250QE

S4985. You may upgrade four-way S4985 to eight-level processing platform through use

of HT4881 and M4985 add-on modules.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades.

Hardware Specifications

Processor

-Supports four AMD OpteronTM Socket F

(1207) 8000 series processors

-Four onboard 5-phase digital VRMs

HardwareMonitor

-Two Analog Devices ADT7476

Hardware Monitoring IC

-Six 4-pin fan headers support

tachometer

-Temperature and voltage monitoring

Memory

-Dual channel memory bus

-Sixteen DDR2 DIMM sockets (four

per CPU)

-Supports up to 64GB registered

DDR2 memory

-Supports ECC type memory modules

-Supports DDR2-667/533/400

-Supports four rank memory

Form Factor

-12”x 13”dimension with special

architecture

-Requires two HT4881 Hyper

TransportTTMMconnectors to mount on

to the S4985

Power Supply

-EPS12V power supply

-EPS12V/SSI v3.5 (24+8+8)

powerconnectors

http://www.TYAN.com

Chapter 2: Board Installation

Precaution:The QUAD CPU Card ssupports EPS12V power supplies (24-pin+8-pin+8-

pin) and will not operate with any other types.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

(6) Specially take care of the 2 HT slots on the solder side (bottom) of the

motherboard.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory andcables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

2.1 –Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

http://www.TYAN.com

This is the solder side (bottom) of M4985 , and you can see the two HT 4985

slots clearly.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

2.2–Block Diagram

M4985 Processor Expansion Board Block Diagram

Note: The Hyper Transport speed between HT CON & CPU can reach up to 2000MT/S

http://www.TYAN.com

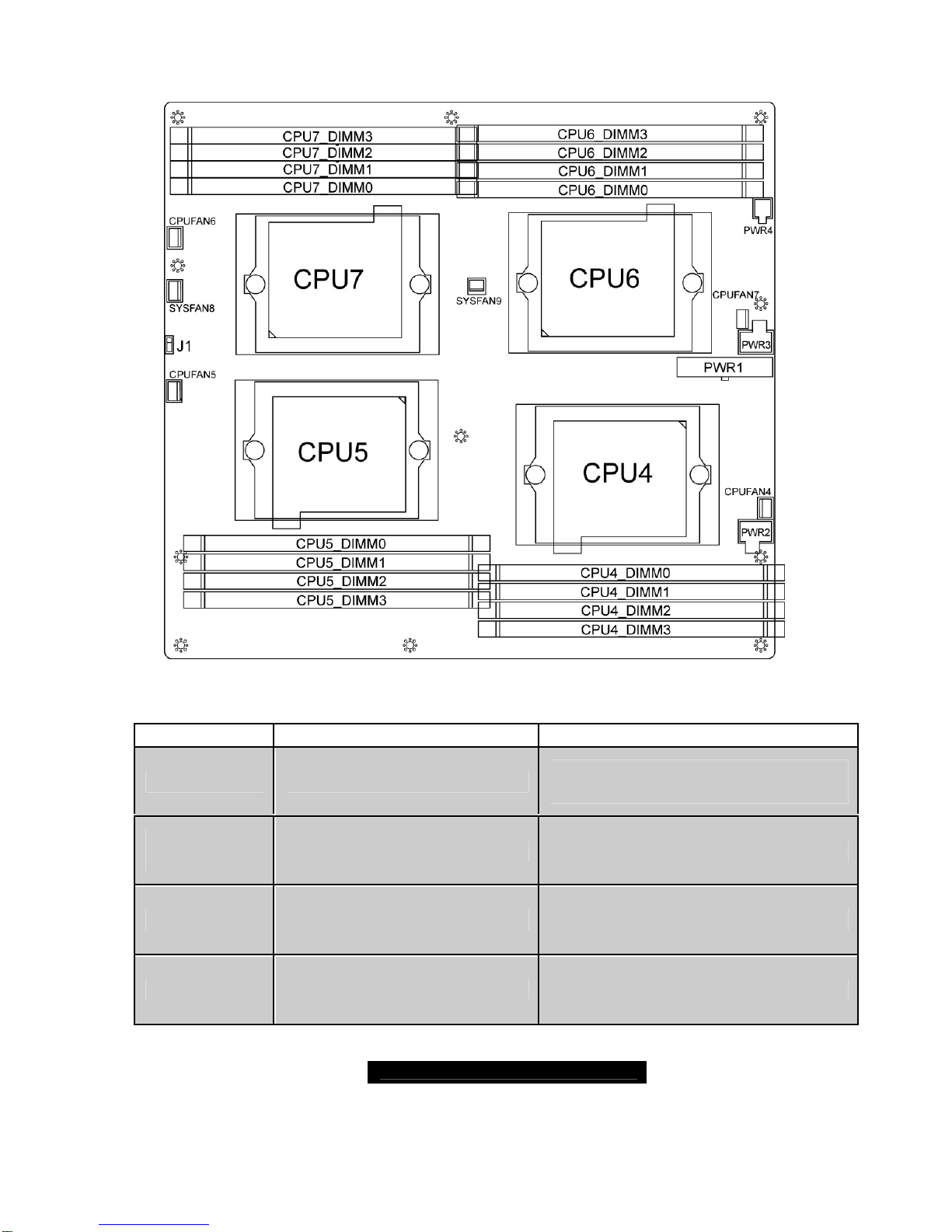

2.3–Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Function

Settings

J1 Power Switch See Section 2.03 for pin out

configuration

CPUFAN4/5/

6/7 CPU Fan ConnectorsSee Section 2.04

PWR1/2/3/4 PWR CON See Section 2.13

SYSFAN8/9 System Fan Connectors See Section 2.05

http://www.TYAN.com

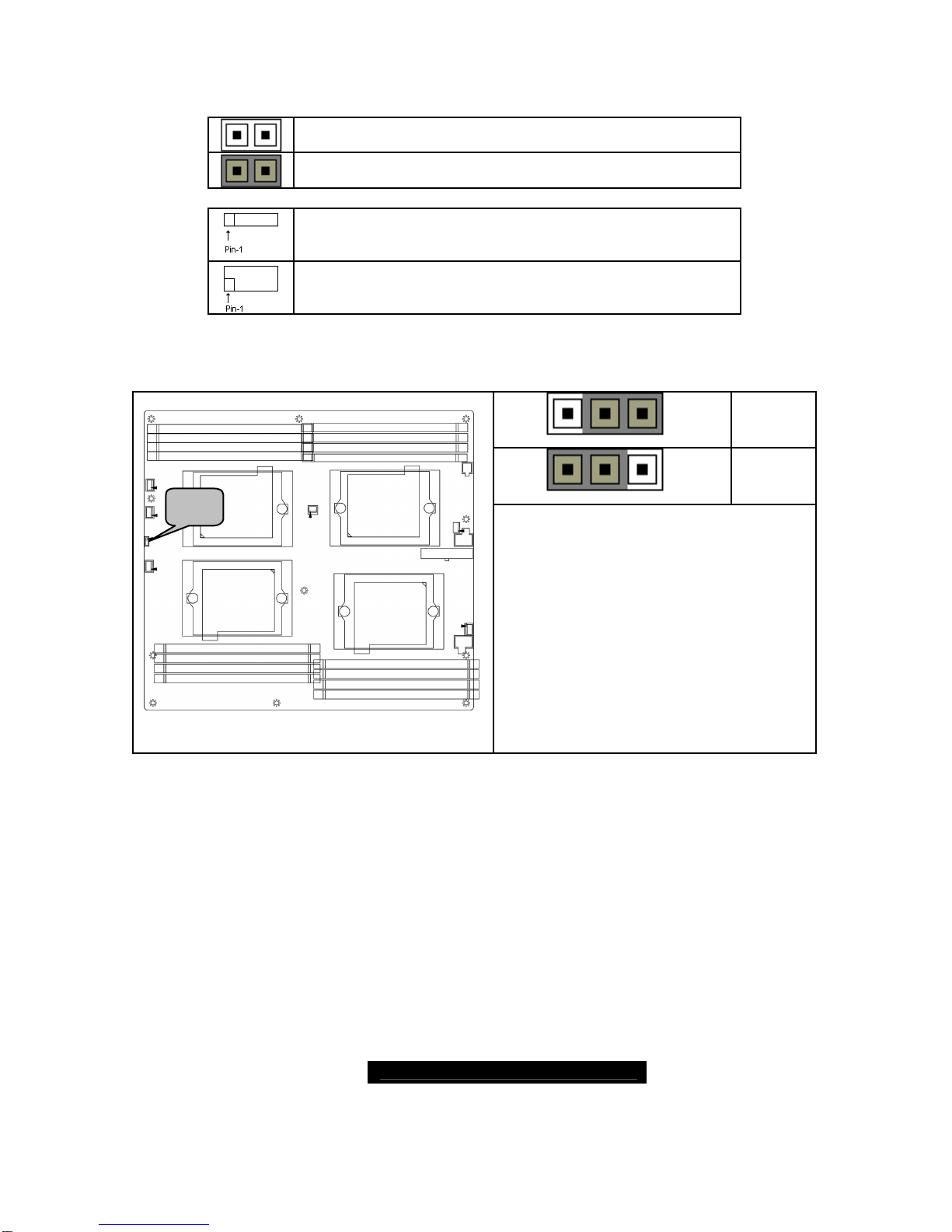

JumperLegend

OPEN -Jumper OFF Without jumper cover

CLOSED -Jumper ON With jumper cover

To indicate the location of pin-1

2.3.1 –Power Switch Jumper (J1)

Pin_1Pin_3

Single

Power

(Default)

Pin_1Pin_3Multi-

Power

In single power mode, the power supply

should provide : (1620W or more)

8pin 12V power connector×4

4pin 12V power connector×2

24pin 12V power connector×2;

In multi-power mode, two pwer supply

will support S4985 and M4985

separately.Each one should

provide:(850W or more)

8pin 12V power connector×2

4pin 12V power connector×1

24pin 12V power connector×1
