TYAN THUNDER K8QE Bedienungsanleitung

http://www.TYAN.com

Thunder K8QE /// S4885G2NR

Revision 1.00

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, Thunder K8QE are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Phoenix BIOS is a trademark of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

XGI and XG20 are trademarks of XGI Corporation

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin… Page 4

Chapter 1: Introduction

Congratulations Page 5

Hardware Specifications Page 5

Software Specifications Page 6

Chapter 2: Board Installation

2.00 Board Image Page 8

2.01 Block Diagram Page 9

2.02 Board Parts, Jumpers and Connectors Page 10

2.03 Front Panel Connector (J115) Page 12

2.04 Clear CMOS Jumper (J20) Page 13

2.05 SMBus Connector (J1) Page 13

2.06 USB 2.0 Header (J30, J95) Page 14

2.07 Chassis Intrusion (JP2) Page 14

2.08 Serial Port Internal Header (J101) Page 15

2.09 RI Header (JP1) Page 15

2.10 Gigabit LAN1, LAN2 LED Header (JP4,JP5) Page 16

2.11 ID Switch (J118) Page 16

2.12 ID LED (J119) Page 17

2.13 NMI (J22) Page 17

2.14 CPU Fan Connectors

(J117, J116, J108, J109) Page 18

2.15 Chassis 4PIN FAN Connectors

(J103, J104, J105, J106, J107, J110) Page 18

2.16 System 3-Pin Fan Connectors (J111,J112) Page 19

2.17 EXT_SCSI_LED(J32) Page 19

2.18 PWR Connector (PWR3) Page 20

2.19 PWR Connector (PWR4) Page 20

2.20 OEM Reserved Connectors and Jumpers Page 21

2.21 Installing the processors Page 21

2.22 Heatsink Retention Frame Installation Page 24

2.23 Thermal Interface Material Page 23

2.24 Heatsink Installation Procedures Page 24

2.25 Finishing Installing the Heatsink Page 25

2.26 Tips on Installing Motherboard in Chassis Page 26

2.27 Installing the Memory Page 28

2.28 Attaching Drive Cables Page 31

2.29 Installing Add-In Cards Page 33

2.30 PCI Riser Cards Page 34

2.31 Connecting External Devices Page 35

2.32 Installing the Power Supply Page 35

2.33 Finishing Up Page 37

Chapter 3: BIOS Setup

3.00 BIOS Setup Utility Page 38

3.10 BIOS Menu Bar Page 39

3.20 BIOS Legend Bar Page 39

3.30 BIOS Main Menu Page 40

3.40 BIOS Advanced Menu Page 40

http://www.TYAN.com

3.41 Hammer Configuration Sub-Menu Page 42

3.42 Integrated Devices Sub-Menu Page 44

3.43 PCI Configuration Sub-Menu Page 48

3.44 IDE Configuration Sub-Menu Page 51

3.45 Floppy Configuration Sub-Menu Page 53

3.46 I/O Device Configuration Sub-Menu Page 54

3.47 Hardware Monitor Sub-Menu Page 55

3.48 Console Redirection Sub-Menu Page 56

3.49 Watchdog Timer Option Sub-Menu Page 57

3.50 BIOS Memory Menu Page 59

3.60 BIOS Security Menu Page 60

3.70 BIOS Boot Menu Page 61

3.71 Boot Device Priority Page 62

3.80 BIOS Power Menu Page 63

3.90 BIOS Exit Menu Page 65

Chapter 4: Diagnostics Page 66

4.10 Beep Codes Page 66

4.20 Flash Utility Page 66

Appendix I: Glossary Page 67

Appendix II: BIOS POST Code Page 72

Technical Support Page 75

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder K8QE motherboard

1x 34-Pin floppy drive cable

4 x SATA cable

2x SATA Drive Power Adapter

2x Ultra-DMA-100/66 IDE cable

1x Cable set: 9-pin Serial and 25-pin Parallel

1x Thunder K8QE user’s manual

1x Thunder K8QE Quick Reference guide

1x TYAN driver CD

1x I/O shield with 2 LAN ports

4 x CPU Mounting Kit

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

Congratulations

You are now the owner of the ideal solution for rackmount servers, large computer

clusters, or pedestal server needs. The Tyan Thunder K8QE features support for Quad

AMD Opteron processors, dual channel Gigabit Ethernet, Serial ATA (SATAII).The

Thunder K8QE also offers the option to upgrade to eight-level processing capabilities

through use of HT4881 and M4881 add-on modules.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades.

Hardware Specifications

Processor

Quad PGA 940　-pin ZIF sockets

Supports up to four Single/Dual Core AMD

OpteronTM 800 series processors

Four onboard 4-phase VRMs

Chipset

NVIDIA nForce Professional 2200

(CK804pro)

NVIDIA nForce Professional 2050 (IO4)

Winbond W83627HF Super I/O

Three Analog Devices ADT7476 Hardware

Monitoring IC

Memory

128-bit dual channel memory bus

Sixteen 184-pin DDR DIMM sockets (Four

per CPU)

Supports up to 64GB Registered DDR

Memory

Supports ECC type memory modules

Supports DDR400, DDR333, or DDR266

Supports Single, Dual and Quad Rank

Memory

Expansion Slots

Two x16 PCI Express slots with x16 signal

Two x16 PCI Express slots with x4 signal

One 32bit/33MHz PCI v2.3 slot

Total of five usable slots

Integrated ATA-133

Two ATA-133 Channels for up to four ATA-

133 devices

Integrated SATA Controllers

Four Integrated dual port SATAII

Controllers (Two from CK804 Pro and two

from IO4)

Supports up to eight SATAII drives

Supports up to 3.0Gb/s

Supports 4 independent SATAII ports

Supports Raid 0, 1, 0+1

Integrated I/O

One floppy connector supports up to two

drives

One parallel port header and two serial

ports (one connector, one header)

Six USB 2.0 EHCI ports (two rear port

connectors & 2x 2 port headers)

PS/2 mouse and keyboard connectors

System Management

Modular BMC 2 x 25-pin header for SMDC

support

Six 4-pin fan headers support tachometer

monitoring and smart FAN control (PWM)

Four 3-pin fan headers support tachometer

monitoring

Temperature and voltage monitoring

Port 80h LED display

Integrated Video Controller

XGI XG20

PCI interface

16MB DDR memory

http://www.TYAN.com

Intelligent Platform Management

Interface Header

Tyan Server Management Daughter card

(Optional) support via IPMI header

Renesas Baseboard Management

Controller (BMC) tailored for IPMI 2.0 Spec

Supports KCS and BT styles

Flexible Windows or Linux Management

Solution

Supports RMCP and SNMP protocols

Supports ASF standard and EMP

I2C serial multi-master controllers and

UARTs

Built-in IPMB connector

Remote power on/off and reset support

(IPMI-over- LAN)

Hyper Transport™ Connectors

Two PCI Express x16 slots with TYAN

private signal definition which uses the

Hyper Transport to connect two HT cards

to the M4881. (CPU Board specifically

Integrated LAN Controllers

Two Marvell® 88E1111 GbE PHY

• Each one has RJ-45 LAN connector with

LEDs

• Each one has front panel LED header

One Intel 82541 GbE LAN controller

• RJ-45 LAN connector with LED

BIOS

PhoenixBIOS® on 8Mbit LPC Flash ROM

ACPI 2.0

Serial Console Redirect

USB device boot

48-bit LBA Support

Power management:S0, S1, S4 and S5

Form Factor

SSI MEB Footprint (13”x16”)

EPS12V/SSI v3.5(24 + 8 + 8) power

connectors

Serial (one) connectors and one VGA port

Stacked USB 2.0 connectors

Stacked PS/2 keyboard and mouse

connectors

Three RJ-45 LAN connector with LEDs

Power Supply

EPS12V Power Supply

*Not validated at the time of print, subject

to change.

Software Specifications

OS (Operating System) Support:

Microsoft Windows 2003 Enterprise Server(32/64-bit)

Microsoft Windows 2003 Server (32/64 bit)

RHEL 4 Update 1 64-bit

SuSE Enterprise 9.0 SP2 64bit

SuSE 10.0 64-bit

Other distributions of Linux pending validation

TYAN reserves the right to add support or discontinue support for any OS with or

without notice.

http://www.TYAN.com

Chapter 2: Board Installation

Precaution: The Thunder K8QE supports EPS12V power supplies (24-pin/8-pin) and will

not operate with any other types.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

2.00 – Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

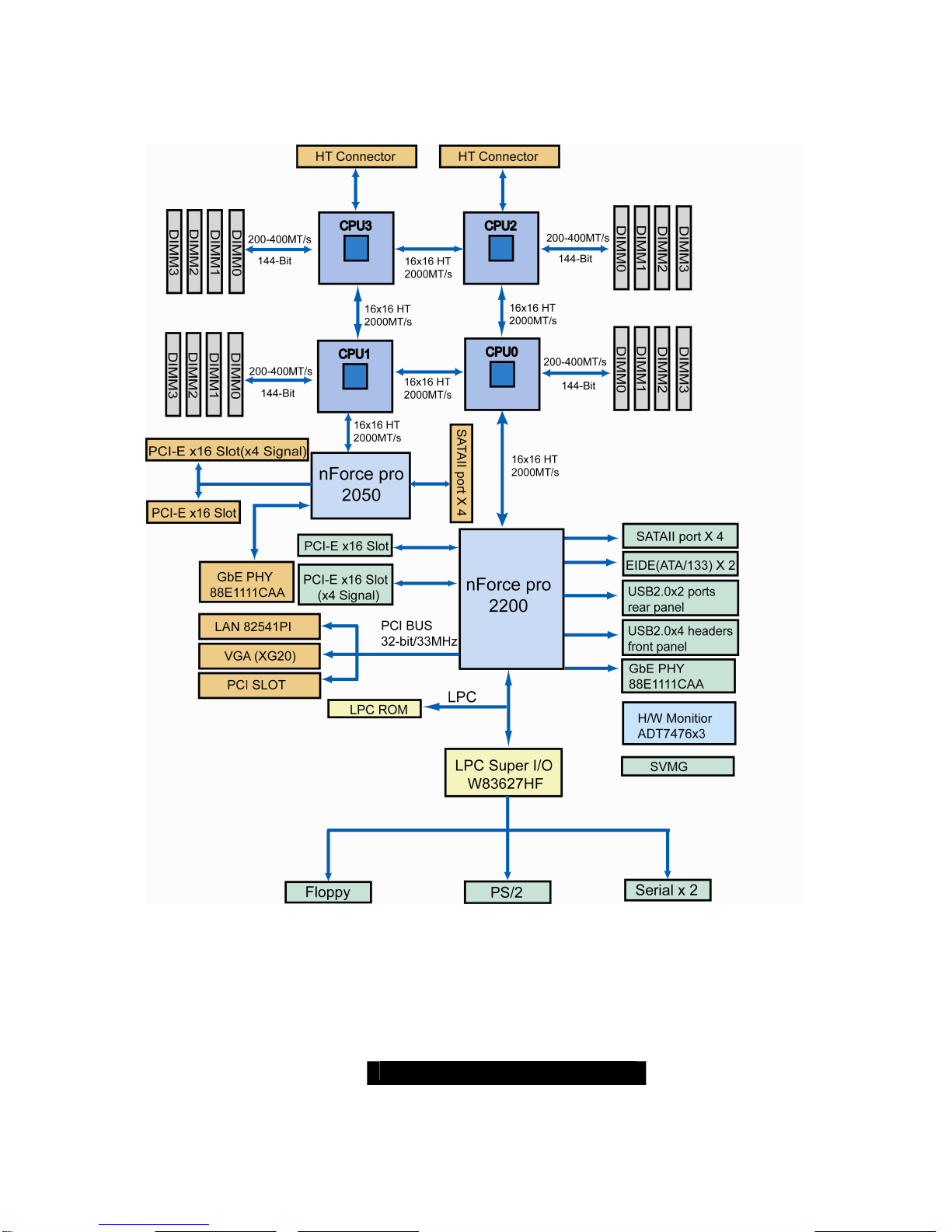

2.01 – Block Diagram

S4885 Thunder K8QE Block Diagram

Note: The Hyper Transport speed between HT CON & CPU can reach up to 2000MT/S

http://www.TYAN.com

2.02 – Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN S8050 Bedienungsanleitung

TYAN

TYAN Tempest i5100X Bedienungsanleitung

TYAN

TYAN TIGER I7501X Bedienungsanleitung

TYAN

TYAN S1570 AT Bedienungsanleitung

TYAN

TYAN S1846 Tsunami ATX Bedienungsanleitung

TYAN

TYAN Tiger K8WE Bedienungsanleitung

TYAN

TYAN Thunder n3600W S2935 Bedienungsanleitung

TYAN

TYAN TOMCAT N3400B Bedienungsanleitung

TYAN

TYAN Tiger K8WE Bedienungsanleitung

TYAN

TYAN Thunder K8W S2885 Bedienungsanleitung

TYAN

TYAN Thunder i7501 Pro S2721-533 Bedienungsanleitung

TYAN

TYAN TOMCAT K8E-SLI Bedienungsanleitung

TYAN

TYAN S5630 Bedienungsanleitung

TYAN

TYAN TEMPEST I5000XT Bedienungsanleitung

TYAN

TYAN THUNDER N3600S Bedienungsanleitung

TYAN

TYAN TOMCAT K8E Bedienungsanleitung

TYAN

TYAN S7120 Bedienungsanleitung

TYAN

TYAN THUNDER N6650W Bedienungsanleitung

TYAN

TYAN S5552 Bedienungsanleitung

TYAN

TYAN S5501 Bedienungs- und Wartungshandbuch

TYAN

TYAN S1830 TSUNAMI AT Bedienungsanleitung

TYAN

TYAN THUNDER H2000M Bedienungsanleitung

TYAN

TYAN TITAN TURBO PLUS ATX Bedienungsanleitung

TYAN

TYAN TITAN TURBO AT Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
