TYAN Tempest i5000VS S5372 Bedienungsanleitung

Tempest i5000VS /// S5372

Version 1.2a

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Tempest i5000VS are trademarks of TYAN Computer Corporation.

Intel, Blackford-VS, and combinations thereof are trademarks of Intel

Corporation.

Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations…………………………………………………………… 5

1.2 Hardware Specifications………………………………………………… 5

Chapter 2: Board Installation

2.1 Board Image……………………………………………………………… 10

2.2 Block Diagram……………………………………………………………. 11

2.3 Board Parts, Jumpers and Connectors………………………………... 12

2.4 Tips on Installing Motherboard in Chassis…………………………….. 22

2.5 Installing the Processor(s)………………………………....................... 23

2.6 Installing the Memory……………………………………………………. 26

2.7 Attaching Drive Cables………………………………………………….. 28

2.8 Installing Add-in Cards………………………………............................ 30

2.9 Connecting External Devices…………………………………………… 31

2.10 Installing the Power Supply……………………………………………... 32

2.11 Finishing up………………………………………………………………. 32

Chapter 3: BIOS Setup

3.1 About the BIOS…………………………………………………………… 33

3.2 BIOS Main Menu…………………………………………………………. 35

3.3 Advanced Menu………………………………………………………….. 43

3.4 Security Menu…………………………………………………………….. 55

3.5 Power Menu………………………………………………………………. 56

3.6 Boot Menu………………………………………………………………… 57

3.7 Exit Menu…………………………………………………………………. 58

Chapter 4: Diagnostics

4.1 Beep Codes………………………………………………………………. 59

4.2 Flash Utility……………………………………………………………….. 59

4.3 BIOS Post Code………………………………………………………….. 60

Appendix I: SMDC Information

Appendix II: How to Make a Driver Diskette

Glossary

Check the box contents!

1x S5372 motherboard

1x 34-Pin floppy drive cable

1 x Ultra-DMA-133/100/66/33 IDE cable

3 x Serial ATA power cable

6 x Serial ATA Cable

1 x USB2.0 cable

1x Serial Port Cable

1 x S5372 user’s manual

1 x S5372 Quick Reference guide

1 x TYAN driver CD

1 x I/O shield

2 x CPU Back Plane

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Tempest

i5000VS (S5372) is a flexible Intel®platform for multiple applications, based on

Intel®“Blackford-VS” MCH and ESB2 chipsets.

Designed to support Intel®Xeon 5000/5100/5300 processors and DDR2-

533/667 FB-DIMM memory, and featured with integrated Dual Gigabit Ethernet

LAN, built-in 16MB XGI XG20TM video plus six serial ATA ports, the S5372

offers exceptional performance and versatile solution for your server platform.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processors

•Dual LGA771 sockets

•Supports up to two (2) IntelRXeon

5000/5100 series processors with

667/1066/1333 MHz FSB

•Supports up to two (2) IntelRXeon

5300 series processors with1066

MHz FSB

Chipset

•IntelR“Blackford-VS” MCH+ESB2

chipset

•SMSC SCH5017 super I/O chip

Memory

•Six (6) 240-pin DDR2 FBDIMM*

sockets

•2 memory channels

•Supports ECC DIMMs

•Maximum of 16/24GB of DDR2

FBDIMM 533/667

*FB-DIMM: Fully Buffered DIMM

Integrated LAN Controllers

•Dual Gigabit MAC (ESB2

embedded) with i82563EB Dual

PHY

•One Intel i82551QM fast Ethernet

controller

- operating at 32bit/33MHz

interface

•Pin headers for front panel LAN

LED

Integrated PCI IDE (ESB2)

•Single channel master modes

support up to two (2) IDE

devices

•Support Ultra ATA-100/66/33 IDE

drives and ATAPI compliant

devices

Integrated SATA Controller

(ESB2)

•One (1) Serial ATA Host controller

embedded

•Supports six (6) ports running up

to 3.0Gb/s

•RAID 0, 1, 5, 10 supported

Expansion Slots

•One (1) 64/133 PCI-X slot in-lined

with one (1) inversed PCIe x4

slot (routed to PCIe x8 bus)

•One (1) 32/33 PCI 2.3 slot

•One (1) x8 PCI-E slot (with PCIe

x4 bus)

•One (1) Tyan TARO SO-DIMM

socket

Integrated I/O

•One (1) floppy connector

•One (1) IDE connector

•Six (6) SATA ports

•Four (4) USB 2.0 ports (2 at rear,

2 via cable)

•Two (2) COM port (1 at rear, 1 via

cable)

•Tyan 2x9 front-panel pin header

•Tyan 2x6 front-panel pin header

for LAN/ID LED

•2 x 25 connector for optional Tyan

IPMI SMDC

System Management

•SMSC SCH5017 & EMC6D103S

& Winbond W83793G with H/W

monitoring IC

•Two (2) 3+1-pin CPU fan headers

with tachometer monitoring and

auto fan speed control

•Four (4) 3+1-pin system fan

headers with tachometer

monitoring and auto fan speed

control

•Temperature and voltage

monitoring

•Chassis intrusion header

•IPMB connector for optional Tyan

SMDC card

•Watchdog timer

•Port 80 code display LED

BIOS

•PhoenixBIOS on 8Mbit Flash

ROM

•Supports APM 1.2 & ACPI 1.0

•SATA activity LED connector

Back Panel I/O Ports

•Stacked PS/2 Mouse & Keyboard

ports

•Stacked two (2) USB 2.0 and one

(1) RJ45 10/100 ports with

activity LED

•One (1) 15-pin VGA port

•One (1) 9-pin COM port

•Two (2) RJ45 10/100/1000 Base-

T port with activity LED

Integrated PCI Graphics

•XGI XG20 PCI graphics controller

•16MB DDR Frame Buffer of video

memory

Optional Modules

•M3291, IPMI 2.0 Remote System

Management Card

- Renesas H8S2167 BMC

controller

- BT, KCS, Logging support

- IPMI-over-LAN

- Remote power on/off and reset

•M7901/M7902, Ultra 320 SCSI

“TARO” card

- Adaptec AIC-7901/7902

single/dual-channel Ultra320 SCSI

controller

- Adaptec HostRAID 0, 1 & 10

supported

•M9000 SAS/SATA II “TARO” card

- Adaptec AIC-9405/9410 SAS

controller

- Supports up to 4-port (M9000-5)

and 8-port (M9000-10) SAS &

SATA running at 3.0Gb/s

- Adaptec HostRAID 0,1 & 10

supported

Power

•Onboard dual 5-phase VRM

•EPS 12V/SSI (24+8-pin) power

connectors

•Serial Console Redirect

•USB boot supported

•PnP, DMI2.0, WfM2.0 power

management

Form Factor

•SSI CEB v1.01 footprint

•12.0” x 10.5” (305mm x 267mm)

Regulatory

•FCC Class B (DoC)

•CE (DoC)

•BSMI (optional)

NOTE

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Tempest i5000VS S5372 matches the SSI CEB v1.01 specification. Before

continuing with installation, confirm that your chassis supports an SSI CEB

v1.01 motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

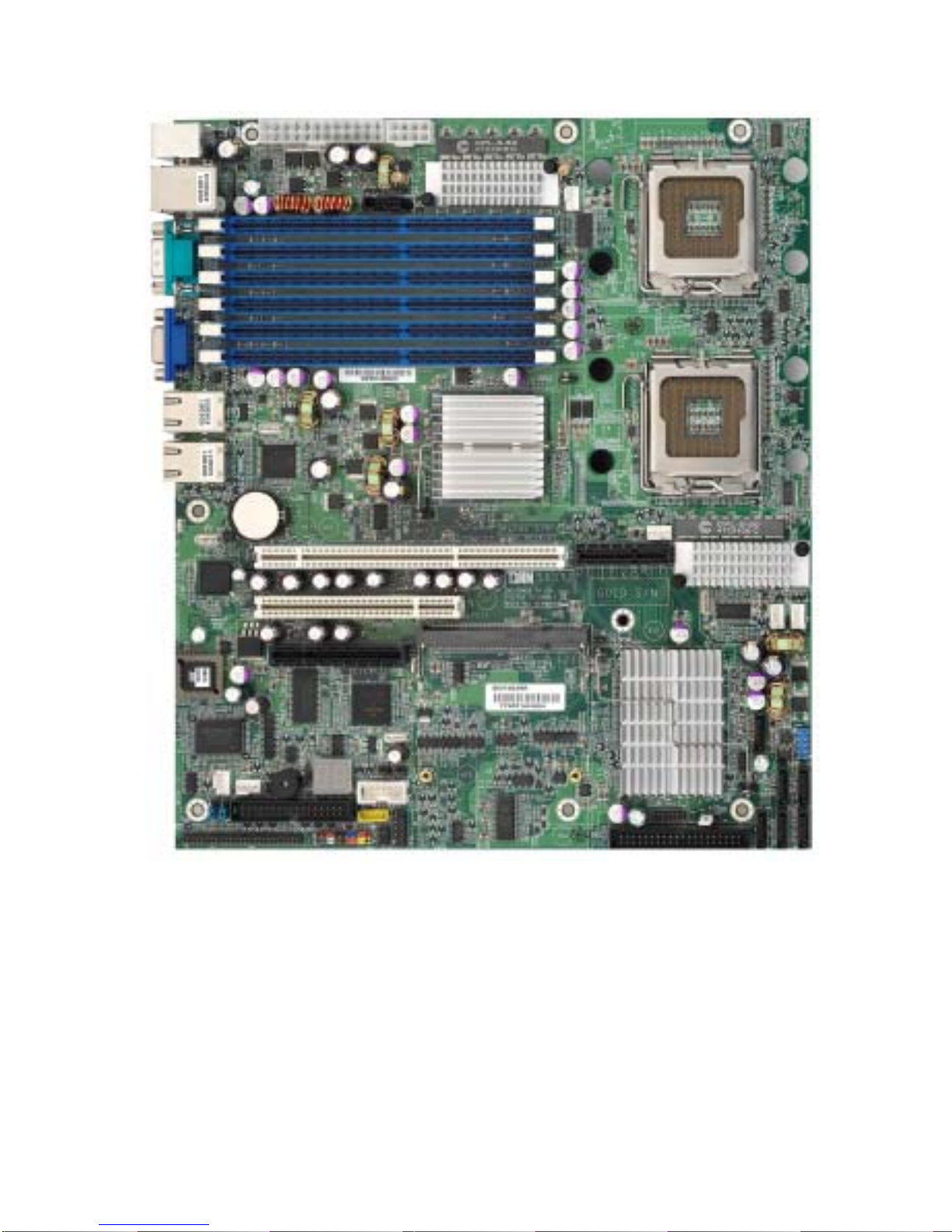

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.
