U-Line H-7206 Bedienungsanleitung

PAGE 1 OF 3 0218 IH-7206

πH-7206

LD3500 AUTOMATIC

LABEL DISPENSER

1-800-295-5510

uline.com

NOTE: Machine must be unplugged from power

supply for steps 1 to 7.

1. Lift reel holder arm at 90° angle and lock into position

using provided hex wrench. (See Figure 1)

1. Turn machine off when not in use.

2. Remove liner material from take-up hub when it

reaches approximately 2" in diameter or if the motor

appears to be straining.

3. Do not operate if inspection reveals a damaged

power or sensor cord.

4. Keep strip plate, hold-down and hub free of adhesive

buildup.

MAINTENANCE

INSTRUCTIONS

Guide Rod

Strip Plate

Hold-Down

Photosensor Take-up

Hub

Reel

Hanger

Bar

Reel

Holder

Arm

Figure 1

Reel Holder Arm

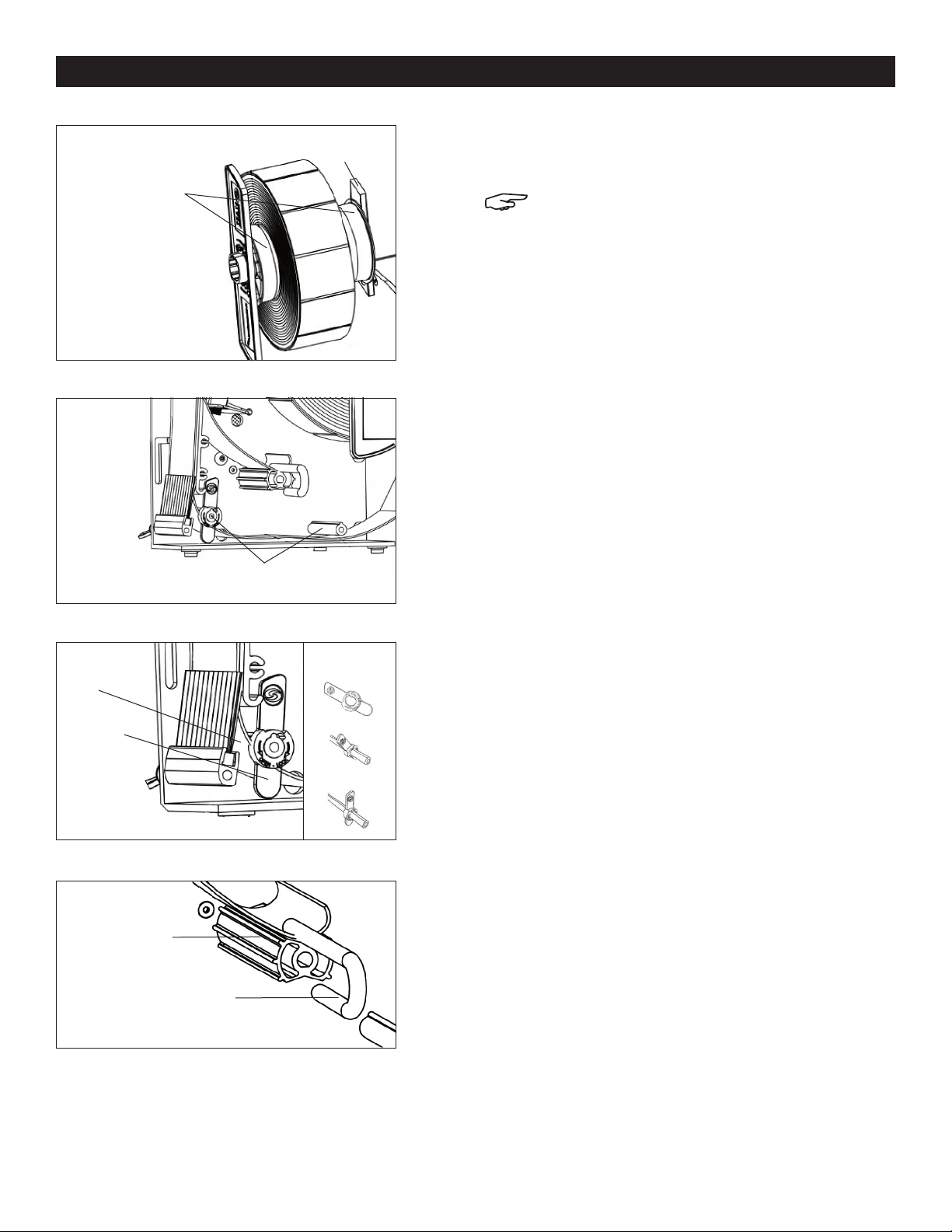

PAGE 2 OF 3 0218 IH-7206

2. Insert core holders into each side of label roll.

3. Slide loaded roll into reel hanger bar. (See Figure 2)

NOTE: Labels should dispense from under the roll.

4. Feed label liner under guide rods. (See Figure 3)

5. Feed label liner between brush and strip plate.

(See Figure 4)

6. Adjust hub lock for guiding material.

7. Slide lock rod off take-up hub. (See Figure 5)

8. Secure label liner onto take-up hub.

Figure 3

Guide Rods

Figure 5

Take-Up Hub

Lock Rod

Figure 4

Liner

Hub Lock

How to Use

Small Hub Lock:

Slide onto rod.

Gently turn clockwise

until it locks into place.

INSTRUCTIONS CONTINUED

Figure 2

Core holders

Reel

Hanger Bar

PAGE 3 OF 3 0218 IH-7206

1. To apply the proper amount of tension for proper

label feeding and detection, loosen brush wing

screw and press down to increase tension, then

tighten screw. (See Figure 6)

2. Loosen wing screw, then adjust sensor plate.

3. Point sensor toward the top edge of the label; then,

tighten wing screw to secure sensor in place.

(See Figures 7 and 8)

4. Connect power cord and press power switch to

turn on. (See Figure 9)

Figure 6

Brush Wing

Screw

Figure 9

Power Switch

Figure 7 Sensor

Wing Screw

Figure 8 Incorrect

Sensor sees beyond label

(Will not stop)

Sensor sees strip plate

(Will not feed)

Sensor sees front edge of label

ADJUSTMENTS

πCHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA

1-800-295-5510

uline.com
