U-Line VACMASTER H-9461 Bedienungsanleitung

PAGE 1 OF 30 0821 IH-9461

H-9461

VACMASTER®5 GALLON

WET/DRY VACUUM

1-800-295-5510

uline.com

SAFETY

NOTE: Read and understand these instructions

and all labels on the wet/dry vacuum cleaner

before operating.

CAUTION! When using an electrical appliance,

basic precautions should always be followed,

including the following:

• Do not run vacuum unattended.

• Do not use near flammable liquids, gases, or

explosive vapors like gasoline or other fuels,

lighter fluids, cleaners, oil-based paints, natural

gas, hydrogen or explosive dusts like coal dust,

magnesium dust, grain dust or gun powder. Sparks

inside the motor can ignite flammable vapors or

dust.

• Do not vacuum anything that is burning or smoking,

such as cigarettes, matches or hot ashes.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on cord. To unplug, grasp

the plug, not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle,

close a door on cord or pull cord around sharp

edges or corners.

• Do not run vacuum over cord.

• Do not handle plug or unit with wet hands.

• To reduce the risk of health hazards from vapors or

dusts, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• Do not use this vacuum with a torn filter or without

the filter installed, except when vacuuming liquids

as described in the Operation section of these

instructions.

• Do not allow to be used as a toy. Pay close

attention when using near children.

• To reduce risk of injury from accidental starting,

unplug power cord before changing or cleaning

filter.

• Do not leave unit unattended when plugged in.

Unplug when not in use and before servicing.

• Turn off unit before unplugging.

• Do not put any object into ventilation openings. Do

not vacuum with any ventilation openings blocked.

Keep free of dust, lint, hair or anything that may

reduce airflow.

• Keep hair, loose clothing, fingers and all parts of

body away from openings and moving parts.

• To reduce the risk of falls, use extra care when

cleaning on stairs.

• Unplug before connecting hose.

• Use only as described in these instructions. Use only

manufacturer's recommended attachments.

• This vacuum is equipped with double insulation.

Use only identical replacement parts. See "Double

Insulation Instructions" on page 2.

• If appliance is not working as it should, has been

dropped, damaged, left outdoors or dropped into

water, call Uline Customer Service at 1-800-295-5510.

TOOL NEEDED

Phillips Screwdriver

Para Español, vea páginas 11-20.

Pour le français, consulter les pages 21-30.

PAGE 2 OF 30 0821 IH-9461

WHEN USING AS BLOWER:

• Direct air discharge only at work area.

• Do not use unit as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Use safety goggles.

DOUBLE INSULATION INSTRUCTIONS

This vacuum is double-insulated, eliminating the need

for a separate grounding system. Use only identical

replacement parts. Read these instructions before

servicing double-insulated wet/dry vacuums. Use this

unit as described in these instructions. Observe the

following warnings that appear on the motor housing

of the unit.

WARNING! To reduce the risk of electric shock,

do not expose to rain. Store indoors.

CAUTION! Do not vacuum drywall dust,

fireplace soot or ash with a standard wet/dry

filter. This is a very fine dust that will not be

captured by the filter and may cause damage

to the motor. When vacuuming fine dust, use a

fine dust filter.

WARNING! With a double-insulated wet/dry

vacuum, two systems of insulation are

provided instead of grounding. No grounding

is necessary on a double-insulated appliance.

A means for grounding should not be added.

Servicing a double-insulated wet/dry vacuum

requires extreme care and knowledge of the

system and should be done only by qualified

service personnel.

WARNING!

eplacement parts for a

double-insulated wet/dry vacuum must be

identical to the parts they replace.

Double-insulated wet/dry vacuum is marked

with the words "Double insulated," and the

symbol may also be marked on the appliance.

• To reduce the risk of injury from moving parts,

unplug before cleaning or servicing.

• Do not use without filters in place.

SAFETY CONTINUED

EXTENSION CORDS

LENGTH OF EXTENSION CORD

110 -120V 25' 50' 100' 150'

AMPS A.W.G. WIRE SIZE

0-6 18 16 16 14

7-10 18 16 14 12

11-12 16 16 14 12

13-16 14 12 Not Recommended

When using an extension cord with unit, refer to the following table to determine the required A.W.G. wire size. Before

using, ensure power cord and extension cord are in good working condition. Make repairs or replacements before

using the vacuum. Only use extension cords that are rated for outdoor use.

PAGE 3 OF 30 0821 IH-9461

PARTS

NOTE:

Remove all contents from the box. Remove the power head and take out any contents within the

collection tank. Check each item against the carton contents list below.

REF. DESCRIPTION QTY.

AVacuum Assembly 1

B Filter Basket 1

CHandle Assembly 1

DExtension Wand 2

E Foam Wet Filter 1

FCrevice Tool 1

GCar Nozzle 1

HUtility Nozzle 1

ICartridge Filter 1

JEVA Hose 1

KNoise Diffuser 1

L Screw (Bag of 2) 1

MHose Storage Rack 2

On/Off Switch

Handle

Latch

Power Head Hose Storage Rack

Cord Storage Rack

Vacuum/Blower Port

Collection Tank

NOTE:

The hose and accessories for this vacuum are 1⁄" diameter.

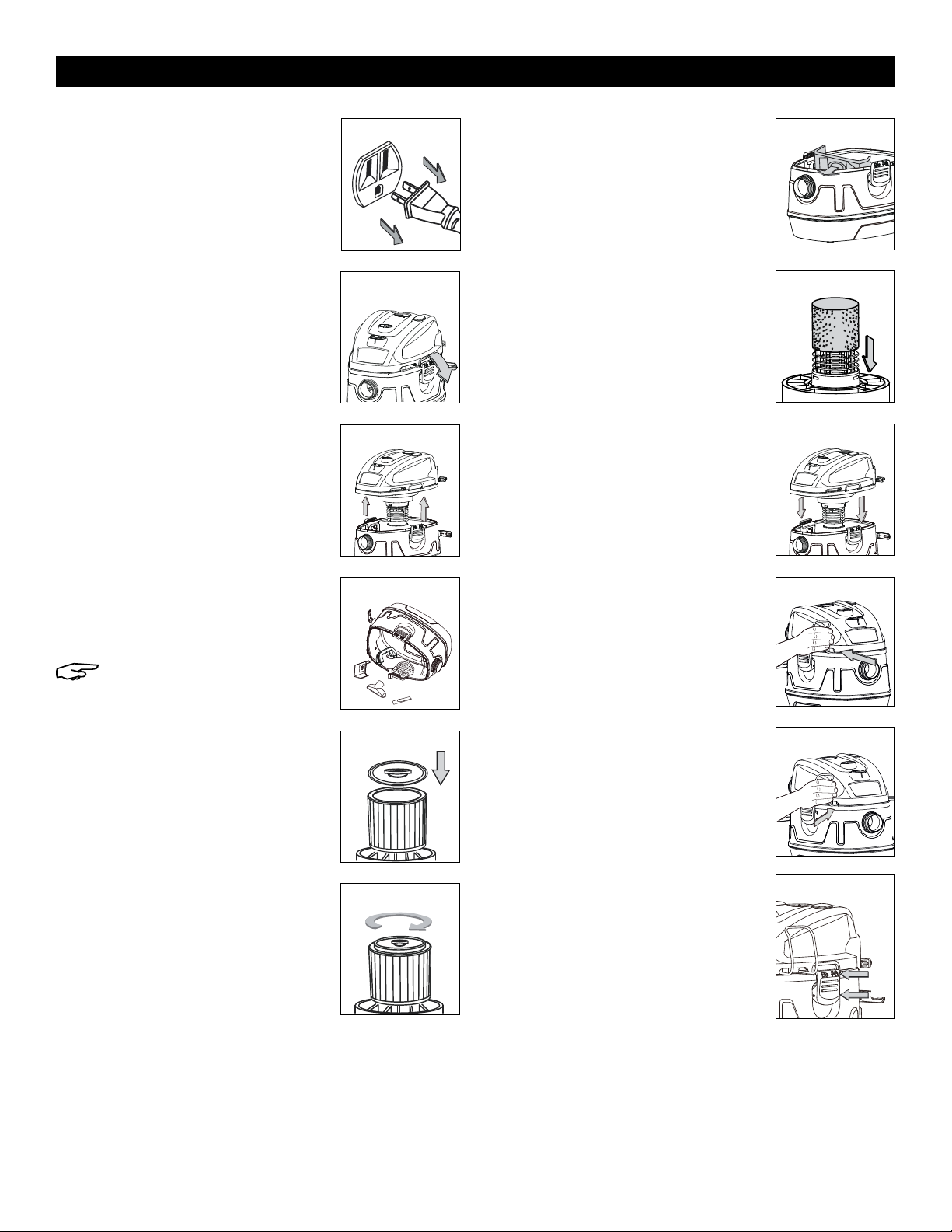

PAGE 4 OF 30 0821 IH-9461

1. Verify that the power cord is

disconnected from the outlet.

(See Figure 1)

2. Undo the latches. (See Figure 2)

3. Lift the power head off collection

tank. (See Figure 3)

4. Remove contents from inside the

collection tank and ensure all

contents are present.

(See Figure 4)

NOTE: Vacuum comes ready

for dry vacuum cleaning.

5. Place filter retainer on top of

cartridge filter over the raised

lip and tighten down by turning

retainer clockwise. Do not

overtighten. (See Figures 5-6)

6. Optional: For improved dust

filtering, fit collection bag flange

onto the inlet port, taking care

not to damage the bag. Dust

bag sold separately.

(See Figure 7)

7. Optional: For wet vacuum

cleaning, remove the cartridge

filter and replace with the

supplied foam wet filter.

(See Figure 8)

8. Place power head back on tank.

(See Figure 9)

9. Position the hose storage rack as

illustrated in Figure 10. Insert one

side of the rack into the channel

ensuring it is secured in place.

Squeeze in the other end and

insert it into the corresponding

channel ensuring it is secured.

(See Figures 10-11)

10. Align top section of power head

with the latches, and snap into

place. (See Figure 12)

ASSEMBLY

Figure 1

Figure 9

Figure 10

F i g u re 11

Figure 8

Figure 3

Figure 2

Figure 4

Figure 5

Figure 6 Figure 12

Figure 7

PAGE 5 OF 30 0821 IH-9461

DRY VACUUM OPERATION

11. Insert the handle into slots

located on top of the power head

and secure it with the screws

provided. Do not overtighten the

screws. (See Figure 13)

12. Insert the locking end of the hose

into the vacuum port and turn to

lock into place. (See Figure 14)

13. Choose the desired accessories

and extension wands and push

onto the hose. (See Figure 15)

NOISE DIFFUSER

For quiet operation, install the noise diffuser into the

vacuum/blower port by inserting the locking end of the

diffuser into the blower port and turning clockwise to

lock into place.

POLARIZED PLUG

To reduce the risk of electrical shock, this vacuum has

a polarized plug (one blade wider than the other).

This plug will fit in a polarized outlet only one way. If

plug does not fit fully in outlet, reverse plug. If it still

does not fit, contact a qualified electrician to install

the proper outlet. Do not alter the plug in any way.

Double insulation eliminates the need for the three-wire

grounded power cord and grounded power supply

system.

ASSEMBLY CONTINUED

Figure 13

Figu re 17

Figure 14

Figure 15

Figure 16

BEFORE VACUUMING

WARNING! Do not vacuum in areas with

flammable gases, vapors or explosive dusts

in the air. Flammable gases or vapors include,

but are not limited to, lighter fluid, solvent type

cleaners, oil-based paints, gasoline, alcohol or

aerosol sprays. Explosive dusts include, but are

not limited to, coal, magnesium, grain or gun

powder. To reduce the risk of health hazards

from vapors or dust, do not vacuum toxic

materials.

WARNING! Do not vacuum drywall dust,

fireplace soot or ash with a standard wet/dry

filter. This is a very fine dust that will not be

captured by the filter and may cause damage

to the motor. When vacuuming fine dust, use a

fine dust filter.

1. Verify that the power cord is

disconnected from the outlet.

(See Figure 16)

2. To prepare for dry vacuuming,

verify that the cartridge filter is

securely mounted. Ensure the

filter is pushed in until it stops

against the power head. Unit

comes with the cartridge filter

pre-installed. (See Figure 17)

3. Optional: For improved dust

filtering, fit collection bag flange

onto the inlet port, taking care not

to damage bag. (See Figure 18)

4. Place the power head back on

collection tank, aligning the top

section with latches, and snap

into place. (See Figure 19)

Figure 18

Figure 19

PAGE 6 OF 30 0821 IH-9461

DRY VACUUM OPERATION

1. Insert the locking end of the

hose into the vacuum port and

lock in place. Push the required

attachment onto the free end of

the hose or extension.

(See Figure 20)

2. Plug the power cord into the

outlet. (See Figure 21)

3. Turn the motor on by flipping the

switch to the on position.

(See Figure 22)

4. Once vacuuming is completed,

flip the switch to the off position

and unplug the power cord from

the outlet.

WARNING! Do not use the cartridge filter or dust

bag for liquid vacuuming.

DRY VACUUM OPERATION CONTINUED

LIQUID VACUUM OPERATION

Figure 20

Figure 21

Figure 23

Figure 26

Figure 25

Figure 24

BEFORE VACUUMING

WARNING! Do not vacuum in areas with

flammable gases, vapors or explosive dusts

in the air. Flammable gases or vapors include,

but are not limited to, lighter fluid, solvent type

cleaners, oil-based paints, gasoline, alcohol or

aerosol sprays. Explosive dusts include, but are

not limited to, coal, magnesium, grain or gun

powder. To reduce the risk of health hazards

from vapors or dust, do not vacuum toxic

materials.

1. Verify that the power cord is

disconnected from the outlet.

(See Figure 23) Ensure the

collection tank is clean and

free from dust and dirt.

2. Remove cartridge filter and

collection bag (if present), then

carefully install the foam wet filter

over the filter cage and place

the power head back on the

collection tank. (See Figure 24)

NOTE: Do not use the

cartridge filter or dust bag

for liquid vacuuming.

3. Fit the desired nozzle to the

vacuum hose. (See Figure 25)

4. Verify that the switch is in the off

position before plugging the

power cord into the outlet.

(See Figure 26)

WET VACUUM OPERATION

1. Turn the motor on by flipping the

switch to the on position.

(See Figure 27)

2. Once vacuuming is completed,

flip the switch to the off position

and unplug the power cord from

the outlet. Empty the collection

tank into a suitable receptacle

or drain. (See Figure 28)

Figure 27

Figure 22

Figure 28

PAGE 7 OF 30 0821 IH-9461

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the

liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float

valve that stops the suction action when the collection tank reaches its maximum capacity. An increase

in motor speed may take place. When this happens, turn off the machine, disconnect from outlet and

drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the power head to the

collection tank. After wet vacuuming, turn the machine off and remove plug from outlet. Empty the

collection tank, clean and dry the inside and outside before storage.

NOTE: The foam filter must be removed after wet vacuuming and a cartridge filter must be installed before

dry vacuuming again.

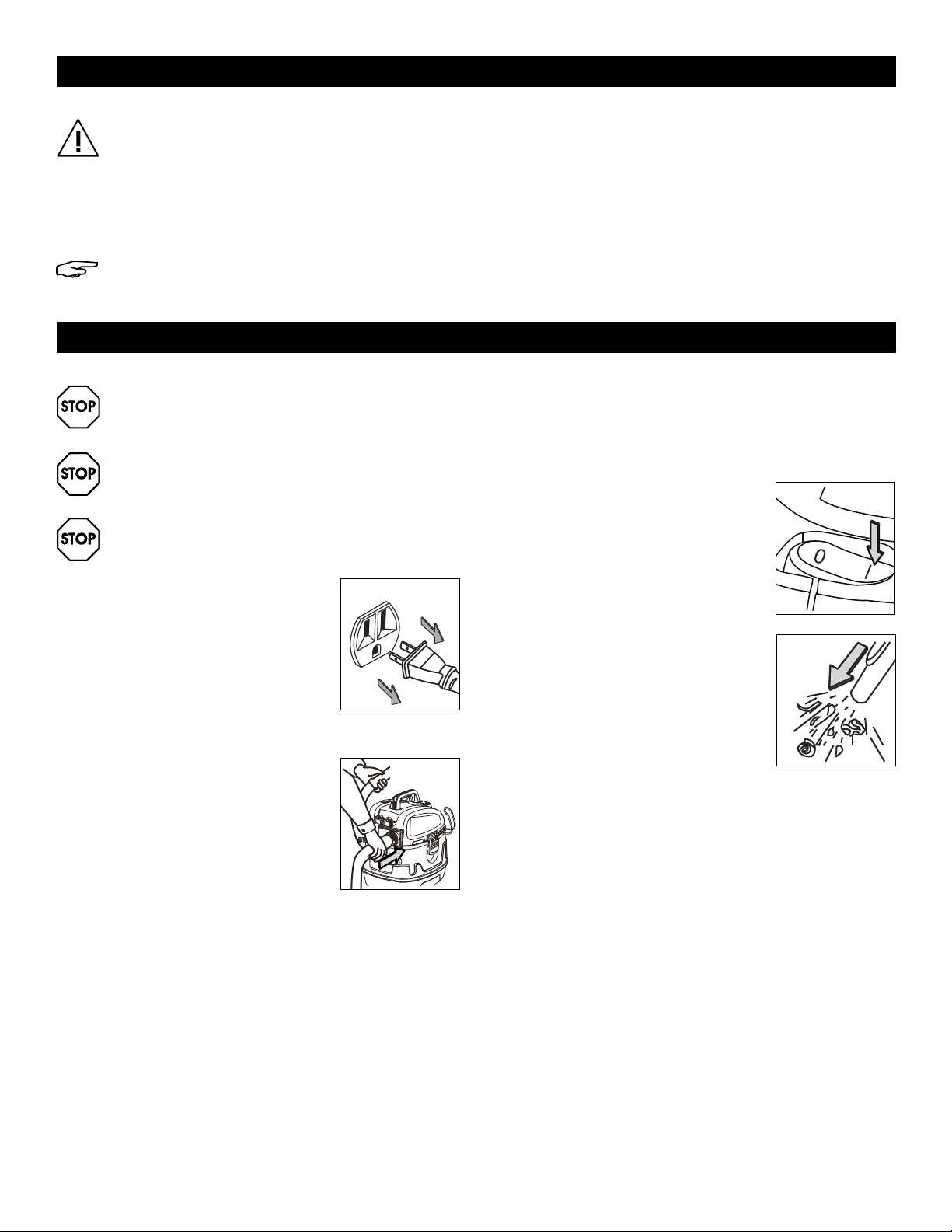

LIQUID VACUUM OPERATION CONTINUED

WARNING! Always wear safety goggles

complying with ANSI Z87.1 (or in Canada,

CSA Z94.3) before using blower.

WARNING! Keep bystanders clear from blowing

debris.

WARNING! Wear a dust mask if blowing creates

dust that might be inhaled.

1. Verify that the power cord is

disconnected from the outlet.

(See Figure 29)

2. Ensure collection tank is empty

before using as a blower.

3. Remove hose from the vacuum

port. Remove noise diffuser from

blower port.

4. Insert larger end of hose into

blower port on back side of

power head and lock into place.

(See Figure 30)

5. Fit the desired extension wand and/or nozzle to the

vacuum hose.

6. Verify that the switch is in the off position before

plugging the power cord into the outlet.

7. Before turning on the vacuum,

firmly hold loose end of the hose.

Turn the motor on by flipping the

switch to the on position.

(See Figure 31)

8. The unit will now blow through the

vacuum hose and can be used

to clear obstructions within the

hose. (See Figure 32)

9. Once blowing is complete, flip

the switch to the off position and

unplug the power cord from the

outlet.

BLOWER OPERATION

Figure 29

Figure 32

Figure 31

Figure 30

PAGE 8 OF 30 0821 IH-9461

MAINTENANCE

EMPTYING THE COLLECTION TANK

WARNING! Ensure power cord is disconnected

before changing the filters.

1. Verify that the power cord is

disconnected from the outlet.

(See Figure 33)

2. Disconnect the hose from

the vacuum by turning in a

counterclockwise direction.

(See Figure 34)

3. Undo the latches and remove the

power head from the collection

tank. (See Figure 35)

4. Clear all dirt or debris from

collection tank and hose.

(See Figure 36)

5. Clean or replace filter.

6. Check the hose, attachments

and power cord to verify that they

have not been damaged.

7. Place power head back onto collection tank and

secure latches.

IMPORTANT! Clean or change the cartridge

filter regularly for best performance.

WARNING! Always use cartridge filter for dry

vacuuming. If the machine is used without the

cartridge filter, the motor will burn out and the

warranty will be voided. Always keep spare

filters on hand.

NOTE: Filters included are made of high-quality

materials designed to stop small dust particles.

The cartridge filter should be used for dry

pickup only. A dry cartridge filter is necessary

to pick up dust. If the cartridge filter is wet,

it will clog quickly and be difficult to clean.

Handle the filter carefully when removing it for

cleaning and replacement. Check the filter for

tears or small holes. A small hole can let dust

pass through and out of the filter. Do not use a

filter with holes or tears; replace it immediately.

WARNING! Always disconnect plug from outlet

before removing power head from collection

tank.

CORD STORAGE

1. When unpacking the wet/dry vacuum, the cord

storage hooks will be turned inward.

2. To use the cord storage, rotate

both hooks outward until they click

into place. (See Figures 37-38)

3. When ready to use vacuum,

simply rotate one hook inward to

quickly release the cord.

(See Figure 39)

STORAGE

Before storing, empty and clean collection tank.

Hose should be wrapped with storage racks. Store

accessories so they can be readily available when

needed. Store vacuum indoors.

Figure 33

Figure 34

Figure 35

Figure 36

Figure 37

Figure 39

Figure 38

PAGE 9 OF 30 0821 IH-9461

INSTALLING CARTRIDGE FILTER

1. Verify that the power cord is

disconnected from the outlet.

(See Figure 40)

2. Remove power head and place

in upside down position.

3. Install the cartridge filter over the

filter cage with the flat end of

the filter toward the power head.

Carefully push filter in until it stops

against the power head.

(See Figures 41-42)

4. Place filter retainer on top of

cartridge filter over the raised

lip and tighten down by turning

retainer clockwise. Do not

overtighten. (See Figures 43-44)

REMOVING/CLEANING CARTRIDGE FILTER

1. Unlock and remove the filter retainer by turning

retainer handle counterclockwise.

2. Carefully hold and pull the

cartridge filter up for removal.

(See Figure 45)

3. Clean the cartridge filter by gently tapping or

brushing off dirt. Cleaning should not be done

indoors in living areas. For optimal performance, a

new filter is recommended.

4. Install cleaned or new filter as instructed above in

steps 2 and 3 of Installing Cartridge Filter.

5. Wet filters should be removed and allowed to air dry

for 24 hours before installing onto the filter cage.

IMPORTANT! Clean or change the cartridge

filter regularly for best performance.

WARNING! Always use cartridge filter for dry

vacuuming. If the machine is used without the

cartridge filter, the motor will burn out and the

warranty will be voided. Always keep spare

filters on hand.

WARNING! Always disconnect the plug from the

outlet before removing the power head from

the collection tank.

INSTALLING AND CLEANING CARTRIDGE FILTER

Figure 40

Figure 45

Figure 44

Figure 43

Figure 42

Figure 41

PAGE 10 OF 30 0821 IH-9461

INSTALLING AND CLEANING FOAM WET FILTER

INSTALLING FOAM WET FILTER

1. Verify that the power cord is

disconnected from the outlet.

(See Figure 46)

2. Remove power head and place

in upside down position. Follow

instructions to remove cartridge

filter.

3. Carefully slide foam wet filter

down over the filter cage,

ensuring the cage is completely

covered. (See Figures 47-48)

CLEANING FOAM WET FILTER

1. With the removed power head

in an upside down position,

carefully remove foam wet filter.

(See Figure 49)

2. Use a mild soap and water

solution to wash foam wet filter

and rinse with clean water.

(See Figure 50)

3. Allow filter to air dry before

installing and using again.

TROUBLESHOOTING

WARNING! To reduce the risk of electric shock, unplug before troubleshooting.

OPERATING ISSUE CAUSES RECOMMENDATIONS

Vacuum will not

operate.

No power supply.

Faulty power cord.

Collection tank is full.

Check power supply: cord, breakers and fuses.

Unplug and check the power cord. If

damaged, have it repaired by a professional.

Empty collection tank.

Dust comes out from

motor cover.

The cartridge filter is missing or

damaged.

Attach or replace cartridge filter.

Reduced efficiency,

speed and/or motor

vibration.

There is a blockage in the nozzle,

hose or collection tank inlet.

The cartridge filter is clogged by

fine dust.

Check nozzle, hose and collection tank inlet for

blockage.

Remove the filter and clean it, or install a new

cartridge filter.

-800-295-551

uline.com

Figure 46

Figure 50

Figure 49

Figure 48

Figure 47

Inhaltsverzeichnis

Sprachen:

Andere U-Line Staubsauger Handbücher

U-Line

U-Line TORNADO H-10166 Bedienungsanleitung

U-Line

U-Line SHARK ROTATOR LIFT-AWAY H-10108 Bedienungsanleitung

U-Line

U-Line Shark Navigator Lift-AWAY H-8831 Bedienungsanleitung

U-Line

U-Line H-5011 Bedienungsanleitung

U-Line

U-Line TORNADO DELUXE HEPA VACUUM Bedienungsanleitung

U-Line

U-Line RUG DOCTOR H-10972 Bedienungsanleitung

U-Line

U-Line SANITAIRE H-3480 Bedienungsanleitung

U-Line

U-Line HOOVER COMMERCIAL STEAMVAC H-3482 Bedienungsanleitung

U-Line

U-Line HOOVER H-7197 Bedienungsanleitung

U-Line

U-Line DEWALT H-8902 Bedienungsanleitung

U-Line

U-Line DEWALT H-8901 Bedienungsanleitung

U-Line

U-Line DEWALT H-8901 Bedienungsanleitung

U-Line

U-Line MILWAUKEE H-8853 Bedienungsanleitung

U-Line

U-Line SANITAIRE EON QUIET CLEAN H-7147 Bedienungsanleitung

U-Line

U-Line DXV10SB Bedienungsanleitung

U-Line

U-Line SANITAIRE H-3480 Bedienungsanleitung

U-Line

U-Line SHOP-VAC H-8097 Bedienungsanleitung

U-Line

U-Line SANITAIRE H-3472 Bedienungsanleitung

U-Line

U-Line ROYAL H-3956 Bedienungsanleitung

U-Line

U-Line H-5048 Bedienungsanleitung

U-Line

U-Line H-8903 Bedienungsanleitung

U-Line

U-Line DEWALT H-8931 Bedienungsanleitung

U-Line

U-Line SANITAIRE H-2665 Bedienungsanleitung

U-Line

U-Line SANITAIRE H-2665 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
