Unicol KP Kit Bedienungsanleitung

WARNING

Please carefully inspect the product before assembling. If you notice any apparent damage, call your

carrier claims agent and do not continue the installation until it has been reviewed. Please watch for

pinch points. Do not put your ﬁngers between moveable parts. Do not tamper with or disassemble any

spring loaded parts. Before installing, make sure that the supporting surface will support ﬁve times the

combined load of the solution and the hardware. Never exceed the maximum load capacity. Please also

layout all components to ensure that you have all of the required parts before proceeding (see BOM list

on following page). Use of this product for anything other than its speciﬁed use may result in failure or

personal injury. This product is intended for indoor use only. We recommend using a qualiﬁed trades

person for installation. Use an assistant or lifting equipment to lift and position products.

For support, please call: +44 (0)1865 767676 or email: [email protected]

Revised 15/12/20

01865 767676

[email protected]

www.unicol.com

*Please check model speciﬁc details before installing*

KP KITS

Screen Size: 33-70” Guide Max. Weight: 45-60kg

01865 767676

[email protected]

www.unicol.com

2Revised 15/12/20

COMPONENTS

INSTALLERS REQUIRED

1-2

# DESCRIPTION QTY

1Length of Column (1m, 2m or 3m) 1

2CP1 Standard Ceiling Plate 1

3Single Sided Suspension Mount 1

4Universal Tilting Mount Arms 2

5 Alternative Suspension Mount -

6 Alternative Ceiling Plate -

#TOOLS REQUIRED

1 Pozi Head Screwdriver

2 3/16th Allen Key

3 13mm Spanner

01865 767676

[email protected]

www.unicol.com

Revised 15/12/20

STEP 4

Utilising the tag locks and ﬁxing pack provided with

your mount, attach the arms to the back of your

screen.

Ensure the arms are the correct way up before

tightening - the ‘hook’ part of the arm should be at

the top.

STEP 1

Using the 4 ceiling mounting slots, as shown

above, determine where you want to install your

mount, mark it and ﬁx into position.

Please consider cabling and ceiling ﬁxings prior to

installation. Please check surface is capable of

supporting 5x the combined solutions weight.

STEP 2

Slide all cabling through the column and through

the gap in the ceiling plate socket. Being mindful

of the cables, slide the column into the socket,

ensuring that the two holes either side align with

those on the mount. Using the through bolt, secure

the column into place and tighten the two grub

screws at the rear.

STEP 3

Slot cabling through the suspension mount socket

and slide the mount over the column, ensuring

that the two holes either side align with those on

the column. Like in Step 2, slide the through bolt

through the holes and secure. Tighten the two grub

screws at the rear.

01865 767676

[email protected]

www.unicol.com

Revised 15/12/20

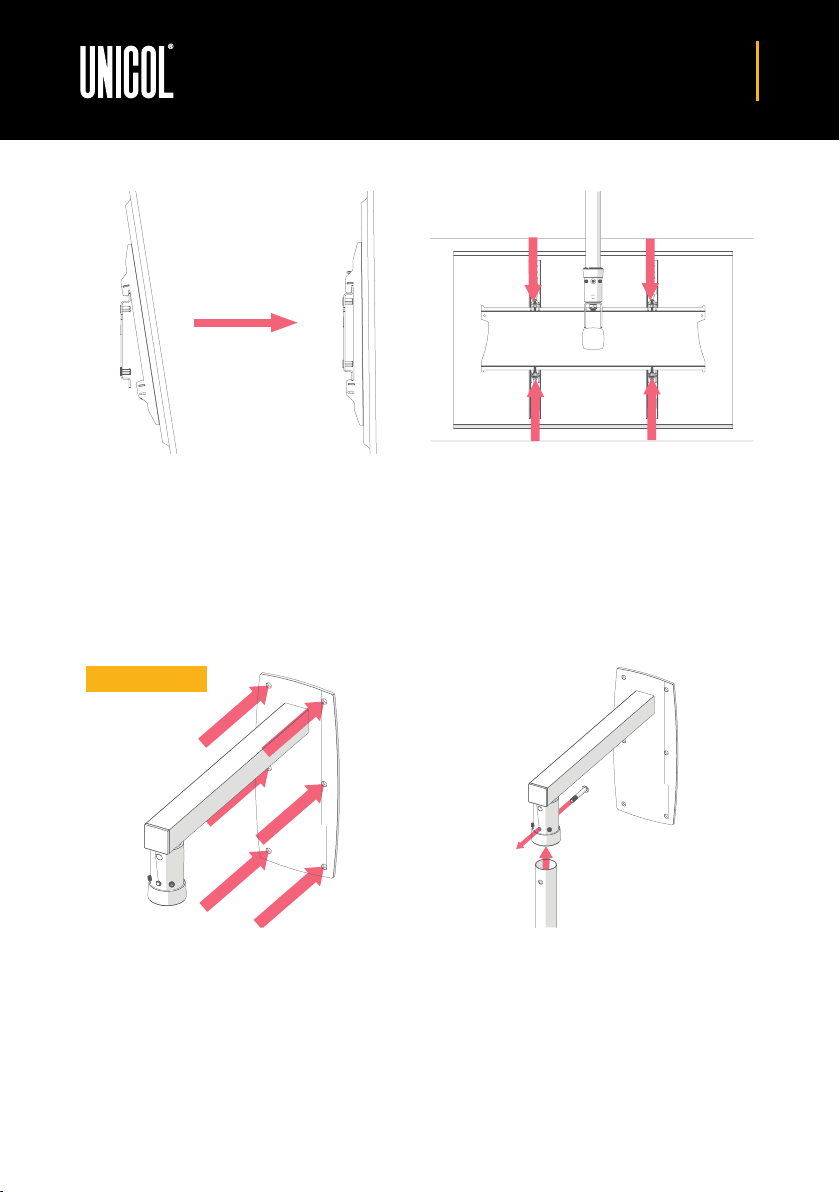

STEP 1

Using the wall mounting holes in the back plate,

determine where you want to install your mount,

mark it and ﬁx into position.

Please consider cabling and wall ﬁxings prior to

installation. Please check surface is capable of

supporting 5x the combined solutions weight.

STEP 2

Slide all cabling through the column and through

the gap in the wall plate socket. Being mindful

of the cables, slide the column into the socket,

ensuring that the two holes either side align with

those on the mount. Using the through bolt, secure

the column into place and tighten the grub screws

at the front of the socket. Continue from Step 3.

STEP 3

Using another team member, lift the screen up and

gradually offer it up to the back plate. Gently tilting

the screen forward, hook the arms over the lip of

the back plate and lower once in position.

Centre the screen horizontally by sliding from side

to side until you are happy with the position. If

double sided, repeat this step on the reverse side.

STEP 4

Once centered, ensure the bottom screws are not

screwed tight and screw down the top screws to

level the screen. Once level tighten bottom screws

to secure the mount. This is when you can adjust

the tilitng arms to suit.

Note that you won’t be able to adjust the screens

position after the screws have been tightened.

WALL ARM
