Unicol VCC1 Bedienungsanleitung

WARNING

Please carefully inspect the product before assembling. If you notice any apparent damage, call your carrier

claims agent and do not continue the installation until it has been reviewed. Please watch for pinch points.

Do not put your ﬁngers between moveable parts. Do not tamper with or disassemble any spring loaded

parts. Before installing, make sure that the supporting surface will support ﬁve times the combined load of

the solution and the hardware. Never exceed the maximum load capacity. Please also layout all components

to ensure that you have all of the required parts before proceeding (see BOM list on following page). Use of

this product for anything other than its speciﬁed use may result in failure or personal injury. This product is

intended for indoor use only. We recommend using a qualiﬁed trades person for installation. Use an assistant

or lifting equipment to lift and position products.

For support, please call: +44 (0)1865 767676 or email: sales@unicol.com

Revised 28/09/22

01865 767676

sales@unicol.com

www.unicol.com

*Please check model specific details before installing*

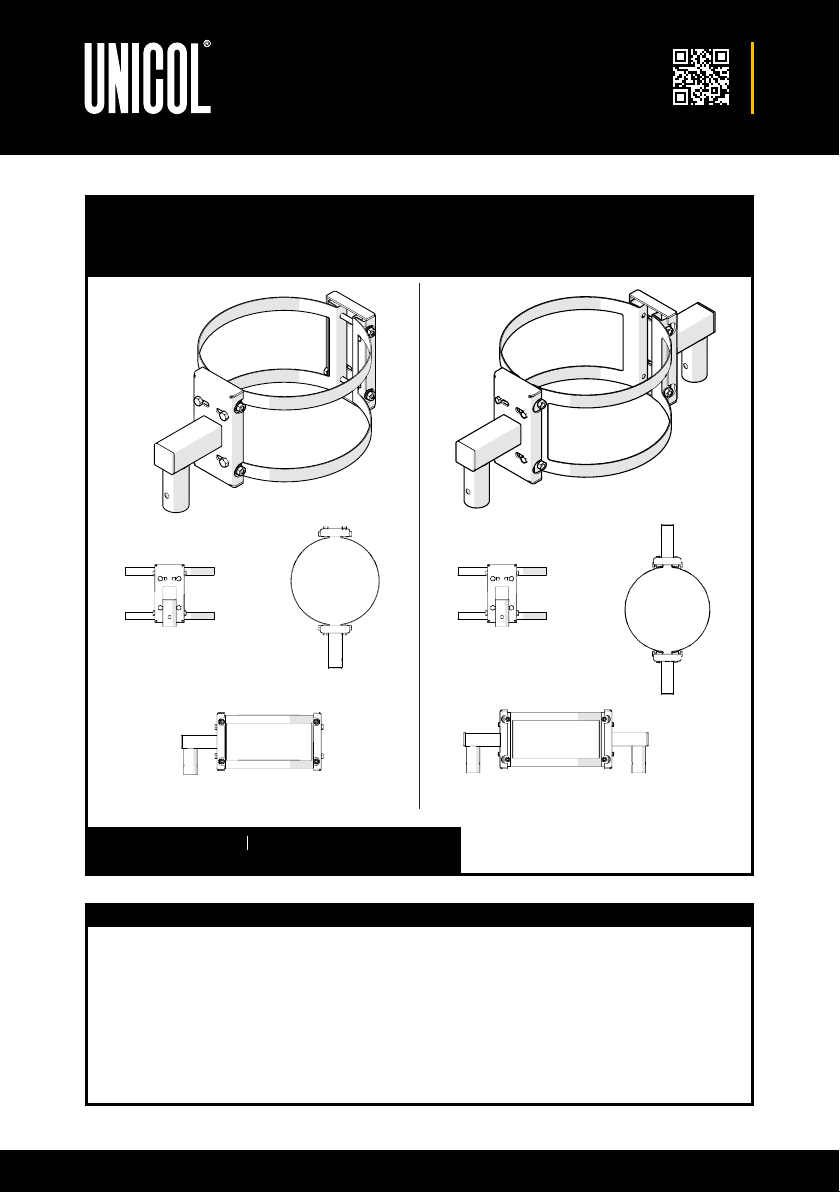

Pillar Clamps - VCC1 & VCC2

Screen Size: 70” Guide Max. Weight: 120kg

VCC1 VCC2

2Revised 28/09/22

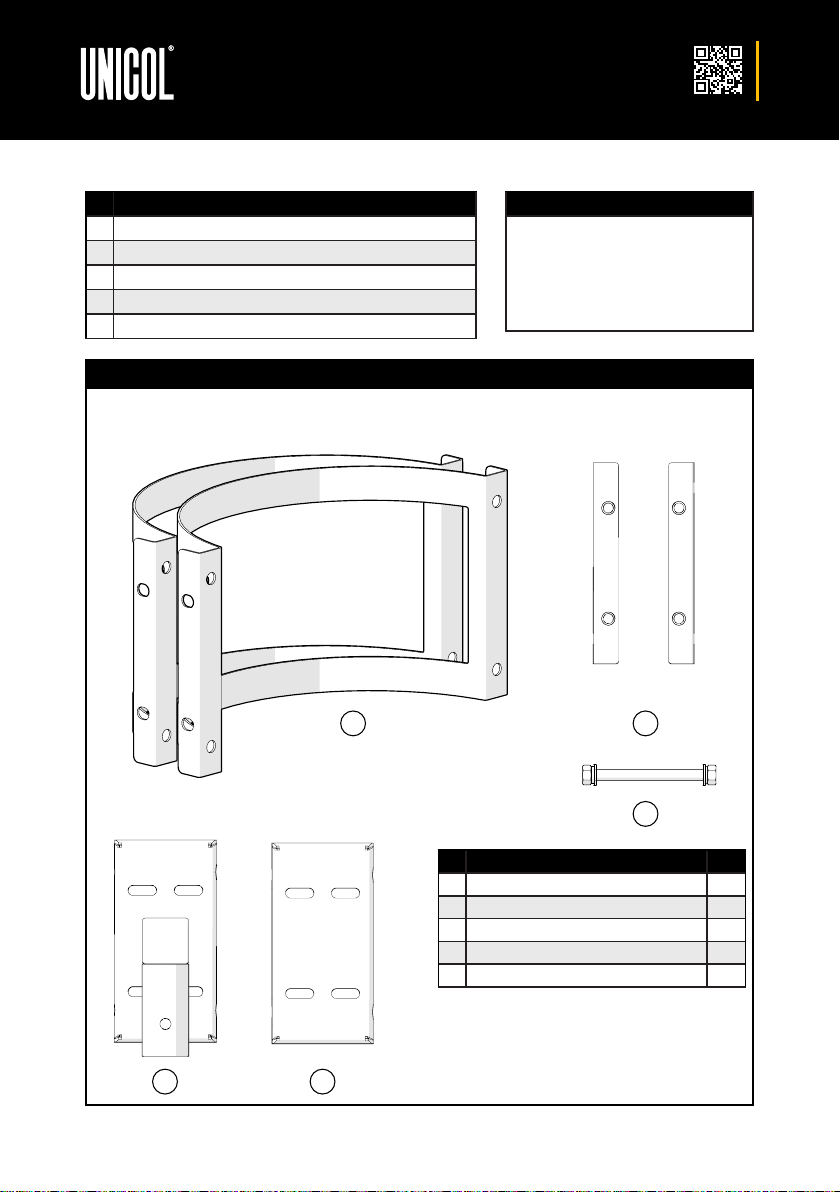

COMPONENTS

01865 767676

sales@unicol.com

www.unicol.com

INSTALLERS REQUIRED

1-2

#TOOLS REQUIRED

117mm Spanner

1 2

# EQUIPMENT QTY

1Straps 2

2Connecting Bars 4

3Studding with Fixings 4

4Fixing Cover VCC1 (VCC2) 1 (0)

5Fixing Cover with Arm VCC1 (VCC2) 1 (2)

NOTE: Each VCC is custom made to ﬁt the pillar

speciﬁed and once tightened clamp it in position.

There is no need to drill into the pillar.

Multi-arm units are assembled in the same way.

01865 767676

sales@unicol.com

www.unicol.com

Revised 28/09/22

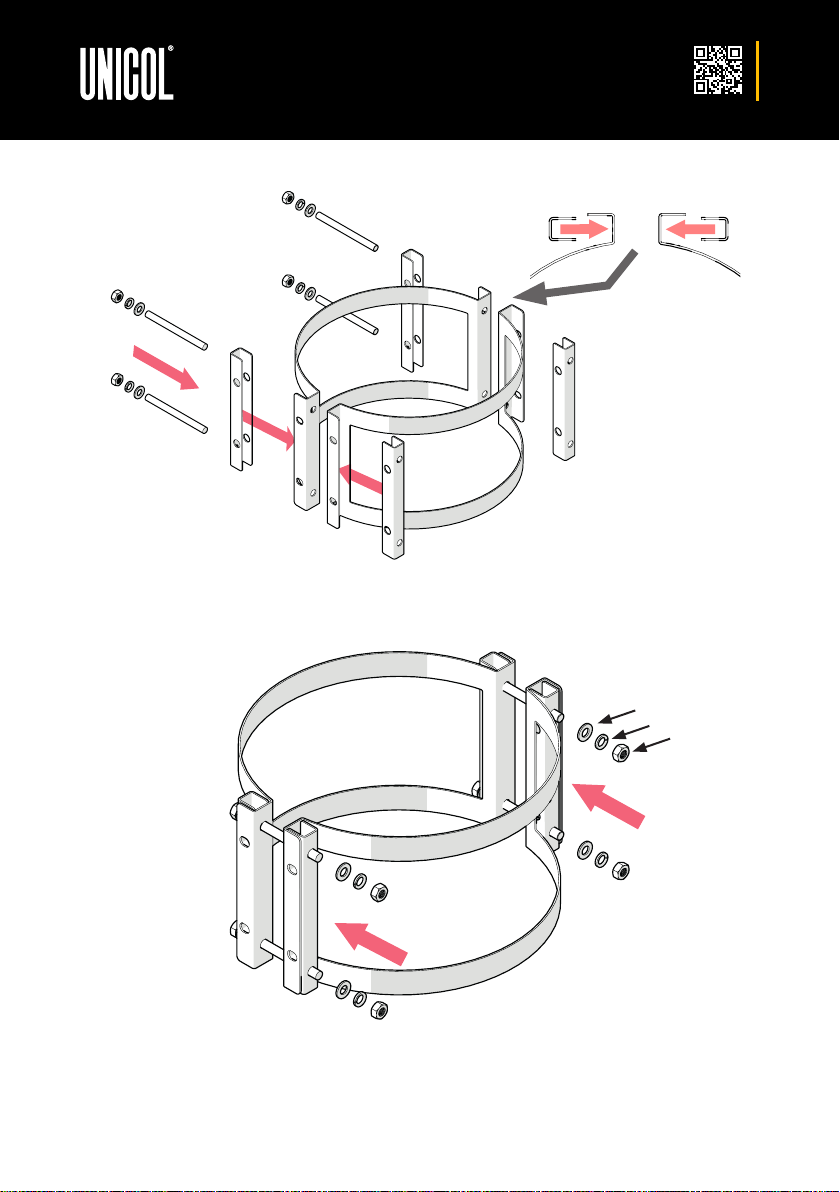

STEP 1 – Place both straps around your pillar, either on the ﬂoor or on a support. Place connecting bars

into slots in straps and push the studding provided through the holes to attach them. NOTE: The open

channel section of the bar must be positioned against the wall of the strap.

STEP 2 – Fix the studding together loosely using the plain and split washers and M10 nuts.

Plain Washer

Split Washer

M10 Nut

4Revised 28/09/22

01865 767676

sales@unicol.com

www.unicol.com

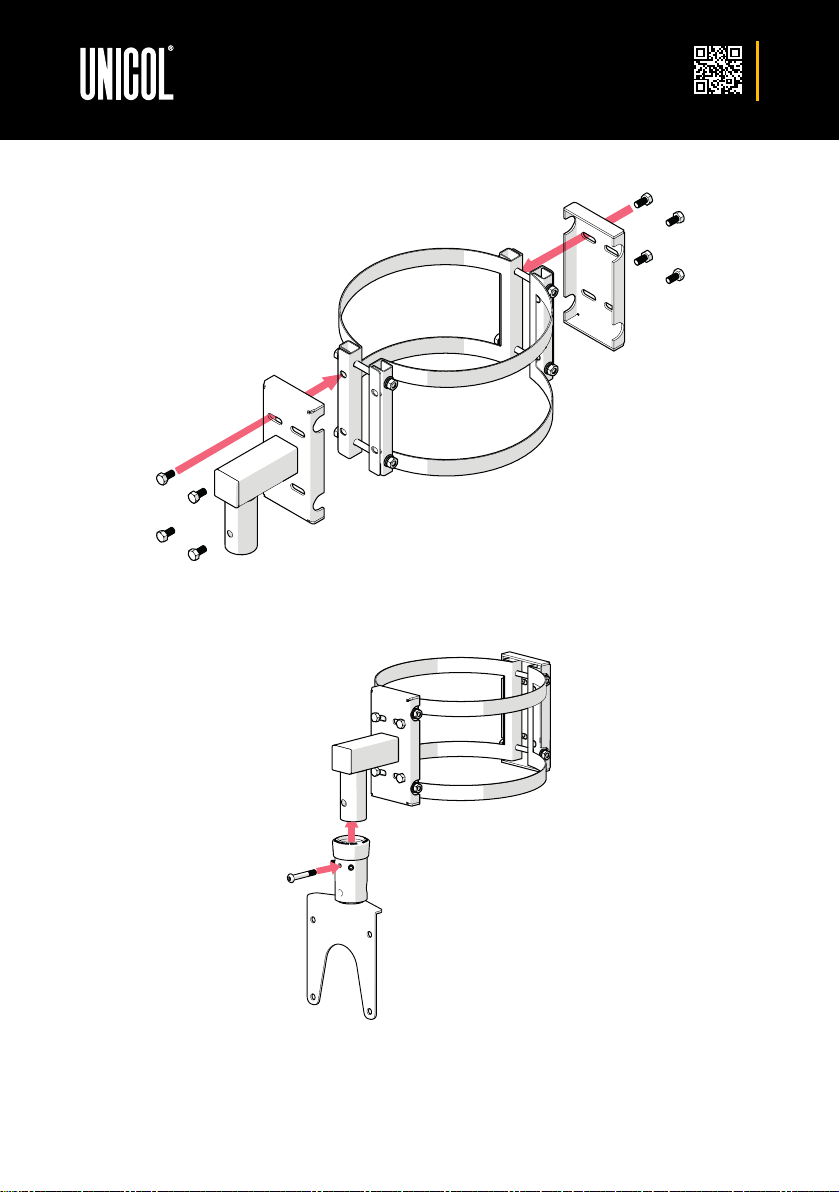

STEP 3 – Fix covers (loosely) to the Strap connecting bars with the 4 x M10 x 25 hex screws provided. Lift

the whole unit to the desired height and tighten studding so that it clamps the straps to the pillar. Tighten

cover screws. The VCC1 has an arm on one cover only. The VCC2 has arms on both covers.

STEP 4 – Connect direct ﬁtting adapter (ordered separately) to peg for screen or projector suspension.

A through bolt (supplied with the adapter) must be used to connect the adapter to the peg. Take up any

slack using the grub screws in the adapter socket.

PS1 Screen

Adapter shown
