UniGuard UM660 Bedienungsanleitung
UniGuard Technology Limited
- - www.uniguardgps.com
1
Magnetic GPS Tracker
User Manual
UM660
Attention:
Charge is forbidden.
24Hrs per locate: 2 Years (Default)
UniGuard Technology Limited
- - www.uniguardgps.com
2
1 GPS Tracking System Introduction
Portable GPS Tracker UM660 integrates GPS and GSM functions, which could
send vehicle location and status to mobile and Internet. It utilizes GPS and LBS double
locating. Its advantage is that the builtin battery can last 2 years at reporting interval
every 24hrs. No wires connection. Place and Work. The system structure is as below:
UniGuard Technology Limited
- - www.uniguardgps.com
3
2 Product Description
2.1 Specification
Content Specifications
Dimensions 75x 45 x 25mm
Weight 105g
Network GSM/GPRS
Band 850/900/1800/1900Mhz
GPS chip UBLOX-7
GSM Module MTK6260D
GPS sensitivity -159dBm
GPS accuracy 5m
Time to First Fix Cold status 45-120s
Warm status 35s
Hot status 1s
Battery Non-rechargeable dry battery
8000 mAh
Standby 3 years
Storage Temperature -40 to 85 ℃
Operation Temperature
-20 to 55 ℃
Humidity 5%-95% non-condensing
UniGuard Technology Limited
- - www.uniguardgps.com
4
2.2 Picture and main functions:
UniGuard Technology Limited
- - www.uniguardgps.com
5
3 Usage Instructions
3.1 LED definition
Note: In battery mode, the LED light will turn off after 3 mins. If the equipment is in
sleep mode, press the wake button for 3 mins with the screwdriver tip, and then release,
the device will work for five minutes then go to sleep mode again.
3.2 Startup
LED Flash On OFF
Green LED GSM/GPRS OK No signal Sleep or OFF
Blue LED GPS OK No signal Sleep or OFF

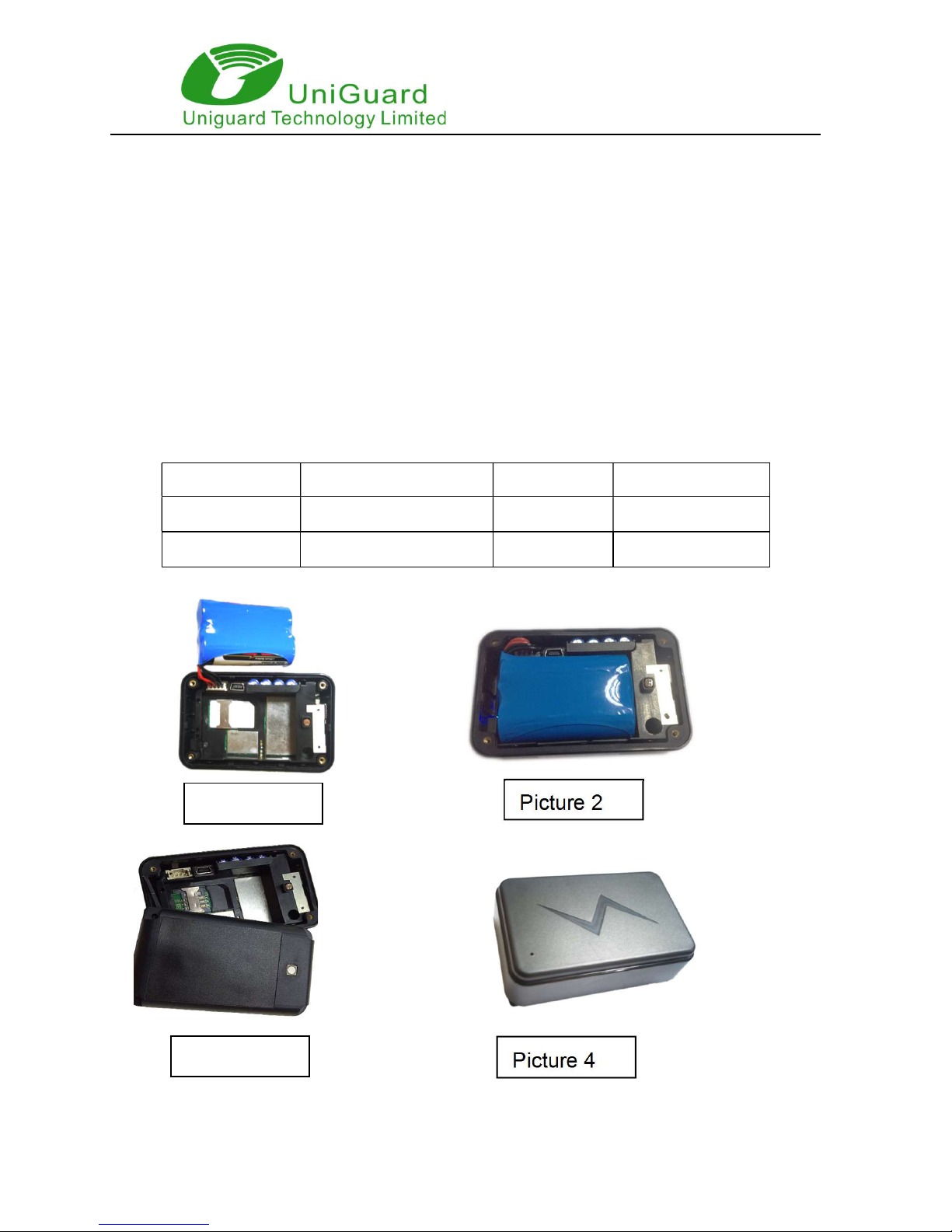

Picture 1
2
Picture 3
Picture 4
UniGuard Technology Limited
- - www.uniguardgps.com
6
1. Open the back cover with screwdriver, insert a SIM card with GPRS/GSM/SMS
network into the slot, and make sure the chip side is down. Refer to Picture 1
2. Plug the battery and GPS tracker will automatically turn on. The two LED
indicators turn on. Refer to Picture 2.
3. Close batter cover and tighten screws. Make sure the light-through hole is at right
position with the light sensor. Refer to Picture 3 and Picture 4.
4. With strong magnet, user can put the GPS tracker at any metal place.
4 SMS Operation Instruction
4.1 Set Admin phone number
Message format: admin+123456+space+TEL
e.g. admin123456 13800000000
Reply: admin ok
Delete admin Number
Message format: noadmin+123456+space+TEL,
e.g. noadmin123456 13800000000,
Reply: noadmin ok
When admin number calls device SIM, device will return current location, GPS
valid(V:A) or invalid (V:V), time, speed, battery state, ID, SIM operator, and GSM
base location information. As below :
http://maps.google.com/maps?q=22.68375%2c113.93973 V:A,2015-03-29 17:18:04
S:000km/h,Bat:6,4209800875,S25G00;p:46000, l:10352, c:4293
UniGuard Technology Limited
- - www.uniguardgps.com
7
4.2 Remove alarm
4.2.1 Open remove alarm (Default Open. Alarm type : Call and SMS alert)
SMS Command : SO1, SOS2 or SOS3
4.2.2 Close Alarm
SMS Command : SOS0
4.2.3 Type of alarm :
SOS1 means calling only
SOS2 means SMS alarm only
SOS3 means calling and SMS alarm
4.3 Set IP and Port
SMS Command : adminip123456 104.243.132.242:8000
Reply : SET IP OK ! IP :104.243.132.242#8000#
4.4 Set SIM card APN
SMS command: apn+123456+apn content (The second APN is SIM card APN)
Example : apn123456 CMNET
REPLY : OK ! APN :CMNET
4.5 Working mode explanation
4.5.1 The working time for the frist time when device is turned on is 3 mintues. After 4
mintues, the device will got to deep sleep mode. (GSM OFF GPS OFF GPRS
OFF)
4.5.2 Deep sleeping mode : GSM OFF, GPRS OFF, GPS OFF. Upload GPS data
every 24 hours. When the device uploads GPS data, GSM ON, GPRS ON,
GPS OFF for 5 minutes.
4.5.3 Start GPS Tracking Mode, send SMS command : DW999 Once command is
UniGuard Technology Limited
- - www.uniguardgps.com
8
received, device will stay in this mode forever.
4.5.4 Cancel GPS Tracking mode, send SMS command : DW005 (Device will go to
deep sleeping mode after 5 minutes.)
5 Web Tracking
5.1Login www.gpspos.net to start web tracking service with your own
account
5.2 Download wechat, register a wechat account, search
GPSCARTRACK and follow, login the system with your own account.
6 Cautions
6.1 Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or da
mage the inside circu.
6.2 Don’t use & store the unit in dusty places.
6.3 Don’t put the unit in overheated or overcooled places.
6.4 Handle carefully. Don’t vibrate or shake it violently.
6.5 Clear the unit with a piece of dry cloth. Don’t clean in chemicals, de
tergent.
6.6 Don’t paint the unit, this may cause some foreign materials left in b
etween the parts.
