Urban Electric ABBOTT Kurzanleitung

SG-1245

ABBOTT

ASSEMBLY AND MOUNTING INSTRUCTIONS

GENERAL NOTES

COMPONENTS PROVIDED FOR INSTALLATION

• THIS LUMINAIRE IS SUITED FOR DAMP LOCATIONS.

• THIS LUMINAIRE IS UL LISTED. WHEN INSTALLING LUMINAIRE, CONFORM

TO ALL APPLICABLE LOCAL ELECTRICAL CODES, ORDINANCES, AND THE

NATIONAL ELECTRICAL CODE (NEC).

• FOR YOUR SAFETY AND PROPER OPERATION OF LUMINAIRE, READ AND

UNDERSTAND ALL INSTRUCTIONS COMPLETELY BEFORE COMMENCING

INSTALLATION OF THIS LUMINAIRE.

• CAREFULLY UNPACK THE LUMINAIRE AND INSPECT FOR DAMAGE.

• THIS PRODUCT IS RATED ONE 60W MAX, TYPE B BULB(S).

• SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CAUTION

THIS PRODUCT SHOULD BE INSTALLED ONLY BY A LICENSED ELECTRICIAN.

WARNING

THE ELECTRICITY MUST BE TURNED OFF AT THE MAIN FUSE BOX BEFORE

INSTALLING THIS LUMINAIRE. TURNING THE POWER OFF USING THE LIGHT

SWITCH MAY NOT BE SUFFICIENT TO PREVENT ELECTRICAL SHOCK.

WOOD SCREWS SET SCREWS WIRE NUTS EXPANSION ANCHORS

TORPEDO BULB(S) MOUNTING PLATE ALLEN WRENCH

TORPEDO TIP

ABBOTT

ASSEMBLY AND MOUNTING INSTRUCTIONS SG-1245

MOUNTING INSTRUCTIONS

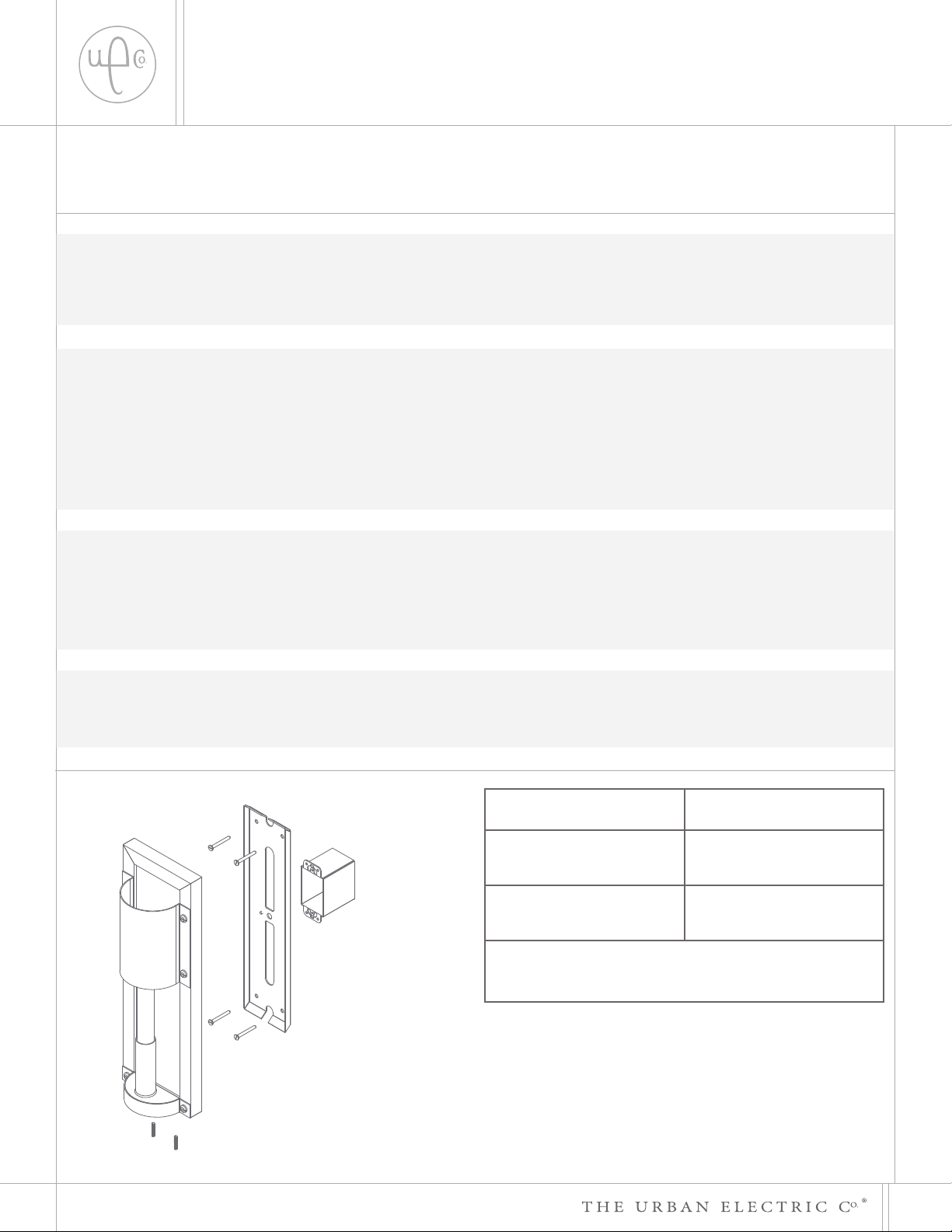

MOUNTING DIAGRAM ELECTRICAL CONFIGURATION TABLE

FROM HOME FROM LUMINAIRE

CONNECT BLACK OR RED (HOT)

HOUSE SUPPLY CIRCUIT WIRE TO:

LUMINAIRE ROUND WIRE (HOT)

CONNECT WHITE (NEUTRAL)

HOUSE SUPPLY CIRCUIT WIRE TO:

LUMINAIRE RIBBED WIRE

(NEUTRAL)

CONNECT GREEN INSULATED OR BARE COPPER (GROUND -) HOUSE

SUPPLY CIRCUIT WIRE AND LUMINAIRE BARE STRANDED WIRE

(GROUND -) TO GREEN GROUND SCREW ON CROSSBAR.

GENERAL NOTE: USE UL LISTED WIRE NUTS FOR THE

WIRING CONNECTIONS IN THIS LUMINAIRE. WRAP WIRE NUT

CONNECTIONS WITH UL LISTED ELECTRICAL TAPE.

FOR QUESTIONS, PLEASE CONTACT CLIENT SERVICES AT:

843.723.8140 OR [email protected]

STEP 1

SHUT OFF THE MAIN ELECTRICAL SUPPLY TO THE JUNCTION

BOX FROM THE FUSE BOX/CIRCUIT BREAKER. TURNING

POWER

OFF AT THE SWITCH IS NOT SUFFICIENT.

STEP 2

REMOVE MOUNTING PLATE FROM THE BACK OF THE FIXTURE

USING THE ALLEN WRENCH PROVIDED AND SET FIXTURE AND

SET SCREWS ASIDE.

STEP 3

LOCATE JUNCTION BOX AND PULL HOUSE SUPPLY CIRCUIT

WIRING THROUGH THE WIRE-WAY HOLE OF THE MOUNTING

PLATE. ATTACH THE MOUNTING PLATE DIRECTLY TO THE

JUNCTION BOX AND/OR DIRECTLY TO THE WALL SURFACE

USING THE MOUNTING SCREWS AND EXPANSION ANCHORS

PROVIDED. IT IS IMPORTANT TO CHECK LEVEL ON THE

MOUNTED WALL PLATE.

STEP 4

USING THE WIRE NUTS PROVIDED, MAKE ELECTRICAL

CONNECTIONS BY FOLLOWING THE ELECTRICAL CONFIGURATION

TABLE BELOW. ENSURE THAT ALL ELECTRICAL CONNECTIONS

ARE WRAPPED WITH UL-LISTED ELECTRICAL TAPE.

STEP 5

ATTACH THE FIXTURE TO THE MOUNTING PLATE BY SLIDING

THE FIXTURE OVER THE TOP OF THE MOUNTING PLATE AND

THEN SECURE THE FIXTURE AT THE BOTTOM WITH THE SET

SCREWS PROVIDED. BE CAREFUL TO AVOID SCRATCHING THE

FINISH ON THE FIXTURE.

STEP 6

INSTALL LIGHT BULB/S IN FIXTURE SOCKET AND RESTORE

POWER TO THE CIRCUIT.

STEP 7

CONFIRM PROPER OPERATION OF THE LIGHT FIXTURE
