TABLE OF CONTENTS

SECTION PAGE

Safety Information........................................................................................................................... 5

Unpacking and Checking Carton Contents..................................................................................... 7

Assembly......................................................................................................................................... 8

Operation ........................................................................................................................................ 9

Maintenance....................................................................................................................................11

Troubleshooting...............................................................................................................................12

Technical Data.................................................................................................................................13

Recycling and Disposal....................................................................................................................13

Plug/Fuse Replacement (UK & Ireland Only)..................................................................................13

Thank you for purchasing this Vacmaster® wet and dry vacuum cleaner. Feel condent that with

Vacmaster®you are obtaining a high quality product engineered for optimal performance. This

vacuum cleaner is suitable for use with both liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

SAFETY INFORMATION

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER.

When using the equipment, a few safety precautions must be

observed to avoid injuries and damage. Please read the complete

operating manual with due care. Keep this manual in a safe

place so that the information is always available. If you give

the equipment to any other person, give them these operating

instructions as well. We cannot accept any liability for damage or

accidents which arise due to a failure to follow these instructions

and the safety information.

• Never leave the appliance switched on unattended, if you leave

the work area, switch the appliance off or unplug it from the

power supply.

• Do not vacuum or use this Wet and Dry Vacuum cleaner near

ammable liquids, gases or explosive vapours like gasoline or

other fuels, lighter uids, cleaners, oil-based paints, natural gas,

hydrogen, or explosive dusts like coal dust, magnesium dust,

grain dust or gun power. Sparks inside the motor can ignite

ammable vapours or dust.

• This vacuum cleaner is not suitable for the vacuuming of

asbestos or asbestos dust.

• Do not vacuum anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

• Ensure the hose and connections are always pointed away from

the users face, hair, ears and eyes during operation and never

direct the nozzle towards persons or animals.

• Clear the working area of any items or precessions that you do

not wish to be vacuumed before operation.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on the cord. To unplug, grasp the plug,

not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle, close a door on

cord, or pull cord around sharp edges or corners.

• Do not handle the plug or vacuum cleaner with wet hands.

• To reduce the risk of health hazards from vapours or dusts, do

not vacuum toxic materials.

• Frequently check that the oat valve positioned underneath the

motor is able to move freely.

• Do not use or store near hazardous materials.

• Do not use this vacuum cleaner with a torn lter or without the

lter installed.

• Do not allow to be used as a toy. Close attention is necessary

when used by or near children.

• To reduce the risk of injury from accidental starting, unplug

power cord before changing or cleaning lter.

• Do not leave vacuum cleaner unattended when plugged in.

Unplug from power supply when not in use and before carrying

out maintenance.

• Turn off Wet and Dry Vacuum cleaner before unplugging.

• Do not cover the ventilation openings. Do not vacuum with any

ventilation openings blocked; keep free of dust, lint, hair or

anything that may reduce air ow.

• Keep hair, loose clothing, ngers, all parts of body away from

openings and moving parts.

• If the supply cord is damaged, it must be replaced by the

manufacturer, a qualied service agent or similarly qualied

persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• For additional protection: It is recommended that this vacuum

cleaner can be used in conjunction with residual current device

(RCD) with a rated residual current of 30mA or less.

• Always unplug the appliance after use and before cleaning or

changing the lters or accessories.

When using as blower:

• Direct air discharge only at work area.

• Do not use Wet/Dry Vacuum as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Wear safety goggles.

UNPACKING AND CHECKING CARTON

CONTENTS

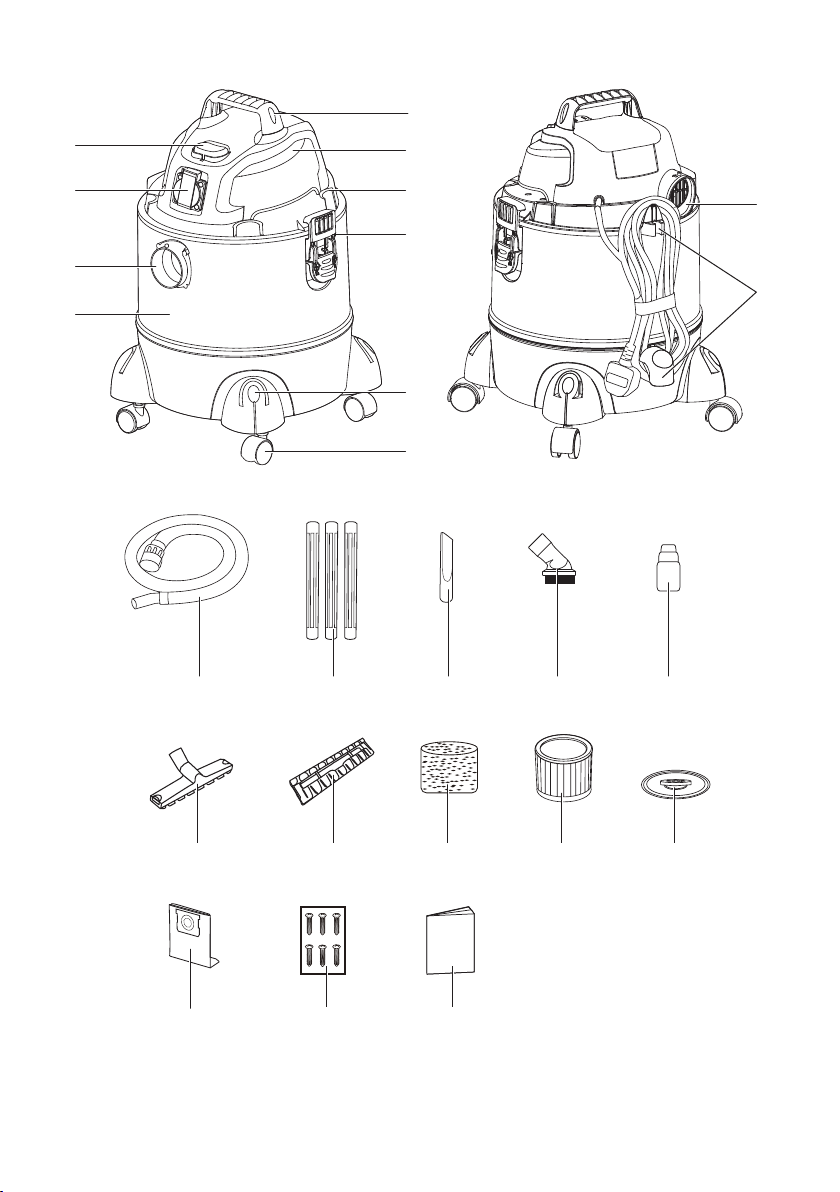

1 Carry Handle 9 On/Off Switch 17 Hard Floor Nozzle

2 Power Head 10 Blowing Port 18 Carpet Floor Nozzle Attachment

3 Accessory Storage 11 Power Cord Storage Hooks 19 Foam Filter

4 Latch 12 Suction Hose 20 Cartridge Filter (pre-installed)

5 Caster 13 Extension Wand (x3) 21 Filter Retainer (pre-installed)

6 Container 14 Crevice Tool 22 Dust Bag

7 Suction Port 15 Round Dust Brush 23 Screw (x6)

8Power Take-off Socket 16 Power Tool Hose Adaptor 24 Instruction Manual

ASSEMBLY

NOTE: A Phillips screwdriver is required.

1) Remove all the contents from inside of the vacuum cleaner container.

2) Attach the carry handle into the slots located on the top of the power head (Fig. 1).

3) Turn the container upside down and insert the feet with casters into the slots and apply

pressure until they click into place. Secure them with supplied screws (Fig. 2).

4) Your vacuum cleaner comes ready for dry vacuum cleaning with the cartridge lter pre-installed.

If the cartridge lter is not installed, refer to page 9.

5) Optionally, for improved dust ltration, fully t the dust bag ange onto the inlet stub (Fig. 3).

6) For wet vacuuming, replace the cartridge lter with the foam lter supplied. Do not use a dust

bag when wet vacuuming. If the foam lter is not installed, refer to page 10.

7) Secure the power head back on the container, using the 2 side latches. Insert the locking end

of the hose into the suction port of the container (Fig. 4).

8) Choose the desired accessories and/or extension wands and push t onto the hose nozzle.

Floor Nozzle Attachments

1) To remove the oor nozzle attachment, release the push clips on either side of the oor tool

holder. The attachment should drop out from underneath (Fig. 5).

2) To insert a new oor nozzle attachment, place one side of the attachment into the bottom of the

oor tool holder and secure one clip in place. Push the other side up into place and ensure it is

securely tted into the holder (Fig. 6).

Hard Floor Nozzle

Attachment is suitable for wet or dry suction on hard oor surfaces. Ensure the squeegee is

located towards the back of the oor tool holder and brushes towards the front.

Carpet Floor Nozzle Attachment

Attachment is specically designed for use on carpeted oor surfaces. Ensure the front lip is facing

away from the user and in the direction of vacuuming.

8) Choose the desired accessories and/or extension wands and push t onto the hose nozzle.

OPERATION

1. Switching On/Off

Connect the mains plug to a suitable a power outlet.

Position Status

I on

O off

II automatic synchronized start-up

2. Power Tool Take-Off Operation (Fig. 7)

WARNING: Always check the maximum wattage compatibility of the power tool take

off socket against the desired power tool before connecting to prevent overloading.

1) Connect the power cable of your power tool to the power take-off socket.

2) If applicable, connect the vacuum suction hose to the dust extractor connector on your tool with

the supplied adaptor.

3) Switch the vacuum cleaner to position II, as described in Switching ON/OFF. The moment you

switch on the power tool, the vacuum cleaner will also switch on. Once the electrical appliance

has been switched off, the vacuum cleaner switches off following a time lapse (around 5

second) to allow the suction tube to be emptied.

3. Dry & Wet Vacuum Operation

WARNING! ENSURE YOU READ, UNDERSTAND AND APPLY SECTION ENTITLED

‘SAFETY INFORMATION’.

1) Verify that the correct lter is installed for wet or dry vacuuming and the container latches are

secured.

2) Secure the locking end of the hose into the vacuum suction port.

3) Push the desired accessories onto the hose nozzle.

4) Plug the power cord into a power outlet.

5) Turn on the motor by assigning the switch to the “I” ON position.

6) Once you have completed vacuuming, switch to the “O” OFF position and unplug the power

cord from the power.

For Dry Vacuuming:

WARNING: BEFORE INSTALLING, REMOVING OR CLEANING THE VACUUM

CLEANER FILTER, ENSURE THAT THE POWER CORD IS UNPLUGGED AND

SWITCHED OFF.

1) To prepare your vacuum cleaner for dry vacuuming, install the cartridge lter over the lter cage

with the at end of the lter towards the vacuum power head. Carefully push lter until it sits

ush forming a tight seal.

2) Place the lter retainer cap on top of cartridge lter over the raised lip and tighten the retainer

lock clockwise to secure against the internal lter cage (Fig. 8).

3) Optionally, fully t the dust bag ange onto the inlet stub. The Vacuum cleaner can we be used

with or without dust bags.

IMPORTANT: Check the lter regular for optimal performance. An old or blocked lter will reduce

suction performance.

For Wet Vacuuming:

1) To prepare your vacuum cleaner for wet vacuuming, remove the retainer cover and the dry use

cartridge lter.

2) Carefully install the supplied foam lter over the internal lter cage, making sure the whole cage

is covered (Fig. 9).

WARNING:

DO NOT USE THE CARTRIDGE FILTER FOR WET VACUUMING.

DO NOT USE A DUST COLLECTION BAG FOR WET VACUUMING.

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely;

leave a gap at the tip of the nozzle to allow air inow. The machine is tted with a oat valve that

stops the suction action when the container reaches its maximum capacity. You will notice an

increase in motor noise. When this happens, turn off the machine, disconnect from power supply,

and drain the liquid.

4. Blower Operation

WARNING: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.

WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE

INHALED.

1) Make sure the container and any collected waste is emptied before using as a blower. This also

includes removal of the dust bag.

2) Insert the locking end of the hose into the blowing port on the rear of the power head (Fig. 10).

3) Turn on the motor on by turning the switch to the ‘I’ ON position.

Andere Handbücher für VQ1220PFC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Vacmaster Staubsauger Handbücher

Vacmaster

Vacmaster VMVK1530SIWDC Bedienungsanleitung

Vacmaster

Vacmaster VQ1530SFDC Bedienungsanleitung

Vacmaster

Vacmaster VSB1801NA Bedienungsanleitung

Vacmaster

Vacmaster VK1520SIWC Bedienungsanleitung

Vacmaster

Vacmaster VHB307WM Bedienungsanleitung

Vacmaster

Vacmaster VJH1211PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VK1630SWC Bedienungsanleitung

Vacmaster

Vacmaster VDK1138SWC-110 Bedienungsanleitung

Vacmaster

Vacmaster VJH1211PF 0203 Bedienungsanleitung

Vacmaster

Vacmaster RESPIRA UC0501 Bedienungsanleitung

Vacmaster

Vacmaster UB0212EUK Bedienungsanleitung

Vacmaster

Vacmaster VFB511B 0201 Bedienungsanleitung

Vacmaster

Vacmaster VSD1801 Bedienungsanleitung

Vacmaster

Vacmaster VJH1612PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VK811PH Bedienungsanleitung

Vacmaster

Vacmaster VMVDK1538SWC-06 Bedienungsanleitung

Vacmaster

Vacmaster VF408 Bedienungsanleitung

Vacmaster

Vacmaster VQ1220PF Bedienungsanleitung

Vacmaster

Vacmaster VZA306P 0201 Bedienungsanleitung

Vacmaster

Vacmaster VQ1115P Bedienungsanleitung

Vacmaster

Vacmaster VJ607-1 Bedienungsanleitung

Vacmaster

Vacmaster VH105 Bedienungsanleitung

Vacmaster

Vacmaster VJH1612PF 0202 Bedienungsanleitung

Vacmaster

Vacmaster VBV1210 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
