Vantec SuperSpeed NexStar 3 Bedienungsanleitung

USER’S MANU A L

3.5'' SATA to USB 3.0 & eSATA

External Hard Drive Enclosure

Package Contents:

3.5'' SATA to USB 3.0 & eSATA External Hard Drive Enclosure

13.5" HDD Enclosure

2Power Adapter

3USB 3.0 Cable

4Enclosure Stand

User’s Manual

eSATA Cable

6Installation Screws

TRADEMARKS

MS-DOS, Microsoft, Windows NT/2000/XP/Vista/7 are trademarks of Microsoft Corporation.

Apple, Macintosh and Mac are trademarks of Apple Computer.

NexStar is a registered trademark of Vantec Thermal Technologies.

*All other third-party brands and names are the property of their respective owners.

U S E R ’ S M A N U A L

1. Introduction ................................................................................................................02

2. Specifications/Features

.................................................03NexStar 3 SuperSpeed External 3.5” HDD Enclosure

NexStar 3 SuperSpeed External 3.5” HDD Enclosure

3. System Requirements..........................................................................................04

4. Parts Layout

..................................................05

5. Installation

5.1 Hardware Installation ..................................................................................................06

6. Disconnecting the NexStar 3

..................................................09

7. Creating A New Partition

..................................................................................10

8. Warranty ...........................................................................................................................13

9. Contact ...............................................................................................................................13

Table of Contents

Table of Contents:

Introduction

NST-380SU3-BK

1. Introduction:

Form and functionality collide with style in the

NexStar 3 SuperSpeed USB 3.0 & eSATA External

Hard Drive Enclosure from Vantec. With its mirror

finish and sleek curves, the Vantec NexStar 3

SuperSpeed stands out from the crowd. The sturdy

drive cage protects your hard drive while the

aluminum case effectively draws away the heat,

protecting your drive from overheating. Integrated

with the latest USB 3.0 technology, performance is

increased by 10 fold offering maximum speeds of

up to 5 Gbps. Quickly store and back-up your data

with the Vantec NexStar 3 SuperSpeed USB 3.0 &

eSATA External Hard Drive Enclosure.

Specifications/Features

2. Specifications/Features:

3.5'' SATA to USB 3.0 & eSATA External Hard Drive Enclosure

Specifications:

• Model: NST-380SU3-BK

• Device Support: SATA I/II

• Device Size: 3.5”

• Internal Interface: SATA

*For the most updated Storage Capacity, please check our website: www.vantecusa.com

• External Interface: USB 3.0 & eSATA

• HD Capacity: Up to 3 TB*

• Power Supply: AC Adapter

• Material: Aluminum

• Dimension: 206 x 123 x 33mm

•

Features:

USB 3.0 Port

Power Connection

Power Switch

eSATA Port

Attractive Mirror Finish Design

Aluminum Casing Cools Down Your Hard Drive

Maximum Transfer Rates Up to 5 Gbps w/USB 3.0

Maximum Transfer Rates Up to 3Gbps w/eSATA

Maximum Transfer Rates Up to 480 Mbps w/USB 2.0

Easily Add Storage to Any System with USB 2.0, 3.0 or eSATA

Backwards-Compatible with USB 2.0

Hi-Quality Shielded USB 3.0 Cable Ensures Data Integrity and Speed

Hot-Swappable: Plug & Play Without Rebooting

Attractive Blue LED Indicates Power & HDD Activity

eSATA USB

3. System Requirements:

System Requirements

Microsoft Windows XP/Vista/7 Mac OS 10.4 & greater

1. For USB 2.0 speeds, the system must

support USB 2.0 specifications

.For USB 3.0 speeds, the system must

support USB 3.0 specifications

USB-Equipped or eSATA System 3. USB-Equipped or eSATA System

1. For USB 2.0 speeds, the system must

support USB 2.0 specifications

2. For USB 3.0 speeds, the system must

support USB 3.0 specifications

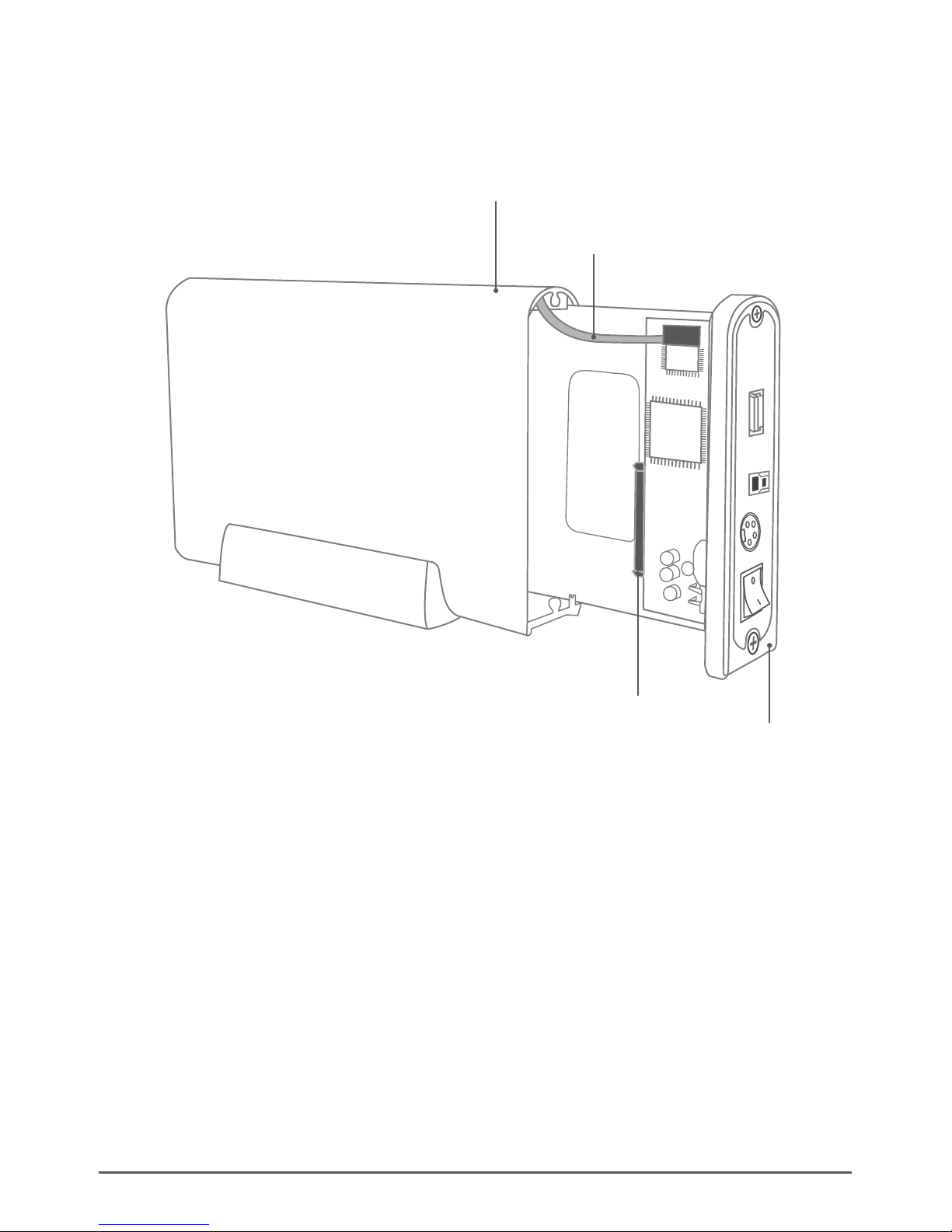

4. Parts Layout:

Parts Layout

3.5'' SATA to USB 3.0 & eSATA External Hard Drive Enclosure

Hard Drive Caddy

Aluminum Housing

LED Cable

SATA/Power Connector

eSATAUSB

5. Installation:

Installation

NexStar 3 SuperSpeed USB 3.0 External 3.5” HDD Enclosure:

Preparing the hard drive:

(1)

Preparing the NexStar 3:

( figure 5.1-A )

5.1. Hardware Installation:

( figure 5.1-A )

If there are jumper settings on the hard

drive, please set the hard drive jumpers to

MASTER or SINGLE DRIVE ONLY. Please

refer to the manufacturer's documentation

of your hard drive for further information

on your jumper settings.

Remove the side of the NexStar 3

SuperSpeed with the power and USB

connection ports. If it has previously been

screwed in place, remove the screws first.

Carefully slide out the hard drive caddy for

approximately 3 inches.

Unplug the red and white cable for the LED.

You may slide out the hard drive caddy.

(1)

(2)

(3)

(4)

Installing the hard drive in the NexStar 3 SuperSpeed:

( figure 5.1-B )

( figure 5.1-C )

( figure 5.1-D )

( figure 5.1-C )

(2) Align the hard drive mounting holes with the

holes on the back of the drive caddy and secure

the hard drive with the screws provided.

Installation

( figure 5.1-B )

(1) Connect the SATA and power connector to

the hard drive as pictured.

(3) Insert the drive caddy back into the aluminum

housing. Be sure to reconnect the LED cable

before closing the unit. When reinserting the

caddy, also be sure to align the caddy with the

guide rails within the housing.

( figure 5.1-D)

Installation

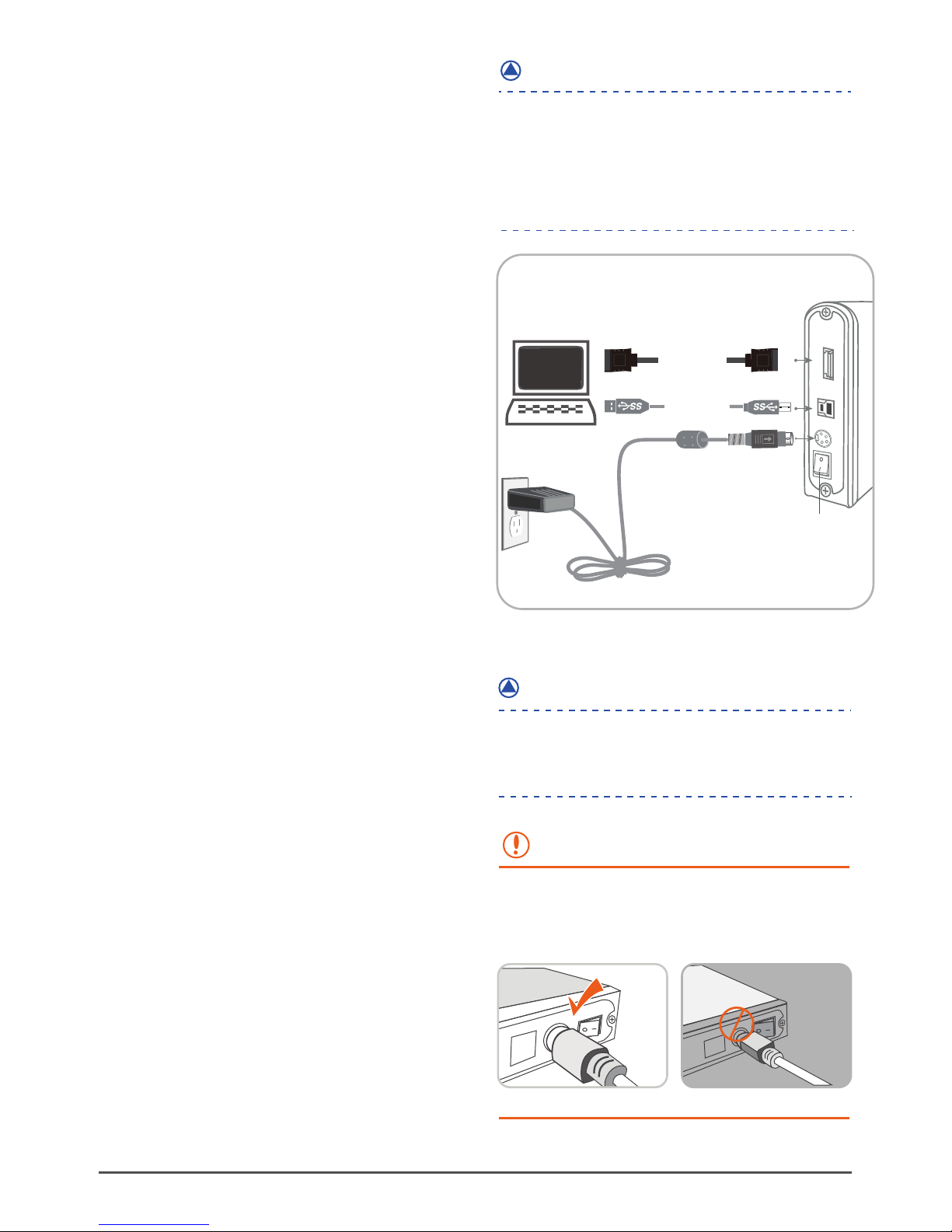

Connecting the NexStar 3 to your computer:

( figure 5.1-E )

(figure5.1-E)

Connect the type (B) USB connector to the

NexStar 3 SuperSpeed and the type (A) USB

connector to an available USB port on your

system.

Connect the power cable to the NexStar 3

SuperSpeed and plug the cable into an

available outlet.

Turn on the NexStar 3 SuperSpeed via the

power switch.

Your operating system should detect the

NexStar 3 SuperSpeed and automatically install

the necessary drivers. Once your operating

system finishes setting up the NexStar 3, it will

mount your hard drive. On Mac OS systems, the

new volume should appear on desktop. On a

Windows PC, the new volume will appear

under My Computer.

Your NexStar 3 SuperSpeed External Hard Drive

is now ready for use.

(1)

(2)

(3)

(4)

(5)

(1)

(2)

(3)

(4)

(5)

If you can see the USB icon in the system tray ,

but there is no any disk appear in your computer,

pleaseconfirm your hard disk is partitioned.

Please be careful and plug the power adapter

to your enclosure properly.

See figures below. ( figure 5.1-F, figure 5.1-G )

WARNING :

( figure 5.1-F ) ( figure 5.2-G)

(1)

(2)

(3)

( figure 5.1-E )

USB 3.0 Cable

NOTE :

For new hard drives, you will need to initialize and

partition your hard drive before it will appear in

Windows Explorer or on your Mac desktop. Please

refer to your hard drive manufacturer's documen-

tation or read the"Creating a New Partition" section

of this manual.

eSATA

USB 3.0

eSATA Cable

eSATA USB

Connect the eSATA to the NexStar and to an

available eSATA port on your system.

Connect the power cable to the NexStar 3

SuperSpeed and plug the cable into an

available outlet. ( figure 5.1-E )

Turn on the NexStar 3 SuperSpeed via the

power switch. ( figure 5.1-E )

Your operating system should detect the

NexStar 3 SuperSpeed and automatically

install the necessary drivers. Once your

operating system finishes setting up the

NexStar 3, it will mount your hard drive. On

Mac OS systems, the new volume should

appear on desktop. On a Windows PC, the new

volume will appear under My Computer.

Your NexStar 3 SuperSpeed External Hard

Drive is now ready for use.

NOTE :
