Vantec Nexstar 3 Super Speed Bedienungsanleitung

USER’S MANUAL

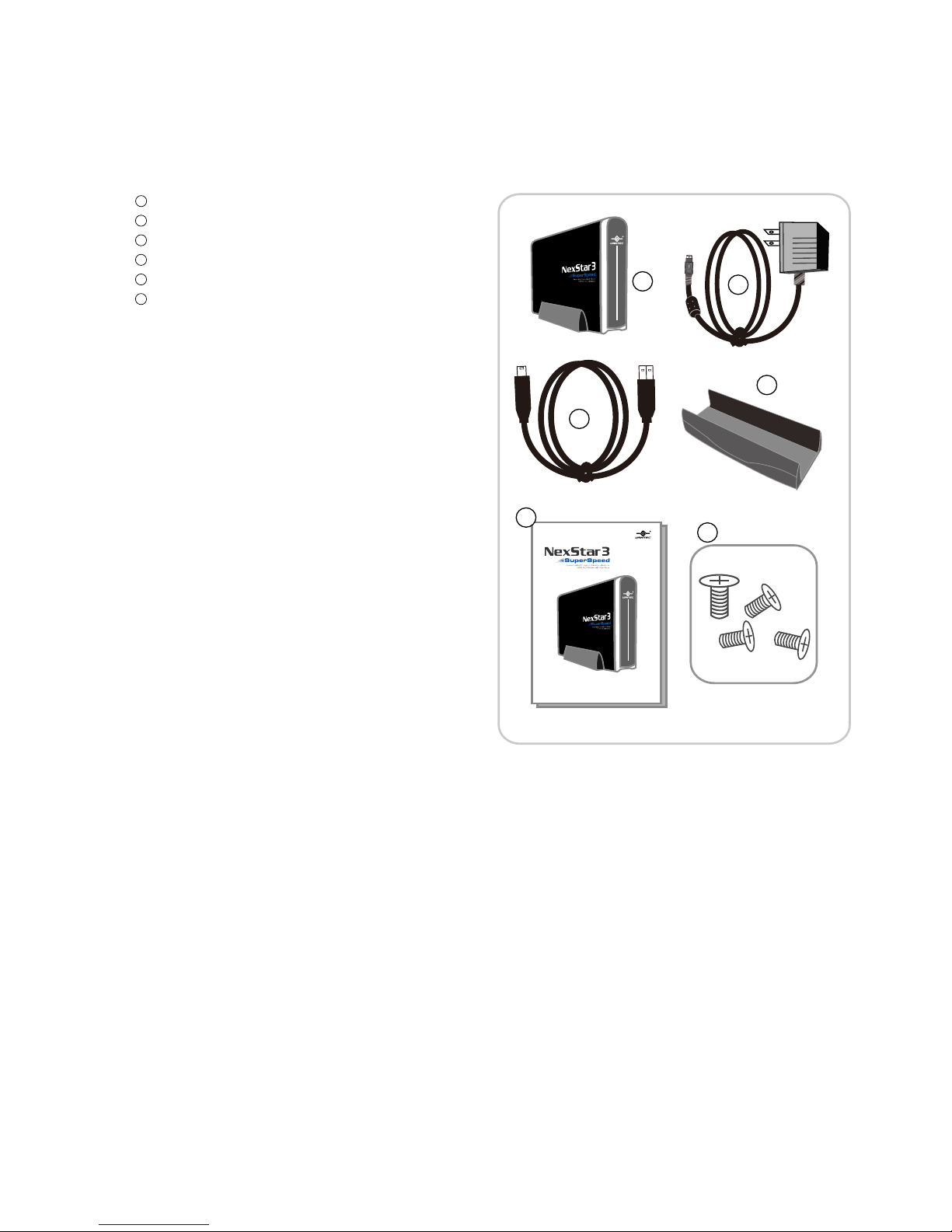

Package Contents:

NexStar 3 3.5” SATA to SuperSpeed USB 3.0

External Hard Drive Enclosure

13.5" HDD Enclosure

2Power Adapter

3USB 3.0 Cable

4Enclosure Stand

5User’s Manual

6Installation Screws

TRADEMARKS

MS-DOS, Microsoft, Windows NT/2000/XP/Vista/7 are trademarks of Microsoft Corporation.

Apple, Macintosh and Mac are trademarks of Apple Computer.

NexStar is a registered trademark of Vantec Thermal Technologies.

*All other third-party brands and names are the property of their respective owners.

USER’SMANUAL

1. Introduction ................................................................................................................02

2. Specifications/Features

................................................. 03NexStar3 SuperSpeed External 3.5”HDD Enclosure

NexStar3 SuperSpeed External 3.5”HDD Enclosure

3. System Requirements..........................................................................................04

4. Parts Layout

..................................................05

5. Installation

5.1 Hardware Installation ..................................................................................................06

6. Disconnecting the NexStar 3

..................................................09

7. Creating A New Partition

..................................................................................10

8. Warranty ...........................................................................................................................13

9. Contact ...............................................................................................................................13

Table of Contents

Table of Contents:

Introduction

NST-380S3-BK

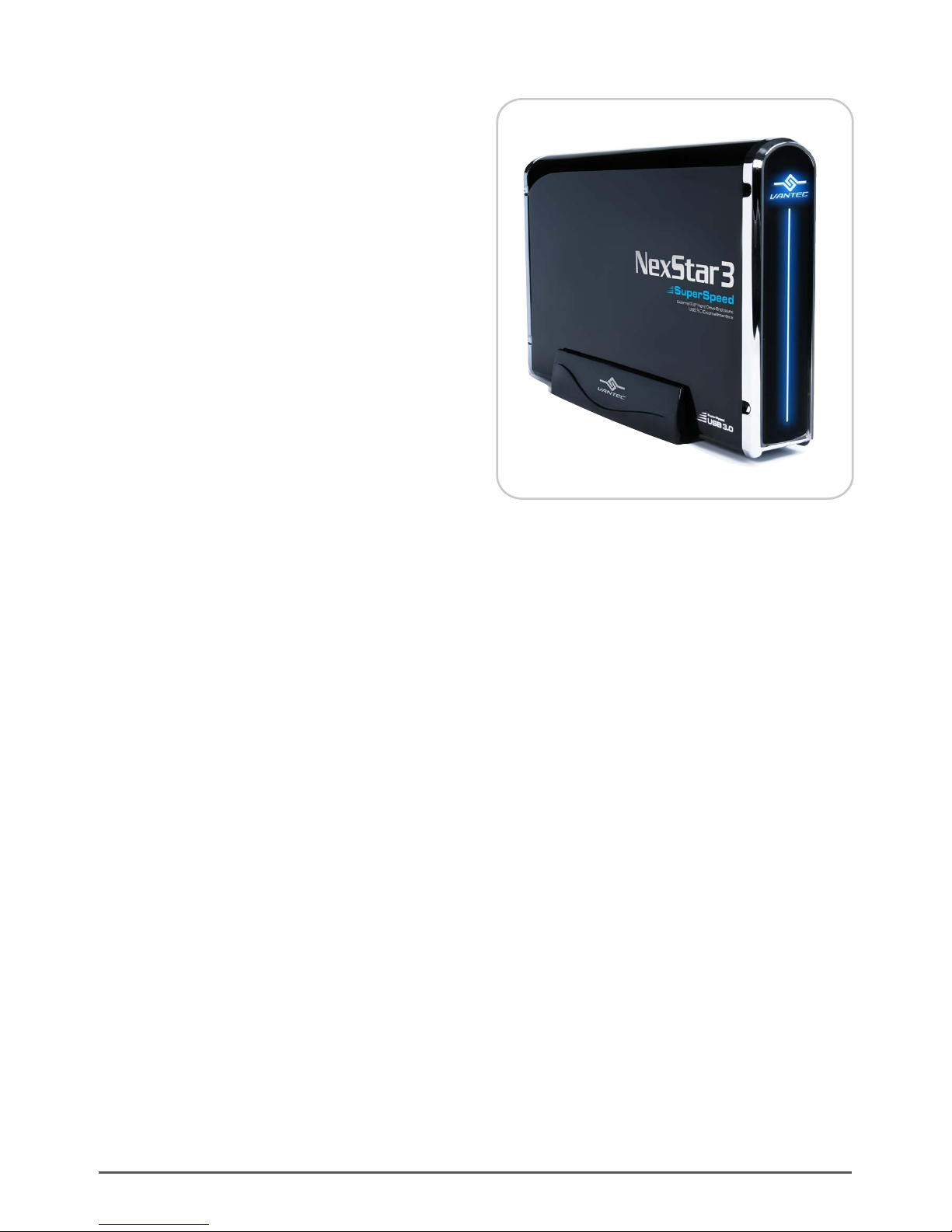

1. Introduction:

Transferring files has just gotten a whole lot faster

with the Vantec NexStar 3 SuperSpeed USB 3.0

External Hard Drive Enclosure. Integrated with the

latest USB 3.0 technology, performance is increased

by 10 fold offering maximum speeds of up to 5

Gbps. With its mirror finish and sleek curves, the

Vantec NexStar 3 SuperSpeed USB 3.0 External

Hard Drive Enclosure stands out from the crowd.

The sturdy drive cage protects your hard drive

while the aluminum case effectively draws away

the heat, protecting your drive from overheating.

The NexStar 3 SuperSpeed USB 3.0 External Hard

Drive Enclosure is an ideal way of storing and

transferring large amounts of data in an enclosure

that matches your style!

Specifications/Features

2. Specifications/Features:

NexStar 3 SuperSpeed USB 3.0 External 3.5” HDD Enclosure:

Specifications:

• Model: NST-380S3-BK

• Device Support: SATA I/II Hard Drive

• Device Size: 3.5”

• Internal Interface: SATA I/II

*For the most updated Storage Capacity, please check our website: www.vantecusa.com

• External Interface: USB 3.0

• HD Capacity: Up to 2 TB*

• Power Supply: AC Adapter

• Material: Aluminum

• Dimension: 206 x 123 x 33mm

• Attractive Mirror Finish Design

• Aluminum Casing Cools Down Your Hard Drive

• Maximum Transfer Rates Up to 5 Gbps With USB 3.0

• Maximum Transfer Rates Up to 480 Mbps With USB 2.0

• Backward-Compatible with USB 2.0 or 1.1

• Hi-Quality Shielded USB 3.0 Cable Ensures Data Integrity and Speed

• Hot-Swappable: Plug & Play Without Rebooting

• Attractive Blue LED Indicates Power & HDD Activity

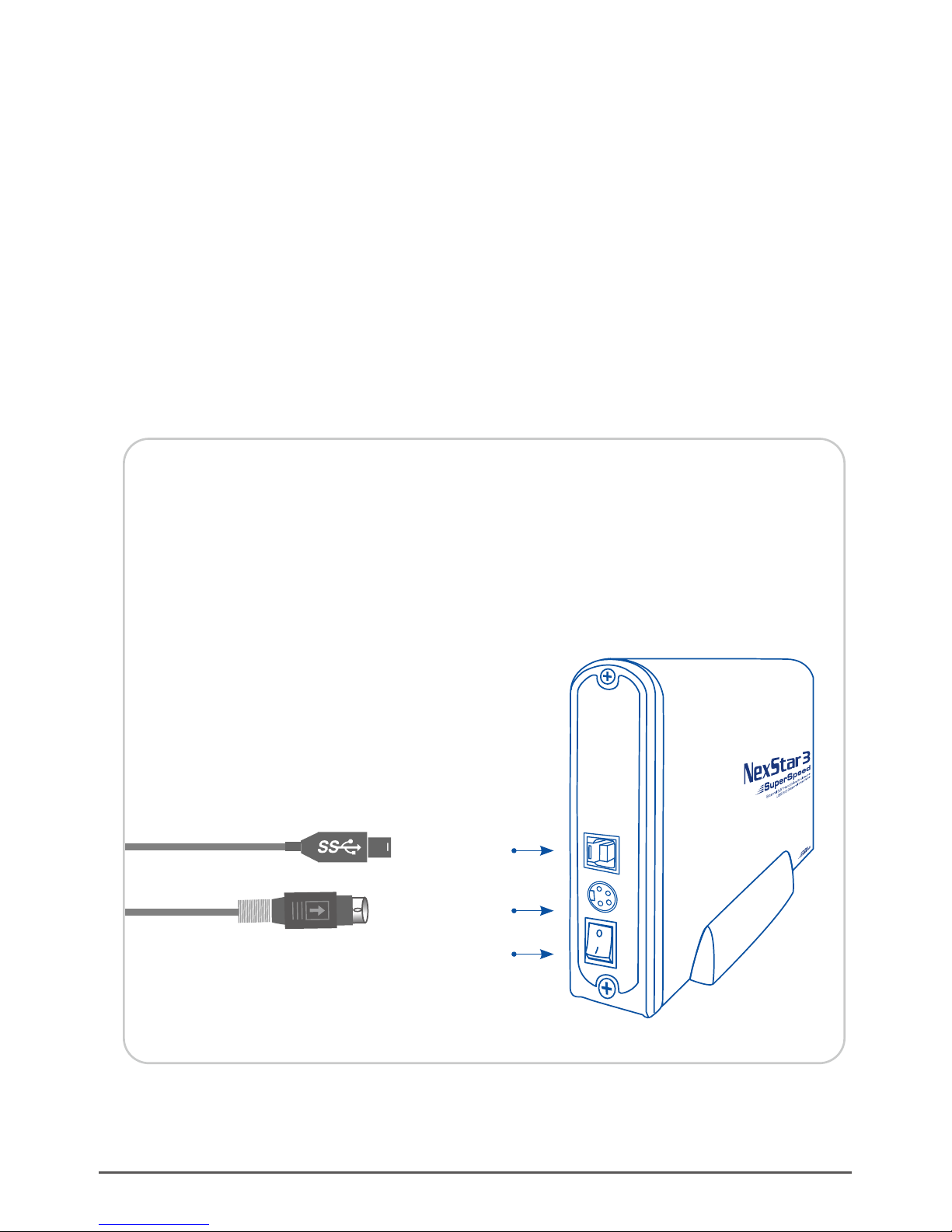

Features:

USB3.0 Port

Power Connection

Power Switch

3. System Requirements:

System Requirements

MicrosoftWindows2000/XP/Vista/7 Mac OS 10.4 & greater

1. For USB 2.0 speeds, the system must

support USB 2.0 specifications

2. For USB 3.0 speeds, the system must

support USB 3.0 specifications

1. For USB 2.0 speeds, the system must

support USB 2.0 specifications

2. For USB 3.0 speeds, the system must

support USB 3.0 specifications

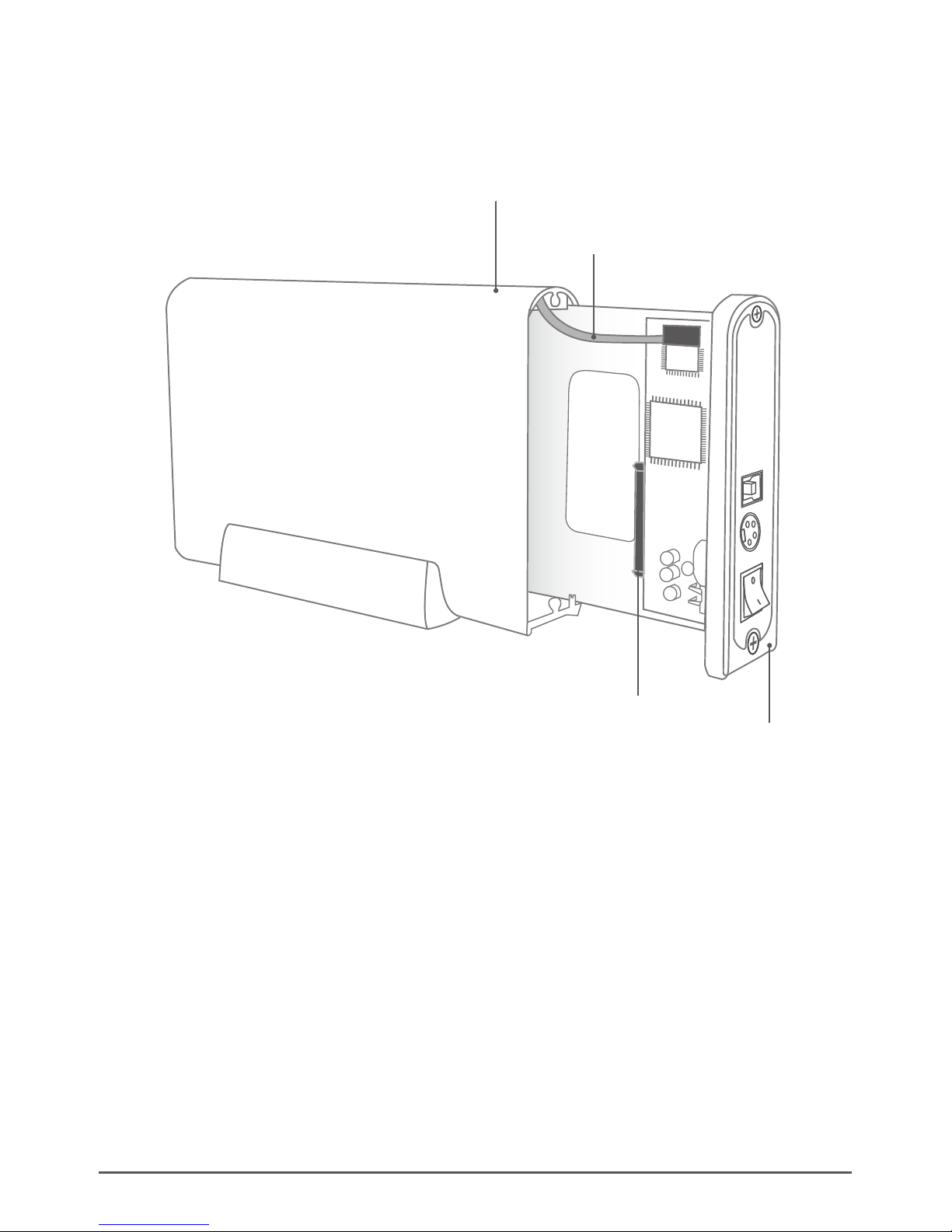

4. Parts Layout:

Parts Layout

NexStar 3 SuperSpeed USB 3.0 External 3.5”HDD Enclosure:

Hard Drive Caddy

Aluminum Housing

LED Cable

SATA/Power Connector

5. Installation:

Installation

NexStar 3 SuperSpeed USB 3.0 External 3.5” HDD Enclosure:

Preparing the hard drive:

(1)

Preparing the NexStar 3:

(figure 5.1-A )

5.1. Hardware Installation:

( figure 5.1-A )

If there are jumper settings on the hard

drive, please set the hard drive jumpers to

MASTER or SINGLE DRIVE ONLY. Please

refer to the manufacturer's documentation

of your hard drive for further information

on your jumper settings.

Remove the side of the NexStar 3

SuperSpeed with the power and USB

connection ports. If it has previously been

screwed in place, remove the screws first.

Carefully slide out the hard drive caddy for

approximately 3 inches.

Unplug the red and white cable for the LED.

You may slide out the hard drive caddy.

(1)

(2)

(3)

(4)

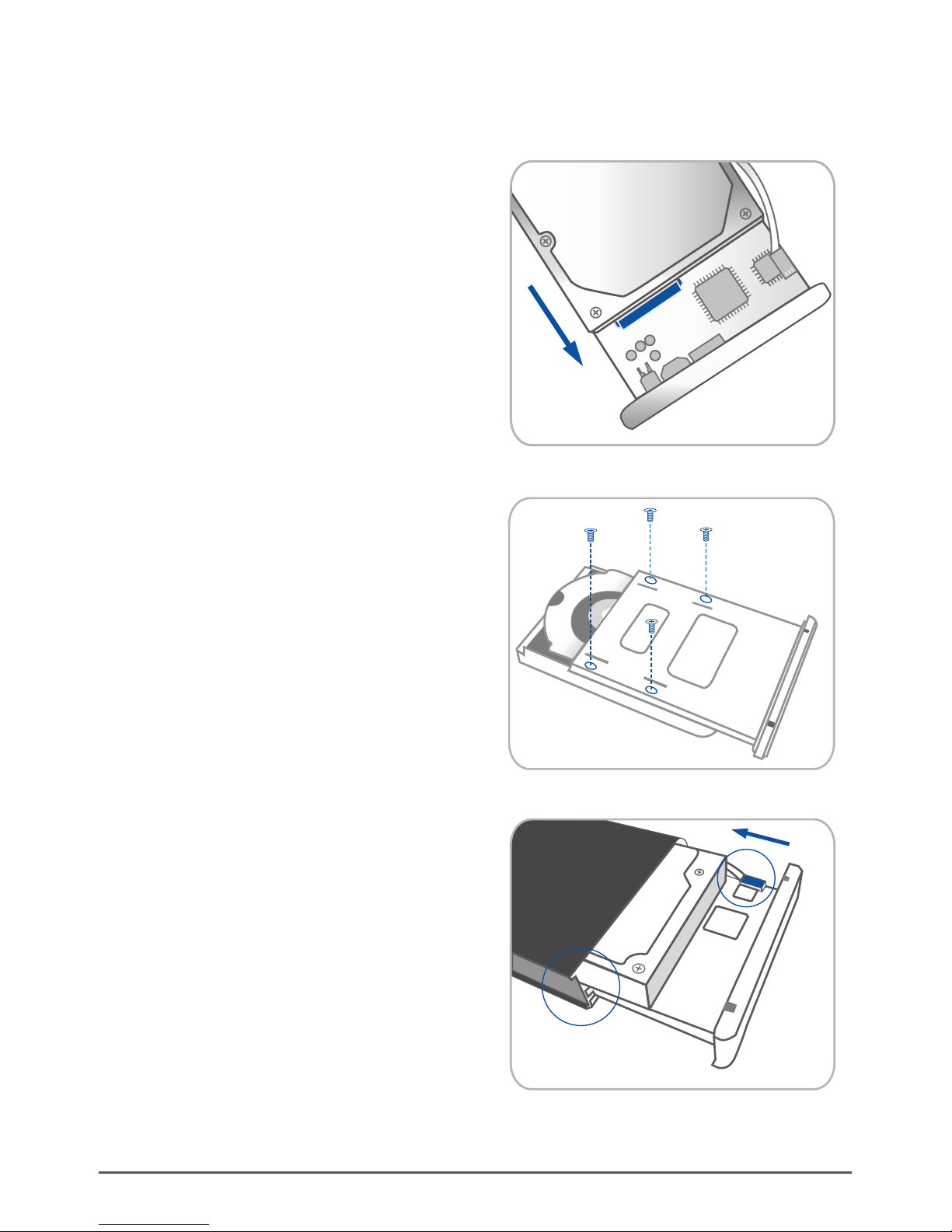

Installing the hard drive in the NexStar 3 SuperSpeed:

( figure 5.1-B )

( figure 5.1-C )

( figure 5.1-D )

( figure 5.1-C )

(2) Align the hard drive mounting holes with the

holes on the back of the drive caddy and secure

the hard drive with the screws provided.

Installation

( figure 5.1-B )

(1) Connect the SATA and power connector to

the hard drive as pictured.

(3) Insert the drive caddy back into the aluminum

housing. Be sure to reconnect the LED cable

before closing the unit. When reinserting the

caddy, also be sure to align the caddy with the

guide rails within the housing.

( figure 5.1-D)

Installation

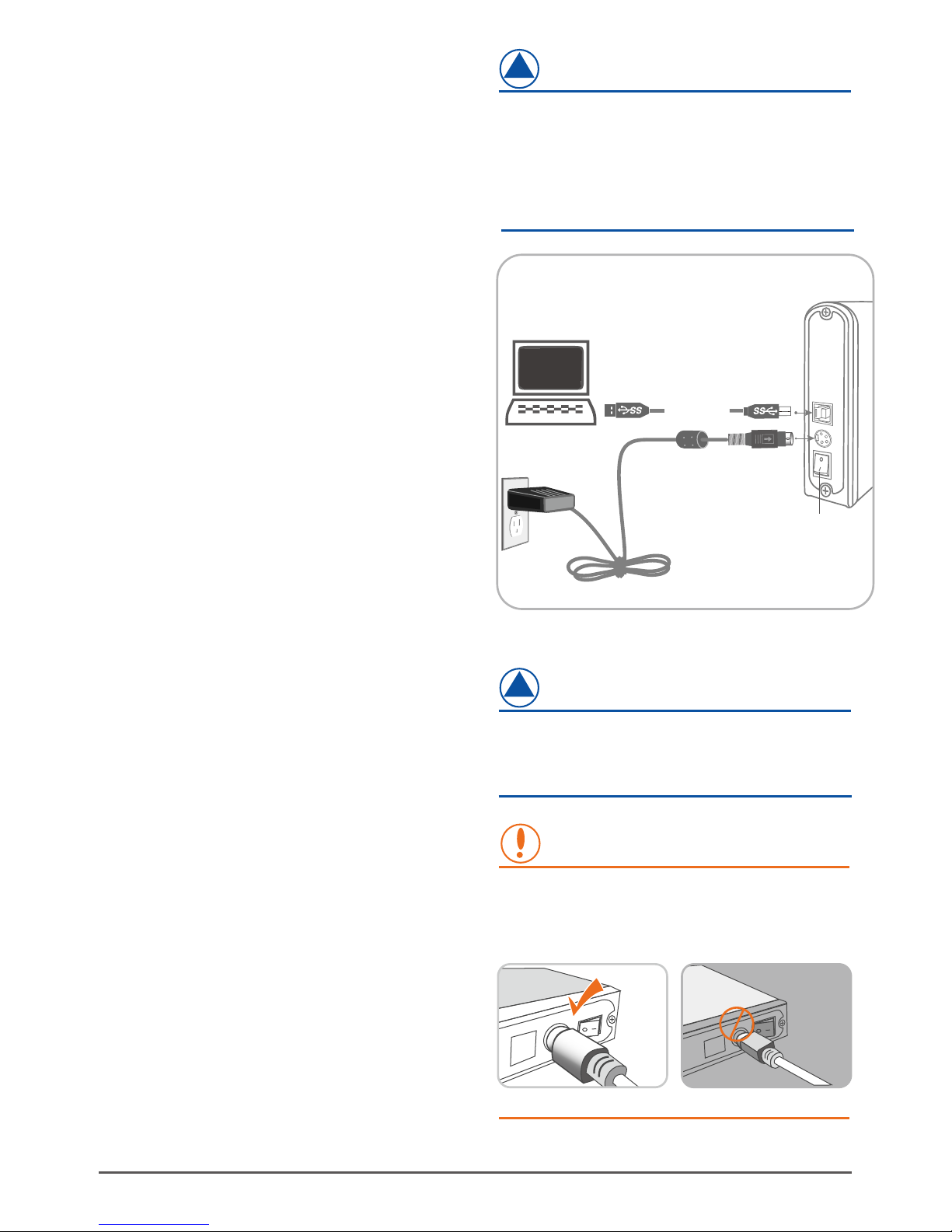

Connecting the NexStar 3 to your computer:

( figure 5.1-E )

(figure 5.1-E )

Connect the type (B) USB connector to the

NexStar 3 SuperSpeed and the type (A) USB

connector to an available USB port on your

system.

Connect the power cable to the NexStar 3

SuperSpeed and plug the cable into an

available outlet.

Turn on the NexStar 3 SuperSpeed via the

power switch.

Your operating system should detect the

NexStar 3 SuperSpeed and automatically install

the necessary drivers. Once your operating

system finishes setting up the NexStar 3, it will

mount your hard drive. On Mac OS systems, the

new volume should appear on desktop. On a

Windows PC, the new volume will appear

under My Computer.

Your NexStar 3 SuperSpeed External Hard Drive

is now ready for use.

(1)

(2)

(3)

(4)

(5)

If you can see the USB icon in the system tray ,

but there is no any disk appear in your computer,

pleaseconfirm your hard disk is partitioned.

NOTE :

Please be careful and plug the power adapter

to yourenclosure properly.

See figures below. ( figure 5.1-F, figure 5.1-G )

WARNING :

( figure 5.1-F )( figure 5.2-G)

(1)

(2)

(3)

( figure 5.1-E )

USB 3.0 Cable

NOTE :

For new hard drives, you will need to initialize and

partition your hard drive before it will appear in

Windows Explorer or on your Mac desktop. Please

refer to your hard drive manufacturer's documen-

tation or read the"Creating a New Partition" section

of this manual.
