1
VCST-01 Service Manual V1 Date 01/04/2014
SERVICE MANUAL
VCST-01 Commercial Steamer
2
VCST-01 Service Manual V1 Date 01/04/2014
Contents
1. Technical Data…………………………..……………2-3
2. Specification…………………………………………….4
3. Exploded diagram…………………………………….25-27
4. Spares list…………………………………………………28-33
5. Troubleshooting & Repairing guide…………..11-14
3
VCST-01 Service Manual V1 Date 01/04/2014

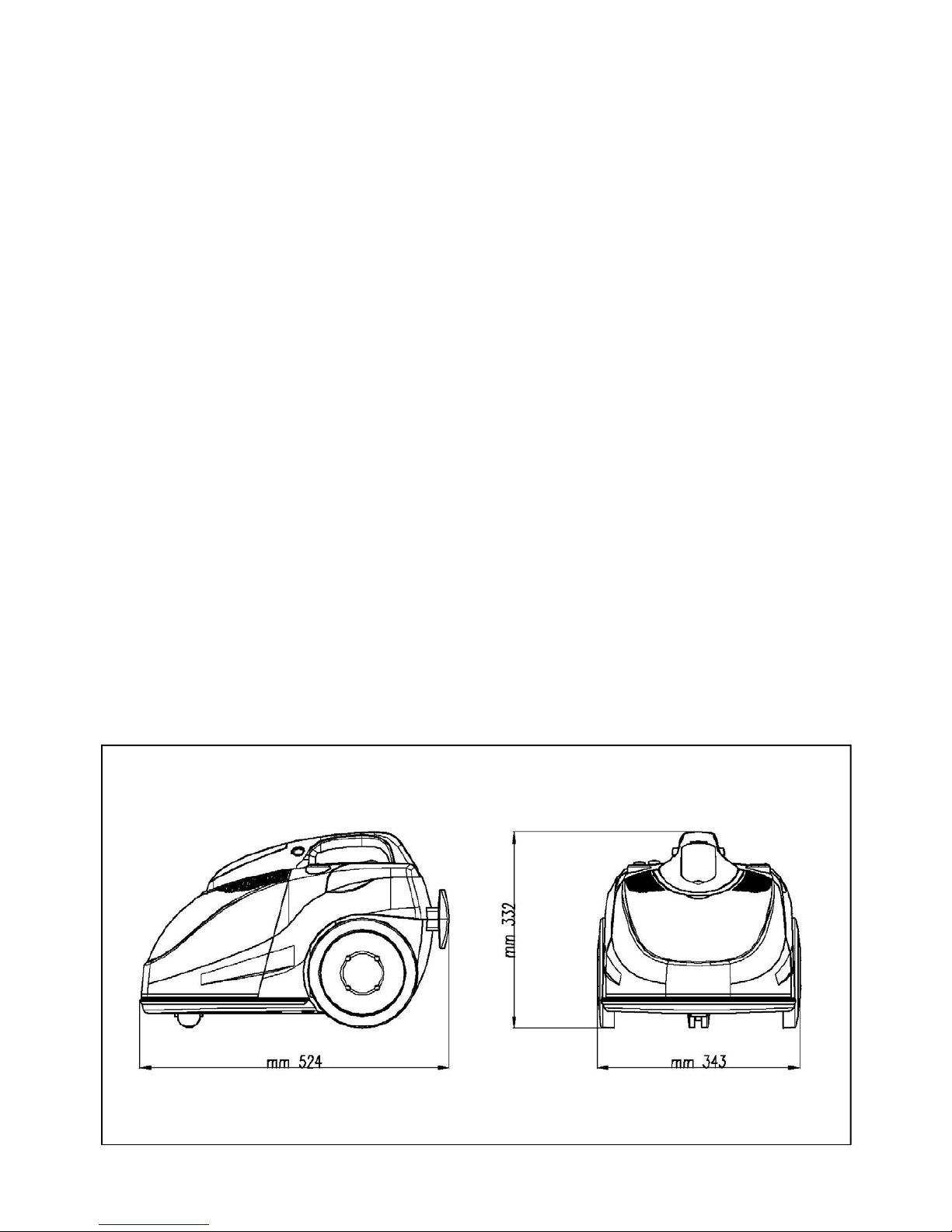

TECHNICALDATA
Boiler Power: 1700 W
Suction Motor Power: 1200 - 1400 W
Iron Power: 850 W
Vapour Pressure: 4.5 bar
Vapour flow: 50 gr/ min
Air flow: 51 l/sec (motor)
Vacuum pressure: 2400 mm H2O (motor)
Time of heating: 1 min 50"
Boiler Volume: 0,8 l Boiler
capacity: 1,2 l Recovery
tank volume: 8 l
2
VCST-01 Service Manual V1 Date 01/04/2014
SERVICETOOLS
TRIANGLE 2.3
3
VCST-01 Service Manual V1 Date 01/04/2014
VACUUMSCHEME
STANDARD FILTER
WATER FILTER
104
4
VCST-01 Service Manual V1 Date 01/04/2014
BOILERSCHEME
5
8
1
0
8
70
7
2
5
5
5
8
5
2
8
1
5
VCST-01 Service Manual V1 Date 01/04/2014
FILTERSSCHEME
8
6
15
64
114
91
6
VCST-01 Service Manual V1 Date 01/04/2014

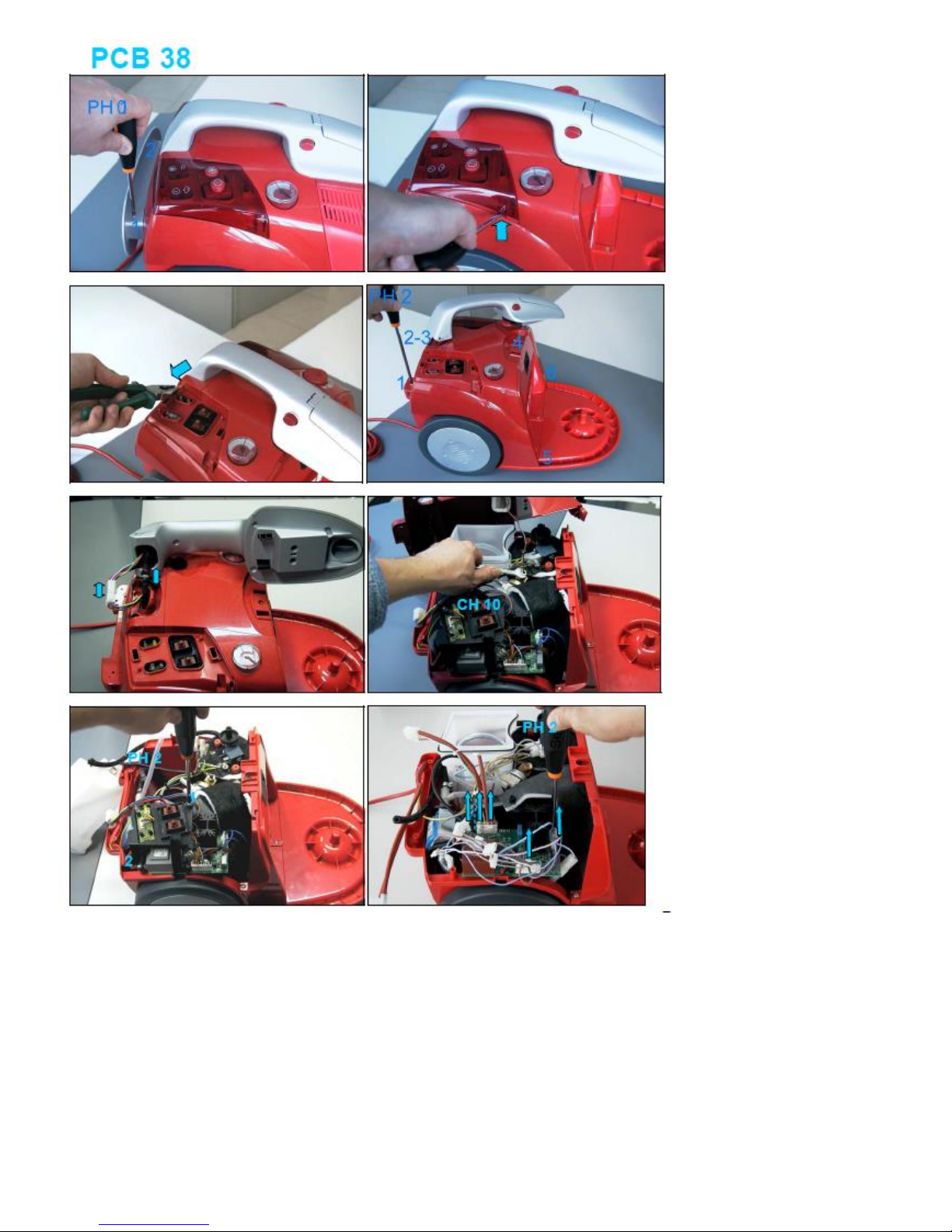

7
VCST-01 Service Manual V1 Date 01/04/2014
8
VCST-01 Service Manual V1 Date 01/04/2014
