Let’s talk safety

Basic

safety

precautions

Don’ts

Do’s

Please keep instructions for further use and use

only as instructed in this guide. This vacuum

cleaner is intended for household use only and NOT

for commercial or industrial use.

• Only use the vacuum cleaner indoors on dry surfaces

and keep the area you’re cleaning well lit.

• Keep ngers, hair and loose clothing away from moving parts

and openings whilst using the vacuum cleaner.

• Don’t use this vacuum cleaner if it has been dropped, damaged

or left outdoors.

• Don’t run over the power cord or use vacuum cleaner if the

power cord or plug is damaged. Please contact our Customer

Care Line on: 0330 026 8455 (Mon-Fri: 8:30am to 6:30pm,

Sat: 9:00am to 5:00pm).

• Don’t handle the plug or use the vacuum cleaner with wet hands.

• Don’t pull or carry this vacuum cleaner by the power cord.

Don’t use the power cord as a handle, pull the power cord

around corners, sharp edges or close a door over the power

cord. Don’t unplug vacuum cleaner by pulling on the power cord.

• Don’t vacuum up hard or sharp objects such as glass, nails,

screws or coins etc.

• Turn o all controls on the vacuum cleaner before disconnecting

or connecting the power cord.

• Always keep the power cord away from the brushes whilst

using your vacuum cleaner. After use always wrap the power

cord around the cord clips provided.

• Always make sure both the pre-motor/post-motor lters

are in place before use.

• Always make sure the brushbar is set to hard oor when using

your vacuum on the stairs and take extra care when positioning

the vacuum cleaner on the stairs.

• This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• Only Vax recommended tools should be used with this vacuum cleaner.

• Don’t vacuum up any ammable or combustible materials (lighter uid,

petrol, kerosene etc.) or use the vacuum cleaner in an area with explosive

vapours or liquid.

• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning

items or use in an area where there may be harmful uids (chlorine, bleach,

and ammonia drain cleaner).

• Don’t attempt to remove blockages with sharp objects as this may cause

damage to your vacuum cleaner.

• Don’t use the vacuum cleaner with incorrect voltage as this may result

in damage or injury to the user. The correct voltage is listed on the ratings label.

• Don’t wash the post-motor lter.

• Always switch o the vacuum cleaner before disconnecting

or connecting the hose and accessories.

• Keep all openings clear and free from debris as this may aect

the airow/suction.

• Always replace the fuse in the plug with a British 13amp fuse.

• Always protect the power cable from heated surfaces and open ames.

• Use only CE approved 13amp extension cords, non-approved extension cords

may overheat. Care should be taken to arrange the extension cord as it could

be a trip hazard.

• Store the vacuum cleaner in a cool, dry area. If lters have been cleaned as per

the user guide instructions ensure they are thoroughly dry before storing away.

Thank you for buying this Air Stretch

vacuum cleaner.

Taking care of your carpets and hard ﬂoors

The Air Stretch is designed to make vacuuming carpets and hard oors regularly, as eective

and eﬃcient as possible and this user guide will help you get the most out of your machine.

Maintaining your carpets and hard oors will ensure they keep their appearance for longer.

You’ve chosen the carpets and hard oors for your home for a reason and Vax will help you

take good care of them.

Taking care of your Air Stretch

Also inside this guide are instructions on maintaining your new machine, so that it’s always

ready when you are to tackle your carpets and hard oors.

Let us know what you think @VaxUK

Let us know what you think

@VaxUK

Taking care of you

We’re here if you need us. Instead of taking me back

to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number

of the product before calling.

Alternatively, you can write to us at:

Vax Ltd, Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 OLW, UK

This User Guide can be found online at: vax.co.uk/support

Contents

Let’s talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Accessories

What to do if it goes wrong

Getting in touch

Air Stretch

Included with

your machine*

3-in-1 Crevice, Dust

and Upholstery Tool

Pre-motor Filter

Post-motor Filter

Initial setup for normal operation

1. Use the base accessories.

– Shortest hose.

– Extension tube set to shortest practicable length.

2. Clean lters installed.

3. Dust receptacle empty.

4. All air vents must be closed.

5. Floor heads/tools set to Carpet Mode for carpet cleaning.

6. Mechanical Agitation turned ON for carpet cleaning.

7. Floor heads/tools set to Hard Floor Mode for hard oor cleaning.

8. Mechanical Agitation turned OFF for hard oor cleaning.

* Some parts may vary according to model. Please check inside of

box for more details.

TurboTool

Air Stretch Pet

As per Air Stretch, plus

Fur ‘n’ Flu Tool

Air Stretch Pet Plus

As per Air Stretch Pet, plus

Flexi Crevice Tool

Stretch Hose

Air Stretch Pet Max

As per Air Stretch Pet, plus

Flat Upholstery Tool

Air Stretch Complete

As per Air Stretch Pet, plus

Air Stretch Total Home

As per Air Stretch Pet, plus

Tool Connector

Soft Dusting Brush

Air Stretch Ultimate

As per Air Stretch Pet, plus

Matress Tool

Tool Connector

Subject to technical change without notice. *To purchase consumables and accessories, please visit vax.co.uk

Handle

Handle height adjuster

Post-motor lter cover

Rotating brushbar

Brushbar blockage indicator

Upper handle release button

Separator

Dirt container

release button

Hose to extension tube connector

Power On/Of button

Power cord

Quick release

cord hook

Carry handle

Post-motor lter release button

Brushbar On/O button

Wheels

Accessories & Consumables

Technical Speciﬁcation

Filter Kit (Type 90)*

1-1-134227-00

TurboTool (Type 6)*

1-1-134419-00

Belt (Type 26)*

1-1-134530-00

3-in-1 tool

1-1-129167-00

Fur ‘n’ Flu tool

1-1-131392-00

Flexi Crevice tool

1-1-131393-00

Flat Upholstery tool

1-1-131394-00

Name Air Stretch

Voltage See rating label on machine for details

Wattage See rating label on machine for details

Capacity 1.5L

Cord length 13m

Weight 4.9kg

Telescopic extension tube

Getting to know your machine

Air vent

Hose

Getting started

*To purchase consumables and accessories, please visit vax.co.uk

Assembling your upright

Insert the handle.

Twist the quick release cord

hook to release the power cord.

Place the 3-in-1 tool onto

the on board storage area.

Adjust handle up

or down to select

the desired height.

Plug in your machine and push

ON/OFF button to switch on.

Brushbar on — carpets

Brushbar o — hard oors

PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE

How to use

Recline the unit.

IMPORTANT: Switching the brushbar on whilst cleaning hard oors may damage ooring.

Using your machine

Before you begin cleaning

• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments, or removing

and emptying the dirt container.

• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermostat

will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug from electrical

socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to

cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters to fully dry before putting

back into the vacuum).

• Pre-motor lters require cleaning at least every 3 months.

• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.

• When using the accessories always make sure the brushbar is switched to the o position.

IMPORTANT: When the vacuum cleaner is stood in the upright position or when using on stairs and the hose/tools,

the brushbar height adjust dial must be set to hard oor

Telescopic extension tube

Remove hose end

from the oorhead.

Remove telescopic

extension tube.

Choose an accessory.

*Accessories may vary.

Attach accessory

to hose end.

3-in-1 tool converts into:

a = Crevice tool

b = Upholstery tool

c = Dusting brush

Attach accessory to

telescopic extension tube.

Attaching the hose

Attach hose to telescopic

extension tube.

Using accessories

NOTE: The crevice tool, dusting brush and upholstery tool can all be attached to the telescopic tube or directly to the hose.

Taking care of your machine

Emptying and cleaning the dirt container

How to use the air vent

Cleaning the HEPA pre-motor ﬁlter

Press the dirt container release button and pull

to remove the dirt container.

Slide vent cover open to decrease suction,

if required on high piled carpets.

Turn the dirt container lid

anti-clockwise…

Tap the lter over a bin

to release any dirt.

Hold dirt container over a bin and press the dirt

container release button to open allowing dirt to fall out.

Close the vent cover to increase suction,

for maximum cleaning on hard oors.

…and lift to remove.

Wash the lter under

running water (40°C max).

Grasp tab on lter and pull to remove.

Leave to fully dry for at least 24

hours before putting back into the

vacuum cleaner.

40°C max

tap

24hr

MAX

40˚C

MAX

40˚C

Note: For most eﬃcient results the air vent should be closed.

Taking care of your machine

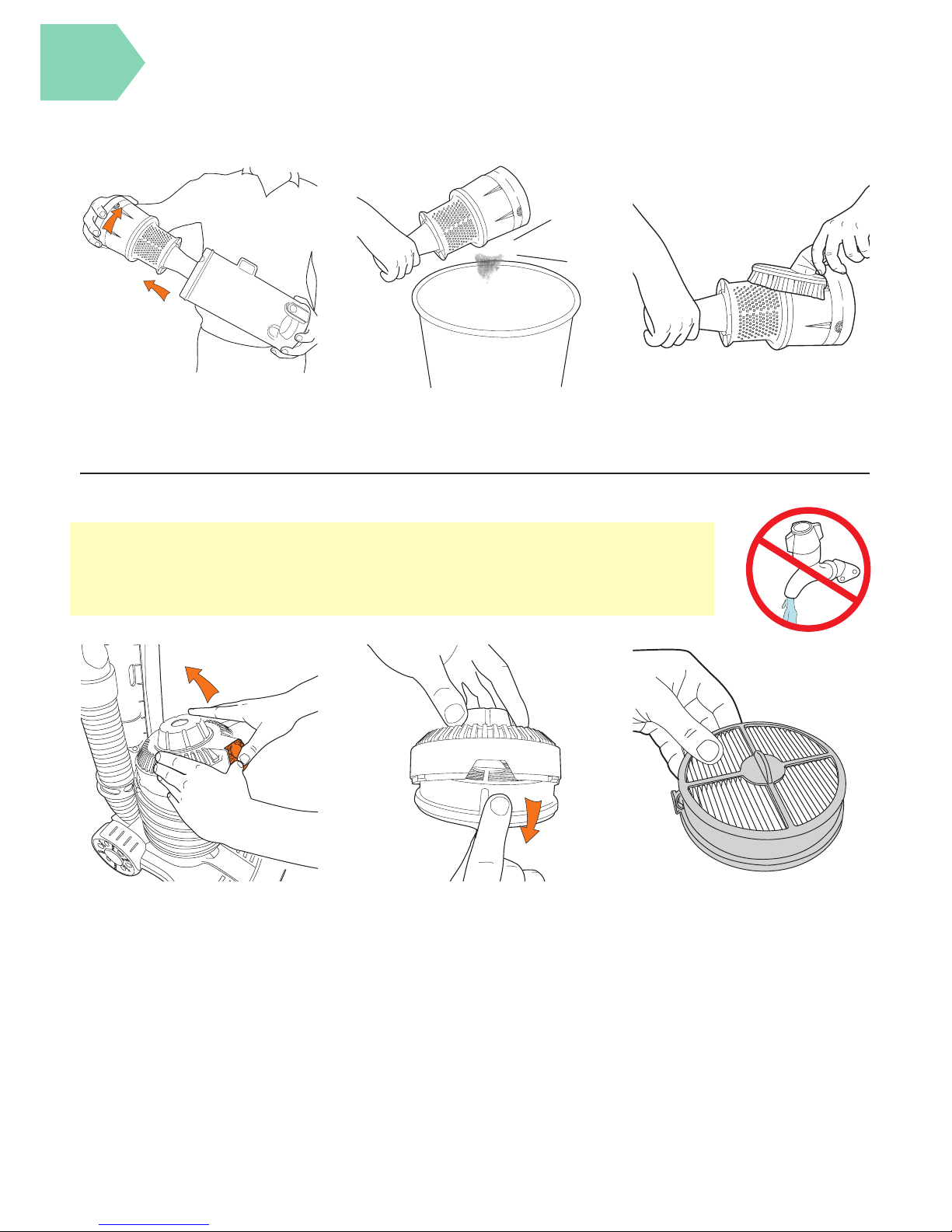

Cleaning the shroud

Turn the dirt container lid

anti-clockwise and lift to remove.

Press button on post-motor

lter cover and remove.

Tap over a bin to remove

dirt and debris.

Brush dirt from the shroud.

Remove the post-motor lter

from the lter cover.

Check the post-motor lter

for discolouration.

tap

HEPA post-motor ﬁlter maintenance

IMPORTANT:

The exhaust lter is designed to oer long life with no maintenance. The lter should be

checked periodically and when heavily discoloured it should be replaced. Please do not

wash, scrub or brush the lter as this will damage the delicate lter media.

Andere Handbücher für Air Stretch U85-AS-Be

Dieses Handbuch passt für folgende Modelle

Andere Vax Staubsauger Handbücher

Vax

Vax Mach3 U90-M3 series Bedienungsanleitung

Vax

Vax U91-LF Series Bedienungsanleitung

Vax

Vax Centrix 3 series Bedienungsanleitung

Vax

Vax Rapide Spring Clean VCWRS700 Bedienungsanleitung

Vax

Vax Mach Air Force U89-MAF Series Bedienungsanleitung

Vax

Vax Rapide Ultra W90-RU-B Bedienungsanleitung

Vax

Vax U91-P2 Series Bedienungsanleitung

Vax

Vax SLIMVAC VX63 Bedienungsanleitung

Vax

Vax Air Lift Steerable Montageanleitung

Vax

Vax VCW-02 Bedienungsanleitung

Vax

Vax Rapide Plus 5140 Bedienungsanleitung

Vax

Vax Workman VCC-07 Bedienungsanleitung

Vax

Vax 6131BLS Produktinformationsblatt

Vax

Vax POWER 8 Bedienungsanleitung

Vax

Vax DynamoPower U84-DY-Pe Bedienungsanleitung

Vax

Vax Silentium Plus VBGSP1850 Bedienungsanleitung

Vax

Vax Quick Flip VX85 Montageanleitung

Vax

Vax VCU-03 Bedienungsanleitung

Vax

Vax CCMBPCV1P1 Bedienungsanleitung

Vax

Vax VX3 Bedienungsanleitung

Vax

Vax U88-T1 Series Bedienungsanleitung

Vax

Vax AirPetVCAP1500 Bedienungsanleitung

Vax

Vax ultrixx V-040 Bedienungsanleitung

Vax

Vax C91-M5 Series Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
