Vax BLADE 4 PET Bedienungsanleitung

CLSV-B4KP

USER GUIDE

SAFETY GUIDE 2

support.vax.co.uk

SAFETY GUIDE

This machine is intended for

household use only and NOT for

commercial or industrial use.

PLEASE KEEP INSTRUCTIONS FOR

FURTHER USE AND USE ONLY AS

INSTRUCTED IN THIS GUIDE.

DON’TS

• Don’t leave the charger plugged in

when unattended.

• Don’t use the machine if it is faulty

or has been dropped, damaged or

left outdoors.

• Don’t use the machine to pick up any

flammable or combustible materials

(lighter fluid, petrol, kerosene etc.)

or use the machine in an area with

explosive vapours or liquid.

• Don’t use the machine to pick up hot

coals, cigarette butts, matches or

smoking hot burning items or use in

an area where there may be harmful

fluids (chlorine, bleach and ammonia

drain cleaner).

• Don’t handle the charger, battery or

use the machine with wet hands.

• Don’t unplug the charger by pulling

on the power cord.

• The power cord cannot be replaced.

If the cord is damaged the charger

should be scrapped.

• Don’t attempt to remove blockages

with sharp objects as this may cause

damage to the machine.

• Don’t use the machine with the

incorrect battery or charger as this

may result in damage or injury to the

user. The correct battery charger

information is listed on the battery

pack ratings label.

• Don’t charge the battery outdoors, or

leave the charger connected to the

mains when not in use.

• Don’t use the machine with a

damaged battery. If the battery is

damaged contact us on: 08000

927737.

• Don’t over fill the dirt container to

avoid blocking the air flow through

the machine.

• The brushbar in the powered

floorhead and mini motorised

pet tool constantly rotates when

switched on. Never use the powered

floorhead or tool on one spot for

an extended period of time as the

brushbar may damage the surface.

DO’S

• Only VAX ONEPWR batteries

(BV15020/BV15030/BV25040) and

charger (BV05100UK) should be

used with this machine.

• Always stand the charger on a

stable, level surface, uncovered and

away from any heat source.

• Only VAX ONEPWR recommended

tools and accessories should be

used with this machine.

• Always remove the battery from the

machine before carrying out any

maintenance or if storing unused for

a long period of time.

• Keep all openings clear and free

from debris as this may affect the

airflow/suction.

• Turn off all controls on the machine

before disconnecting or connecting

the battery.

SAFETY GUIDE 3

support.vax.co.uk

• Only use the machine indoors on dry

surfaces and keep the area you’re

cleaning well lit.

• This machine is not intended to be

used or cleaned by persons with

reduced physical, sensory or mental

capabilities, or lack of experience or

knowledge, unless they have been

given instructions concerning the

safe use of the machine by a person

legally responsible for their safety.

They should be supervised whilst

using the machine. Children shall not

use, clean or play with this machine,

which when not in use should be

secured out of their reach.

• Keep fingers, hair and loose clothing

away from moving parts and

openings whilst using the machine.

• Store the machine in a cool, dry

area. Keep the machine away from

rain and moisture.

• Use only CE approved 13amp

extension cords, non-approved

extension cords may overheat.

Care should be taken to arrange the

extension cord as it can be a trip

hazard.

• Take extra care when using the

machine on the stairs.

• Always turn the powered floorhead

and mini motorised pet tool

brushbar off when cleaning hard

floors and surfaces. To prevent any

damage being sustained, test on an

inconspicuous area of the flooring/

surface first.

• Always make sure the separator

and filter are fitted correctly before

using your machine and only use the

machine with the filter and separator

in place.

• Always check the powered

floorhead, mini motorised pet tool

and accessories are free from

damage, dirt and debris before

using.

• This machine does not stay upright

without constant support. Between

uses, lie flat on the floor in a suitable

location so that it does not become a

trip hazard or can be stepped on.

BATTERY SAFETY PRECAUTIONS

• Replace the battery with a VAX

ONEPWR battery only. Use of

another battery may present a risk

of fire or explosion.

• Do not attempt to disassemble the

battery, remove any component

projecting from the battery terminals

and do not dispose of in a fire.

The battery and charger have no

user serviceable parts. Fire or injury

may result.

• Prior to disposal, protect exposed

terminals with heavy insulating tape

to prevent shorting. The battery is to

be disposed of safely at your local

battery recycling centre.

• When the battery pack is not in

use, keep it away from other metal

objects that can make a connection

from one terminal to another.

Shorting the battery terminals

together may cause burns or a fire.

• In case of battery leakages, avoid

any contact with skin and contact us

on: 08000 927737.

support.vax.co.uk

WARRANTY & TECHNICAL

VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.

WARRANTY

If a VAX ONEPWR machine is used

in the way it is intended and it breaks

down within the guarantee period, it’s

our responsibility to repair or replace it.

Here’s what isn’t covered:

• Normal wear and tear of consumable

items, for example: belts, filters,

brushbars, fuses etc.

• Batteries which have become faulty

as a result of improper handling.

• Batteries which have a reduced

service life as a result of normal wear.

• Accidental damage

- Damage as a result of use not in

accordance with the product

user guide.

- Damage caused by not carrying out

regular maintenance.

- Damage to the charger cable.

- Blockages caused by misuse.

• Faults caused by:

- Negligent use, misuse, neglect or

careless operation of the machine.

- Use of the machine cleaner which

is not in accordance with the

user guide.

- Use of a VAX ONEPWR machine

for anything other than normal

domestic household purposes

in the country in which it was

purchased.

- Use of parts, accessories and

consumables, which are not

genuine VAX components.

- Faulty installation or repairs –

unless carried out by a qualified

electrician or engineer.

TECHNICAL

EU Statement of Compliance: Manufacturer/EU importer: VAX Limited, hereby

on our own responsibility, declare that the VAX ONEPWR Blade 4 Pet is

manufactured in compliance with the following Directives:

Safety: 2014/35/EU Low Voltage Directive.

EMC: 2014/30/EU Electromagnetic Compatibility Directive.

Waste electrical products should not be disposed of with household

waste. Please recycle where facilities exist. Check with your Local

Authority or retailer for recycling advice.

VAX is a trade mark of Techtronic Cordless GP.

VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.

support.vax.co.uk

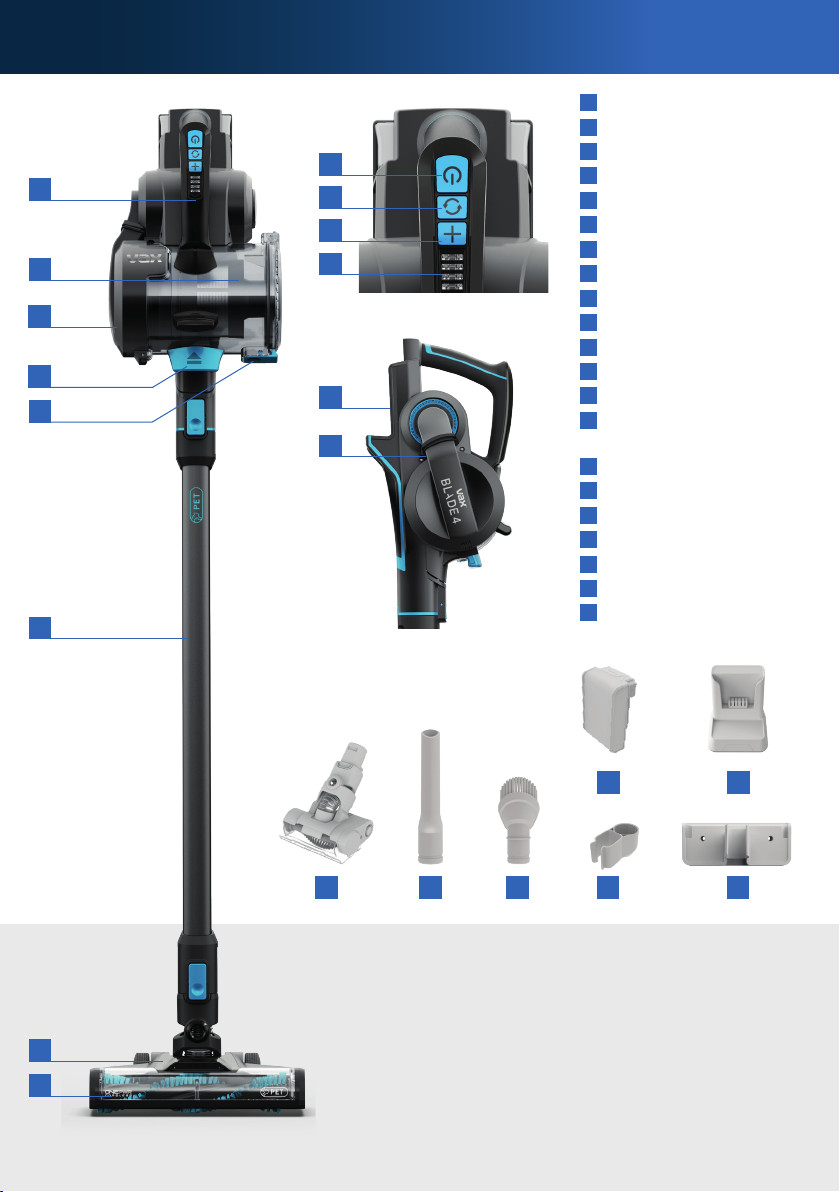

GETTING TO KNOW YOUR MACHINE

1Carry handle

2Dirt container

3Filter cover and filter

4Dirt container release latch

5Dirt release button

6Power ON/OFF

7Brushbar ON/OFF

8Boost ON/OFF

9Battery level indicator light

10 Reach wand

11 Powered floorhead

12 Brushbar

13 Battery dock

14 Filter cover release tab

(hidden)

15 ONEPWR Battery

16 ONEPWR Charger

17 Mini motorised pet tool

18 Crevice tool

19 Dusting brush

20 Crevice tool storage caddy

21 Wall mount

screws and wall plugs

Subject to technical change without notice. Images are illustrative only.

TECHNICAL SPECIFICATION

VAX ONEPWR Blade 4 Pet

Weight (without battery pack) 2.9kg

Dirt bin capacity 0.6L

Runtime and charge time dependent on battery pack

and power mode used.

15 16

20 21

18 19

support.vax.co.uk

GETTING STARTED

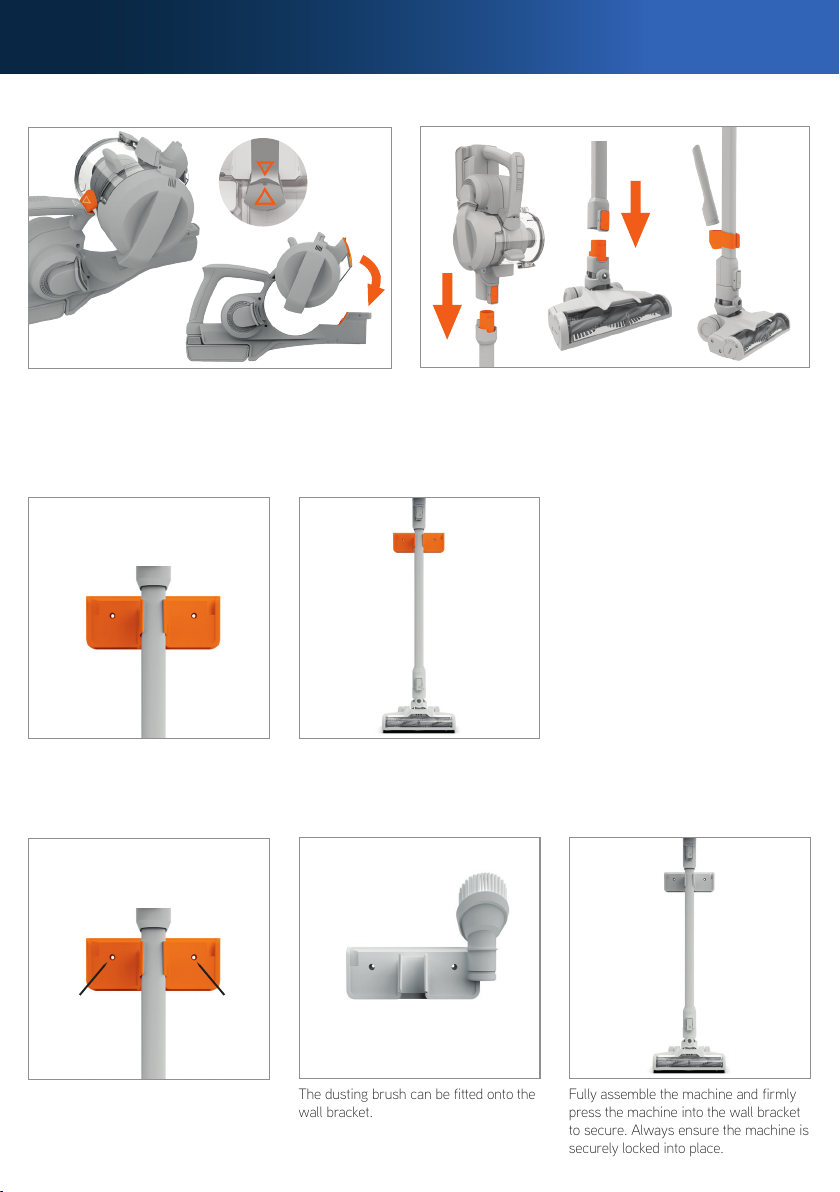

ATTACHING THE WALL MOUNT

Without the handheld attached to the

reach wand and powered floorhead,

push the wall bracket onto the top and

back of the reach wand.

Choose a location for the machine to be stored, preferably near to a mains supply

although not directly above or below a mains socket. Stand the machine powered

floorhead and wand against the wall, ensuring the powered floorhead is flat on the floor.

Holding the wall bracket securely against

the wall, make a small mark for each

screw. Secure the wall bracket to the

wall using the wall plugs and screws.

The dusting brush can be fitted onto the

wall bracket.

Fully assemble the machine and firmly

press the machine into the wall bracket

to secure. Always ensure the machine is

securely locked into place.

ASSEMBLY

To assemble the dirt container, line up the arrow on the dirt

container connection with the arrow on the handle. Push the

dirt container onto the handle until it clicks into place.

Attach the handheld to the reach wand until it clicks into place.

Attach the reach wand to the powered floorhead until it clicks

into place. Push the tool caddy onto the reach wand and slot the

crevice tool into place.

support.vax.co.uk

GETTING STARTED

CHARGING THE BATTERY

Slide the battery down on to the charger. The charger light will flash white to

show when the battery is charging.

The light on the charger will stop

flashing and go off when the battery

is fully charged.

Once fully charged, slide the battery off

the charger to remove.

To check the battery charge

level press the battery symbol.

THIS MACHINE IS ONLY TO BE USED WITH VAX ONEPWR BATTERIES AND CHARGER.

PLEASE READ THE SAFETY GUIDE BEFORE USE.

NOTE: Before first use, ensure the battery is fully charged. Failure to fully charge the battery

before first use may result in poor battery performance. The life expectancy of the battery will vary

depending on the usage of the machine.

OPERATION

Place your foot on the powered floorhead.

Pull the handle backwards to recline.

To remove the battery press both the

buttons to release.

Slide the battery into the handheld until

it clicks into place.

WARNING: The brushbar in the powered floorhead and mini motorised pet tool constantly rotates

when switched on. Never use the powered floorhead or tool on one spot for an extended period of

time as the brushbar may damage the surface. Always turn the brushbar off when cleaning hard

floors and surfaces. To prevent any damage being sustained, test on an inconspicuous area of the

flooring/surface first.

support.vax.co.uk

GETTING STARTED

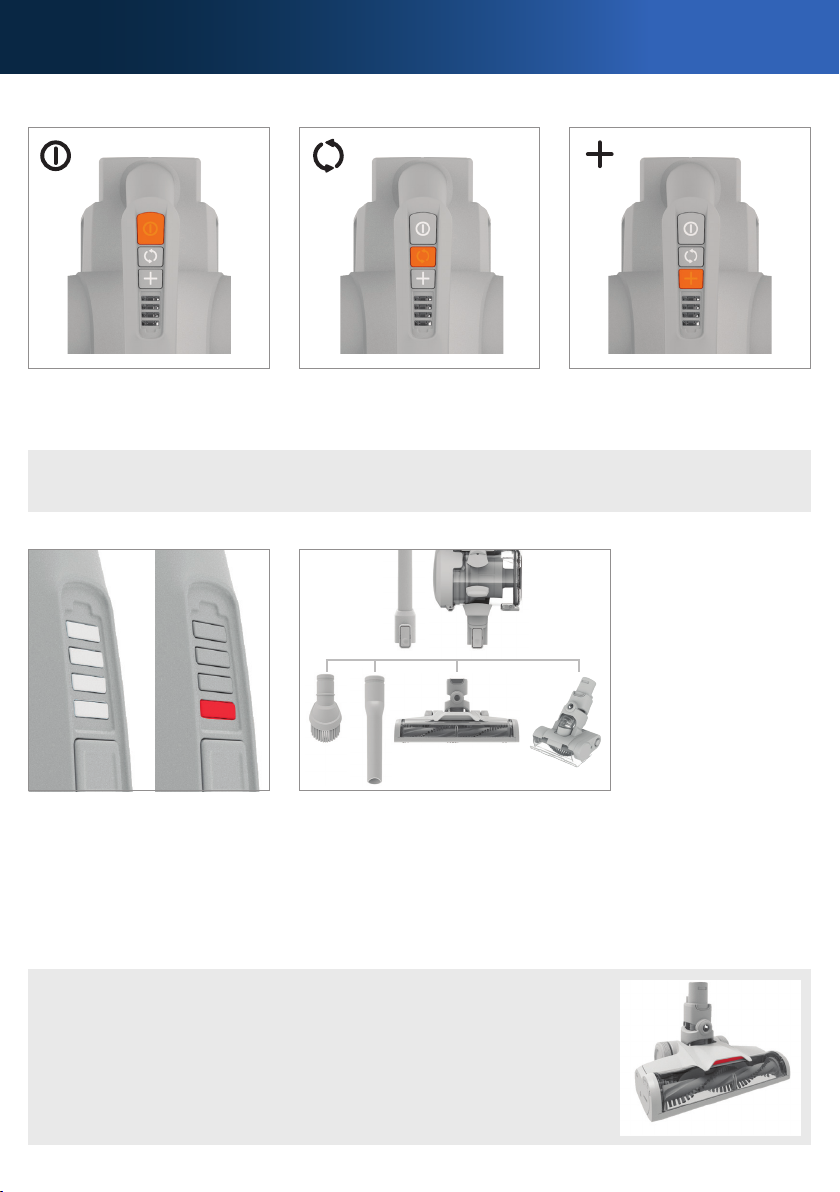

Press the brushbar on/off button to

switch the brushbar on the powered

floorhead or mini motorised pet tool on.

Press the boost button on to increase

the suction for particularly dirty areas.

Press the on/off button to switch the

machine on.

CAUTION: If the brushbar in the powered floorhead has been

obstructed, the brushbar motor protection sensor may have been

activated. The brushbar will stop, the light on the powered floorhead

will illuminate red and the machine may switch off. To reset remove

the powered floorhead from the reach wand/handheld and clear any

obstruction. Wait 1 minute before refitting the powered floorhead tool,

switch the machine on and press the brushbar ON/OFF button.

OPERATION

NOTE: The powered floorhead brushbar should be ON for carpets and OFF for hard floors.

Constant use of the boost mode and brushbar will reduce the battery runtime.

When the machine is in use the battery

level indicator lights will illuminate

indicating how much charge is

remaining. When less than 20% charge

is remaining the bottom light will flash

red indicating the battery is running low

and charging is required.

All of the accessories, including the powered

floorhead and mini motorised pet tool can be

attached directly onto the handheld or the reach

wand. The crevice tool and dusting brush can

be used for hard to reach places and at different

heights for above floor cleaning.

support.vax.co.uk

REMOVING AND REFITTING THE DIRT CONTAINER

EMPTYING THE DIRT CONTAINER

WARNING: Always remove the battery before carrying out any maintenance or troubleshooting.

CAUTION: Don’t over fill the dirt container to avoid blocking the air flow through the machine.

For best cleaning results, empty the dirt container after every use. Filters should be tapped over a

bin every 4-6 uses to remove dirt and debris and washed every 3 months. Filters should be replaced

every 6-9 months depending on the level of use.

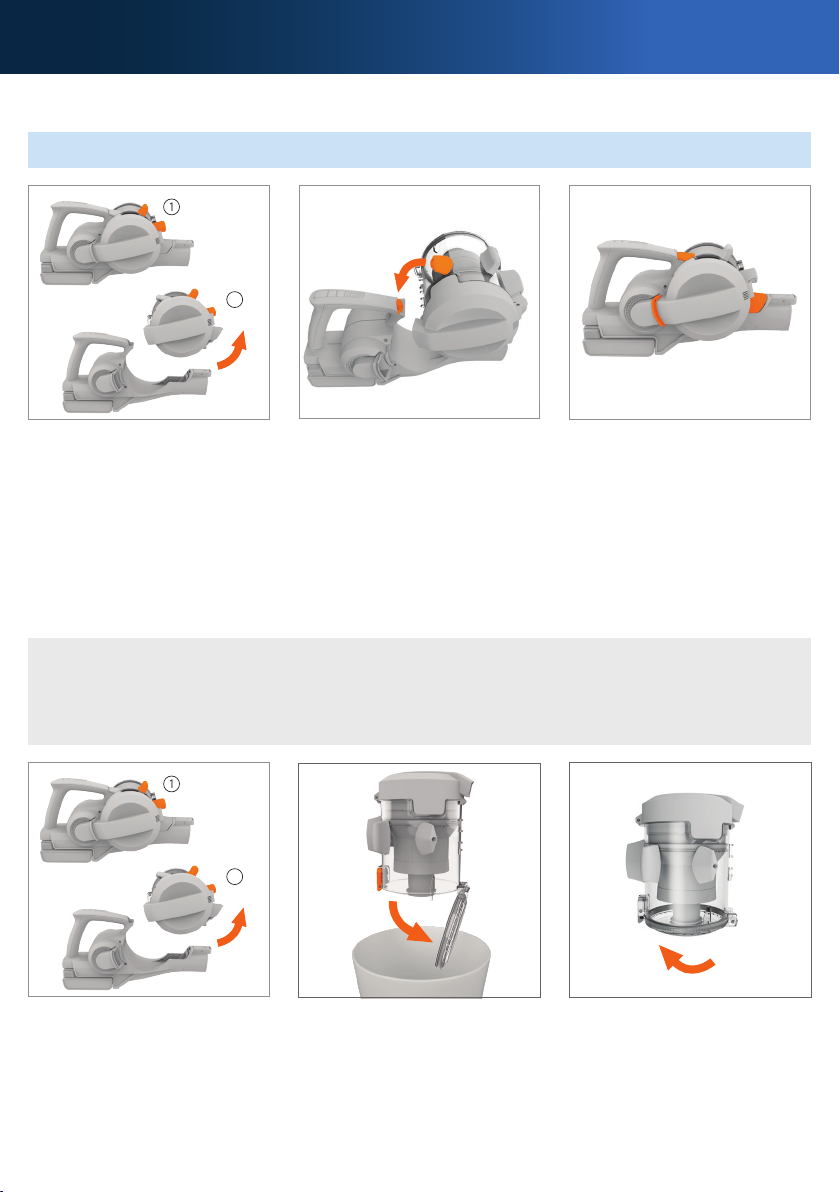

1. Squeeze the latch on the dirt

container to release.

2. Tilt and lift to remove from the

handheld.

1. Squeeze the latch on the dirt

container to release.

2. Tilt and lift to remove from the

handheld.

Hold the dirt container over a bin and

press the dirt release button to allow dirt

and debris to fall out.

To close, push the dirt release door until

it clicks into place.

To refit, line up the dirt container

connection with the handheld handle.

Push the dirt container back onto the

handle until it clicks into place.

When correctly fitted all 3 connection

points will be aligned and will sit flush.

CLEANING & MAINTENANCE

support.vax.co.uk

CLEANING THE FILTER AND SEPARATOR

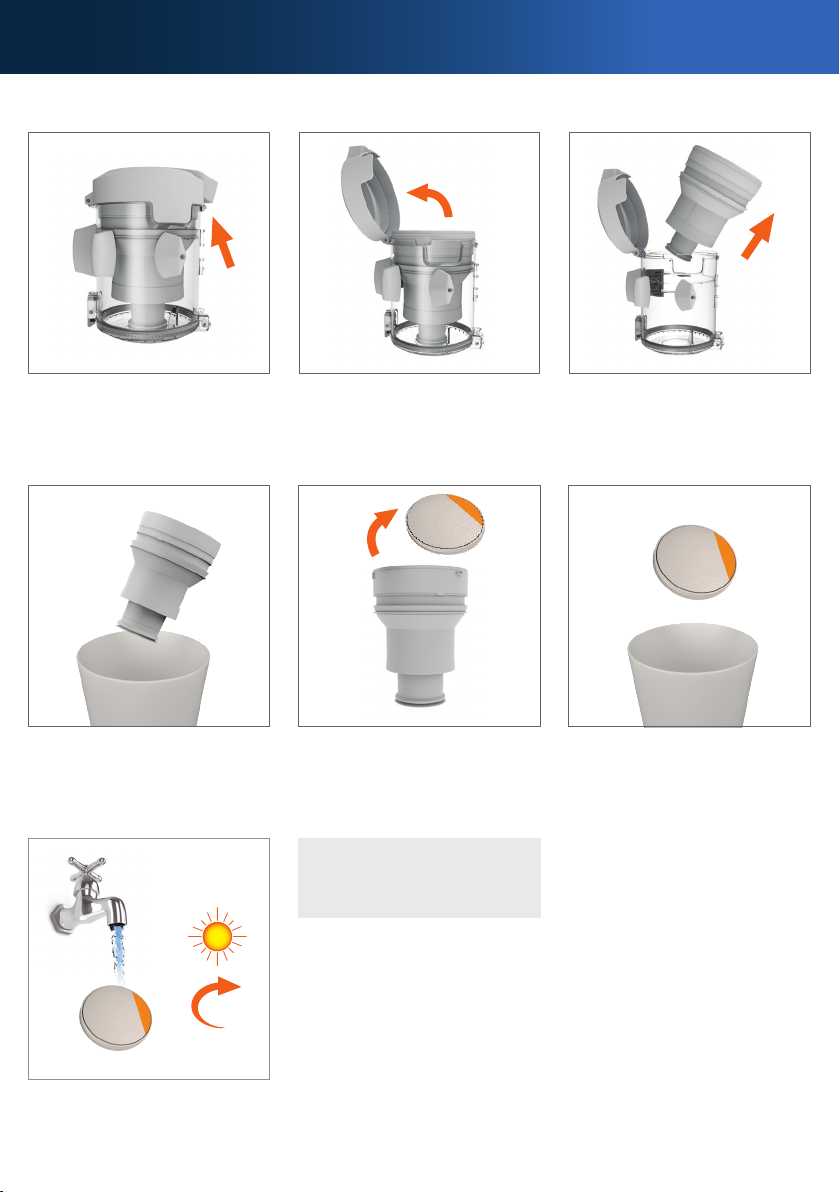

Push the tab on the lid of the dirt container and lift the cover to access the filter. Lift the filter and separator from the

dirt container.

Tap the separator over a bin to remove

dirt and debris and wipe over the metal

shroud with a dry cloth.

Pull the tab on the filter to remove from

the separator.

Tap the filter against the bin to remove

any dirt and debris.

Wash the filter under running water

(40°C max). Leave for at least 24hrs or

until fully dry before replacing.

24hr

40°C

MAX

CLEANING & MAINTENANCE

CAUTION: Ensure both

the filter and separator are

refitted before use.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Vax Staubsauger Handbücher

Vax

Vax Gator H90-GA-B Bedienungsanleitung

Vax

Vax AirPetVCAP1500 Bedienungsanleitung

Vax

Vax Rapide 5110 Produktinformationsblatt

Vax

Vax :VZL-7071SERIES Bedienungsanleitung

Vax

Vax VX58 Montageanleitung

Vax

Vax Mach Air SERIES Bedienungsanleitung

Vax

Vax H89-12V Series Bedienungsanleitung

Vax

Vax C87-T2 Series Bedienungsanleitung

Vax

Vax V-118 Bedienungsanleitung

Vax

Vax Rapide Spring V-021AA Bedienungsanleitung

Vax

Vax Rapida ultra Bedienungsanleitung

Vax

Vax C91-P2 SERIES Bedienungsanleitung

Vax

Vax C88-VW-B Bedienungsanleitung

Vax

Vax Flair Total Home Montageanleitung

Vax

Vax Air Cordless Montageanleitung

Vax

Vax Mach3 U90-M3 series Bedienungsanleitung

Vax

Vax VRS23UB Bedienungsanleitung

Vax

Vax VRS203 Bedienungsanleitung

Vax

Vax VAU1200 Bedienungsanleitung

Vax

Vax VX64 Black Edition Bedienungsanleitung

Vax

Vax Rapide Produktinformationsblatt

Vax

Vax Force 10 Cyclonic VZL-401CSP Bedienungsanleitung

Vax

Vax V-135 SERIES Bedienungsanleitung

Vax

Vax GATOR VGH108V Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
