Vax UCNBAWP1 Montageanleitung

LET’S GET STARTED.

CYCLONIC BAGLESS

UPRIGHT VACUUM

UCNBAWP1

UCNBAWH1

UCNBAWC1

PowerNano

Let’s talk safety

Basic

safety

precautions

Don’ts

Do’s

This vacuum cleaner is intended for household use only and

NOT for commercial or industrial use.

• Only use the vacuum cleaner indoors on dry surfaces and keep

the area you’re cleaning well lit.

• Keep ngers, hair and loose clothing from moving parts and

openings whilst using the vacuum cleaner.

• Don’t use this vacuum cleaner if it has been dropped, damaged

or left outdoors.

• Don’t run over the power cord or use the vacuum cleaner if the

power cord or plug is damaged. Please contact our Customer

Service Line on: 0330 026 8455 (Mon-Fri 8:30am to 6:30pm,

Sat 9:00am to 5:00pm).

• Don’t handle the plug or use the vacuum cleaner with wet hands.

• Don’t pull or carry this vacuum cleaner by the power cord.

• Don’t use the power cord as a handle, pull the power cord

around corners, sharp edges or close a door over the power cord.

• Don’t unplug the vacuum cleaner by pulling on the power cord.

• Turn o all controls on the vacuum cleaner before disconnecting

or connecting the power cord.

• Always keep the power cord away from the brushes, heated

surfaces and open ames whilst using your vacuum cleaner.

• After use always wrap the power cord around the cord

clips provided.

• Always make sure the lters are in place before use.

• Always switch o the vacuum cleaner before disconnecting

or connecting the hose and accessories.

• Keep all openings clear and free from debris as this may aect

the airow/suction.

• This vacuum cleaner is NOT to be used by children under eight years or persons

with reduced physical, sensory or mental capabilities, unless they have been

given instructions on how to use the machine or are supervised during use.

Any cleaning or maintenance of your vacuum cleaner should not be made

by children without supervision and ensure they don’t play with the vacuum

cleaner. Only Vax recommend tools should be used with this vacuum cleaner.

• Don’t vacuum up any ammable or combustible materials (lighter uid, petrol,

kerosene etc.) or use the vacuum cleaner in an area with explosive vapours

or liquid.

• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning

items or use in an area where there may be harmful uids (chlorine, bleach

and ammonia drain cleaner).

• Don’t attempt to remove blockages with sharp objects as this may cause damage

to your vacuum cleaner.

• Don’t vacuum up hard or sharp objects such as glass, nails, screws or coins etc.

• Don’t use the vacuum cleaner with incorrect voltage as this may result in

damage or injury to the user. The correct voltage is listed on the ratings label.

• This vacuum cleaner is tted with a constantly rotating brushbar. To avoid

damage to your ooring, make sure the brushbar is raised to the highest setting

when using the accessories and when using on stairs.

• Always take extra care when positioning the vacuum cleaner on the stairs.

• Always replace the fuse in the plug with a British 13amp fuse.

• Use only CE approved 13amp extension cords, non-approved extension cords

may overheat. Care should be taken to arrange the extension cord as it can

be a trip hazard.

• Store your vacuum cleaner in a cool, dry area. If lters have been cleaned as per

user guide instructions ensure they are thoroughly dry before storing away.

Please keep instructions for further use.

Thank you for buying this Power Nano.

Taking care of your carpets and hard oors

The Power Nano is designed to make vacuuming carpets and hard oors regularly,

as eective and ecient as possible and this user guide will help you get the most out

of your machine. Maintaining your carpets and hard oors will ensure they keep their

appearance for longer and Vax will help you take good care of them.

Taking care of your Power Nano

Also inside this guide are instructions on maintaining your new machine, so that it’s always ready

when you are to tackle your carpets and hard oors.

Let us know what you think @VaxUK

Taking care of you

We’re here if you need us. Instead of taking me back

to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number

of the product before calling.

Alternatively, you can write to us at:

Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,

Worcestershire, WR9 0LW, UK

This user guide can be found online at: vax.co.uk/support

Let’s talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let’s talk technical

Accessories

What to do if it goes wrong

Getting in touch

Notes

Initial Setup for normal operation

1. Use the base accessories.

a. Shortest hose.

b. Extension tube set to shortest practicable length.

2. Clean lters installed.

3. Dust receptacle empty.

4. All air vents must be closed.

5. Floorheads/tools set to Carpet Mode for carpet cleaning.

6. Mechanical Agitation turned ON for carpet cleaning.

7. Floorheads/tools set to Hard Floor Mode for hard oor cleaning.

8. Mechanical Agitation turned OFF for hard oor cleaning.

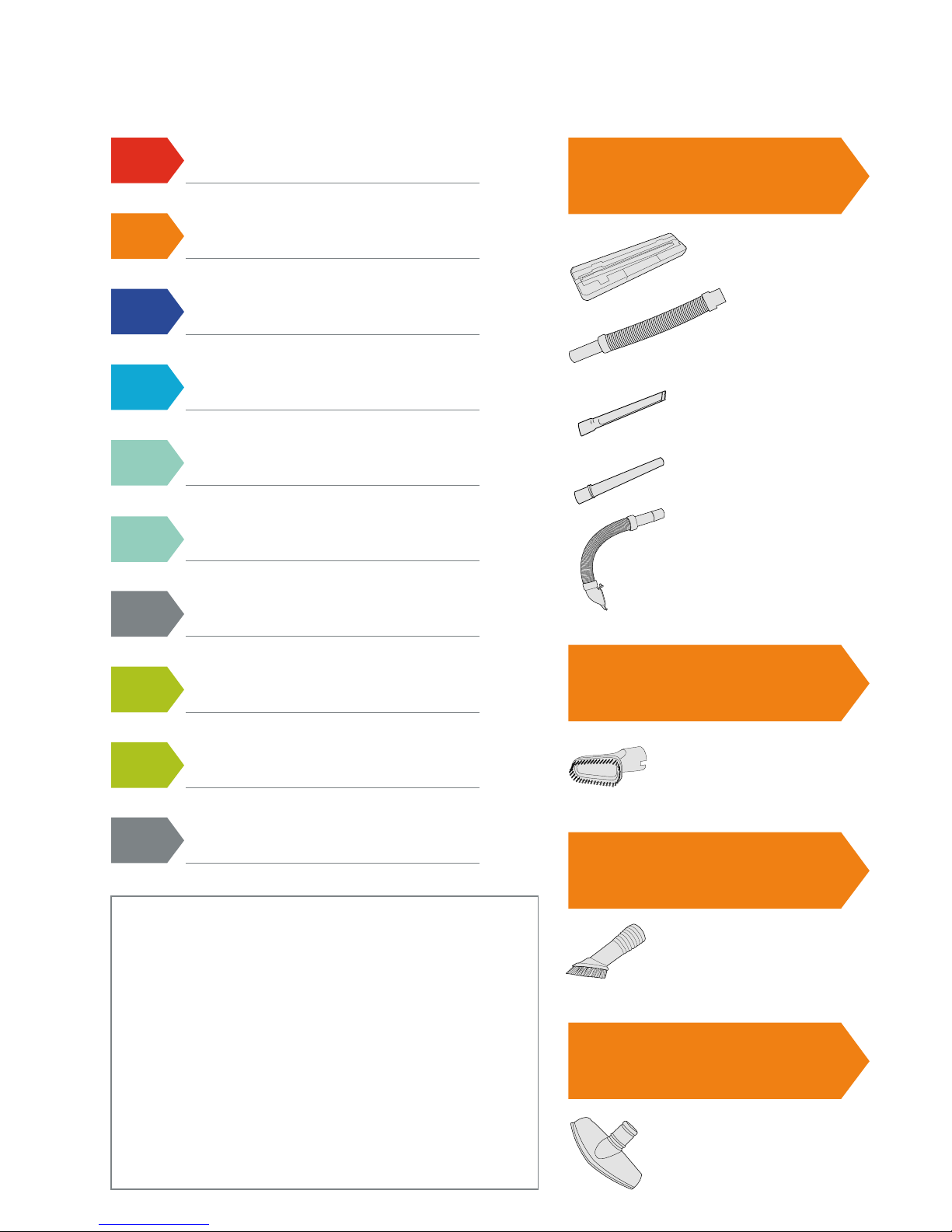

Contents

Hard Floor Tool

Extension Hose 1.5m

Crevice Tool

Extension Tube

Accessory Hose

All Models

Included with

your machine

Power Nano Total Home

Includes all the above

(except Dusting Brush), plus

Soft Dusting Brush

Power Nano Complete

Includes all the above

(except Dusting Brush), plus

Mattress Tool

Power Nano

Includes all the above, plus

Dusting Brush

Getting to know your machine

Name Power Nano

Voltage 220-240V

Wattage 850W

Weight 5.25kg

Technical Specication

Subject to technical change without notice. To purchase consumables and accessories, please visit vax.co.uk

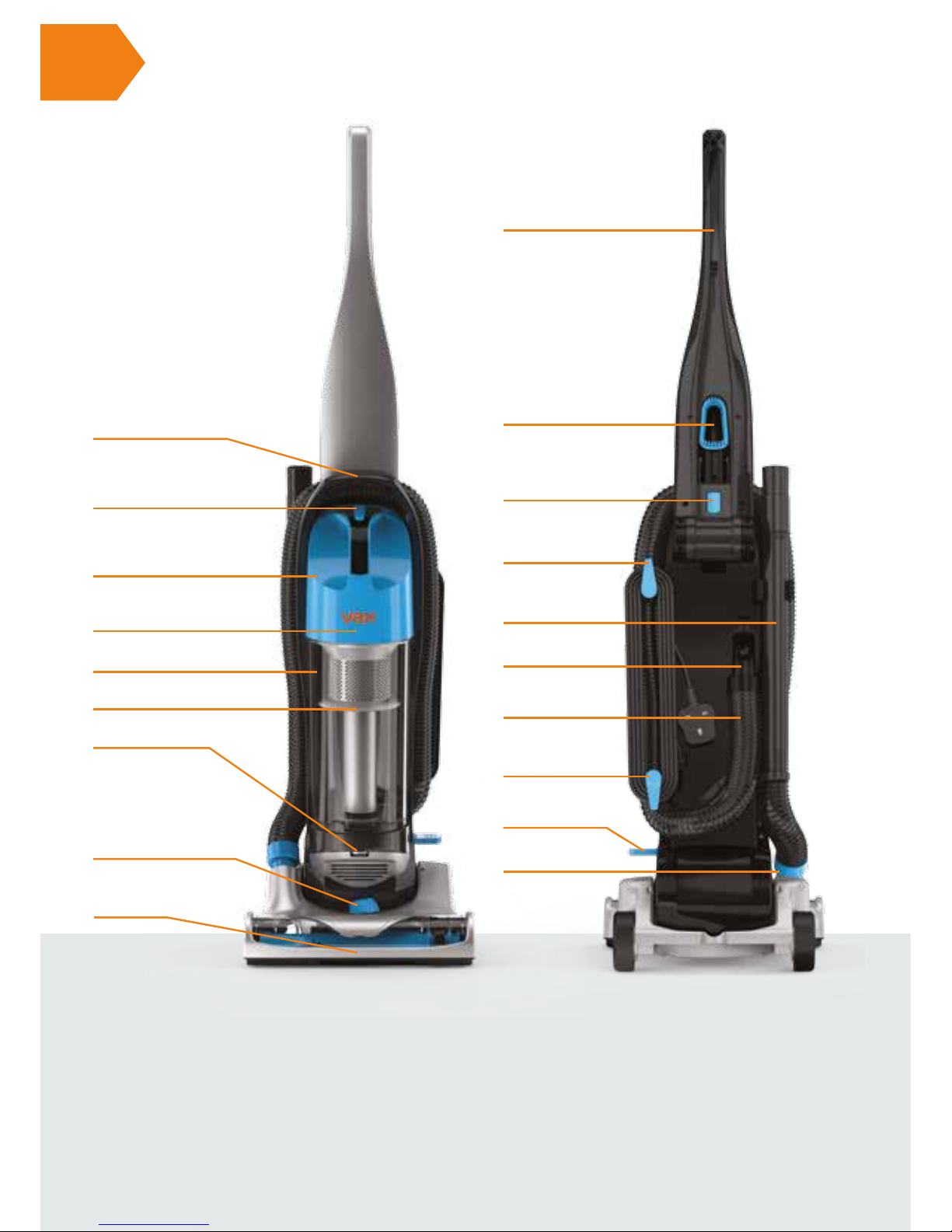

Extension tube

and crevice tool

Handle release button

Dust brush holder

Handle

Carry handle

Dirt container

release button

Separator

Dirt container lid

Dirt container

Pre-motor lter

(hidden)

Filter release clip

Upper release

cord hook

Lower release

cord hook

Hose connector

Hose inlet

On/O button

Floorhead

Hose

Height adjuster dial

Filter Kit (Type 110)

1-1-134394-00

Belt Kit (Type 25)

1-1-134411-00

Crevice Tool (Type 16)

1-1-134427-00

Dusting Brush (Type 10)

1-1-134426-00

Soft Dusting Brush

1-9-136097-00

Mattress Tool

1-9-136098-00

Accessories & Consumables

Getting started

Assembling your vacuum cleaner

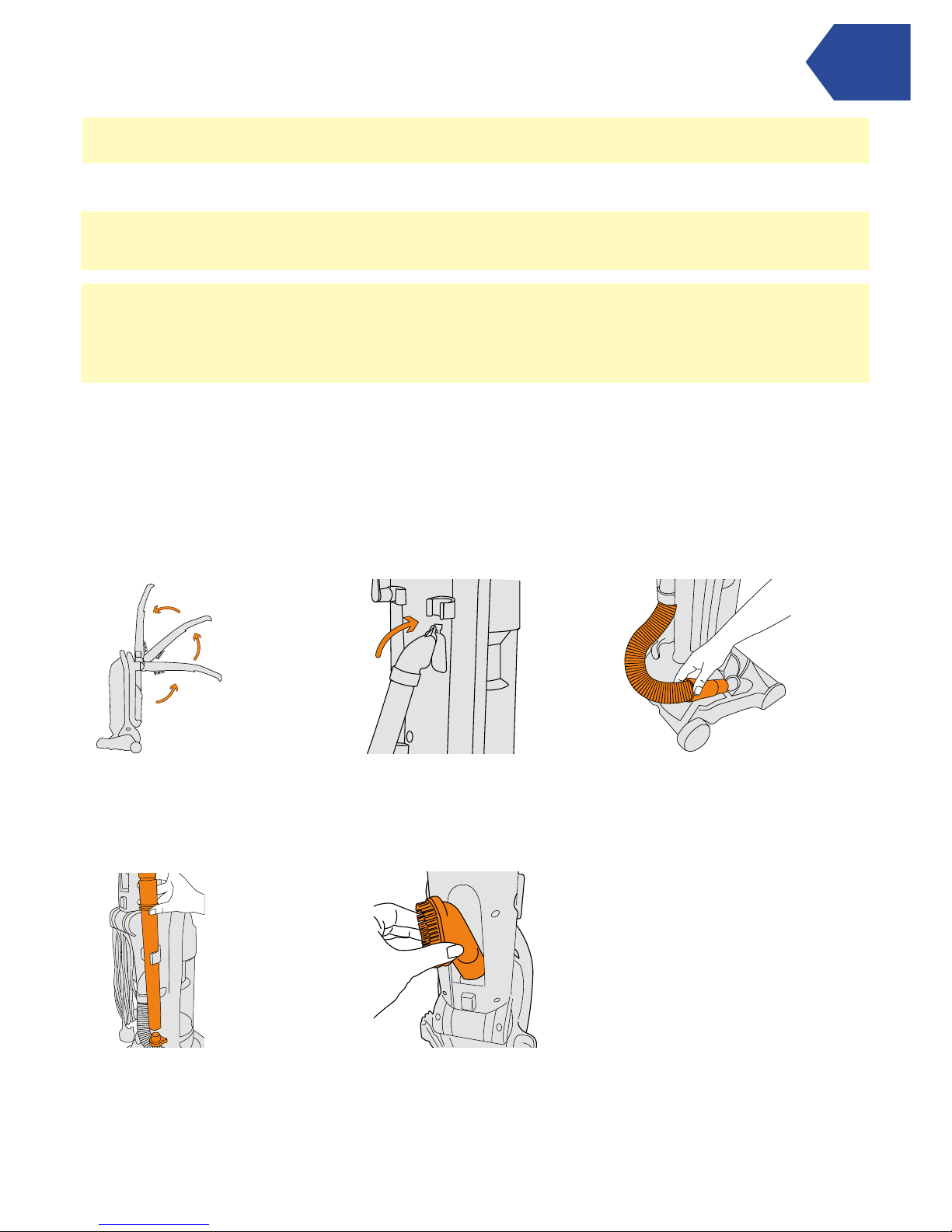

Lift the handle up and

click into place.

Line up the latch on the

accessory hose, push until

it clicks into place.

Push the accessory hose into

the hose to machine connector.

Before you begin cleaning

CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the hose/attachments

or removing and emptying the dirt container.

Filters require cleaning at least every 3 months. If the vacuum cleaner is blocked, switch o and unplug before removing

the blockage.

When the vacuum cleaner is stood in the upright position, or when using the hose and tools, the brushbar height adjuster

must be set to the highest setting.

IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does

overheat the thermostat will automatically turn the vacuum cleaner o. If this happens switch the vacuum cleaner o

and unplug from the electrical socket. Remove and empty the dirt container and also check the vacuum cleaner for

blockages. Allow the vacuum cleaner to cool for approximately 1 hour.

PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE

Push the extension

tube onto the holder.

Place the dusting brush into

the dusting brush holder with

the brush facing outwards.

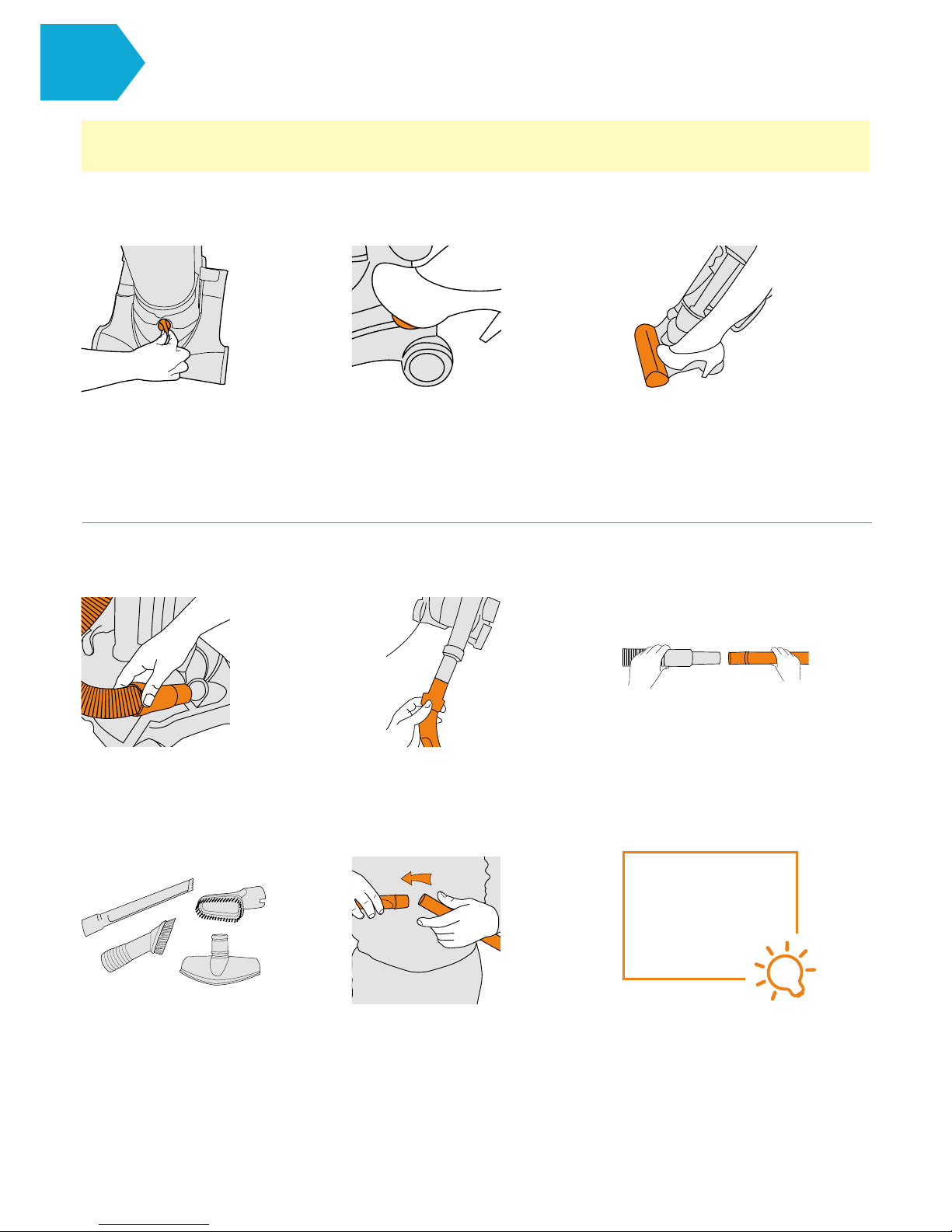

Using your machine

IMPORTANT: Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/

attachments, or removing and emptying the dirt container.

The accessories can be attached to the extension tube or directly to the hose.

When using accessories on the hose/extension tube, raise the height adjuster to the highest setting.

TIP

For best performance

use your vacuum

cleaner with only

the accessory

hose attached.

Plug the vacuum cleaner into

the mains and switch on. Turn

the brushbar height adjuster

dial to the desired setting.

Press the On/O button

to switch on.

Place foot on the oorhead

and pull the handle to recline.

Pull the hose out of the

hose to machine connector.

Attach the accessory

to the tube/hose.

Attach the accessory hose

to the extension hose.

If required, attach the extension

hose to the extension tube.

Using accessories

Choose an accessory.

Using your machine

Hard oor cleaning

Hard Floor Adaptor.

Line up the Hard Floor Adaptor with the base of

the vacuum cleaner. Push until it clicks into place.

Lie the vacuum cleaner on its

back exposing the brushbar.

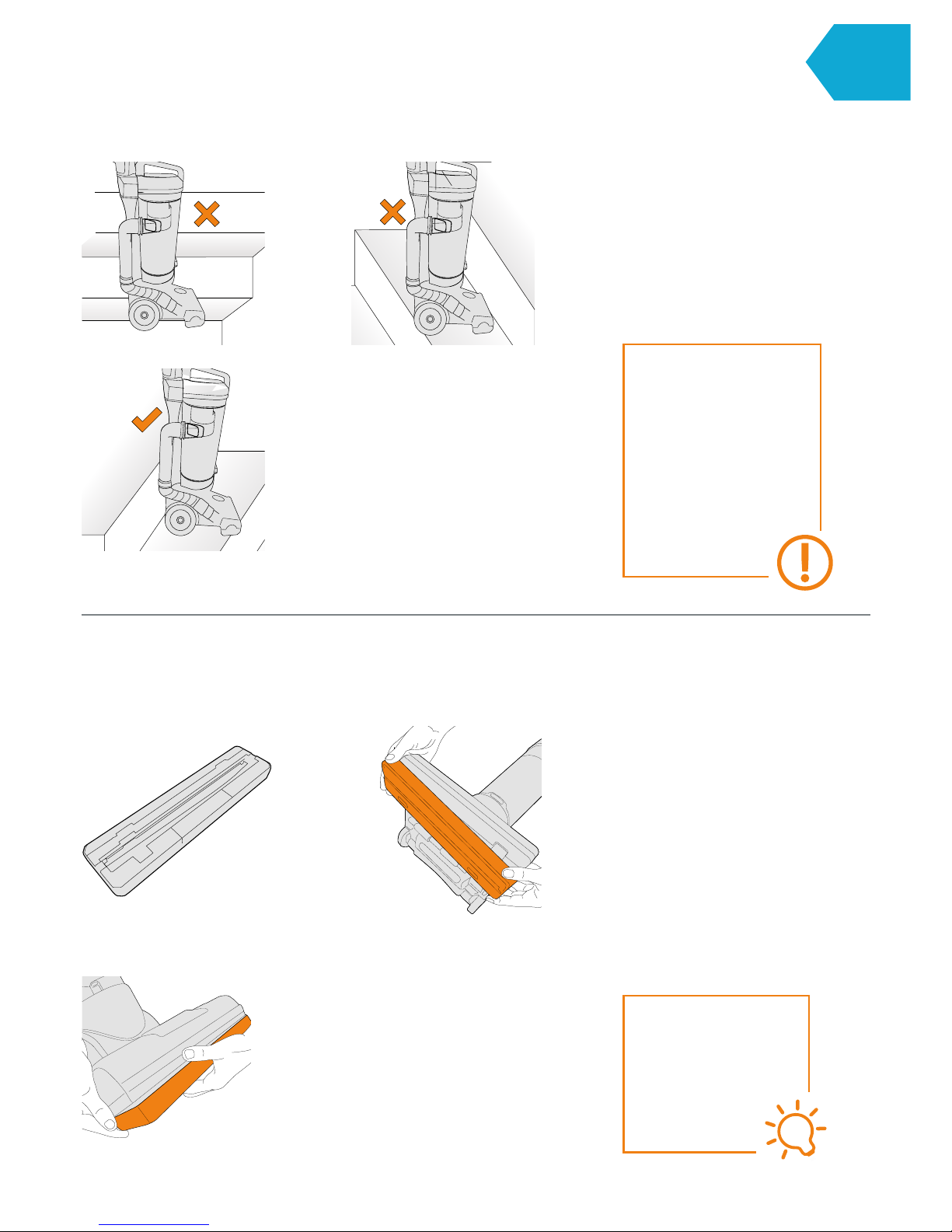

Hold the vacuum cleaner with the brushbar over the tread of the stairs.

Using on the stairs

Always raise the height of the brushbar to hard oor setting when using the vacuum cleaner on lino and hard oor.

Apply the Hard Floor Adaptor for optimum results on hard oors.

TIP

To ensure the Hard Floor

Adaptor is correctly

tted, the wheels should

be towards the back of

the oor tool when

attached to the

vacuum cleaner.

This vacuum cleaner

has a constantly rotating

brushbar. When cleaning

on stairs raise the height

adjuster dial to the highest

setting. The brushbar

must overhang the stair

tread. Always take care

when cleaning stairs.

CAUTION

Taking care of your machine

Press the dirt container

release button, pull to remove.

Emptying the dirt container

Cleaning the carbon pre-motor lter

Hold the dirt container

over a bin.

Press the dirt release clip,

allowing dirt/debris to fall out.

Turn the dirt container lid anti-

clockwise and lift to remove.

Turn the carbon pre-motor lter

anti-clockwise, pull to remove.

Tap the carbon pre-motor lter over

a bin to remove any dirt/debris.

Line up the carbon pre-motor lter

tabs in the dirt container lid and turn

clockwise until it clicks into place.

IMPORTANT: The motor is equipped with a thermal cut-out. If for any reason the machine should overheat,

the thermostat will automatically turn the machine o. Switch o and unplug the vacuum cleaner. Check the

machine for blockages and clean the lters.

Filters require cleaning at least every 3 months (depending on the level of use).

Don’t use your vacuum cleaner without all the lters in place.

TIP

Don’t over ll the dirt container

to avoid blocking the air ow

through the vacuum cleaner.

Replace lters at least

every 6-9 months.

IMPORTANT: Do not wash, scrub or brush the carbon pre-motor lter as this will damage it.

40˚C

MAX

24hr
