Vax VS-022 Produktinformationsblatt

easy guide

VS-022

Please read carefully before

using your VS-022. Always fully

extend mains cable before use.

Important information - Save these instructions

Congratulations on the purchase of your VS-022 cylinder cleaner. In order to get the best performance from this product please

read and retain these instructions.

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety

precautions should be followed, including the following:

• Read all instructions carefully, even if you are familiar with the appliance.

• To protect against the risk of electric shock DO NOT IMMERSE the appliance, cordset or plug in water or other liquid.

• Close supervision is necessary when any appliance is used by or near children. Never leave an appliance unattended

when in use.

• Switch off and remove the plug from the power outlet when not in use and before assembling or disassembling parts.

• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or is dropped/damaged

in any manner.

• The use of attachments or accessories sold by other manufacturers is not recommended.

• Do not operate or place any part of this appliance on or near any hot surfaces.

• Do not abuse the cord. Never carry the appliance by the cord or yank it from the power outlet; instead, grasp the plug

and pull to disconnect.

• This product is intended for internal household use only.

• Do not attempt to repair the appliance yourself.

• Do not suck up inflammable liquids such as cleaning fluids, petrol, etc, or their vapours

• Do not vacuum hard, sharp or over-large objects, matches, hot ashes, cigarette butts or similar materials

• Do not use the vacuum cleaner without its dust bag or motor protection and air outlet filters

• Do not use the cleaner if there is any obstruction in its suction passages, for this may dangerously overheat the motor.

• Do replace/empty the dust bag and filters after picking up fine dust such as cement, very fine sand, flour etc.

• To clean, wipe exterior with a damp cloth.

How to use your VS-022

Assembling the appliance

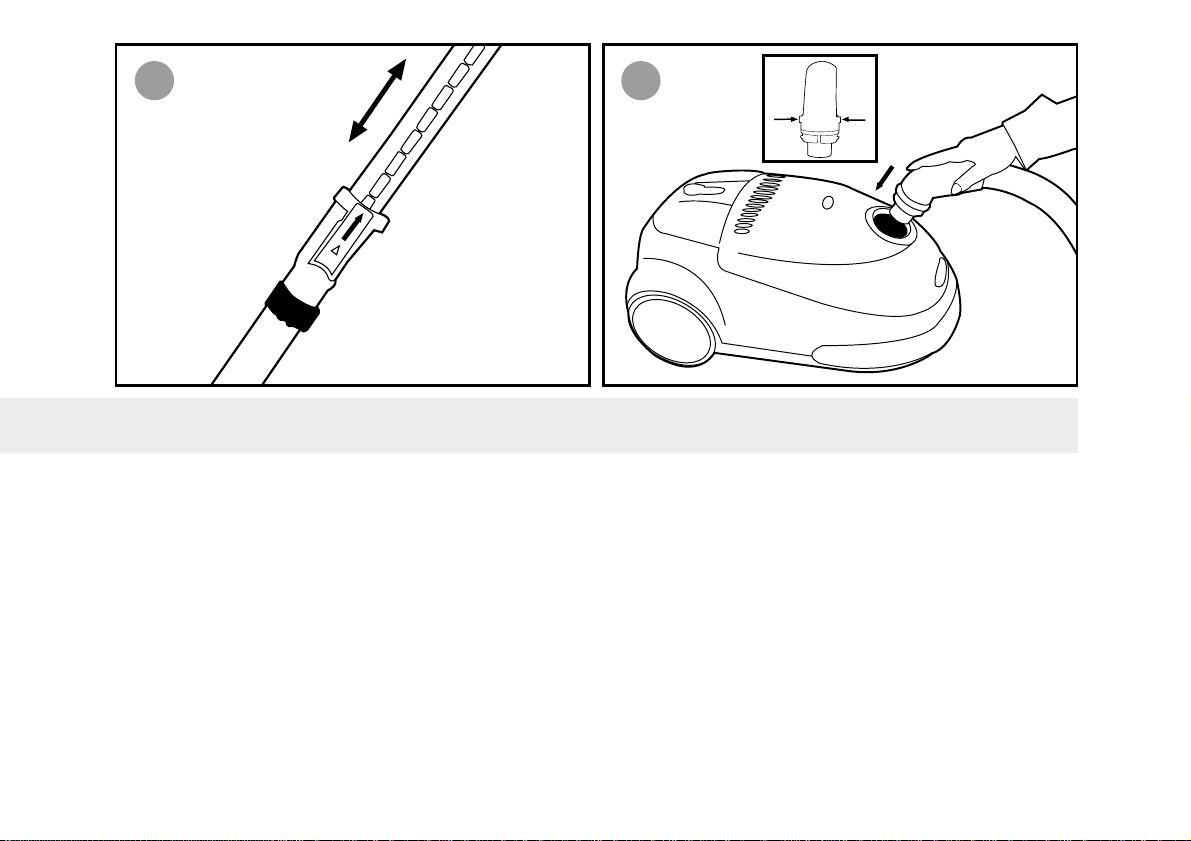

fig. 1 The telescopic extension tubes can be lengthened by pressing the button & pulling the tubes apart.

fig. 2 To attach the flexible hose to the vacuum cleaner, push the connecting end of the flexible hose into the

attachment point on the vacuum cleaner.

How to use your VS-022

Assembling the easy reach tool system

Your VS-022 has been equipped with an easy access storage system, to assemble this please follow these

instructions.

fig. 3 The tool storage system fixing bracket is already in place on the extension tube.

Insert the holding tubes as shown until the tubes click into place.

fig. 4 Place the dusting brush (A) upholstery brush (B) and crevas tool (C) on the tubes as shown.

How to use your VS-022

Adjusting the cleaning tool for carpets & hard floors

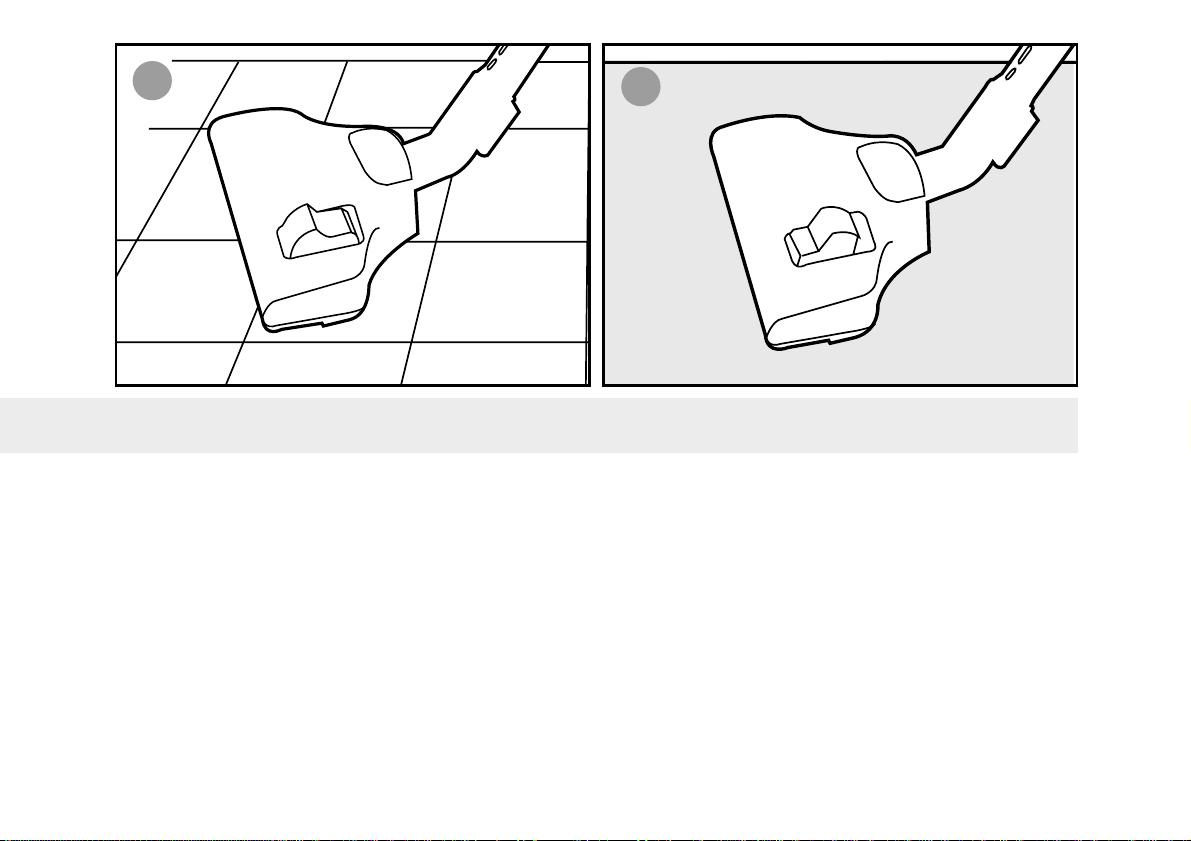

fig. 5 Hard floor position (tiles, parquet floors, etc.) –The cleaning tools brush must be in the lower position.

Press on the rocker switch to lower it.

fig. 6 Carpet or rug position –The cleaning tools brush should be raised. Press the rocker switch to lift the

brush up.

7 8 9

How to use your VS-022

Fully extend the mains cable and plug it into a standard domestic outlet.

fig. 7 Press the foot pedal to start the vacuum cleaner. To stop it press the pedal again.

fig. 8 Press the foot pedal to recoil the power lead.

fig. 9 The hose grip has a bleed valve which allows control of suction power.

10 11 12

How to use your VS-022

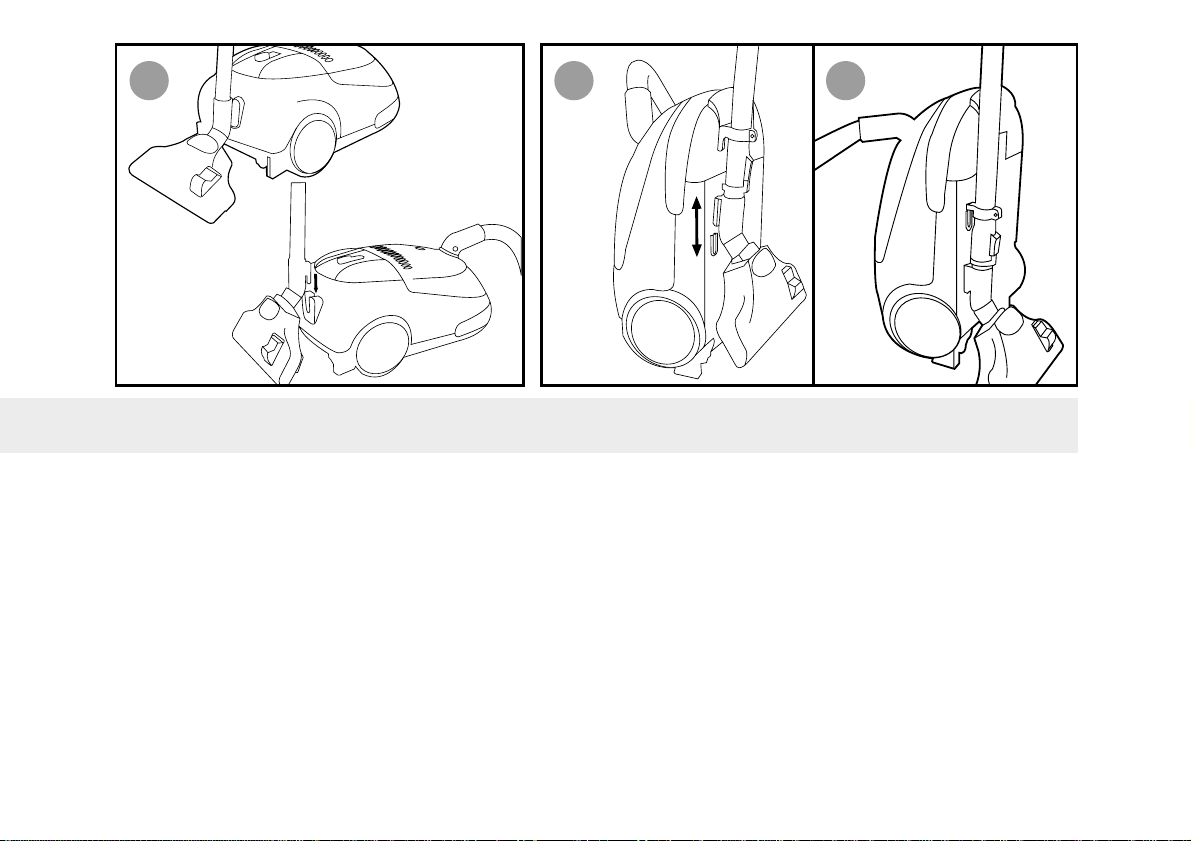

fig. 10 If you wish to pause briefly during vacuuming i.e. to move a piece of furniture or a rug, use the special parking

position on your vacuum cleaner as shown. Slide the hook attached to the large cleaning tool into the slot

on the rear of the appliance.

fig. 11&12 You can move or store your appliance in a vertical position by sliding the hook on extension tube into the clip

on the underside of the appliance. This practical system allows you to carry the vacuum cleaner around in

one hand and to store it in the minimum of space.

13 14

How to care for your VS-022

Your appliance is equipped with a dust bag. If you notice that the vacuum cleaner seems to be less

efficient than usual, check the dust indicator by selecting the maximum power and lifting the cleaner tool

off the floor. If it turns red, empty the dust bag.

To empty the dust bag

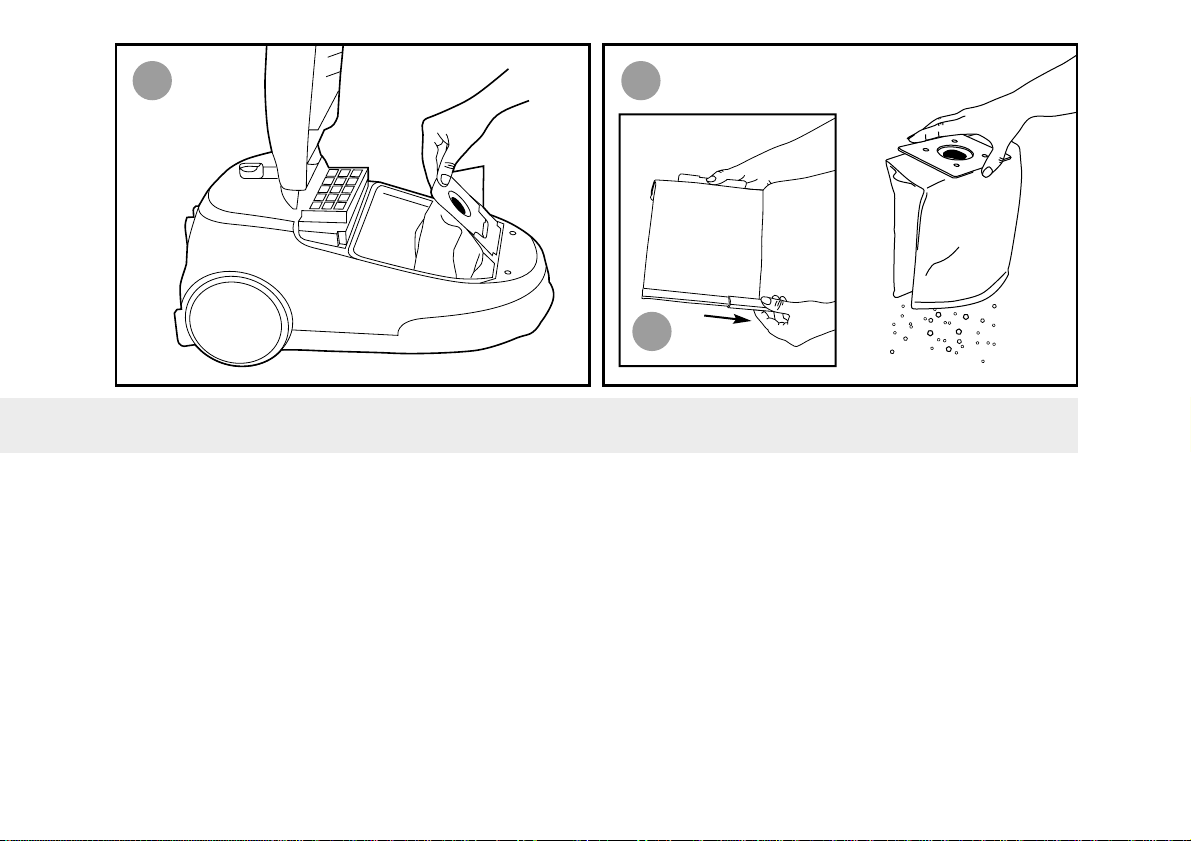

fig. 13 Turn off the appliance and unplug it. Lift up the catch to gain access to the dust bag compartment

raise the cover and remove the bag. Pull the handle up to remove the bag holder.

fig. 14a The clip on the bag can then be removed as shown.

fig. 14 Shake the dust bag over a bin so that the dirt can be removed. Once empty replace clip and

re-assemble in cleaner

14a

15 16

To change the filters

Motor protection filter

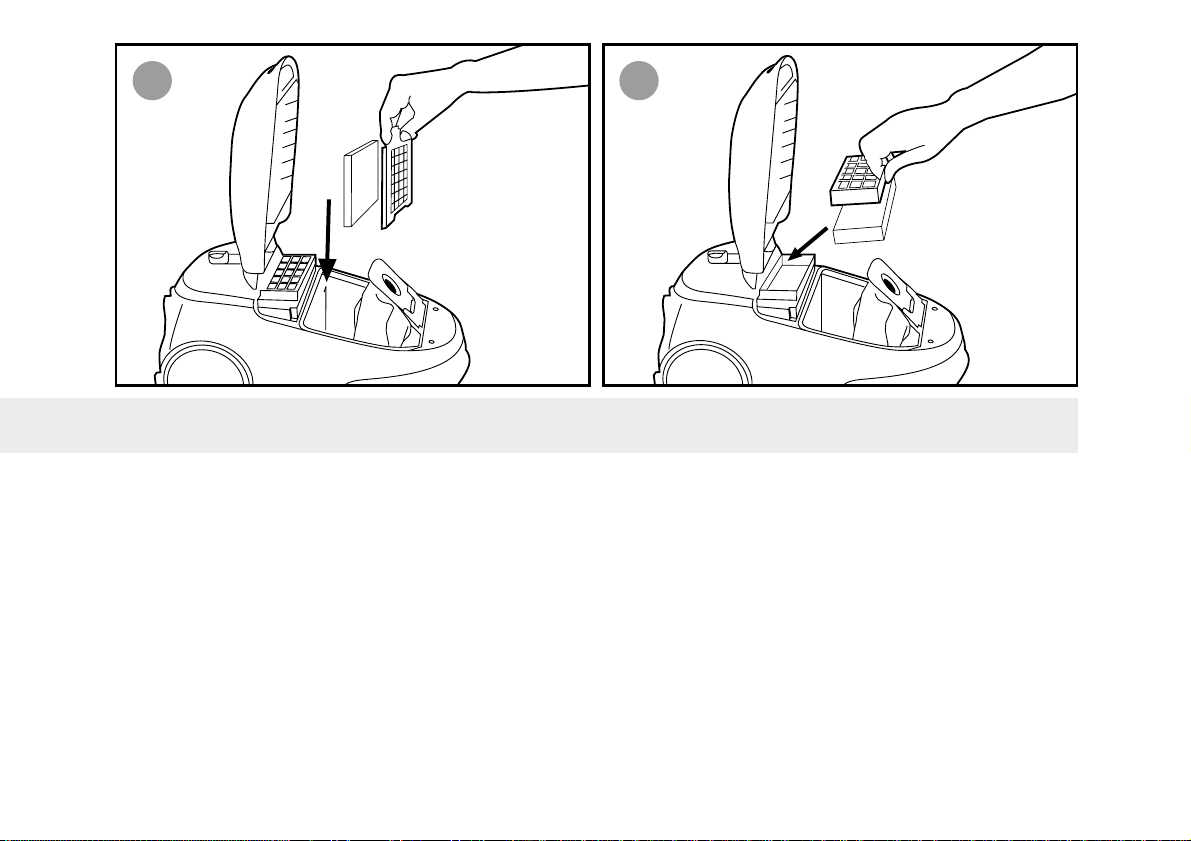

fig. 15 The filter is located in the dust bag compartment and protects the motor from dust. To reach this filter, remove

the grill from the machine and replace it with a new one. We recommend changing the filter after 5 bag changes

or when it appears soiled.

Air outlet filter

fig. 16 The air outlet filter is also hosed in the dust bag compartment above and behind the air outlet filter as shown in

fig 16. Remove dirty filter assembly from machine and dispose of filter medium. Replace with new filter medium.

Return filter assembly to your VS-022.

We recommend replacing the air outlet filters every 4-6 months from after the bag has been emptied 5 times,

when appearance is soiled, or a loss of suction is experienced (whichever is sooner).

Attention: Do not use the vacuum cleaner without the full filter set.

Dust bag indicator

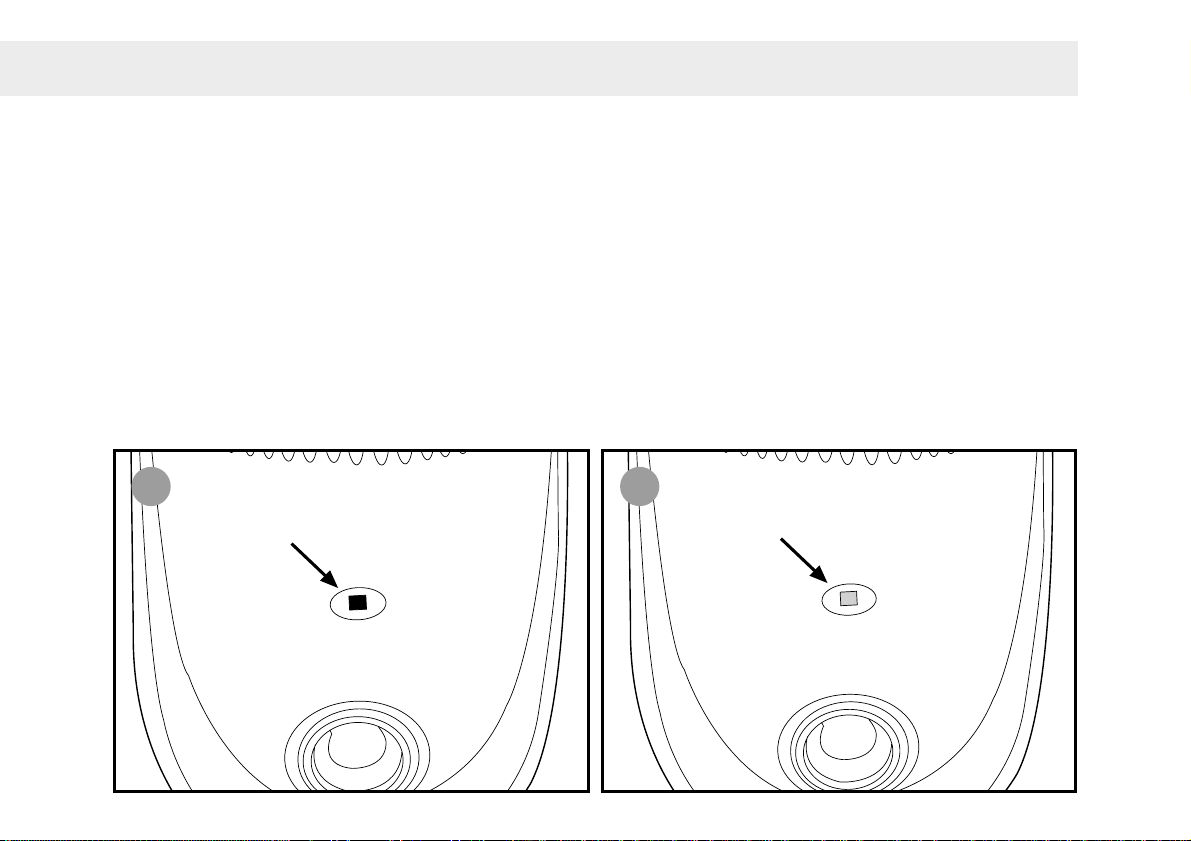

fig. 17 When the indicator turns red or when the suction power reduces substantially, this indicates that you should

empty the dust bag.

fig. 18 When the bag is not full the indicator will shown blue.

Attention: If after emptying the dust bag, the indicator stays red, this could be for several reasons:

•Suction passages may be blocked –check flexible hose and extension tubes, suction inlet, floor brushes and

nozzles for obstruction.

•Check motor protection filter

•Check to see if air outlet filter is dirty

Check carefully which of these causes is making the light go on and correct it so that the vacuum cleaner can work

normally.

Do not work with the vacuum cleaner with this indicator on red, for this could cause irreparable damage to the motor.
