Vaxcel T0130 Gebrauchsanweisung

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0130 / T0134

Back Plate

Ball Nut (G)

Bulb Type A Max.60W

(not included)

Rubber Pad (H)

Parts:

141029

Mounting Screw (B) Green Grounding

Screw (C)

Lock Nut (F)

Wire Nut (E)

Cross Bar (A) Ball Nut (G)

Frame

Headless Screw (D) Rubber Pad (H)

Photocell

Rubber Pad

Fixture

Finial

Glass Panel

Cross Bar (A)

House Grounding Wire

Green Grounding Screw (C)

Fixture Grounding Wire

Wire Nut (E)

Outlet Box

Fixture Wire

Mounting Screw (B)

Lock Nut (F)

Headless Screw (D)

IMPORTANT:

The sensor has an excellent photocell function to

enable the light to turn on at dusk and off at dawn

automaticlly.

Turn off the power at the main fuse or circuit breaker box.

1. Thread two headless screws through the cross bar, then secure them with four lock nuts ( two on each side of the

cross bar). Adjust the length of the headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally, to ensure that the fixture will be level.

2. Attach the cross bar to the outlet box by using two mounting screws.

3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follow:

---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Installation Steps

141029

--- Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar with the green grounding

screw. Then connect it to the house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

4. Attach the back plate to the cross bar by inserting the screws, then secure it with two rubber pads and ball nuts.

CAUTION: With silicone caulking compound, caulk completely around where the back side of the fixture

meets with the wall surface to prevent water from seeping into the outlet box.

5. Secure the finial onto the fixture tightly.

6. Install bulb (not included). See relamping label at socket area or packaging for maximum allowed wattage.

1. Turn off the power at the main fuse or circuit breaker box before starting installation.

2. Loosen the wire nuts connected with the wires from photocell. (See Fig.1)

Note: Do not move the photocell to prevent water from seeping into the outlet box.

3. Take a white pigtail and black pigtail and make wire connections using wire nuts: (See Fig.2)

a. The black wire from the fixture to one end of the black pigtail.

b. The white wire from the fixture to one end of the white pigtail.

c. The other end of the black pigtail to the black wire from the power source.

d. The other end of the white pigtail to the white wire from the power source.

Put all wires back into the back plate of the fixture.

Photocell

White Wires From Photocell

Wire Nuts

Wires From Fixture

Wires From

Main Power

Wire Nut

White Pigtail

Pigtail

Red Wires From Photocell

Black Wires From Photocell

Operation the Unit Without Photocell

Fig.1 Fig.2

Turn on the power at the main fuse or circuit breaker box.

The following parts are available for re-order if damaged or missing.

Spare Parts List:

Glass Panel

9652C

Mounting Screw (B) Green Grounding

Screw (C)

Lock Nut (F)

Wire Nut (E)

Cross Bar (A)

Ball Nut (G)

Headless Screw (D)

Rubber Pad (H)

Assembly Kit

5189MM (1 SET) for T0130

5190MM (1 SET) for T0134

141029

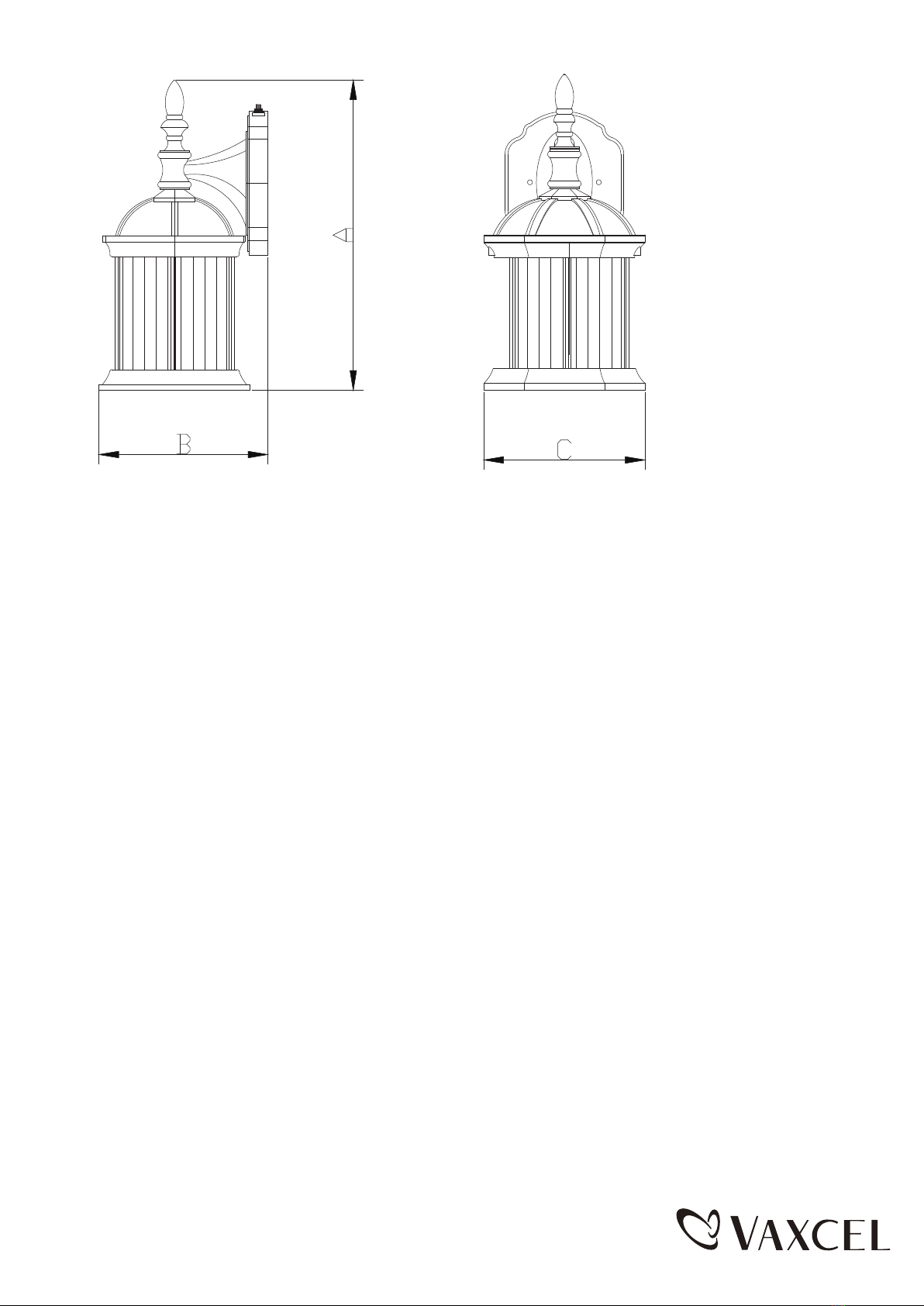

A: 12"

B: 6-1/2"

C: 6-1/4"
