Vello Freewave micro Bedienungsanleitung

FREEWAVE

MICRO

WIRELESS REMOTE

SHUTTER RELEASE

USER’S MANUAL

INTRODUCTION

Thank you for choosing the

Vello FreeWave Micro Wireless

Remote Shutter Release for

Nikon. This compact set includes

a small transmitter and a low-

proﬁle receiver that sits directly

on the 10-pin remote terminal—

it doesn’t require a cable or take

up space on the hot shoe. The

FreeWave Micro wirelessly

triggers the shutter of your Nikon

DSLR camera from a distance of

approximately 300' so that you

can shoot action while keeping

your distance from the camera

setup. You can use any one of

16 selectable radio frequencies

(channels)—this ensures that you

have a clear channel for operating

your camera even if other

wireless devices are operating in

the same area.

The FreeWave Micro transmitter

and receiver ﬁt easily into a shirt

pocket—together they weigh

only 1.1 oz. The transmitter

operates using one AAA battery.

The receiver is powered by the

camera.

Using the FreeWave Micro, you

can activate autofocus, trigger the

shutter, and open and close the

shutter when your camera is in

Bulb exposure mode. A shooting

alarm LED on the transmitter

blinks red each time a picture is

taken, so that you’ll always know

the exposure was made.

The FreeWave Micro also allows

you to take photographs without

touching your camera—a great

advantage when doing close-up

or macro photography, or when

you’re using long exposures. Using

the FreeWave Micro, you won’t

risk accidentally moving your

camera.

Small, Lightweight Remote Control: compatible

with Nikon DSLRs with a 10-pin remote

terminal.

2.4 GHz Radio Frequency: reduced interference

and improved wireless signal quality.

Extended Range: operates at up to 328' (100 m),

depending on conditions.

16 Channels: operates without interference from

other wireless devices.

Built-In Antenna: improves reception of receiver.

Dual-Function Release: press release button

halfway to activate autofocus; press fully to trip

the shutter.

Shutter Trigger Conﬁrmation: The red led ON

light on the transmitter lights up each time the

camera shutter is released, providing visual

conﬁrmation that a photograph has been taken.

Bulb Mode Release: when the camera is in Bulb

mode, the FreeWave Micro remote control

can open the shutter at the beginning of the

exposure and close the shutter at the end of the

exposure.

LED Indicators: LEDs indicate Focus, Shutter, and

Shooting Conﬁrmation.

Works in Extreme Temperatures: operates in

temperatures from -4° to 122°F (-20° to 50°C).

KEY FEATURES

• There are no user-serviceable parts inside the

devices. Do not attempt to disassemble or perform

any unauthorized modiﬁcation.

• Do not operate in the presence of ﬂammable gas

or vapors.

• Do not handle with wet hands or immerse in or

expose to water or rain. Failure to observe this

precaution can result in ﬁre or electric shock.

• Observe caution when handling batteries. Batteries

may leak or explode if improperly handled. Use

only the batteries listed in this manual. Make

certain to align batteries with correct polarity.

• Batteries are prone to leakage when fully

discharged. To avoid damage to the product, be

sure to remove the batteries when leaving the

product unattended for prolonged periods or when

no charge remains.

• Do not use or leave the devices in conditions of

extreme heat, severe cold, or high humidity.

• Dispose of used batteries, packaging, and old

devices in accordance with appropriate local

environmental regulations.

• Do not attempt to disassemble or repair the

equipment—doing so will void the warranty, and

Vello will not be responsible for any damage.

• Handle the unit with care.

• Keep out of the reach of children. This device

contains small parts which may pose a choking

hazard.

• Make sure the item is intact and that there are no

missing parts.

• All photos are for illustrative purposes only.

• Please read and follow these instructions and keep

this manual in a safe place.

PRECAUTIONS

FEATURES DIAGRAM

Receiver

1Antenna

2Lanyard hook

316-channel switch

4Power LED

5Focus LED

6Shutter LED

7Power switch

8Locking wheel

910 pin connection to the

camera.

10 Channel selection pin

11 Protective sliding cover

12 Shutter release button

13 LED Indicator

Focus—vivid blue / Shutter—dim

blue / Shooting alarm—red

14 Battery compartment door

15 Strap hook

16 16-channel switch

Transmitter

Lanyard

Setting Up the Receiver

The camera must have a 10-pin

remote terminal in order to

connect with the FreeWave Micro

Wireless Receiver. Please see

the compatible camera list on

page 12.

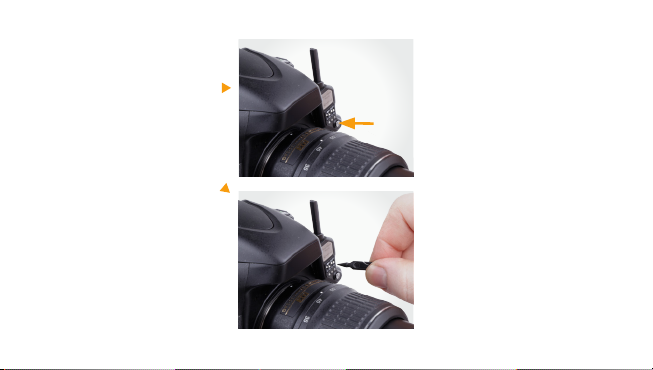

1. Insert the socket of the

receiver, with the antenna

pointed up, into the camera’s

10-pin remote terminal.

INSTRUCTIONS

2. Turn the receiver slightly

until you feel that it’s seated

properly in the terminal.

3. When you have correctly

aligned the receiver with the

10-pin remote terminal, turn

the locking wheel clockwise

until the receiver is securely

connected to the camera.

To get the most from your FreeWave Micro Wireless Remote Control,

please read this manual.

4. Turn the receiver on by

pressing the power button.

5. The red Power LED on the

receiver will blink on and o

when the receiver is connected

properly to the camera.

6. Ensure that the receiver is set

to the same channel as the

transmitter.

7. To turn the receiver o, press

the power switch and hold it

for approximately one second.

The red Power LED will turn

o.

Note: The receiver will enter

sleep mode after it has been on

for two hours without being

activated. When the receiver is in

sleep mode, press the On switch

to resume operation.

Setting Up the Transmitter

Please follow these directions to

set up the transmitter.

1. Press down on the knurled

area on the back of the

transmitter and slide open the

battery chamber cover.

2. Install one AAA battery in the

battery chamber, ensuring that

the polarity is correct.

3. Using the included channel

selection pin (attached to the

lanyard), select the channel

using the selector next to the

battery. Be sure the channel

matches the channel setting on

the receiver.

4. Slide the battery chamber

cover closed.

5. To activate autofocus, press

the shutter button on the

transmitter halfway down.

When autofocus is engaged,

the indicator LED will become

a vivid blue color.

6. To trigger the shutter and

take a photograph, press the

shutter button all the way

down. When the shutter is

engaged, the indicator LED will

turn a dim blue color.

There are 16 radio frequencies (channels) available

on the transmitter and the receiver. Be sure to set

the same channel on the transmitter and the receiver.

This allows you to use the Freewave Micro Wireless

Remote Control without interference from other

devices using radio frequencies in the same area. The

channel selection pin attached to the included lanyard

helps you to adjust the channels. Please refer to the

channel list below for information about setting the

channels.

Note: Be sure to maintain a minimum distance of 20"

(50 cm) between the transmitter and receiver during

operation to prevent anti-RF interference.

SETTING THE CHANNEL

Available Channels

USING THE FREEWAVE MICRO WIRELESS REMOTE SHUTTER RELEASE FOR NIKON

After you attach the receiver to

your camera, you can use the

FreeWave Micro to activate the

autofocus function, to release the

shutter, and to operate the Bulb

mode on your camera.

To operate the autofocus function

on your camera, press the shutter

button on the transmitter halfway

down. When the autofocus is

engaged, the blue LED on the

transmitter and the blue LED

on the receiver will both light

up. To take a photograph, press

the shutter button all the way

down. The red LED on the

receiver and the red shooting

alarm LED on the transmitter

will light up to conﬁrm that the

receiver is functioning and that

it has triggered the shutter in

the camera. The conﬁrmation

light may not blink at the precise

moment that the photograph

is taken.

To use the FreeWave Micro with

the Bulb mode on your camera,

ﬁrst set your camera to Bulb

mode. Then, press the shutter

button on the transmitter and

hold it until the blue LED on the

transmitter turns o. A blue LED

and a red LED on the receiver will

light up, signaling that the shutter

of the camera is open. When

you want to close the shutter,

press the shutter button on the

transmitter again. The blue and

red lights on the receiver will go

out, signaling that the shutter

has closed.
