Vello LA-C-NAF Bedienungsanleitung

LENS

ADAPTER

MANUAL

LA-C-NAF

LA-C-NAFII

LA-C-CEF

Thank you for choosing a Vello Lens Adapter. The Vello C mount adapter allows you to mount

photo lenses to your camera. Vello Lens Adapters ﬁt securely to the lens, but not so tightly that

they are dicult to remove. Please follow these instructions to mount and remove your Vello

Lens Adapter.

Although the lens will t physically, automatic diaphragm (AE metering) and other functions dependent

on communication between the camera body and lens will be disrupted by a lens adapter. You will

need to set exposures manually or meter in aperture priority (stop-down) mode. Focusing to innity is

retained.

INTRODUCTION

All images are for illustrative purposes only.

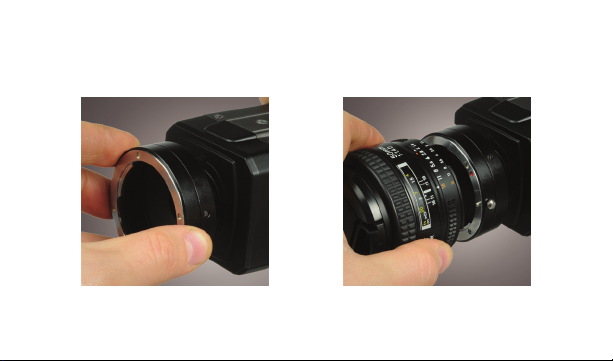

1. Rotate the lens adapter clockwise onto

the camera until it is secure.

2.Line up the alignment dots on the lens and

the lens adapter.

TO MOUNT THE LENS ADAPTER

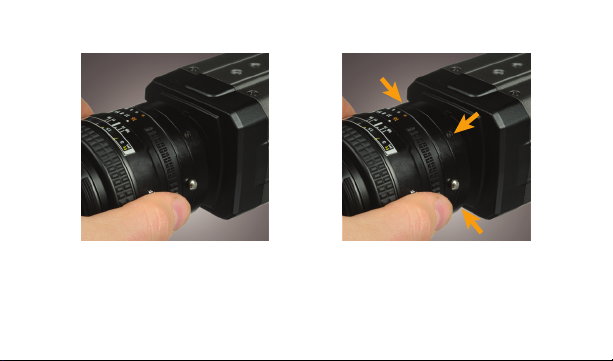

3. Rotate the lens until it locks into place. 4. If desired, you can re-align the lens to a

speciﬁc position. To re-align the lens, use a

2 mm ﬂat-head screwdriver to loosen the

three screws on the lens mount. Rotate

the lens to the desired position, and

tighten the three screws.

2. Rotate the lens to release.

TO REMOVE THE LENS ADAPTER

1. Pull and hold the release pin on the lens

adapter.

3. Rotate the lens adapter to remove.

Notes:

_____________________________________

______________________________________

_____________________________________

ONE-YEAR LIMITED WARRANTY

Vello provides a limited warranty to the original purchaser that this product is free from defects in

materials and workmanship under normal consumer use for a period of one (1) year from the original

purchase date or thirty (30) days after replacement, whichever occurs later. Vello’s responsibility with

respect to this limited warranty shall be limited solely to repair or replacement, at Vello’s discretion,

of any product that fails during normal consumer use. Inoperability of the product or part(s) shall be

determined by Vello. If the product has been discontinued, we reserve the right to replace it with a

model of equivalent quality and function.

To obtain warranty coverage, contact Vello to obtain a return merchandise authorization (“RMA”)

number, and return the defective product to Vello, along with the RMA number and proof of

purchase. Shipment of the defective product is at the purchaser’s own risk.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration,

abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, VELLO MAKES

NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT

NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. This warranty provides you with speciﬁc legal rights, and you may also have

additional rights that vary from state to state.

www.vellogear.com

Vello and other names of Vello products are trademarks of Gradus Group. Other product and corporate names mentioned

herein are trademarks of their respective holders.
