Verkada CB61 Bedienungsanleitung

CB51

CB61 Outdoor Bullet Camera

What you’ll need

• A working internet connection

• A smartphone or laptop

• A Cat5 or Cat6 ethernet cable with a

.2-.25 inch outside diameter (5-6.5mm)

• 802.3af/802.3at POE Power over Ethernet

(PoE) switch, or a PoE injector. For

operation below -20° C, use 802.3at PoE

• A #2 Phillips screwdriver or power drill with

a #2 Phillips driver bit

• ⁄ inch (3mm) drill bit for pilot holes

In the box

1 CB51 / CB61 outdoor bullet camera

1 Mount plate (pre-assembled with camera)

1 Setup guide, with 1 mounting template

1 T8, T25 Hand tool

1 22mm cable gland wrench

4 Wall mounting screws

4 Adapter mounting screws

1 Junction box adapter cover

1 Junction box adapter mount plate

1 Spare collar locking screw

CB51 / CB61 Outdoor Bullet Camera

Mount Plate

(pre-assembled with camera)

Mounting

Hardware

T8 and T25

Hand Tool

Cable Gland Wrench

Junction Box

Adapter Cover

Junction Box Adapter

Mount Plate

Setup Guide with

Mounting Template

1/8” (3mm) holes for

wood or metal

1/4” (6mm) holes for

plastic anchors

Drill 4 holes:

Drill cable

pass through

(optional)

Rear cable exit

route (optional)

CB51 Mount Plate

(front side)

CB51 / CB61

Mount Plate

Template

Bullet Camera

Mount Plate

Removable Cover

Collar Locking Screw

Ball Joint

Lock Screw

Optional Cable Exit

Cover Collar

Base Plate Base Locking

Screw

Status LED

CB51

CB61 Overview

3/4” NPT Threaded

Connection

CB51

CB61 Connect

Use the T8 drive to loosen the set screw. Do not completely remove the screw.

Twist the Cover Collar near the middle of the camera to remove the outer Cover.

10 - connect connect - 11

Solid orange

Camera is on and booting up

Flashing orange

Camera is updating ﬁrmware

Flashing blue

Camera is recording, but

cannot reach the server

Solid blue

Camera is running, connected,

and streaming video

Status LED

Connect CB51 / CB61 to an

802.3af/802.3at Power over Ethernet

(PoE) port on your network

Go to www.verkada.com/start

For detailed installation instructions,

visit www.verkada.com/support

Insert the ethernet cable into ethernet port. Scan the QR code for easy

camera registration and setup, or proceed to www.verkada.com/start.

CB51

CB61 Mounting

To unlock the Mount Plate from the Base Plate, loosen the Base Locking Screw

using the provided T8 hand tool. The screw should be backed out approximately

.2” (5mm) from the Base Plate. Do not fully remove the screw.

14 - mount mount - 15

Use the provided mounting template to mark Mount Plate holes.

For a solid material like wood or metal, drill 1/8 inch pilot holes. Drive mounting

screws directly into the pilot holes.

For drywall, plaster or masonry, separate wall anchors may be required.

To remove the Mount Plate from the Base Plate, twist the Mount Plate counter-

clockwise then pull the Mount Plate o of the underside of the Base Plate.

16 - mount mount - 17

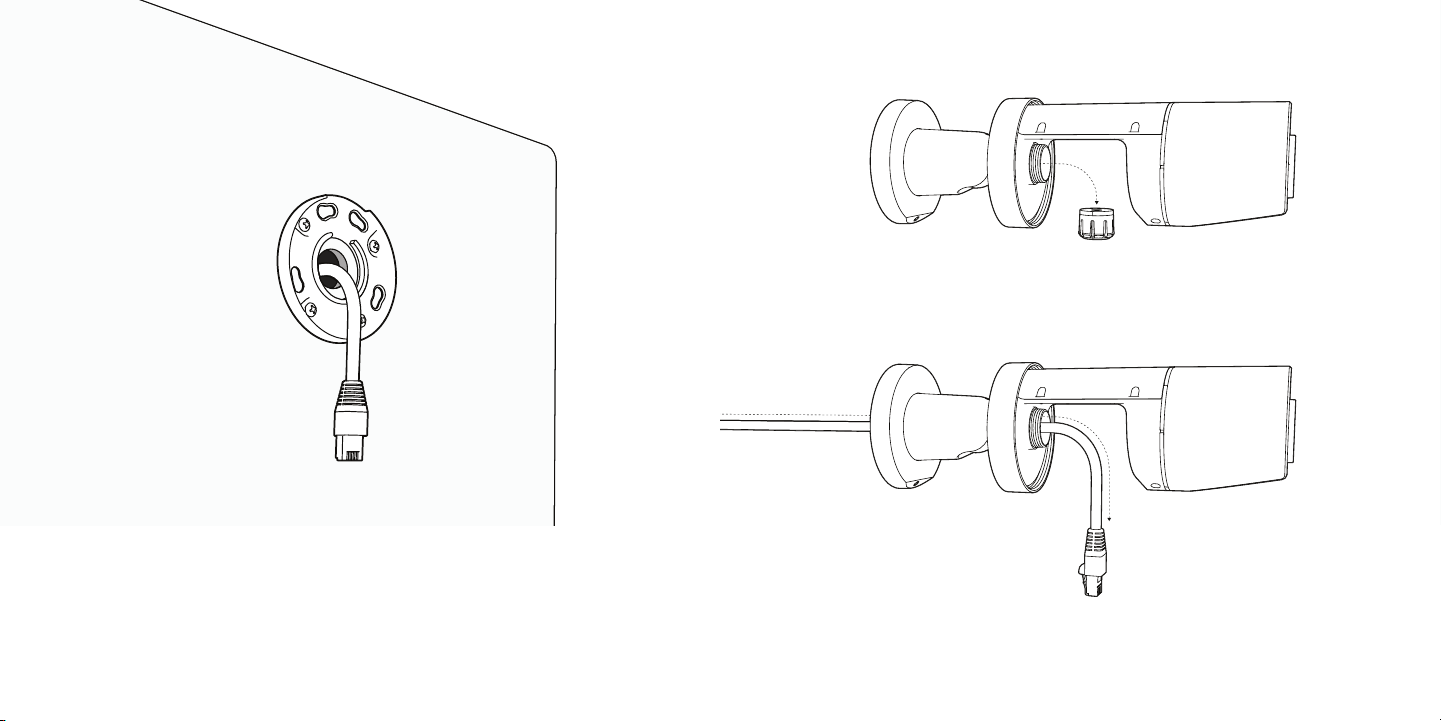

Feed ethernet cable through the center of the Mount Plate

before fully securing it to the mounting surface.

Leave enough slack to safely handle the camera during cable

gland installation.

Remove the cable gland from CB51 / CB61.

Route the ethernet cable through the Mount Plate and ball

joint. Leave the cable disconnected for now.

18 - mount mount - 19

Engage the mounting pegs and twist clockwise until you feel the camera lock

securely in place.

Once secured, tighten the T8 security screw using the provided hand tool.

Align mounting features on the Mount Plate with the

mounting pegs on the backside of CB51 / CB61 Base Plate.
