Introduction
What’s in the box
What you’ll need
●A working internet connection
●802.3af Power over Ethernet (PoE) switch,
or a PoE injector. For operation below
-20° C, use 802.3at PoE.
●A smartphone or laptop
●A #2 Phillips screwdriver or power drill
with a #2 Phillips driver bit
●1/4 inch (6.5mm) drill bit for wall anchors
●1/8 inch (3mm) drill bit for pilot holes
●A Cat5 or Cat6 Ethernet cable with a
5.5-6.4mm outside diameter, no boot or
jacket on the RJ45 jack
●1” hole saw for Cable Sealing Assembly
pass through
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
CM41-E Outdoor Mini
Dome Camera
Mount plate
(Attached to camera)
2x M4 Phillips Flat
Head Screws for
ACC-MNT-6
3 Wall Anchors & M4
Phillips Pan Head Screws
for Wall Mounting
2x 10-24 Phillips
Flat Head Screws
for Junction Box
Connect
For easy registration and setup, scan the QR
code on the product.
If you prefer to manually register your product,
please proceed to: verkada.com/start
3
1 Pack of 2
Desiccants
Mount template
(Attached to camera)
T10 Security Torx
Screwdriver
3 Cable-Sealing
Assembly Components
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
4
Introduction

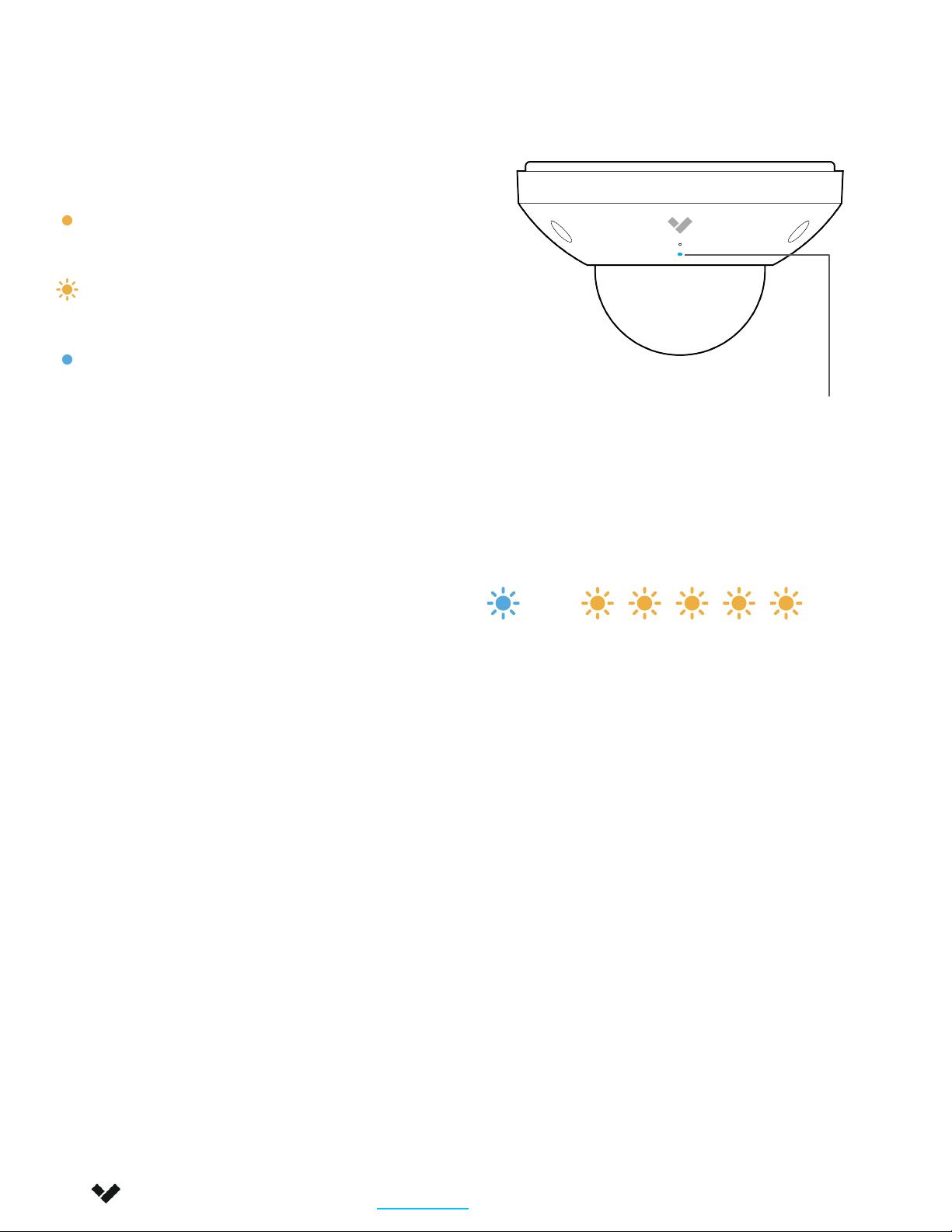

LED Behaviors
Regular operation
Solid Orange
Camera is on and booting up.
Flashing Orange
Camera is updating firmware.
Solid Blue
Camera is running, connected,
and recording data.
Network errors
1 Blue, 1 Orange
Camera is connected to the PoE, but
unable to connect to the Switch.
1 Blue, 2 Orange
Camera has not received an IP address.
1 Blue, 3 Orange
Camera has detected duplicate IP
addresses on the LAN.
1 Blue, 4 Orange
Camera is not able reach the router.
The LED will flash in a specific order,
depending on the error state. You will
see 1 blue flash, followed by a number of
orange flashes.
Example of 1 Blue, 5 Orange flash sequence
1 Blue, 5 Orange
Camera is not able to resolve Verkada
hostnames.
1 Blue, 6 Orange
Camera is not able to receive a
response from the NTP Server.
1 Blue, 7 Orange
Camera is not able to certify the SSL
connection, likely due to SSL inspection.
1 Blue, 8 Orange
Verkada endpoints are not reachable
after boot up.
Status LED
–
Installation
Connect
Remove top cover using
T10 Security Torx
Screwdriver
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
5
Insert the Ethernet cable
into Ethernet port. Scan the
QR code for easy camera
registration and setup, or
proceed to:
www.verkada.com/start
Installation
Mount 1/4
Note
Loosen internal security screw with T10
Security Torx Screwdriver
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.

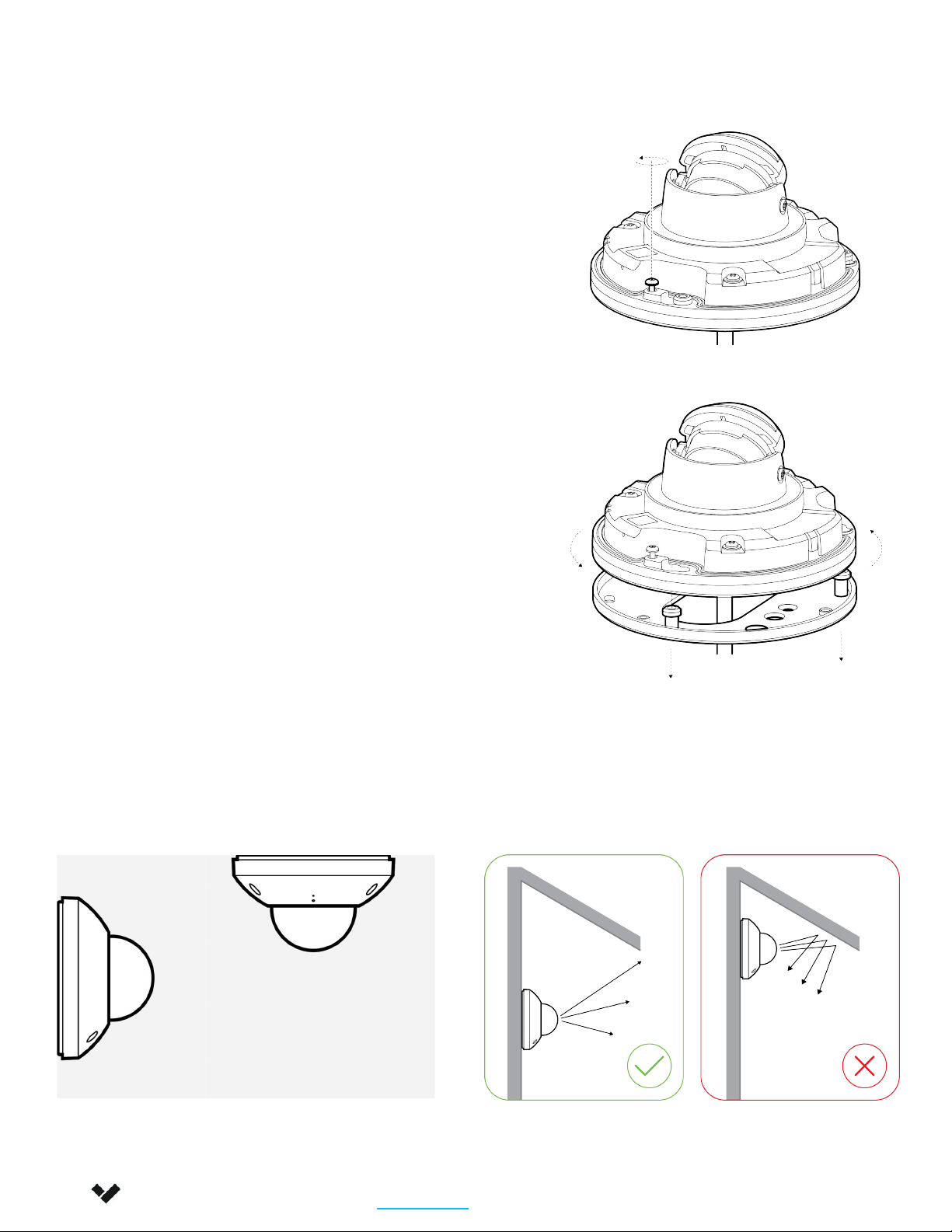

Mount the camera on a wall or ceiling.
Try to keep the camera 8 to 10 feet above
the ground.
6
Rotate camera housing counter-clockwise
and remove it from mount plate.
For best night vision, avoid overhangs or
obstructions. These may reflect the
camera’s IR illumination and reduce the
image clarity in night mode.
Installation
Mount 2/4
Note
Use the provided mounting template to
mark wall mount holes and to drill 1 inch
center hole. For other mounting scenarios,
use the mounting template to determine
the correct hole pattern.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
7
Feed Ethernet cable through the wall.
Leave enough slack to make
cable-sealing assembly install easier.
For a solid material like wood or metal, drill
1/8 inch pilot holes. Drive mounting screws
directly into the pilot holes.
For drywall, drill 1/4 inch holes. Insert plastic
anchors into holes and drive mounting
screws into anchors.
Installation
Mount 3/4
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
8
Assemble cable-sealing
assembly components
onto RJ45 cord.
Insert RJ45 plug into the jack.
Insert rubber seal into the body.
Twist to lock body on to the jack.
Screw the cap onto the body.
RJ45 Jack
Body
Rubber Seal
Cap
Installation
Mount 4/4
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
9
Feed cable assembly into wall.
Align Security Screw with Mount
Plate Standoff.
Rotate the camera clockwise and
tighten Security Screw.
Security Screw Mount Plate Standoff
Installation
Grounding
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
10
In order to attach a ground cable to the camera, perform the following:
Align a 20AWG or larger grounding cable with a ring terminal and drive an M4-0.7 x
6mm screw (not included) through the terminal and into the threaded grounding point
on the back of the device.
Attach the other terminal of a grounding cable directly to a circuit breaker, ground rod
or earth ground.
This unit is powered by PoE through a UL Listed ITE.
Grounding
