AKG 317 - AKG 377

Instructions for use

In case this appliance contains hydrocar-

bon refrigerant please refer to guidelines

listed below.

As the appliance contains a ammable

refrigerant, it is essential to ensure that the

refrigerant pipes are not damaged.

Standard EN378 species that the room in

which you install your appliance must have

a volume of 1m³ per 8 g of hydrocarbon

refrigerant used in the appliances. This is

to avoid the formation of ammable gas/

air mixtures in the room where the appli-

ance is located in the event of a leak in the

refrigerant circuit. The quantity of the refrig-

erant used in your appliance is indicated on

the rating plate.

WARNING: Keep ventilation openings in

the appliance’s cabinet or in

the built-in structure clear of

obstruction

WARNING:Do not use other mechanical

devices or other means to ac-

celerate the defrosting process

than those recommended by

the manufacturer

WARNING: Do not damage the refrigerant

system

WARNING:Do not use electrical appli-

ances inside the refrigerated

storage compartment, unless

they are of a type recommend-

ed by the manufacturer

WARNING: Do not expose the appliance

to rain

WARNING:This appliance is not intended

for use by young children or

inrm persons unless they have

been adequately supervised by

a responsible person to ensure

that they can use the appliance

safely. Young children should be

supervised to ensure that they

do not play with the appliance

● Always keep the keys in a separate place

and out of reach of children

● Before servicing or cleaning the appli-

ance, unplug the appliance from the

mains or disconnect the electrical power

supply

● If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent, or similarly qualied persons in

order to avoid a hazard

●Relevant for Australia: Supply cord

tted with a plug complies with AS/NZS

3112.

● Frost formation on the interior evaporator

wall and upper parts is a natural phenom-

enon. Therefore, the appliance should

be defrosted during normal cleaning or

maintenance

● Directions for replacing the illuminating

lamps are to be included in the instruction

●Please note that changes to the appli-

ance construction will cancel all warranty

and product liability

Warning.

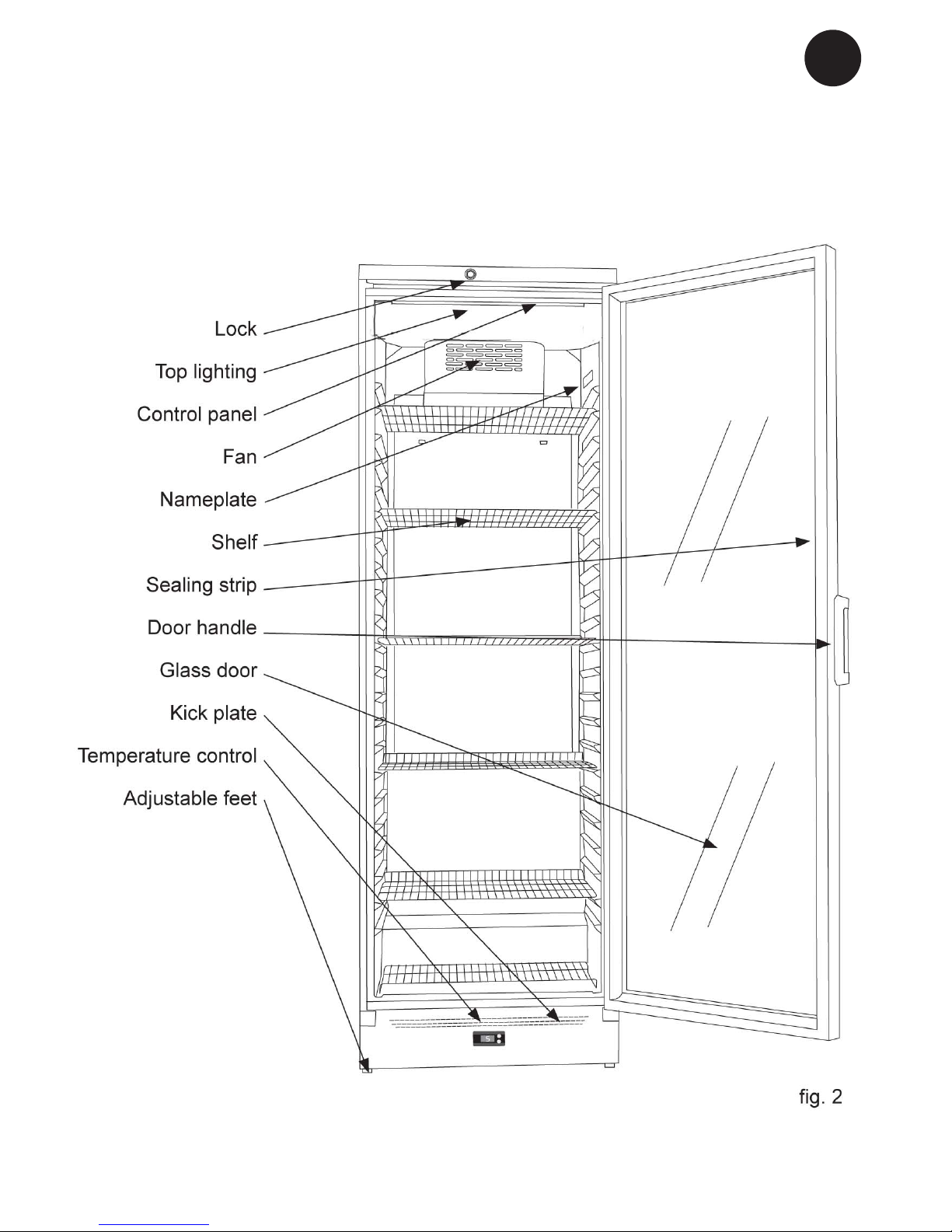

Get to know your pharmaceutical refrigerator:

Top lighting

Control panel

Rating plate

Shelf

Door handle

Glass door

Kickplate

Before operating your new appliance,

please read the following instructions care-

fully as they contain important information

on safety, installation, operation and main-

tenance. Keep the instructions for future

reference.

On receipt, check to ensure that the appli-

ance has not been damaged during trans-

port. Transport damage should be reported

to the local distributor before the appliance

is taken into use.

Remove the packaging. Clean the inside of

the cabinet using warm water with a mild

detergent. Rinse with clean water and dry

thoroughly (see cleaning instructions). Use

a soft cloth.

If during transport the appliance has been

laid down, or if it has been stored in cold

surroundings (colder than +5°C), it must be

allowed to stabilise in an upright position for

at least an hour before being switched on.

Note: If the appliance is to be laid down, the

door must face upwards and the appliance

must be enclosed in the original packaging.

Before starting the

appliance

Contents

Warning ..................................................2

Get to know ............................................3

Before starting the appliance..................4

Installation and start-up ..........................5

Operation and function. ..........................7

Technical data.........................................8

Reversing the door .................................9

Replaceable lamp strip......................... 11

Defrosting, cleaning and maintenance..12

Fault nding..........................................13

Warranty, spare parts ...........................14

Disposal................................................15

Installation and start-up.

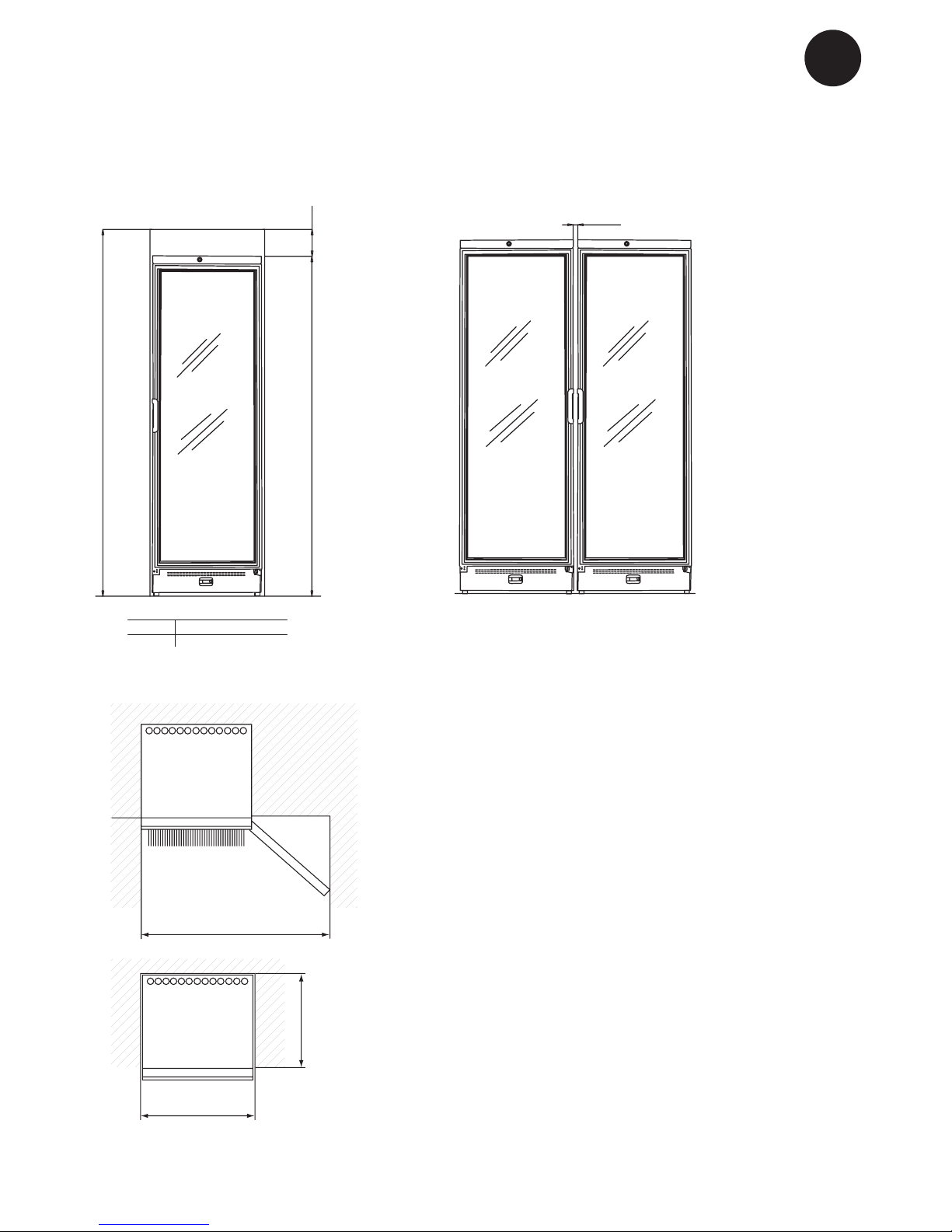

1530 / 1850 150

Min. 2000

Table height width depth

AKG 317 1530 600 595

AKG 377 1850 600 595

1180

600

max. 548

The appliance can be installed as a free-

standing unit against a wall or side-by-side

with other appliances

The surface on which the appliance is to be

placed must be level. Do not use a frame or

similar.

If the appliance is to be placed beside a

wall, there must be at least 1180 mm clear-

ance on the hinge side to allow the shelves

to be removed. To ensure that the door can

be opened, the appliance must be pushed

no further in than max. 548 mm.

Side by side

In side-by-side arrangements, there must

be a clearance of at least 25 mm between

the appliances to allow their doors to be

opened freely.

Ventilation

It is important that the appliance be well

ventilated and that air can circulate unhin-

dered above, below and behind it.

Note that there must be a clearance of 150

mm above the appliance (see page 5)

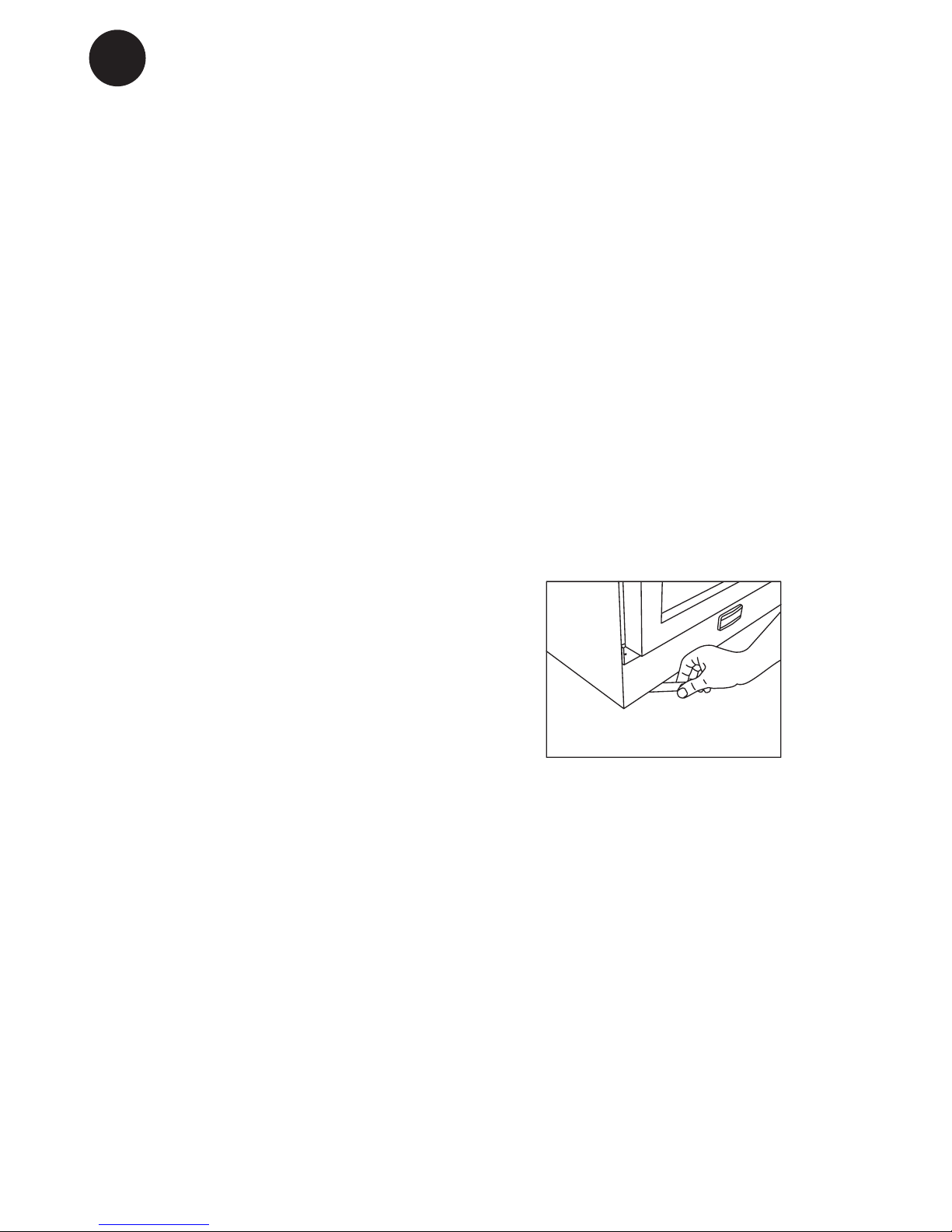

Levelling the appliance

It is important that the appliance be abso-

lutely level.

It can be levelled in the following way:

1. Level the appliance sideways by screw-

ing the adjustable feet up or down using the

accompanying spanner.

2. Check that the appliance is absolutely

level.

If the appliance is to be placed on a soft

surface, e.g. oorboards or a carpet, it is

best to recheck whether the appliance is

still level after a period of time as the under-

lying surface may give under the weight of

the appliance.

Placement

For safety and operational reasons, the ap-

pliance must not be installed outdoors.

The appliance should be placed on a level

surface in a dry, well ventilated room (max.

70% relative air humidity). Never place

the appliance close to sources of heat and

avoid placing it in direct sunlight.

Applications

The appliance has been specially designed

to maintain a temperature of between 2°C

and 8°C inside the cabinet. To ensure that

the products are kept within this empera-

ture range, set the thermostat to 4 initially.

Whether the thermostat should subse-

quently be adjusted can then be determined

by measuring the temperature inside the

cabinet using a thermometer in a glass of

water.

The ambient temperature must be kept be-

tween 20°C and 25°C. Important: Note that

the door opening frequency will inuence

the temperature inside the cabinet. Avoid

keeping the door open for long periods un-

necessarily.

The appliance is not designed to be used

for cooling warm products. Placing such

items in the cabinet may cause the tem-

perature of products already in the cabinet

to rise. Medicine to be kept between 2°C

and 8°C should not be placed in the cabinet

higher than the stacking mark or on the

bottom shelf.

Frost protection

If the fan inside the cabinet fails, the ther-

mostat will ensure that the temperature of

the products stored in the bottom half of the

cabinet does not fall below 0°C. The tem-

perature in the top half of the cabinet will,

however, rise to ambient temperature.

Operation and function.

Starting up

Connect the appliance to the socket outlet.

Press the on/off switch . A green light indi-

catet that the appliance has been switched

on.

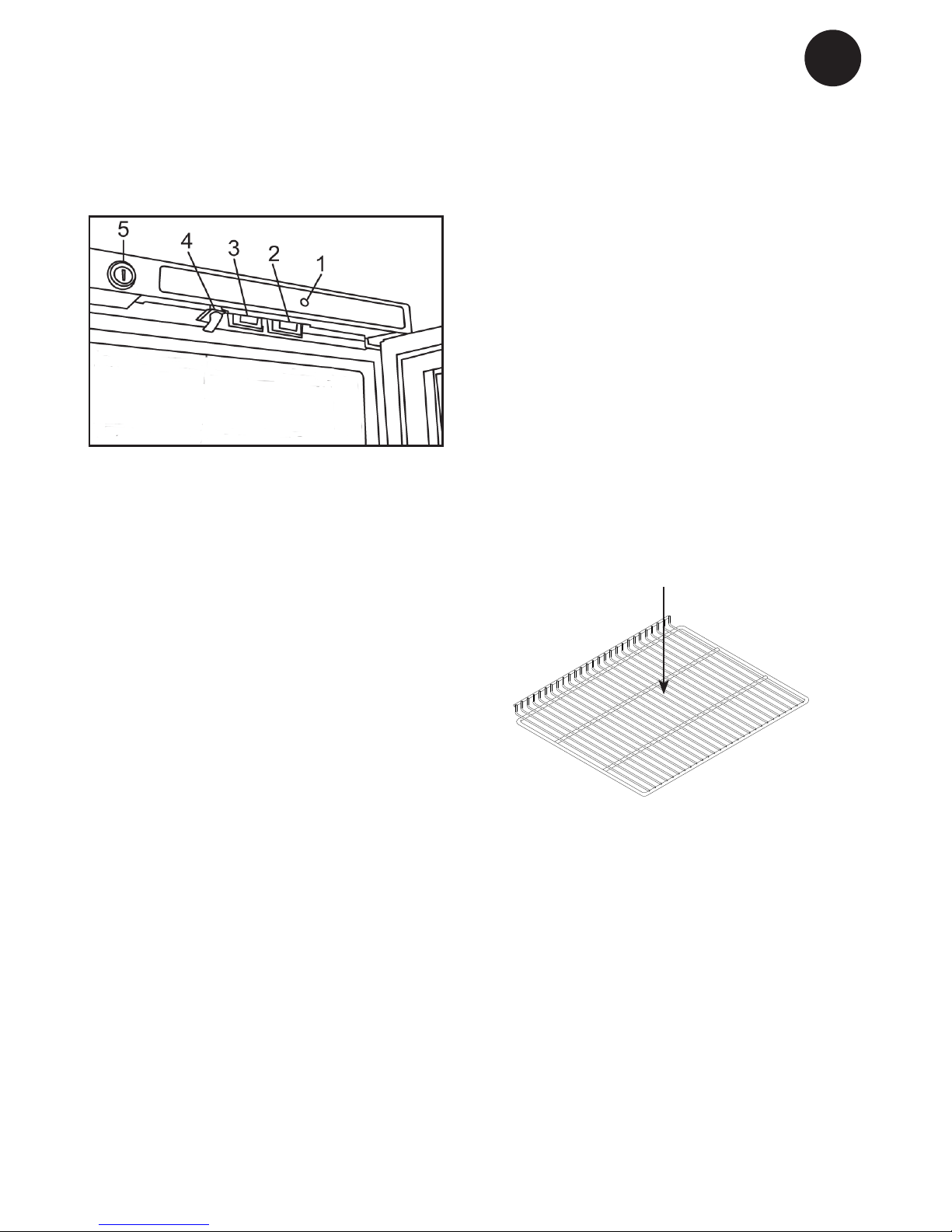

See control panel Fig 3

1 Green light indicating power on

2 Light switch

3 On/off switch

4 Door switch for internal fan

5 Lock

The switch (2) on the top right of the control

panel is for turning the top lighting on and

off. The switch (3) on the top left of the

control panel is for turning the appliance

on and off. The door switch (4) stops the

internal fan when the door is open in order

to minimise the amount of warm air entering

the cabinet.

Fig 3

Technical data.

This device complies with relevant EU

directives including Low Voltage Directive

2006/95 EEC. and Electromagnetic Com-

patibility Directive 2004/108/EC

The rating plate provides various techni-

cal information as well as type and serial

number.

Max. 36 kg

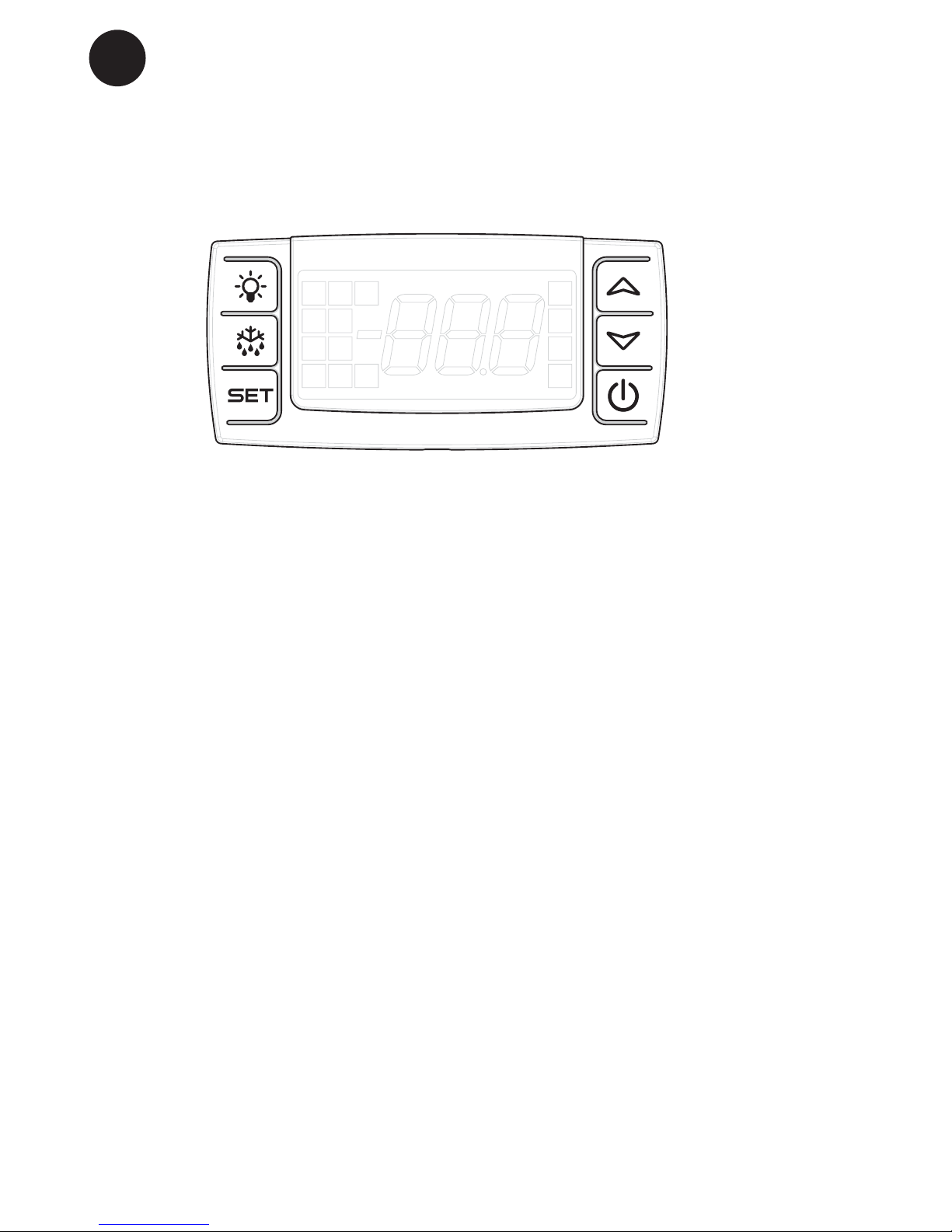

Temperature control

1: Actual temperature at the top of the cabinet

2: Selection of temperature. Press for 2 seconds

3+4: Temperature +/-

5: Unit on/off

Press rst button “SET” (2) for about two seconds (until the ° C begins to ash). You can then

adjust the temperature using buttons (3) and (4).

The calibration can be adjusted between the set points No. 1 and No. 3, the set point No. 1

being the coldest temperature.

The temperature at the bottom of the cabinet appears on the display. If you want the tempera-

ture at the top of the cabinet to be shown, press button No. 1 for a short while.

The temperature is then shown for about 5 seconds, then the display returns to showing the

temperature at the bottom of the cabinet.

Low temperature alarm:

If the temperature is below 1 ° C for more than 4 minutes, an alarm appears on the screen.

The audible alarm is reset when the temperature is restored above +1 ° C or when a button is

pressed. The visual alarm alternates between LA (= low) and the current temperature of the

cabinet. This alarm is switched off when the temperature is back above 1 ° C.

High temperature alarm:

If the temperature rises above 9 ° C for more than 10 minutes, an alarm appears on the

screen. The audible alarm is reset when the temperature is restored above +9 ° C or when a

button is pressed. The visual alarm alternates between HA (= high) and the current tempera-

ture of the cabinet. This alarm is switched off when the temperature is back above 9 ° C.

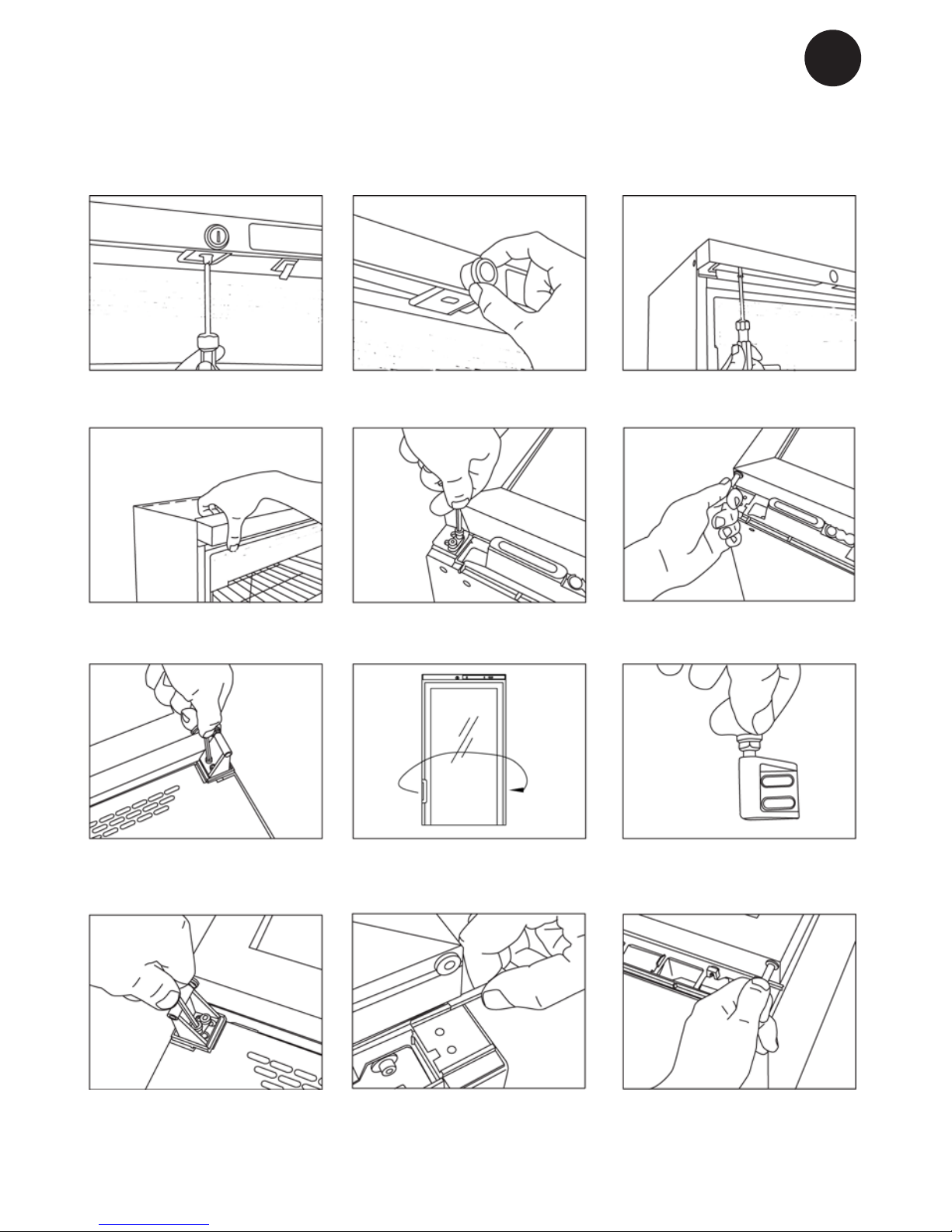

1. Remove the lock pin using a

at-headed screwdriver.

2. Remove the lock housing. 3. Loosen the top panel. Do not

remove the screws, just loosen

them.

4. Tilt the top panel forwards to

remove it (it is secured in tree

places)

5. Lay the appliance on its back

and remove the upper hinge,

using the hex key.

6. Pull the torsion spring out

of the door together with the

hinge.

7. Remove the bottom hinge

using the hex key.

8. Move the door handle to the

opposite side.

9. Move the hinge pin to the op-

posite side of the bottom hinge.

10. Ret the bottom hinge on

the opposite side.

11. Move the palstic door guard

to the opposite side. 12. Insert the hinge pin and

tosion spring into the the top of

the door on the opposite side.

Reversing the door.

(Not all appliances have lock.)

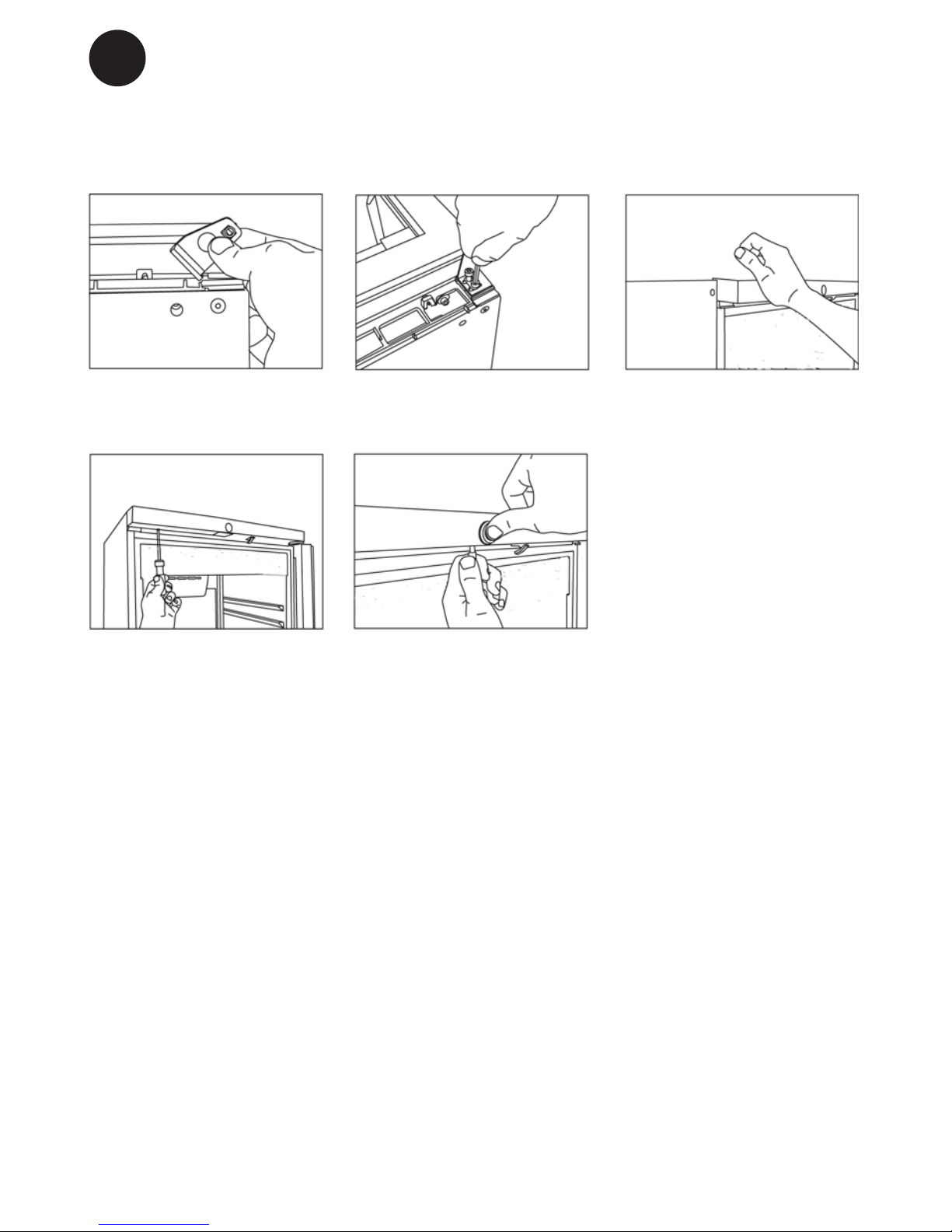

14. Secure the top hinge in

position.

15. Raise the appliance into

uppight possion. Click the top

panel into place (it is secured in

three places.)

16. Retighten the top panel

screws using a screwdriver.

17. Ret the lock housing and

lock pin.

18. After reversing the door, it is important to check that the sealing strip provides a tight seal

all the way round. If it does not, carefully heat the strip all the way round using a hair dryer.

Then ease the strip outwards slightly so that it forms a tight seal against the cabinet. Be care-

ful not to heat the strip so much that it melts!

13. Fit the left-side top hinge (avail-

able as extra). Tighten the tosion

spring approx. 1/2 turn (anticlock-

wise on left side, clockwise on rigth.)

Inhaltsverzeichnis

Andere Vestfrost Kühlschrank Handbücher

Vestfrost

Vestfrost CW 397 R Bedienungsanleitung

Vestfrost

Vestfrost CVKS 611-670-671 Bedienungsanleitung

Vestfrost

Vestfrost CI 383-0 M NF E A++ Bedienungsanleitung

Vestfrost

Vestfrost VCF 10180 NoFrost Bedienungsanleitung

Vestfrost

Vestfrost VICF 11177 S NoFrost Bedienungsanleitung

Vestfrost

Vestfrost VCF 10186-L Bedienungsanleitung

Vestfrost

Vestfrost CFKS 471 Bedienungsanleitung

Vestfrost

Vestfrost R 375 LX Bedienungsanleitung

Vestfrost

Vestfrost CX 263 WB Bedienungsanleitung

Vestfrost

Vestfrost VIC 11177 DOD Bedienungsanleitung

Vestfrost

Vestfrost VIC 10122 S Bedienungsanleitung

Vestfrost

Vestfrost VCF 10186 Bedienungsanleitung

Vestfrost

Vestfrost CNF 289 X Bedienungsanleitung

Vestfrost

Vestfrost VF 466 EW Bedienungsanleitung

Vestfrost

Vestfrost VIC 10177 S Bedienungsanleitung

Vestfrost

Vestfrost CLF374E W Bedienungsanleitung

Vestfrost

Vestfrost VF 473 EBH Bedienungsanleitung

Vestfrost

Vestfrost CX 232 W Bedienungsanleitung

Vestfrost

Vestfrost R-138 Bedienungsanleitung

Vestfrost

Vestfrost CW 286 WB Bedienungsanleitung

Vestfrost

Vestfrost R-90i Bedienungsanleitung

Vestfrost

Vestfrost VF 473 EX Bedienungsanleitung

Vestfrost

Vestfrost VC 20186 Bedienungsanleitung

Vestfrost

Vestfrost FW 862 NFB Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
