Vestfrost R-90i Bedienungsanleitung
BIOMEDICAL SOLUTIONS
models - R-90i- R-138i- R-427i
USER MANUAL - EN
BEDIENUNGSANLEITUNG - DE
NOTICE D’UTILISATION - FR
REFRIGERATORS
KÜHLSCHRÄNKE
RÉFRIGÉRATEURS
Original instructions verified by
Vestfrost Solutions 3
EN
CONTENTS
WARNING� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
PRODUCT DESCRIPTION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Before use � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Electrical connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Intended use� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Room climate classes� � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
REFRIGERATOR COMPONENTS � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Front & internal view � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Backview� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Sensor placement � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
INSTALLATION AND START-UP � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
Ventilation guards � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
Location and ventilation � � � � � � � � � � � � � � � � � � � � � � � � � 17
Levelling the appliance � � � � � � � � � � � � � � � � � � � � � � � � � 18
Battery backup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
Probe bottle � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
Porthole � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
Remote alarm function � � � � � � � � � � � � � � � � � � � � � � � � � � 22
INTERIOR FITTING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
CONTROLLER � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
Wizard � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
FAULT FINDING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
MAINTENANCE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 27
GENERAL INFORMATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 28
Warranty, spare parts and service � � � � � � � � � � � � � � � � � � � � 28
DISPOSAL� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 29
4 Vestfrostsolutions.com EN
WARNING
As the appliance contains a flammable refrigerant, it is essential
to ensure that the refrigerant pipes are not damaged.
The quantity and type of the refrigerant used in your appliance is
indicated on the rating plate.
Standard EN378 specifies that the room in which you install your
appliance must have a volume of 1m³ per 8 g of hydrocarbon
refrigerant used in the appliances. This is to avoid the formation
of flammable gas/air mixtures in the room where the appliance is
located in the event of a leak in the refrigerant circuit.
WARNING:
Keep ventilation openings in the appliance’s cabinet or in the
built-in structure clear of obstruction.
WARNING:
Do not use other mechanical devices or other means to accel-
erate the defrosting process than those recommended by the
manufacturer.
WARNING:
Do not damage the refrigerant system.
WARNING:
Do not use electrical appliances inside the refrigerated storage
compartment, unless they are of a type recommended by the
manufacturer.
WARNING:
Do not expose the appliance to rain, and secure not splashing
water when cleaning the floor.
WARNING:
the appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
Vestfrost Solutions 5
EN
experience and knowledge, unless they have been given supervi-
sion or instruction.
WARNING:
Children being supervised not to play with the appliance.
WARNING:
Do not store explosives, such as aerosol cans with flammable
propellants in the unit.
WARNING:
Danger risk of fire or explosion if flammable refrigerant are used.
To be repaired only by trained personnel.
WARNING:
When positioning the appliance, ensure the power cord is not
trapped or damaged.
WARNING:
Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
WARNING:
Sharp edges on cabinet, compressor compartment, evaporator,
ventilation cover and on internal equipment can occur. Please be
aware to avoid injury.
WARNING:
The condenser on the back of the appliance will in some cases
have a hot surface. Please be aware to avoid injury.
6 Vestfrostsolutions.com EN
WARNING:
The appliance must be connected to power minimum 12 hours
before using it for storage of medicine.
●Always keep the keys in a separate place and out of reach of children.
●Do not step on the lower panel to reach medicine in the top of the appliance.
●Before servicing or cleaning the appliance, unplug the appliance from the mains or
disconnect the electrical power supply.
●If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent, or similarly qualified persons in order to avoid a hazard.
●Relevant for Australia: Supply cord fitted with a plug complies with AS/NZS 3112.
●Frost formation on the interior evaporator wall and upper parts is a natural phenome-
non. Therefore, the appliance should be defrosted during normal cleaning or mainte-
nance.
●Please note that changes to the appliance construction will cancel all warranty and
product liability.
●This device is intended to be used exclusively for medical products.
●If medicine is spilled in the appliance or the defrost water canal is has to be cleaned
immediately to avoid the medicine to evaporate to the surroundings.
●If the instructions is lost please contact your supplier of the appliance to have a new
instruction for use.
●If service needed to this device, please be aware of only using service personnel with
education in handling medical devices.
Flammable Material Storage Freezer
Sparkfree interior to reduce the risk of internal explosion.
Interior temperature range: +1°C to 15°C
The interior comprise this safety marking:
II 3G nA IIB T6
NOTE:
●Combustible materials may be stored inside cabinet. but the cabinet is not approved for
potential explosive areas.
●Combustible materials shall be stored in approved containers.
●Danger of sparks due to electrostatic discharge. Do not use a dry cloth to clean plastic
parts. Clean plastic parts with a damp cloth only!
Vestfrost Solutions 7
EN
Before use
This user manual is intended for the following product models:
We recommend that you read this user manual before using the unit for the first time. Vestfrost
Solutions does not guarantee safe operation if the unit is used for anything other than its intended
use. Contents of the user manual can be subject to change without notice.
This manual should be considered an integral part of the unit and should be stored close to the
unit and be easy to access.
For current versions of the manual, please visit https://www.vestfrostsolutions.com/biomedical/.
Before operating your new appliance, please read the following instructions carefully:
1. Check to ensure the appliance has not been damaged during transport. Transport damage
should be reported to the transporter at delivery.
2. The foil on the shelves must be removed before cleaning and using the unit.
3. Clean the inside of the cabinet using warm water with a mild detergent. Use a soft cloth and
rinse with clean water and dry thoroughly.
4. Allow the freezer to stay at an upright position for at least one hour before switched on.
5. Allow the freezer to operate at the desired temperature for a minimum of 12 hours before
loading.
A-weighted emission sound pressure level is below 70 dB(A)
PRODUCT DESCRIPTION
Tabletop Undercounter Upright
R-90i R-138i R-427i
8 Vestfrostsolutions.com EN
Electrical connection
Wiring and connections in power supply systems must been all applicable (local and national)
electrical codes. Consult these codes lengths and sizes prior to cabinet installation.
This device complies with relevant EU directives including Low Voltage Directive 2014/35/EU and
Electromagnetic Compatibility Directive 2014/30/EU
The socket should be freely accessible.
Connect the appliance only to 220/240V / 50Hz alternating current via a correctly installed earthed
socket.
The socket must be fused with a 10A or 13A fuse.
If the appliance is to be operated in a non-European country, check on the rating plate whether
the indicated voltage and current type correspond to the values of your mains supply.
Data regarding voltage and obsorbed power / current are given on the rating plate.
The power cord may be replaced by a technician only.
The rating plate provides various technical information as well as type and serial number.
Product number
Vestfrost Solutions 9
EN
Intended use
Vestfrost biomedical refrigerators are precision temperature controlled storage units offering high
reliability and performance. The units provide effective cold temperature storage for sensitive and
valuable items.The products are designed for the following operating ranges:
WARNING: This unit is not a “Rapid-Cooler” device. Cooling large quantities of liquid, or
high-water content items, will temporarily increase the chamber temperature and will cause the
compressors to operate for a prolonged time period. Avoid opening the door for extended time
periods since chamber temperature air will escape rapidly.
Models R-90i
R-138i
R-427i
Temperature range +2°C to +8°C
Fabric Set Point +5°C
Ambient Temperature up to +30ºC
Relative humidity MAX 75 %
Room climate classes
The climate class is stated on the nameplate. This specifies the optimum room temperature.
Room climate class Max room temperature
°C
Relative humidity
%
3 25 60
4 30 55
5 40 40
7 35 75
10 Vestfrostsolutions.com EN
REFRIGERATOR COMPONENTS
Front & internal view

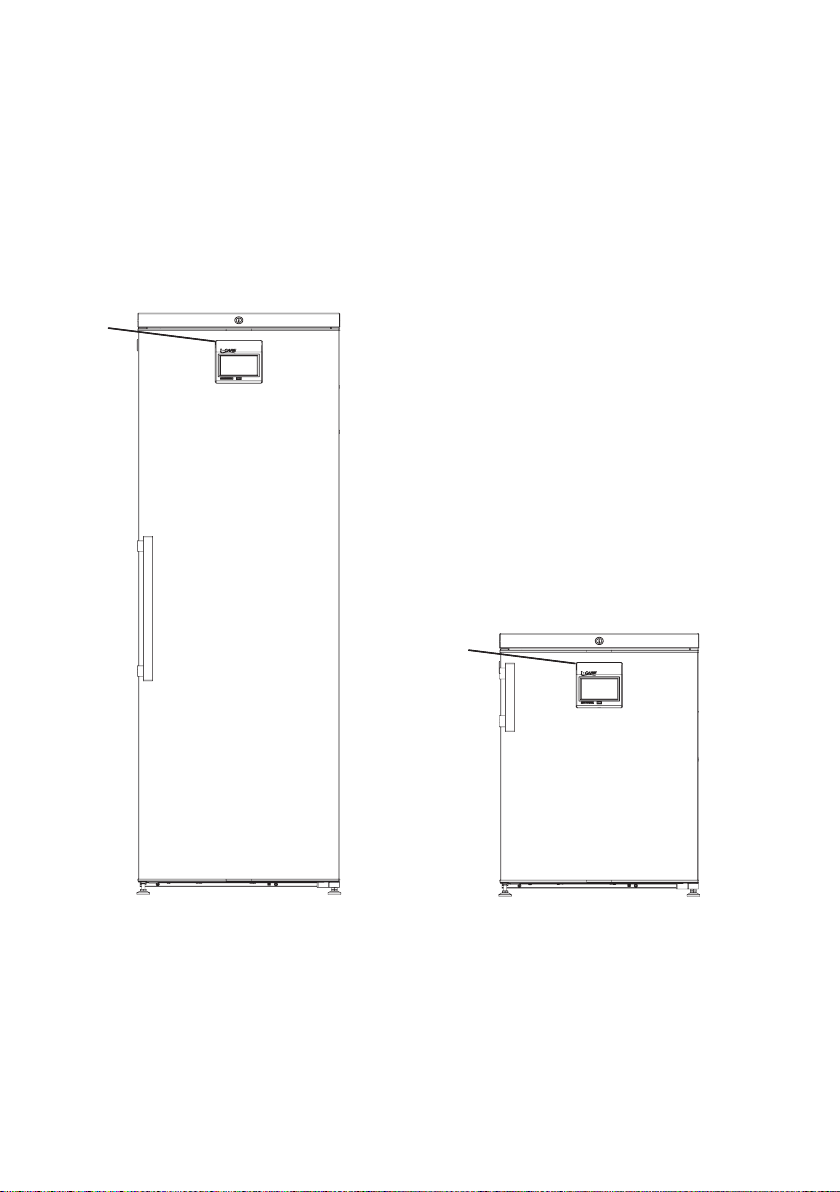

1. Display – With integrated keyboard
2. Lock
3. Light – Only when door is opened
4. Door switch
5. Fan
6. Drawer/Shelf
7. Door handle
8. Adjustable feet
9. Probe bottle (Only available with DIN
58345 kit)
10. Porthole
1
R-427i R-90i / R-138i
1
1
1
