Vicon Extra 532 Bedienungsanleitung

Technical Service Manual

Trailed plain mower

Extra 532-540

Date 08-08-2018

Subject Vicon Extra 532 and 540

Place Kverneland Group Kerteminde AS

Taarupstrandvej 25

DK-5300 Kerteminde

Denmark

Realized for Who it might concern

Details General and operating information

Additional Information

Table of contents

1.0 General information

1.1 Machine specification 4

1.2 Machine dimensions 5

1.3 Safety symbols 6

1.4 Changing RPM 13

2.0 Attachment

2.1 Stetting of 540 o 1000 pm fo PTO 14

2.2 Attaching the machine to the t acto 15

2.3 Bleeding PTO 18

2.4 Fi st sta t up of machine 19

2.5 Adjusting g ound p essu e 20

2.6 Setting stubble height 21

3.0 Maintenance

3.1 Basic inst uctions 24

3.2 To ques 25

3.3 Maintenance inte vals 26

4.0 Components

4.1 PTO's - clutch 27

4.2.1 Lifting cylinde s 33

4.2.2 Replacement cylinde (s) 36

4.3 Stee ing cylinde 38

4.4 P ess elieve valve 39

4.5 Hyd aulic diag ams with functions 40

4.6 Swivel gea box incl. epai inst uctions 43

4.7 Bevel gea box incl. epai inst uctions 51

4.8 Cutte ba details 58

4.8.1 Cutte ba epai inst uctions 65

4.8.2 Cutte ba maintenance 75

4.8.3 Cutte ba ; changing oil 78

4.9 Bevel gea box; changing oil 79

4.9 Swivel gea box; changing oil 80

4.1 Lub ication 81

4.1 Wheel info incl. to que and hub info 83

5.0 Options 84

6.0 Troubleshootin 88

Kubota

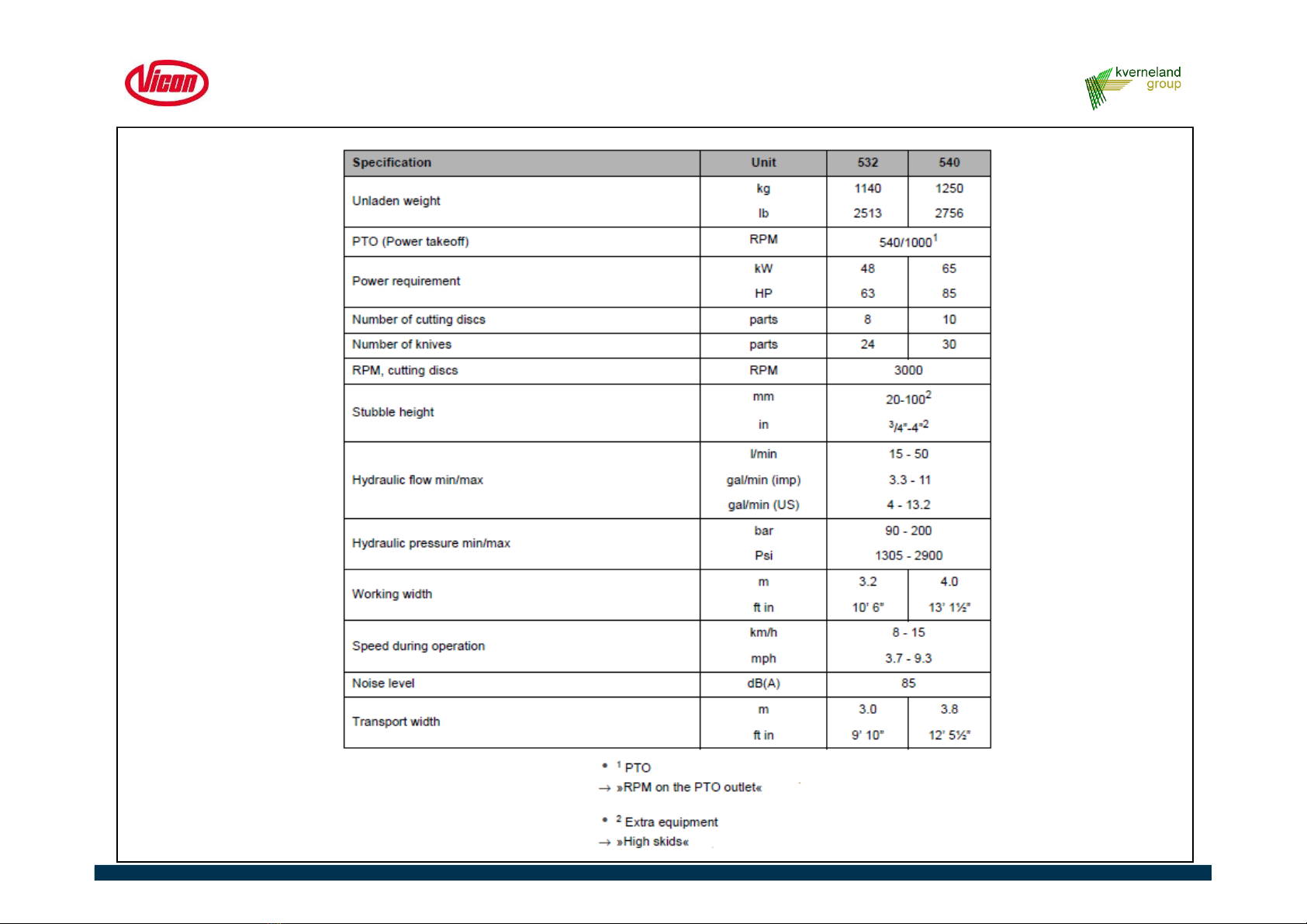

1.1 Machine specifications

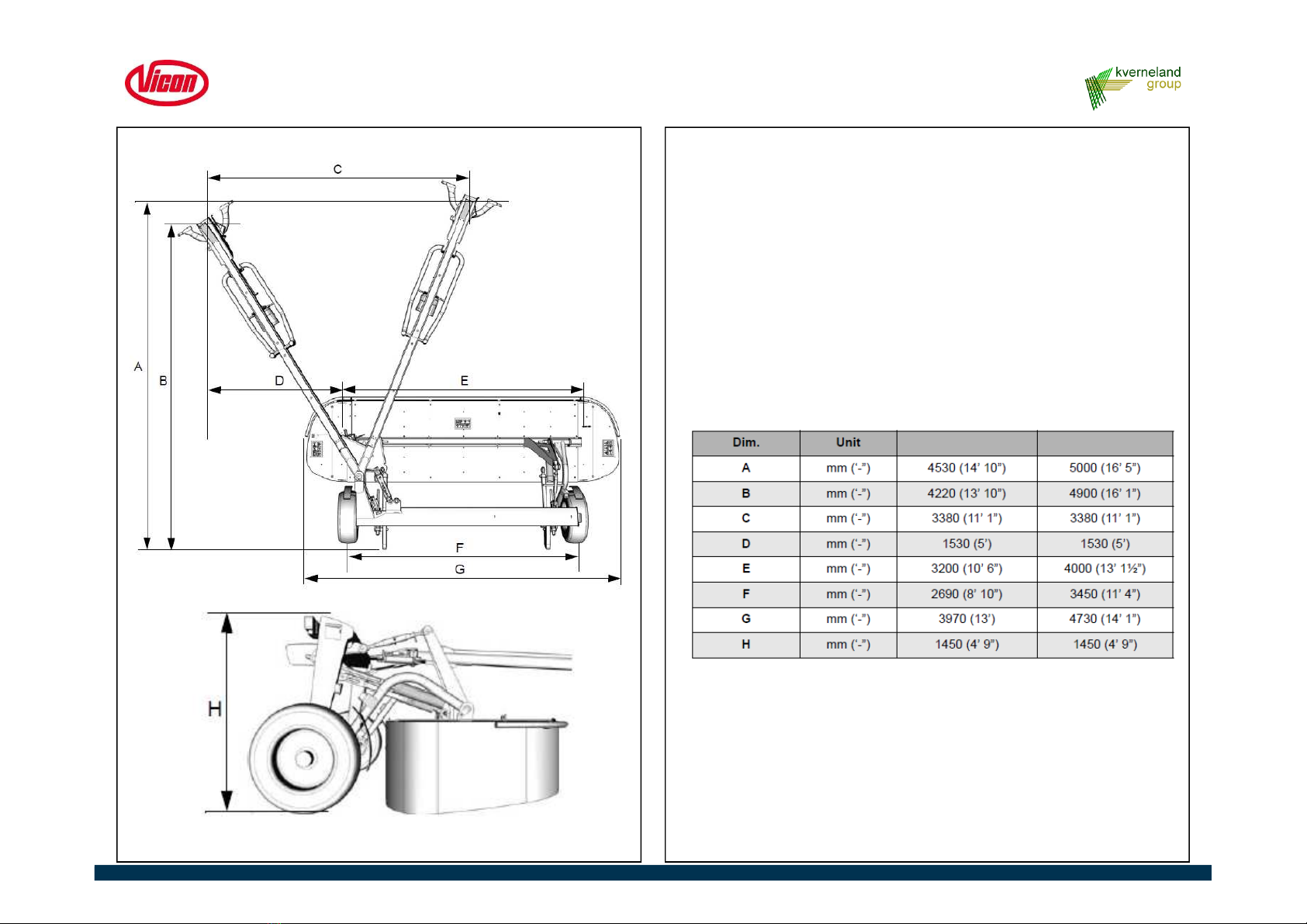

Machine dimensions Machine dimensions

Extra 532 Extra540

1.1 Machine specifications

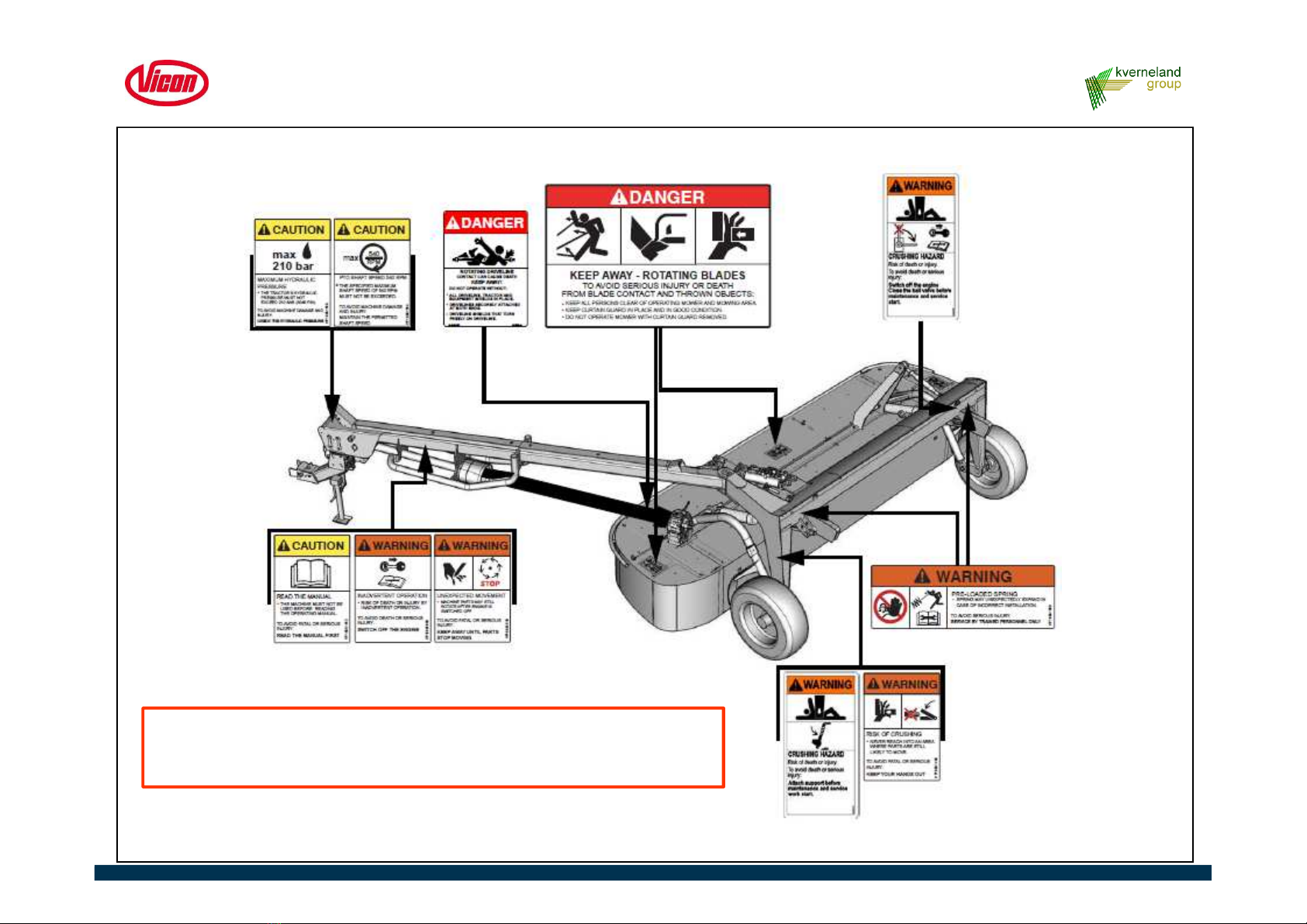

Safety symbols for the US and Canada

On the machine you will find labels relatin to your safety. These

labels must not be removed. If the labels become ille ible or detached,

new labels can be ordered and affixed to the relevant areas.

1.3 Safety labels US and Canada

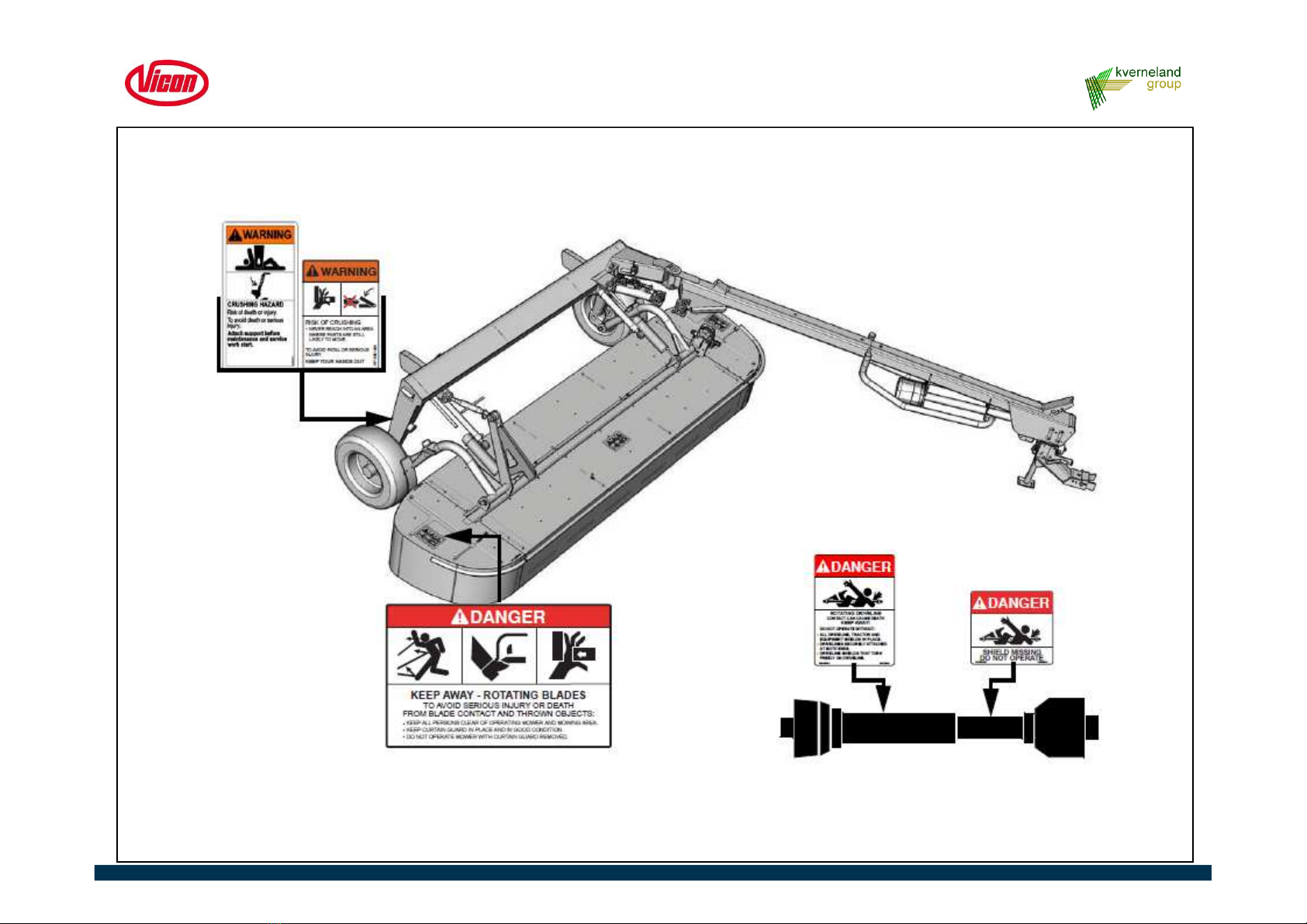

Safety symbols for the US and Canada

1.3 Safety labels US and Canada

Safety symbols for the US and Canada

1.3 Safety labels US and Canada

Lighting and reflective devices - USA

The machine is equipped with lighting and reflective devices as

a standard, which serve to ensure safety on the roads. Lighting

and reflective equipment shall be in good and sound condition

at all times. Lights and labels must not be removed from the

machine. Illegible or missing labels must be replaced. You can

get new labels as spare parts from your dealer.

Reflective equipment for slow-moving vehicles – SMV

This triangular sign must be placed in the

center at the rear of the tractor or machine, so

that it is clearly visible at all times when the

machine is in the transport position. This sign

is for machines that are being transported at

speeds of less than 40 km/h (25 mph) on

public roads.

This machine must be transported on public roads at speeds

of less than 40 km/h (25 mph) only.

1.3 Safety labels US and Canada

Safety symbols

On the machine you will find labels relatin to your safety. These

labels must not be removed. If the labels become ille ible or detached,

new labels can be ordered and affixed to the relevant areas.

1.3 Safety labels
