Vicon V661D-312IR Betriebsanleitung

www.vicon-security.com

Installation and Operation Guide

XX229-20-01

V661D-312IR Indoor/Outdoor

Analog Camera Dome

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8229-20-01

Product specications subject to change without notice.

Issued: 1011

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE

VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOL

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of un-insulated "dangerous voltage" within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the

literature accompanying the product.

PRECAUTIONS

Installation

Do not install the unit in an extremely hot or humid

place or in a place subject to excessive dust,

mechanical vibration.

Cleaning

Clean the unit with a slightly damp soft cloth.

Use a mild household detergent. Never use strong

solvents such as thinner or Benzene as they might

damage the finish of the unit.

Retain the original carton and packing materials for

safe transport of this unit in the future.

Safety

Should any liquid or solid object fall into the cabinet, unplug

the unit and have it checked by

qualified personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to be used

for several days or more.

To disconnect the cord, pull it out by the plug. Never pull the

cord itself.

llow adequate air circulation to prevent internal heat build-up.

Do not place the unit on soft surfaces (rugs, carpets, sofas,

etc.) or near materials (curtains, draperies) that may block the

ventilation holes.

Height and vertical linearity controls located on the rear panel

are for special adjustments by qualified personnel only.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third prong

are provided for your safety. If the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been moisture, does not operate normally,

or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED

SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE

OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 po

wer source only.

INTRODUCTION

The camera provides high-quality images using Sony CCD technology especially

designed for closed-circuit television (CCTV) and security surveillance applications.

Features:

High resolution and high performance 1/3" Sony® Super HAD™ II Technology

Excellent picture quality

600 lines(Color) of resolution

30EA, 850nm IR LED

0.14 Lux(Color), 0.03 Lux(B/W) @ F1.2, 30IRE Sensitivity

Auto electronic shutter [1/60(1/50) ~ 1/100,000] and manual electronic shutter modes

OSD (On Screen Display)

Auto and manual white balance modes

BLC (Back Light Compensation)

Day & Night (Auto / DAY / NIGHT / EXT)

Privacy Zone 6 Point, Polygonal Mosaic

AGC (Auto Gain Control)

Sense-up (x2 ~ x256)

MIRROR (NORMAL / MIRROR / VERTICAL / ROTATE)

VIDEO OUT ( BNC,UTP(option) )

Motion Detection(240 cells can be selected or deselected)

SLC (Side Light Compensation)

HDR (WDR)

DIS (Digital Image Stabilization)

DPC (Dead Pixel Cancellation)

RS485 Control (pelco D)

Operates in AC24V ± 10% / DC12V ± 10%

Use Certified / Listed Class 2 power source only

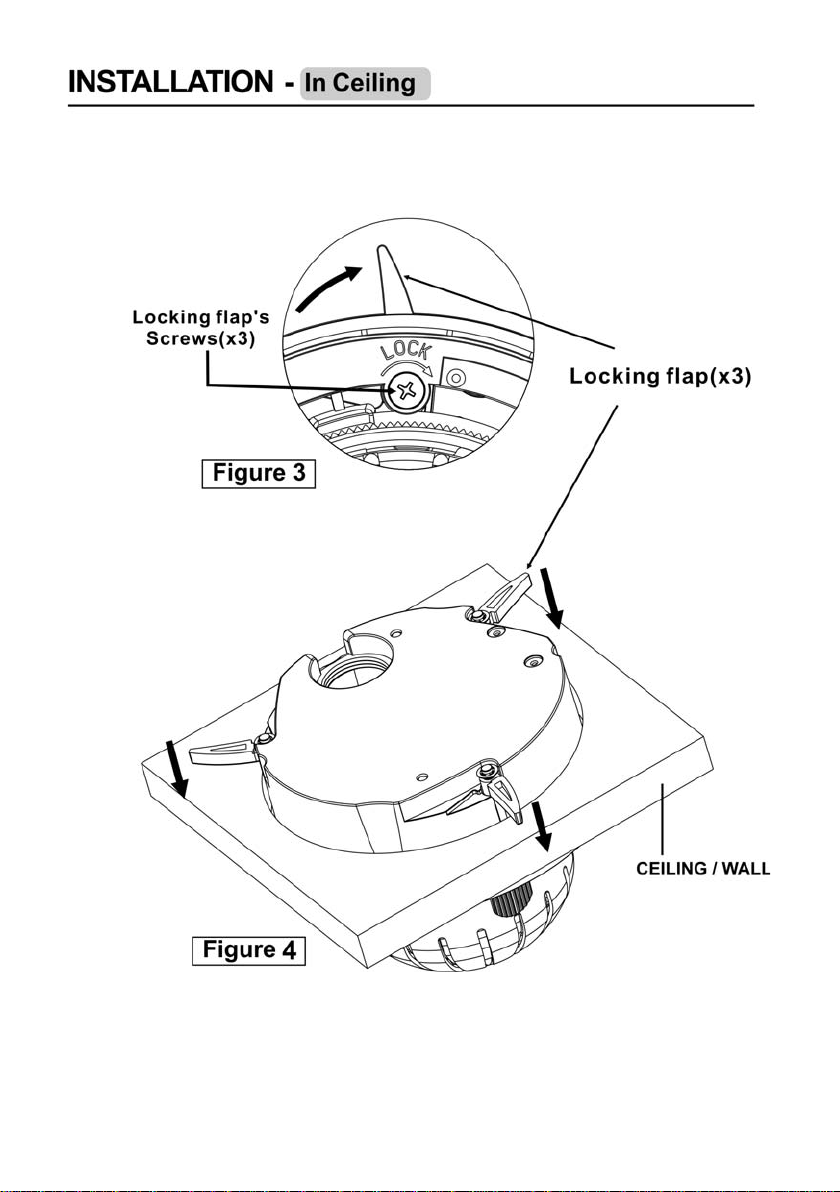

Camera Mount : camera mount directly to the wall or ceiling

Test Monitor Output

IMPORTANT: The user of this camera is responsible for

checking and complying with local, state, and federal laws

and statutes concerning the recording and monitoring of

audio si

nals.

GREEN : RS 485+

BLUE : RS485 -
