Viotek SUW49DA2 Bedienungsanleitung

SUW49DA2

CURVED GAMING MONITOR

USER MANUAL

In order to continue serving our customers and providing the best products, our product information

including our user manuals may receive updates from time to time. Please check our website for the latest

user manuals and product materials.

Table of Contents

Section 1: Safety Precautions................................................................4

Section 2: Box Contents.........................................................................5

Section 3: Product Overview .................................................................6

3.1 – Monitor Buttons .........................................................................6

3.2 – Monitor Ports.............................................................................6

Section 4: Remote Control .....................................................................7

Section 5: Stand Installation..................................................................8

Section 6: Wall Mounting........................................................................9

Section 7: Basic Operation ....................................................................10

Section 8: Indicator Light .......................................................................10

Section 9: OSD ........................................................................................11

9.1 – OSD Menu Functions ................................................................12

Section 10: Display Mode and Gameplus Switching...........................14

Section 11: Troubleshooting ..................................................................14

11.1 – General Problems ....................................................................14

11.2 – PBP (Picture by Picture) Resolution Information.....................15

Section 12: Information ..........................................................................16

12.1 – Specications ..........................................................................16

12.2 – Resolution Compatibility for HDMI/DP....................................16

Section 13: Cleaning ...............................................................................17

Section 14: Three-Year Limited Hardware Warranty ...........................17

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use dry cloth or

lightly damp cloth to clean your monitor. Dry cloth is, however, the safest. If using damp

cloth, wait for your monitor to completely dry before plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking these

openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources, e.g., portable, heaters or heating vents,

as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen or any

part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it from

falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any disassembly or

modication etc. not performed by an authorized technician can result in damage to the

monitor and/or possible exposure to high voltage electricity which may lead to serious

injury or death.

VIOTEK shall not be held responsible for injury or damage of products or persons due to

failure to adhere to the aforementioned precautions or any others noted hereafter.

The terms HDMI and HDMI High-Denition Multimedia Interface, and

the HDMI Logo are trademarks or registered trademarks of HDMI

Licensing Administrator, Inc. in the United States and other countries.

Section 2: Box Contents

Monitor x 1

Stand Stem x 1

(with Attached Bracket) Stand Base x 1

Remote Control x 1

Power Cable x 1

NO. 1 Screws x 4

DP Cables x 2 Screwdriver x 1 User Manual x 1

NO. 2 Screws x 4

(for Mounting)

17mm

35mm

15 mm

• The NO. 1 Extra screws may be included as backup.

• The NO. 2 Screws come in two sizes: 35mm x 2 and 17mm x 2.

Section 3: Product Overview

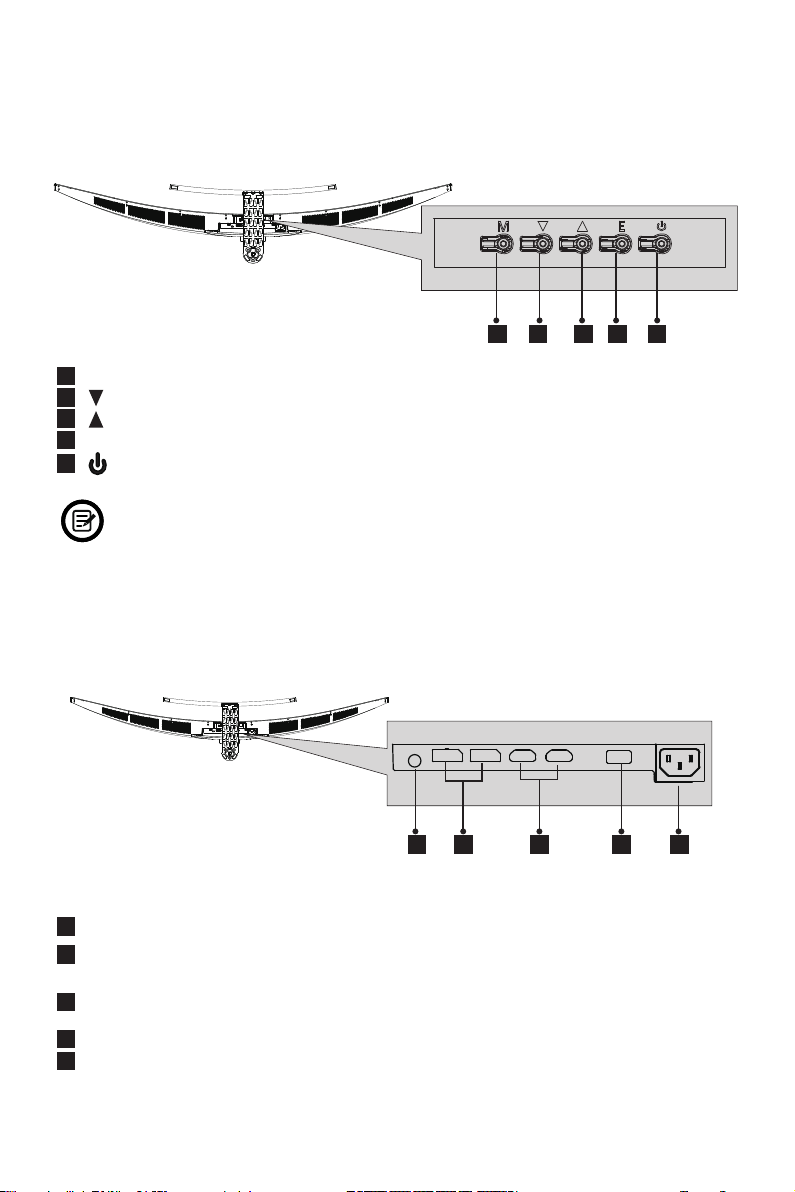

3.1 – Monitor Buttons

6 Audio Output:Insert the audio cable for output of audio signals.

7 DP Connectors:Insert one end of the DP cable into the computer’s DP output and con-

nect the other end to the monitor’s DP port.

8 HDMI Connectors: Insert one end of the HDMI cable into the computer’s HDMI output

and connect the other end to the monitor’s HDMI port.

9 USB 2.0 Connector: For charging or rmware updates only.

10 Power Connector: Insert the power cable to supply power to the monitor.

1 M Menu Button: Press to display the OSD menu or enter sub-menus.

2 Down Button: Press to move down in the menus.

3 Up Button: Press to move up in the menus.

4 E Exit Button:Press to exit.

5 Power Button: Press to turn the monitor on/off.

The E button can also be used to switch between “HDMI 4K” and “HDMI 5K”

when connecting via HDMI; however, this function is not available when using the

DisplayPort to connect.

3.2 – Monitor Ports

2 3 4 51

6 7 8 9 10

Section 4: Remote Control

: Press to turn the monitor on or off.

: Press to switch between HDMI or DP input.

: Press to enter the OSD menu or press to conrm.

: After entering the OSD settings menu, press any of the

arrow buttons to move within the menu.

After entering the navigation menu, press to enter the

LED effects console.

Press directly to switch ECO modes.

: Press to turn HDR on or off.

: Press to exit the OSD menu or return to the previous menu.

: Press to turn Gameplus mode on or off.

: Press to increase volume.

: Press to decrease volume.

• Avoid pressing two remote buttons simultaneously as this may

cause malfunctions.

• Avoid using the remote in areas with extreme temperature

uctuations.

• If the remote will not be used for extended periods of time, remove the battery.

• The remote control’s range is approximately 16.4-23 feet. Use it within this range.

• Use 3V lithium battery (CR2032 or equivalent).

• Remember: small batteries are easily swallowed by young children. Keep batteries away

from children. Call 911 if you believe a battery was ingested.

Section 5: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package and take out the monitor with foam still attached. Gently place it top-

down on a desktop or table. And remove the upper foam.

2. Take out the two main parts of the stand. Then use the included screwdriver and the NO.1

screws to fasten base to the stem.

3. Align the stand stem’s bracket with the opening on the back of the monitor and carefully

insert bracket. The pieces should click into place.

4. Before removing the stand, remove the port cover from the back of monitor. Switch the

button down to remove the monitor from the bracket.

Button

To avoid damage, do not touch the screen when moving the monitor.

Section 6: Wall Mounting

This monitor ONLY includes screws which may be used when attaching the monitor

to a mount. No mount or mounting accessory is included.

1. Open the package, take out the product with foam still attached, and gently place it on a

desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor

was already attached to the stand, remove the stand.

2. Remove the original screws x 4 ( 1) from the opening in the back of the monitor. Follow

the directions received with your mount, stand, or accessory and install the monitor on the

wall or xture as desired. Remember to use the included NO. 2 screws when attaching

anything to the back of the monitor. Refer to the image ( 2) for correct screw placement.

Original Screws x 4

Use the 35mm

NO.2 Screws x 2

Use the 17mm

NO. 2 Screws x 2

- Use only the NO. 2 Screws (35 mm x 2 pcs, 17mm x 2 pcs) provided with this

type of installation.

- Do not discard the original screws as these may be needed for future use.

3. Follow the directions received with your mount, stand, or accessory and install the monitor

on the wall or xture as desired.

Mount

(Not included)

Section 7: Basic Operation

1. Insert one end of the DP cable into your PC’s graphics card. An HDMI cable may also be

used. HDMI cable not included.

2. Connect the other end of the cable to the corresponding connector on your monitor.

Audio Output

DP Connectors USB Port

HDMI Connectors Power Connector

3. Connect the power cable to your monitor then connect the other end to your power

source. It is recommended that you use a surge protector with adequate voltage if a wall

outlet cannot be reached directly.

4. Locate the power button on the monitor and press it to turn the monitor on.

VIOTEK Adaptive Sync

Adaptive sync eliminates image tearing, stuttering and ghosting by adjusting of a monitor’s

vertical refresh rate to the frame rate of the graphics card. It is compatible with GPUs that

use AMD® FreeSync™ or NVIDIA® G-Sync™. The feature is off on VIOTEK monitors by

default and must be manually enabled in the monitor’s OSD (see Section 9: OSD). To use

this feature, the connecting device must be compatible with adaptive sync (FreeSync and/or

G-Sync); have the latest graphic drivers; and be connected to the monitor using a DisplayPort

(DP) cable.

If you use HDMI to connect, you must use the HDMI 2.0 port to be able to use FreeSync.

Section 8: Indicator Light

Indicator light

Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light

indicates no video source, no horizontal or vertical signal has been detected or power is low.

Please ensure your computer is on and all video cables are fully inserted and/or connected.
