LinQ (P16C)

PORTABLE MONITOR

Table of Contents

Section 1: Safety Precautions................................................................4

Section 2: Box Contents.........................................................................5

Section 3: Product Overview .................................................................6

Section 4: Connectivity Options ...........................................................7

4.1 – Connecting to Headphones.......................................................7

4.2 – Connecting to a Computer Using Type-C.................................7

4.3 – Mobile Phone with TV-Out Function.........................................8

4.4 – Connecting to the Nintendo Switch...........................................8

4.5 – Connecting to a Computer Using Mini-HDMI............................9

4.6 – Connecting Other HDMI Devices..............................................9

Section 5: Basic Operations ..................................................................10

Section 6: OSD ........................................................................................11

6.1 – OSD Menu Functions................................................................12

6.2 – Brightness and Volume Quick-Access Menu............................13

Section 7: Troubleshooting....................................................................13

Section 8: Maintenance..........................................................................14

8.1 – Cleaning ....................................................................................14

8.2 – Repackaging.............................................................................14

8.3 – Proper Disposal.........................................................................14

Section 9: Speciﬁcations .......................................................................15

Section 10: One-Year Limited Hardware Warranty..............................16

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking

these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any sources, e.g., portable heaters or heating

vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into ventilation openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug the monitor during extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication not performed by an authorized technician will void

the warranty and can result in damage to the monitor and/or possible exposure

to high-voltage electricity, which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

Section 2: Box Contents

Monitor x 1 Type-C to USB-A

Cable x 1

Mini HDMI to HDMI

Cable x 1

Type-C to Type-C

Cable x 1

Cleaning Cloth x 1 User Manual x 1

Section 3: Product Overview

1 Power/Return Button: Press and hold ~3 seconds to turn on/off the monitor.

When in a menu screen, press once to conrm and exit to the previous menu.

2 Turning Button:

1. OSD Menu: Press to enter OSD menu.

2. UP/DOWN turning switch: Push up/down to move up/down in the menus. When

in a menu, press Turning Button to select menu item.

3. Brightness/Volume Adjustment: When not on a menu, push the Turning Button

UP once for the Brightness quick-access. Or push the Turning Button DOWN

once for the Volume quick-access.

3 3.5mm Audio Out Port: To connect to 3.5mm-compatible external audio

device.

4 MINI HDMI Port:Receives audio/video signals.

5 USB Type-C Data/Power: Supports reversible insertion; supports reverse

charging; compatible with USB PD2.0 power supply; supports 5V / 9V / 12V /

15V / 20V input. Receives audio/video signals.

6 USB Type-C Power Supply: Supports reversible insertion; supports reverse

charging; compatible with USB PD2.0 power supply; supports 5V / 9V / 12V /

15V / 20V input.

Section 4: Connectivity Options

4.1 – Connecting to Headphones

Plug in your headphones, or any 3.5mm-compatible external audio device, to

receive audio signals from your monitor. If your headphones are connected to the

monitor while audio devices are connected to your computer, the audio devices will

not produce sound. Headphones and other audio devices not included.

LinQ (P16C)

Monitor

Listening to loud audio for prolonged periods of time may permanently

damage your hearing.

4.2 – Connecting to a Computer Using Type-C

Use a standard Type-C cable (included) to connect the LinQ (P16C) monitor directly

to a computer with a full-featured USB Type-C port that supports DP alt-mode. The

monitor can be used as an extended display.

A single Type-C cable, like the one included, can be used to transfer audio/video

signals and supply power from the computer.

LinQ (P16C)

Monitor Computer

The power output of every PC/laptop manufacturer is different and may be too low to

consistently power the LinQ (P16C). For optimal performance, use an external power

supply.

4.3 – Mobile Phone with TV-Out Function

Use the standard Type-C cable (included) to connect the monitor to a Type-C

compatible mobile phone.

Power Supply

LinQ (P16C)

Monitor Phone

When not connected to an external power source, the mobile phone supplies

power to the LinQ (P16C). In this case, energy-saving mode will be activated. The

volume and display brightness will be automatically adjusted according to the mobile

phone’s power output.

The power output of every mobile phone manufacturer is different and may

be too low to consistently power the LinQ (P16C). For optimal performance,

use an external power supply.

When connected to an external power source, the LinQ (P16C) may reverse-charge

the mobile phone. This helps ensure both devices have enough working current. For

consistency, use 5V/3A or higher power supply.

(Mobile phone charging speeds are determined by the phone manufacturer.)

4.4 – Connecting to the Nintendo Switch

• With an external power supply, the monitor supports one line connection

(standard Type-C) with Switch Host and turn on the Switch TV mode.

• If connecting the LinQ to a 5V power source, the external power only supplies

power to the monitor. The Nintendo Switch will operate using its built-in battery

and deliver 720P signals to the monitor.

• If connecting the LinQ to a 15V power source, the external power may supply

power to both the monitor and the Switch. The Switch will then indicate that it’s

charging and will deliver 1080P signals to the monitor.

The USB ports of some game consoles may supply enough power for the

LinQ, though with limited functionality. For full functionality, always power the

LinQ with an external power source when connecting it to a gaming console.

Power Supply

LinQ (P16C)

Monitor

Nintendo Switch

4.5 – Connecting to a Computer Using Mini-HDMI

• The mini-HDMI port on the monitor is compatible with most HDMI devices. When

connecting to a computer through HDMI, the monitor must be powered with a

5V/3A or higher external power source.

Video/Audio signal

Power Supply Computer

LinQ (P16C)

Monitor

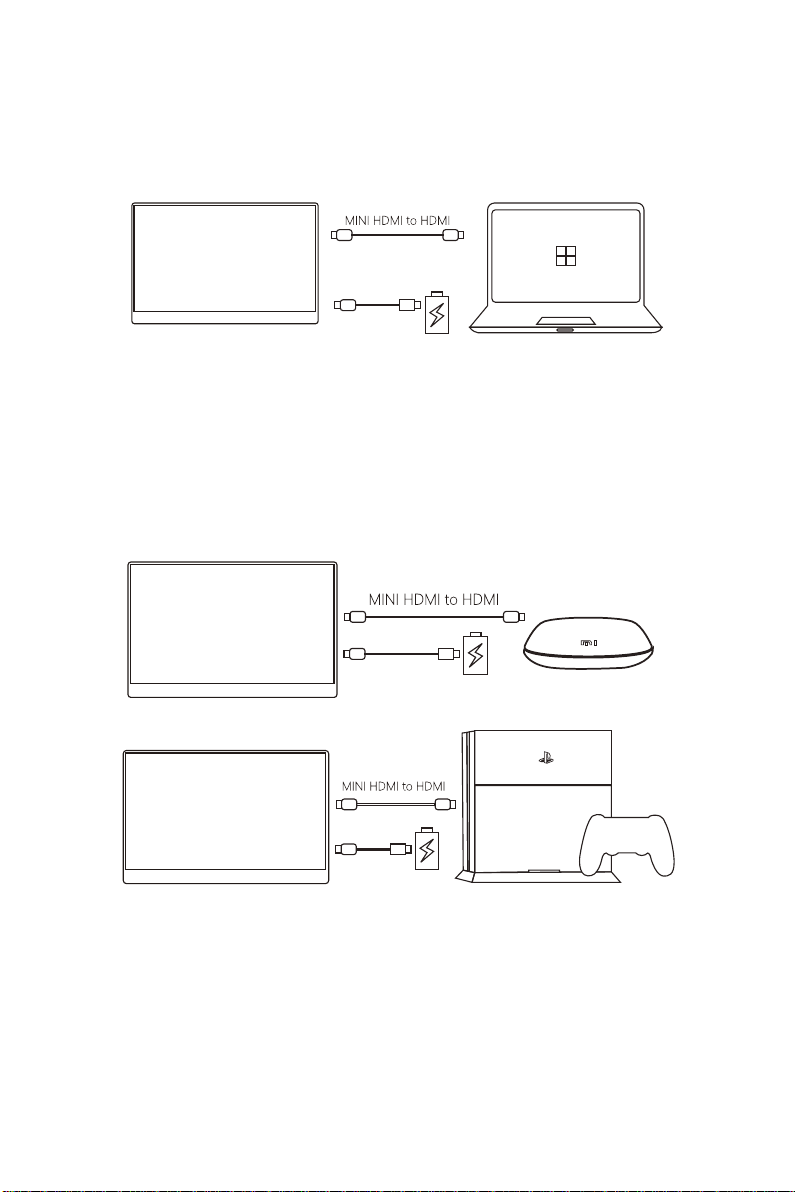

4.6 – Connecting Other HDMI Devices

• In general, always connect the Type-C port for power rst.

• If connecting using the mini-HDMI, connect the Type-C power port rst to supply

power before connecting the HDMI cable.

Video/Audio signal

Power Supply

LinQ (P16C)

Monitor

Video/Audio signal

Power Supply

LinQ (P16C)

Monitor

• If not connected to an external power source, the LinQ (P16C) may enter energy-

save mode. Display brightness may automatically adjust to 30% to ensure the

optimal performance. You can adjust the brightness as desired. If the screen

ashes or goes black after adjusting the brightness, please connect the LinQ to a

power source.

• Windows 10 Users: If experiencing display issues, please turn off HDR on the

computer or from the monitor’s OSD menu.

Section 5: Basic Operations

1. Connect the Type-C power cable to your monitor, then connect the other end to

your power source.

It is recommended to connect the Type-C port to power the device rst.

2. Insert one end of the Type-C cable into your computer or mobile phone with

Type-C jack. An HDMI cable may also be used. A mini-HDMI cable is included.

3. Connect the other end of the cable to the corresponding connector on your

monitor.

Mini-HDMI Port

Type-C Data/Power Port

Type-C Power Port

4. Long-press the power button for ~3 seconds to turn the monitor on.

Power Button

FreeSync

The feature itself is off by default. In order to use this feature, you must have

hardware with FreeSync capability, a Type-C or HDMI cable, and the latest graphic

drivers. To use this feature, connect your compatible device to the LinQ (P16C) with

a Type-C or HDMI cable. After connecting, you may receive a prompt to enable the

feature on your computer. If you do not receive the prompt, you may need to enable

the function in your graphics card menu. See your graphics card manufacturer’s

documentation for instructions on how to turn on and/or enable FreeSync.
