Viotek NBV24CB2 Bedienungsanleitung

In order to continue serving our customers and providing the best products, our product

information including our user manuals may receive updates from time to time. Please

check our website for the latest user manuals and product materials.

NBV24CB2

GAMING MONITOR

USER MANUAL

Table of Contents

Section 1: Safety Precautions..................................................... 4

Section 2: Box Contents.............................................................. 5

Section 3: Product Overview....................................................... 6

3.1 – Monitor Buttons ............................................................... 6

3.2 – Monitor Ports................................................................... 6

Section 4: Stand Installation ....................................................... 7

Section 5: Basic Operation.......................................................... 8

Section 6: Indicator Light ............................................................ 8

Section 7: OSD.............................................................................. 9

7.1 – OSD Menu Functions....................................................... 10

Section 8: ECO Modes and Gameplus ....................................... 11

Section 9: Troubleshooting ......................................................... 11

Section 10: Speciﬁcations........................................................... 13

Section 11: Three-Year Limited Hardware Warranty ................. 13

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking

these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources, e.g., portable heaters or

heating vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation

openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication etc. not performed by an authorized technician

can result in damage to the monitor and/or possible exposure to high voltage

electricity which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

The terms HDMI and HDMI High-Denition Multimedia Interface, and

the HDMI Logo are trademarks or registered trademarks of HDMI

Licensing Administrator, Inc. in the United States and other countries.

Section 2: Box Contents

Monitor x 1

Stand Stem x 1

Stand Base x 1

Power Adapter x 1

NO.1 Screws x 4

(for Stand Installation) HDMI Cable x 1

User Manual x 1

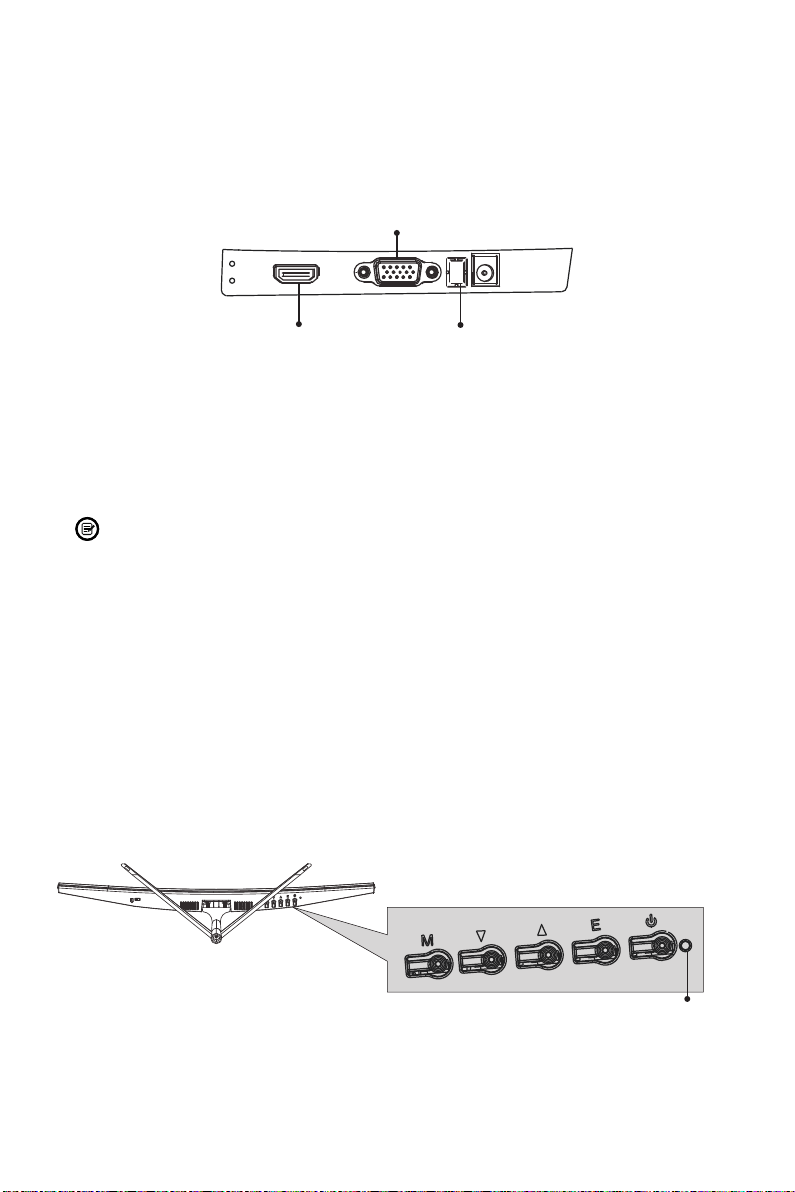

Section 3: Product Overview

3.1 – Monitor Buttons

7 HDMI Connector: Insert one end of the HDMI cable into the computer’s

HDMI output and connect the other end to the monitor’s HDMI port.

8 VGA Connector: Insert one end of the VGA cable into the computer’s VGA

output and connect the other end to the monitor’s VGA port.

9 Audio Output: Insert one end of the audio cable into an external audio

source, e.g., speakers or headphones, to pass audio signals through the

monitor.

10 DC 12V Power Connector: Insert the power cable to supply power to the

monitor.7 8 9 10

2 3 4 5 61

1 M Menu Button: Press to display the OSD menu or enter sub-menus.

2 Down Button: Press to move down in the menus.

3 Up Button: Press to move up in the menus.

4 E Exit Button:Press to exit.

5 Power Button: Press to turn the monitor on/off.

6 LED Indicator: Changes colors to indicate status. Refer to Section 7.

3.2 – Monitor Ports

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package and take out the monitor with foam still attached. Gently place

it top-down on a desktop or table.

2. Take out the stem and base. Use a screwdriver (not included) and the included

one screw to fasten base to the stem.

Screw x 1

Stand Stem

Base

3. With the stand fully assembled, attach it onto the back of monitor.

4. Remove the remaining foam on monitor and stand it up on a at, level desktop or

table. Press the button to remove the monitor from the bracket if mounting.

Button

Make sure the monitor is laid on a at surface before removing the stand.

Section 5: Basic Operation

1. Insert one end of the HDMI cable (included) into your PC’s graphics card. A VGA

cable (not included) may also be used.

2. Connect the other end of the cable to the corresponding port on your monitor.

HDMI Port Audio Out

VGA Port

3. Connect the power cable to your monitor, then connect the other end to your

power source. It is recommended that you use a surge protector with adequate

voltage if a wall outlet cannot be reached directly.

4. Locate the power button on the monitor and press it to turn the monitor on.

If you cannot locate the power button, please refer to Section 3.1.

AMD FreeSync

The feature itself is off by default. In order to use this feature, please note you must

have hardware with FreeSync capability, an HDMI cable, and the latest graphic

drivers. To use this feature, connect your computer and monitor with an HDMI

cable. After connecting, you may receive a prompt to enable the feature on your

computer. If you do not receive the prompt, you may need to enable the function in

your graphics card menu. See your graphics card manufacturer’s documentation for

instructions on how to turn on and/or enable FreeSync.

Section 6: Indicator Light

Indicator Light

Solid blue light indicates power is on and the monitor is operating normally. Red

light indicates no video source, no horizontal or vertical signal has been detected

or voltage is low. Please ensure your computer is on and all video cables are fully

inserted and/or connected.

Section 7: OSD

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings

and appears on screen after turning on the monitor and pressing the Mbutton.

When using the monitor for the rst time, settings will automatically adjust to

optimal settings according to your computer’s standard conguration settings.

1. Press Mbutton to enter the OSD menu.

Luminance

Brightness

Contrast

Eco Mode

DCR

Standard

Off

2. Press or to browse functions.

• Highlight the desired function, then press Mto enter the sub-menu.

• Press or to browse sub-menus, then press Mto highlight the desired

function.

• Press or to highlight an option, then press M to conrm the settings and exit

the current screen.

3. Press Eto exit the current screen.

7.1 – OSD Menu Functions

Main Menu Sub-Menu Options Description

Luminance

Brightness 0~100 Adjust display brightness

Contrast 0~100 Adjust display contrast

ECO

Standard, EYES,

Game, RTS,

FPS, Movie

Set visual mode

DCR

On Turn on DCR function

Off Turn off DCR function

Image Setup Image Ratio Wide, 4:3 Set aspect ratio

Color Setup

Color temp. Warm, User,

Cool, Normal

Set the display color temp. based

on your preference

Red 0~50

Customize RGB componentsGreen 0~50

Blue 0~50

OSD Setup

Language English Set OSD language

H. Position 0-100 Adjust the OSD horizontal

position

V. Position 0-100 Adjust the OSD vertical position

Time out 0~60 Set how long the OSD remains

open after non-use

Transparency 0-100 Set the OSD overall transparency

Reset

Auto Cong. N/A Auto congure the monitor

settings

Auto Color N/A Auto set the color of monitor

Reset N/A Reset monitor congurations

Extra

Input Select HDMI, VGA Display the input signal

Mute On, Off Turn mute function on/off

Volume 0-100 Adjust audio volume

Free Sync On, Off Turn on or off Free Sync function
