VK2-1080VFD

Installation Guide

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO

RAIN OR MOISTURE. DO NOT INSERTANY METALLIC OBJECT THROUGH THE VENTILATION

GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user

to the presence of un-insulated "dangerous voltage" within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the

appliance.

PRECAUTIONS

Safety -------------------------------------- Installation -------------------------------

Should any liquid or solid object fall into the cabinet,

unplug the unit and have it checked by the qualified

personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to

be used for several days or more. To disconnect the

cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat

build-up. Do not place the unit on surfaces (rugs,

blankets, etc.) or near materials(curtains, draperies)

that may block the ventilation holes.

Height and vertical linearity controls located at the rear

panel are for special adjustments by qualified

personnel only.

Do not install the unit in an extremely hot or humid

place or in a place subject to excessive dust,

mechanical vibration.

The unit is not designed to be waterproof.

Exposure to rain or water may damage the unit.

Cleaning ---------------------------------

Clean the unit with a slightly damp soft cloth.

Use a mild household detergent. Never use strong

solvents such as thinner or benzene as they might

damage the finish of the unit.

Retain the original carton and packing materials for

safe transport of this unit in the future.

CAUTION:CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY

RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE

EQUIPMENT.

CE COMPLIANCE STATEMENT

WARNING: This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Contents

1. Description................................................................................................. 6

2. Installation.................................................................................................. 8

2.1 Base installation .......................................................................................................8

2.2 Connection ...............................................................................................................9

2.2 Network Connection and IP assignment ................................................................10

3. Operation...................................................................................................11

3.1 Minimum conditions for using web browser ...........................................................11

3.2 Accessing the IP camera........................................................................................11

4.0 Main Menu...............................................................................................12

4.1 LIVE VIEW..............................................................................................................13

4.2 Upgrading the Firmware.........................................................................................14

4.3 General Troubleshooting........................................................................................15

1. Description

This manual applies to the VK2-1080VFD network camera.

The VK2-1080VFD is fully featured for security surveillance and remote monitoring needs. It is based

on the DSP compression chip, and makes it available on the network as real-time, full frame rate

Motion JPEG and H.264 (or MPEG-4) video streams.

The alarm input and alarm output can be used to connect various third party devices, such as, door

sensors and alarm bells.

• Installation Steps

Follow these steps to install the Network Transmitter on your local network (LAN):

1. Check the package contents against the list below.

2. Connect the Camera. See page 5.

3. Set an IP address. See page 7.

4. Set the password. See page 9.

• Package Component

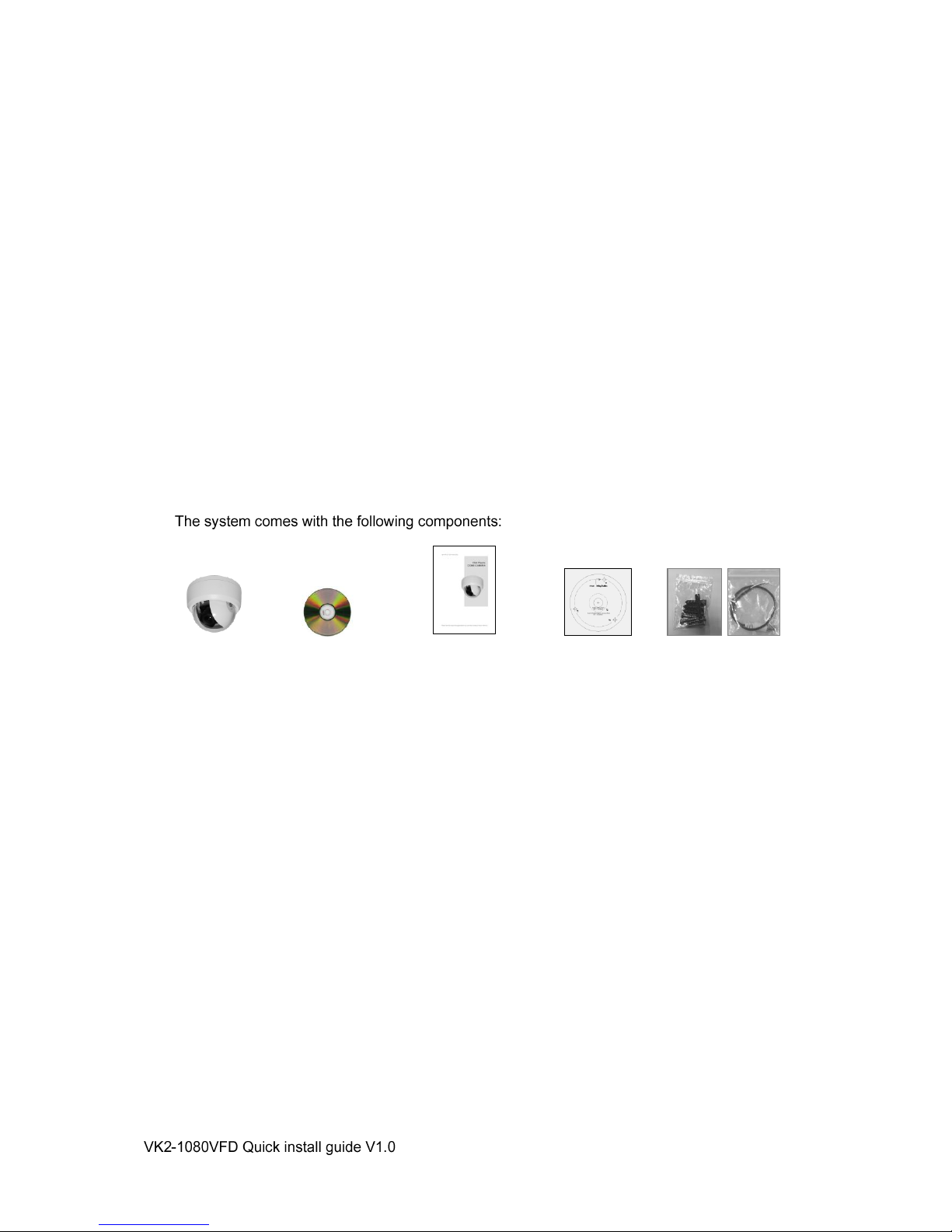

Camera unit Installation CD Installation Guide Template Sheet Accessory Kit

• Contents in the installation CD

1. The VK2-1080VFD Full manual

2. VIP2 client software

3. SmartManager set up Utility

Note:Check your package to make sure that you received the complete system, including all

components shown above.

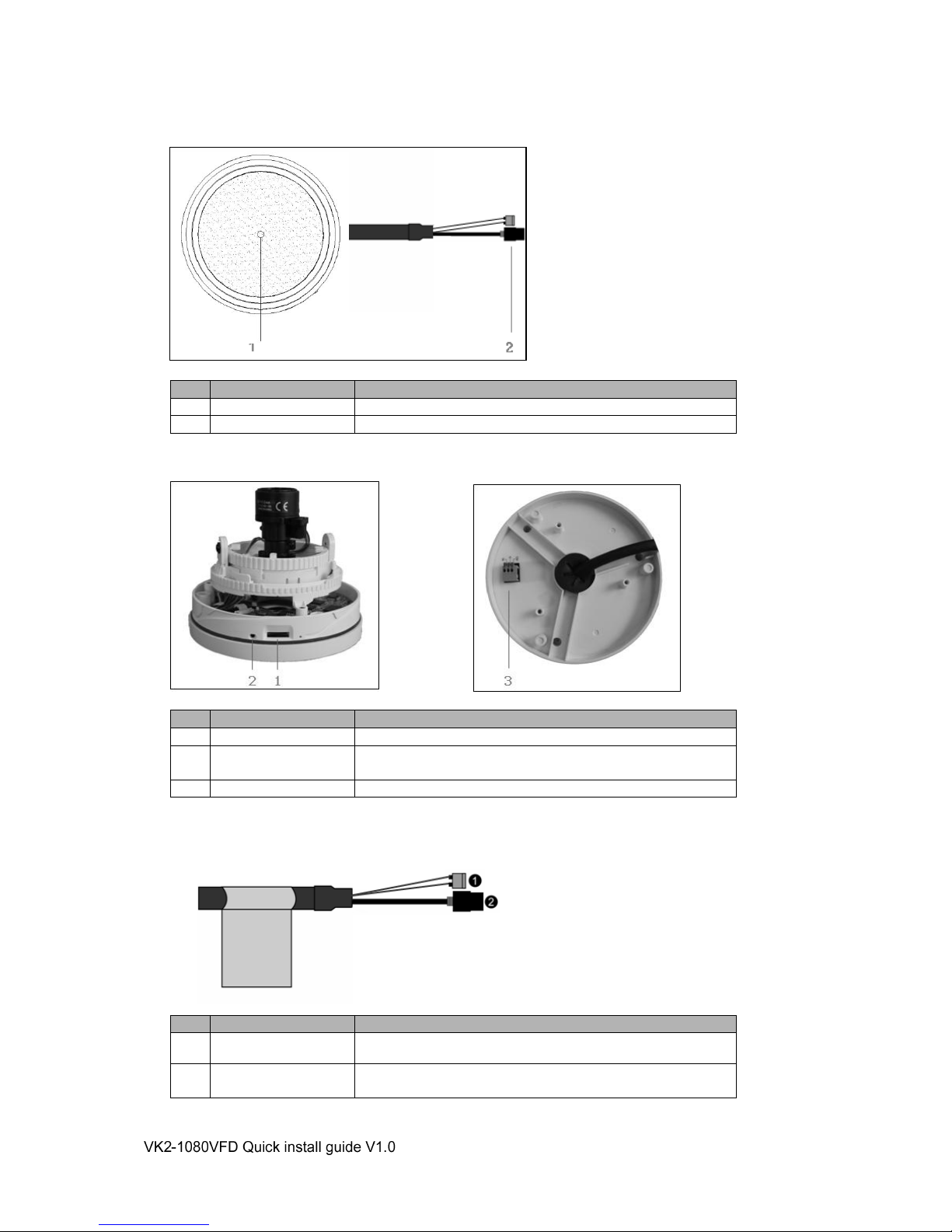

• Front View

Name

Description

Lens

3-9mm varifocal IR corrected lens

Connection Cable

IP and Power connection cable

• Side View • Bottom View

Name

Description

Micro SD Slot

Micro SD slot for local recording

Status LED

Amber : On while System Booting

Green : Normal Operation

Alarm IO Terminal

AI: Alarm Input, G: Ground, AO: Alarm Output

• Extension Cable

Wire Colour

Description

Red: DC12V

White: GND

Main Power, 2pin terminal, DC12V 330mA(4.0W)

Black

Ethernet, RJ-45 port compatible with 10/100Mbps PoE.

Modular Jack

2. Installation

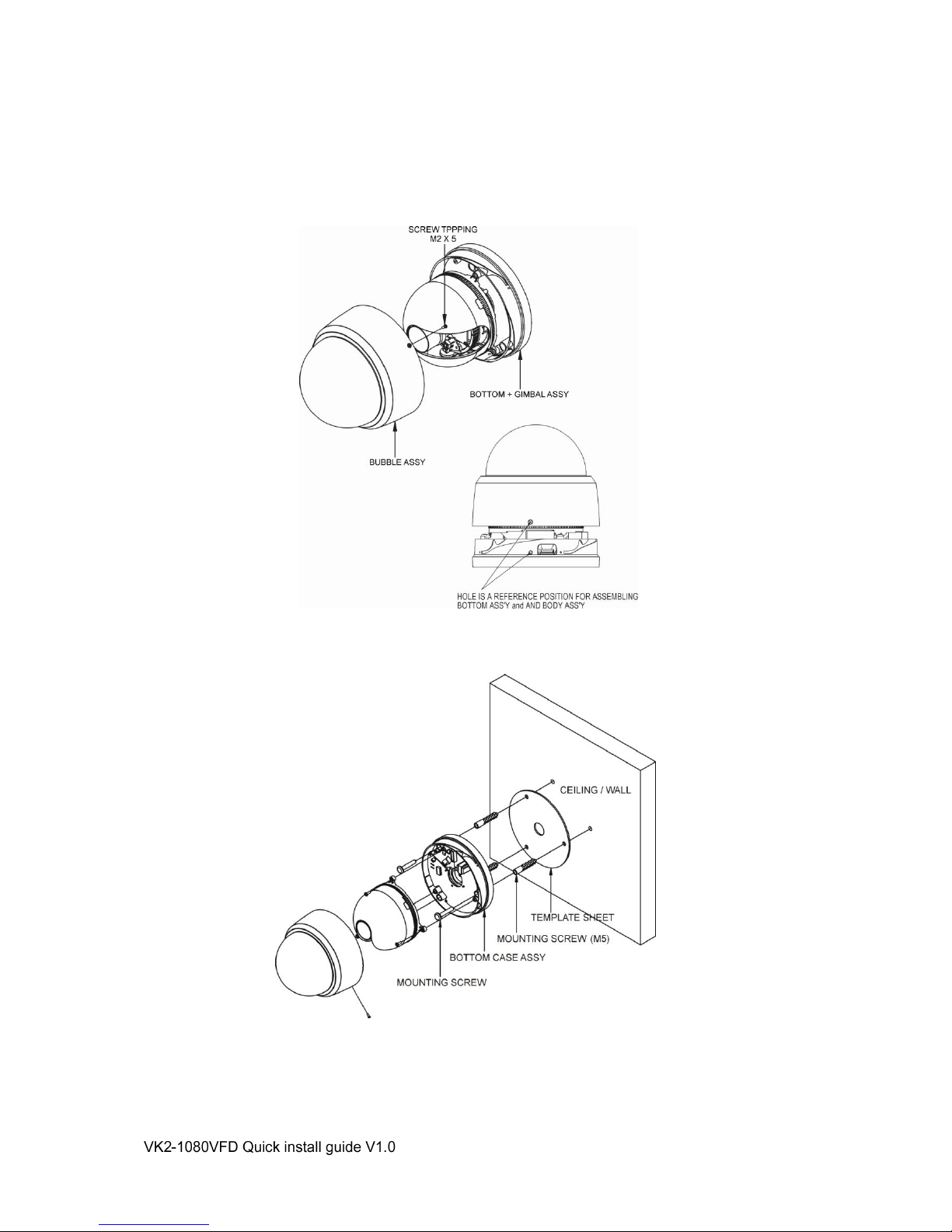

2.1 Base installation

Use the provided template to mark the required mounting and cable holes.

To remove dome cover, turn the dome cover counter clockwise until locators reach end of travel

and pull off. Push the liner in the direction of the arrow (three ‘OPEN’ marks) and pull it off.

Fasten Mounting screws (2X) and align the dome camera as shown above. Turn the dome camera

in a clockwise direction to lock it in position.

Secure the dome cover with the locking screw provided.

2.2 Connection

• Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection

to a switch or hub.

• Connecting Alarms

AI(Alarm In) :

You can use external devices to signal the VK2-1080VFD to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors in the bottom.

G(Ground) :

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

Alarm Out :

The VK2-1080VFD can activate external devices such as buzzers or lights. Connect the device

to the AO (Alarm Out) and G (Ground) connectors.

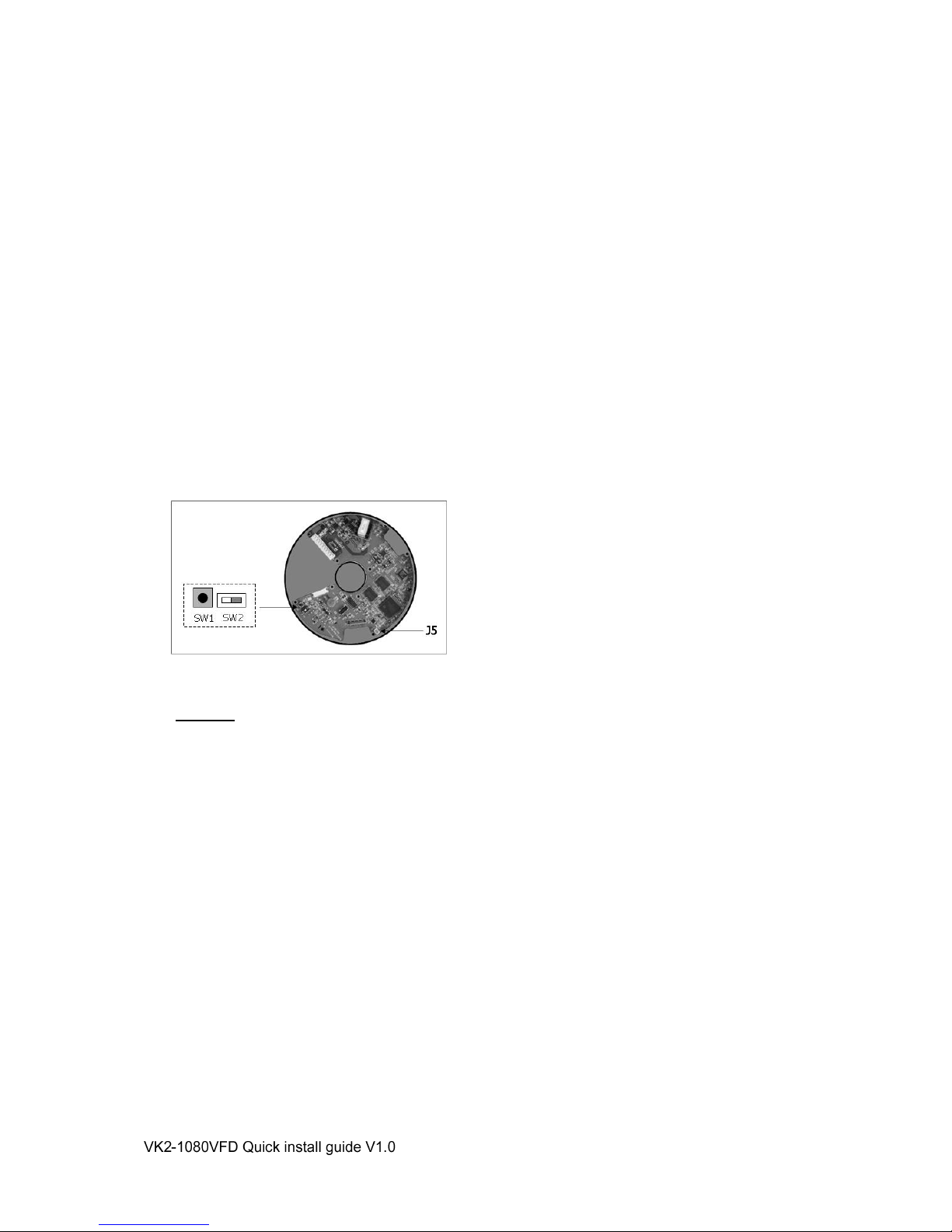

• Connecting Video Output for set up only

Video Output is used for an easy zoom and focus

control when commissioning the camera. Set Video

Switch (SW2 on the board) to On position to output

the video signal. Video Output is restricted to

VGA(640x480) resolution.

Connect your Video cable unit to J5 on the board, as

shown on the adjacent illustration.

Caution: After the camera has been focused, you must set Video Switch SW2 to the OFF

position to provide the best performance of the Network Camera.

• Connecting the Power (If not using PoE)

Connect the power of 12VDC 330mA for the camera. Connect the positive (+) pole to the ‘+’

position and the negative (-) pole to the ‘-‘position.

2.2 Network Connection and IP assignment

When a VK2-1080VFD is first connected to the network it has a default IP address of 192.168.30.220

So, it will probably be necessary to allocate an IP address to the device with the “Smart Manager”

utility on the CD.

1. Connect the VK2-1080VFD / device to the network and power up.

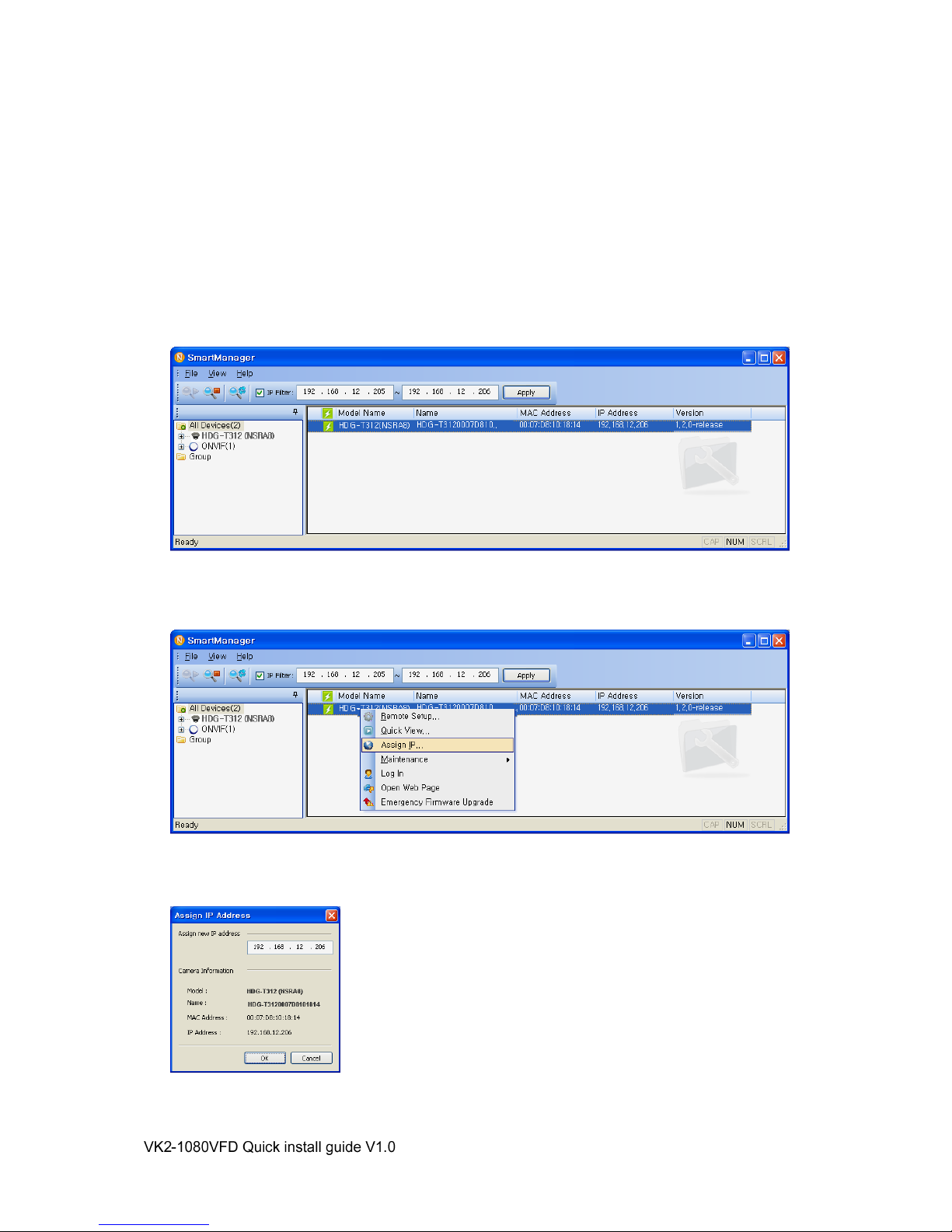

2. Start SmartManager utility, available on the supplied CD, the main window will be displayed, after

a short while any network devices connected to the network will be displayed in the list.

3. Select the camera on the list and right click the mouse. You will see the pop-up menu as below.

4. Enter the appropriate IP address.

Note: For more information, refer to the Smart Manger User’s Manual.
