Vitek VTC-IRT40-2812 Bedienungsanleitung
FEATURES:
• Sony® 1/2.8” Progressive Scan CMOS Sensor
• 2.1 MegaPixel with Full 1080p/720p TVI Output
• MegaPixel IR Corrected 2.8-12mm Varifocal Auto Iris Lens with External
Adjustments for Focus and Zoom
• 40 Dynamic Infrared LEDs at 850nm enable viewing in total darkness up to
150 feet
• Dual Glass Compartments to Eliminate IR Reflection
• Smart Motion Zoom tracks motion, then intelligently zooms into that area of
the frame
• 3D-DNR Digital Noise Reduction
• CVBS Output by BNC
• True Day/Night by ICR - Dual Filter Switch
• Fully programmable True WDR (Dual Scan)
• Secondary Video Output & OSD Control Joystick are accessible inside a
gasket sealed removable side panel
• Advanced OSD Functions: NORMAL, WDR, D-WDR, 3DNR, Dynamic IR,
Motion Detection, Privacy Mask, D-Zoom(~8x), Sens-up(x32), Flickerless,
BLC/HLC, Defog, Pixel Defect Compensation, Title Set, LSC, Deblur
• 3-Axis mount with Simple One Turn Positioning Lock for Ease of Installation
• IP-68 Rated Water Resistance
• 12VDC / 24VAC Dual Voltage Operation
VTC-IRT40-2812
2.1MP Smart TVI WDR Bullet
Camera with 40 IR LEDs
VITEK
VITEK
Safety Precaution
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
2 3
Safety Precaution
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.
3
FULL-HD MEGA-PIXEL CAMERA
Contents
Safety Precaution
p.02~03
Contents
p.04
Features
p.05~06
Composition
p.06
Dimensions
p.07
Part Names
p.08
Installation Instructions
p.09~11
Operating Instructions
p.12~26
Specifications
p.27
4 5
FULL-HD MEGA-PIXEL CAMERA
Features
Key Features
• Full HD, 2Mega Pixel HD-TVI CAMERA, 1920x1080(30p)
• TVI Video Transmission Distance over Coax.; 500M (RG59, 75Ω)
*depending on cable condition and characteristics
• Automatically removable IR Cut filter by Dual filter switcher
• Built-in f=2.8~12mm F1.4 Mega pixel DC Auto Iris Vari-focal lens
• True WDR(Wide Dynamic Range)
• Improved Noise reduction with the enhanced 3D-NR
• Pointing Zoom which enables flexible zooming of any area.
• Smart Motion Zoom in combining with Pointing Zoom.
(Automatic zoom in/out when motion is detected)
• Motion Detection, Privacy Mask, Defog, Sens-up(x32), D-WDR,
H/V/HV Flip, D-Zoom(1.1x~8x), LSC(Lens Shade Compensation),
BLC/HLC, Pixel Defect Compensation, Title Set
• Top performance at low light sensitivity (Sens-up On)
• Video output HD-TVI or CVBS switchable
• OSD MENU & Video Sub-out port for easy installation & maintenance
• Reverse polarity protection circuit
• Isolated power supply against ground loop problem
• UTC Control through HD-TVI DVR.
• External Zoom & Focus adjustment
• Built-in 40pcs IR-LEDs
• Dual Window
• One-touch 3-Axis locking bracket, Easy installation pad
• IP68 protection
• AC24/DC12V Dual power
5
FULL-HD MEGA-PIXEL CAMERA
General Description
• ICR mechanism:
- Enhances its sensitivity about 10x at night time
- Can accept infrared light
• Intelligent Focus Indicator and FOCUS ASSIST menu:
- Offers easy adjustment of Focus
• 24VAC/12VDC dual power design:
- Offers flexibility of installation
- Ensures the reliability
This camera realizes the natural and crisp image as you see the scene in front
of you by Full HD(1920x1080p) camera module.

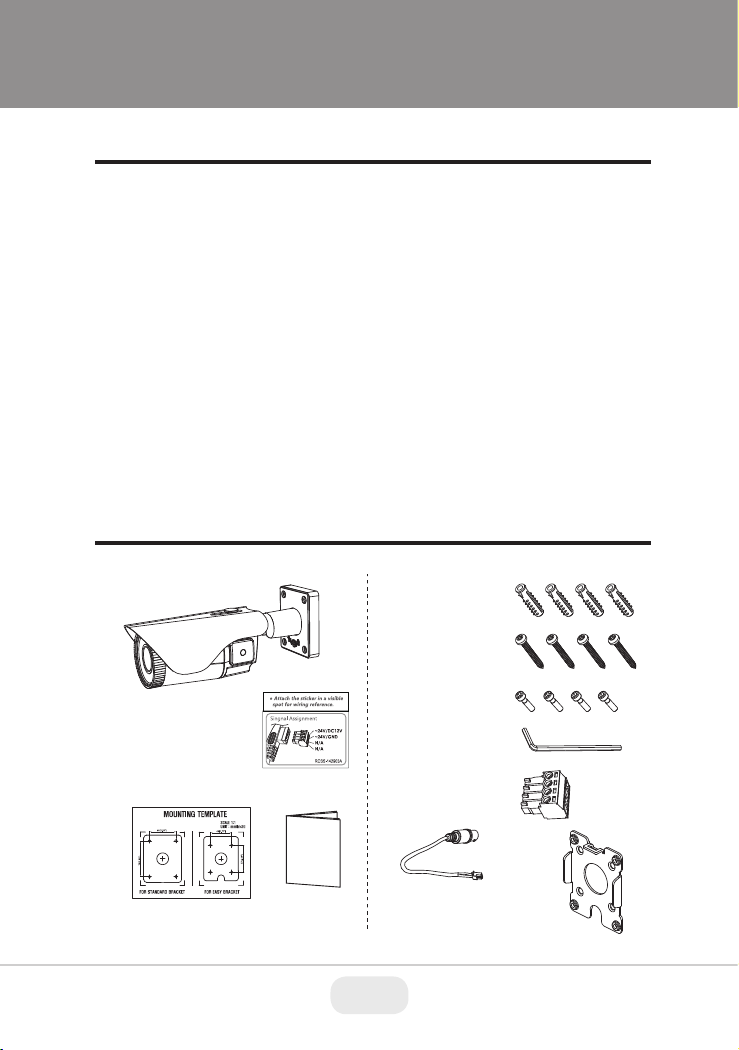

Composition
Features
Camera
Mounting Template
Operating
Instruction
Torque Wrench:
3mm (1pc)
Video Sub-out
Cable (1pc)
Assembly Screw:
4 x 14mm (4pcs)
Mounting Screw:
4 x 30mm (4pcs)
Plastic Anchor:
6 x 30mm (4pcs)
Easy
Bracket
Cable Signal
Sticker
Wiring Connector:
(1pc)
6 7

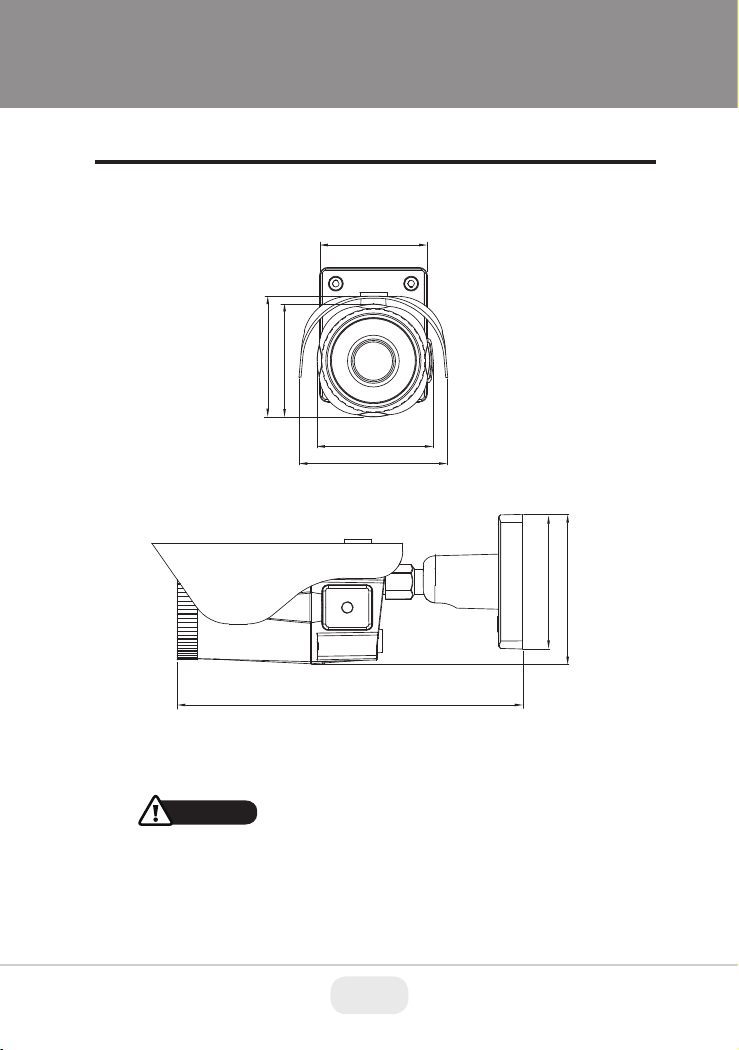

Dimensions
• Extreme care should be taken NOT to scratch the window in front of lens.
• Care should be taken that the cable is NOT damaged, kinked or exposed in
a hazardous area.
• Do not point the camera lens directly at the sun or a spot light.
CAUTION
4.35”
3.53”
4.37”
3.94”
3.31”
3.39”
3.15”
10.11”
7

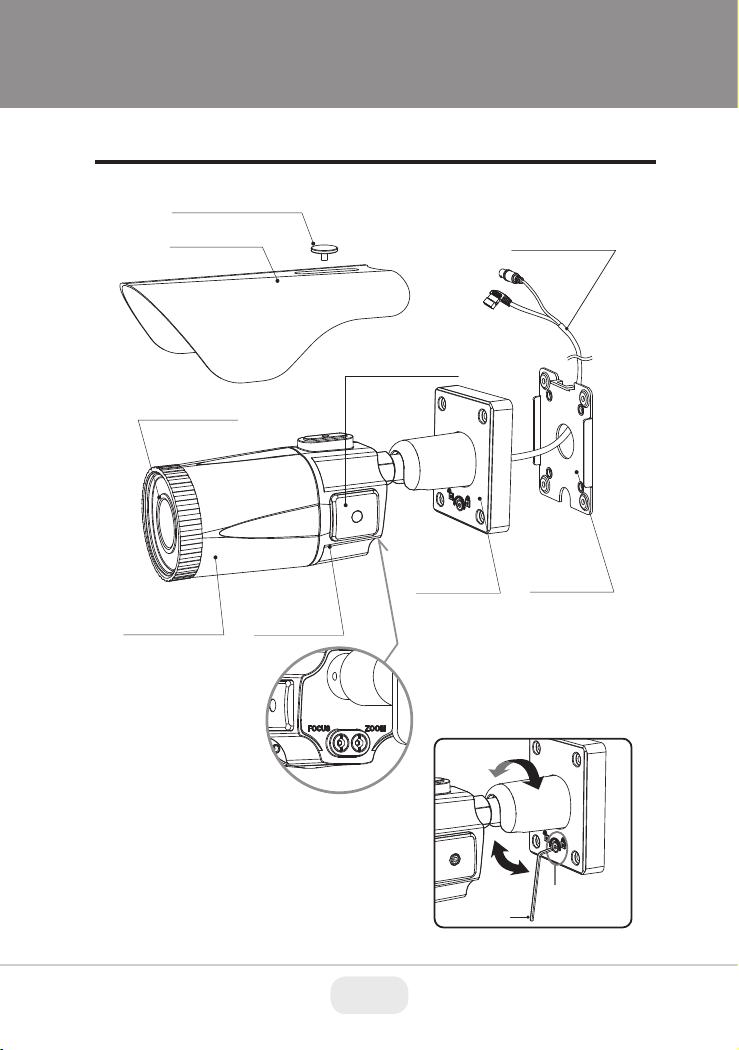

Part Names
DUAL WINDOW
SUNSHIELD BOLT
SUNSHIELD
FRONT CASE
OSD Setup
CONTROL COVER
BRACKET
EASY
BRACKET
REAR CASE
POWER CABLE
■Adjustment of viewing angle
with one-touch 3-Axis bracket
Torque
wrench
Lock/Unlock
Screw
REAR VIEW
8 9
Installation Instructions

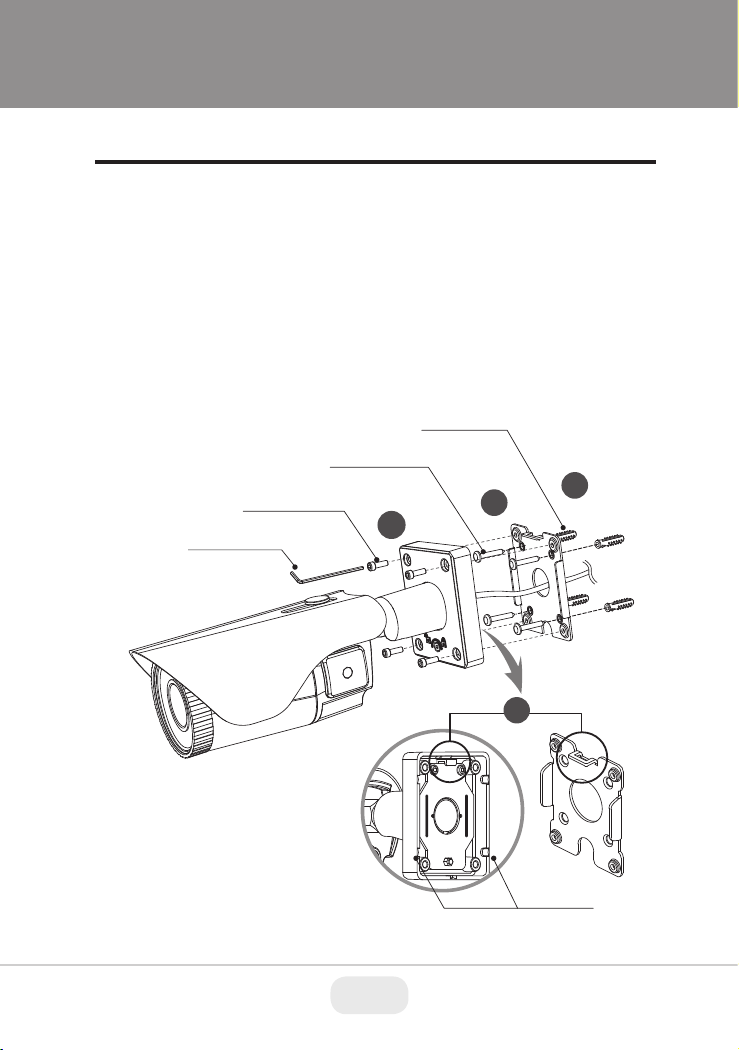

1. Place the mounting template at the installation position and drill the ceiling or
wall if needed. ( *The easy bracket can not be installed on the ceiling)
2. Place the easy bracket on pre-drilled position and attach it using mounting
screws (4x30mm). Skip this step when an easy bracket is not installed.
3. Route the Power cable to the connecting place.
Hook up the camera bracket with the easy bracket as illustrated below.
4. Fix the camera bracket through using assembly screws (4x14mm).
5. Set the camera’s viewing angle and adjust zoom/focus of lens by using the torque
wrench.
6. Install the sunshield onto the camera unit and tighten the sunshield-bolt.
Mounting Screw
: 4x30mm
Plastic Anchor
: 6x30mm
1
2
Torque Wrench
REAR VIEW
3
Cable exit
4
Assembly Screw
: 4x14mm
9
Installation Instructions

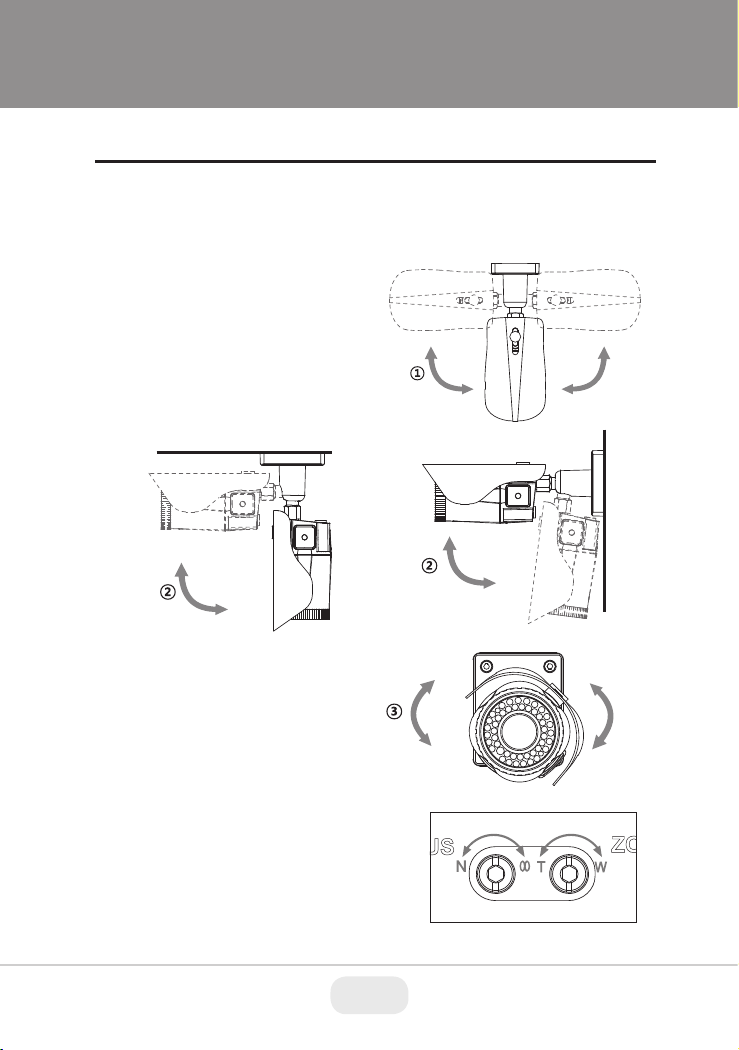

Pan & Tilt adjustments
Zoom & Focus adjustments
1) Pan limit:
Pan is limited to +/- 90°.
3) Inclination limit
(Horizontal image alignment):
Inclination limited to +/-90° max.
2) Tilt limit:
Tilt is limited to 0°(2°) min ~ 90° max.
for wall(ceiling) installation respectively
with reference to the wall(ceiling) when
the inclination of camera module is 0°,
that is, the image is aligned horizontally.
• Turn the Focus gear to “N”(Near) or “∞”(Far)
until the sharpest focus is made.
• To widen the viewing angle, turn the Zoom to
“W”(Wide) and to obtain a closer view, turn it
to “T”(Tele)
Use the torque wrench supplied.
• Unlock the screw on the camera bracket through using the torque wrench supplied
• Set the camera’s viewing angle then lock the screw on the bracket.
90° 90°
80°
90°
±90°
•on the wall
•on the ceiling
10 11
