Vivo DESK-E151EB Bedienungsanleitung
Black Compact Electric Single Motor Desk Frame
Scan the QR code with your mobile device or follow the link
Instruction Manual
https://vivo-us.com/products/desk-e151eb
SKU: DESK-E151EB
309-278-5303
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
If you do not understand these directions, or if you have any doubts about the safety of the installation,
154lbs
(70 kg)
DO NOT EXCEED WEIGHT CAPACITY.
WARNING!
TOOLS NEEDED
Phillips
Screwdriver
PACKAGE CONTENTS
C (x1)
A x1)
Motorized Leg
B(x1)
Leg
D(x1)
Right Crossbar
E(x1)
Inner Crossbar
H(x1)
Sync Rod
F (x2)
Foot
J(x1)
Power Cable
I(x1)
Control Panel
ELECTRICAL SAFETY INSTRUCTIONS
•
•
•
•
•
•
WARNING: CHOKING HAZARD
S-A (x26)
M6x11mm
Screw
S-B (x14)
M5x16mm
Screw
Drill Level
G(x2)
Side Bracket
K(x12)
Pad
L(x2)
Cable Clip
T-A (x1)
T-B (x1)
3
ASSEMBLY STEPS
STEP 1
STEP 2
(D) to Motorized Leg (A)(C) to Leg (B), using M6x11mm
Screws (S-A)(T-B)
B
A
D
G
G
S-A
T-B
C
(G) to Leg (B) and Right Crossbar (D) using M6x11mm Screws (S-A) and
(T-B)
Next, attach remaining Side Bracket (G) to Motorized Leg (A)(C) using using
M6x11mm Screws (S-A)(T-B), using the center and right screw holes of Side
4

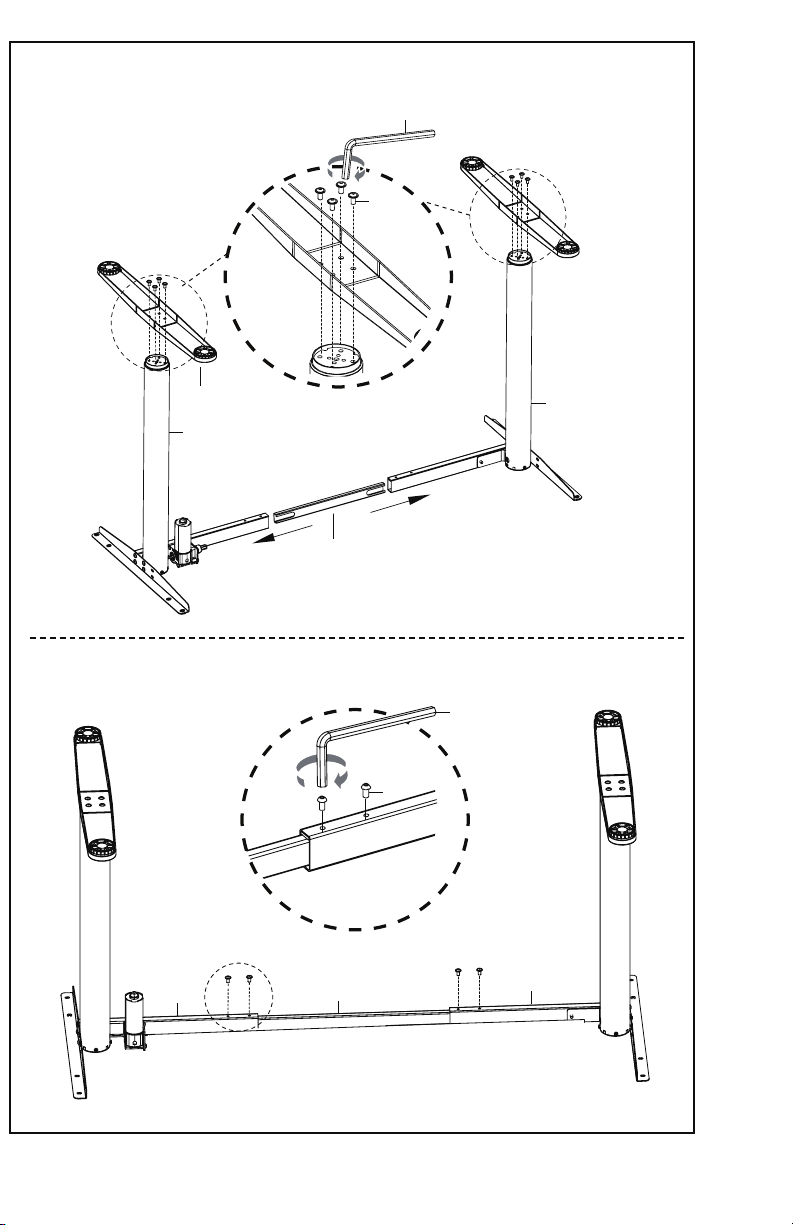

STEP 3
Place Feet (F) on leg assemblies and secure using M6x11mm Screws (S-A)
(T-B)(E)
Crossbars (C, D)
A
F
E
B
S-A
T-B
C
DE
Secure Inner Crossbar (E)(C, D) using M6x11mm Screws (S-A) and
(T-B)
S-A
T-B
5

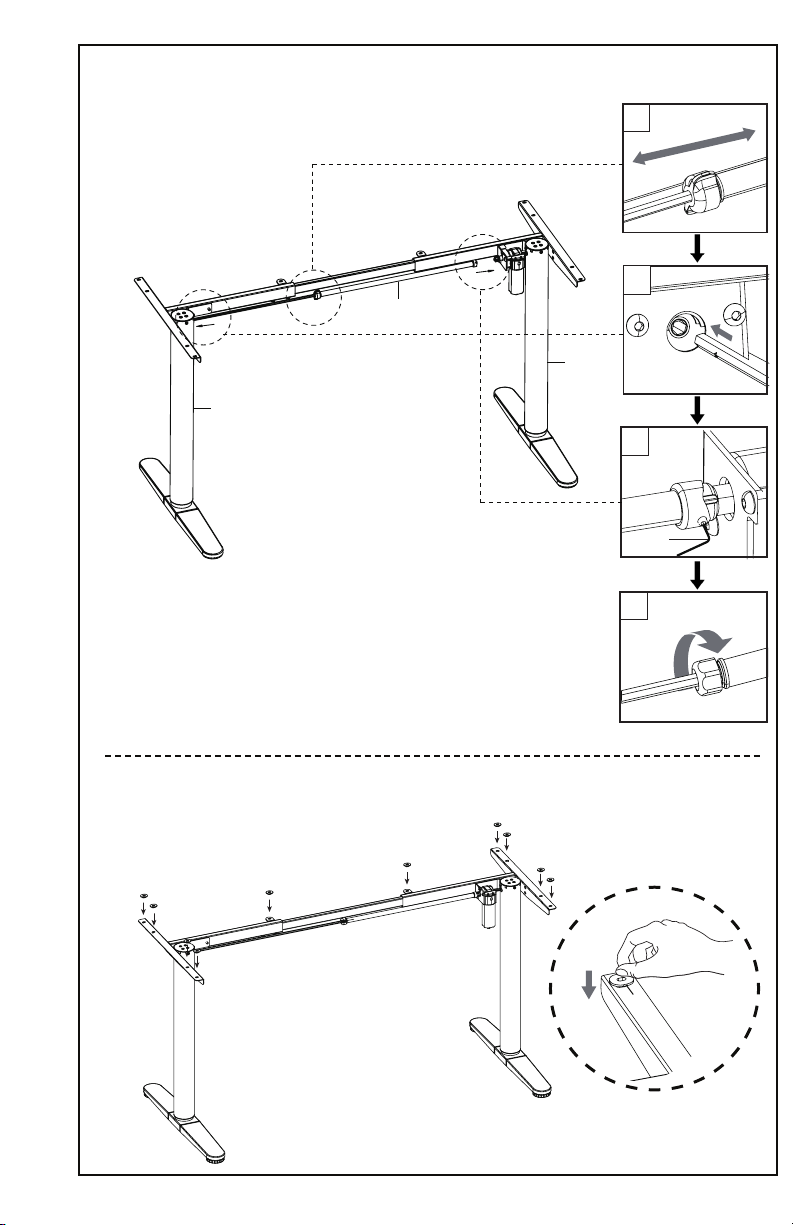

K
STEP 4
T-A
B
A
H
1
2
3
4
(H) and extend the hex
(B), making sure the metal retaining ring makes
contact with the Leg (B)
Sync Rod (H)(A)(H)
(T-A)
(K)
K
6
STEP 5
S-B
(I) to
the desktop using M5x16mm Screws (S-B)
7
STEP 6

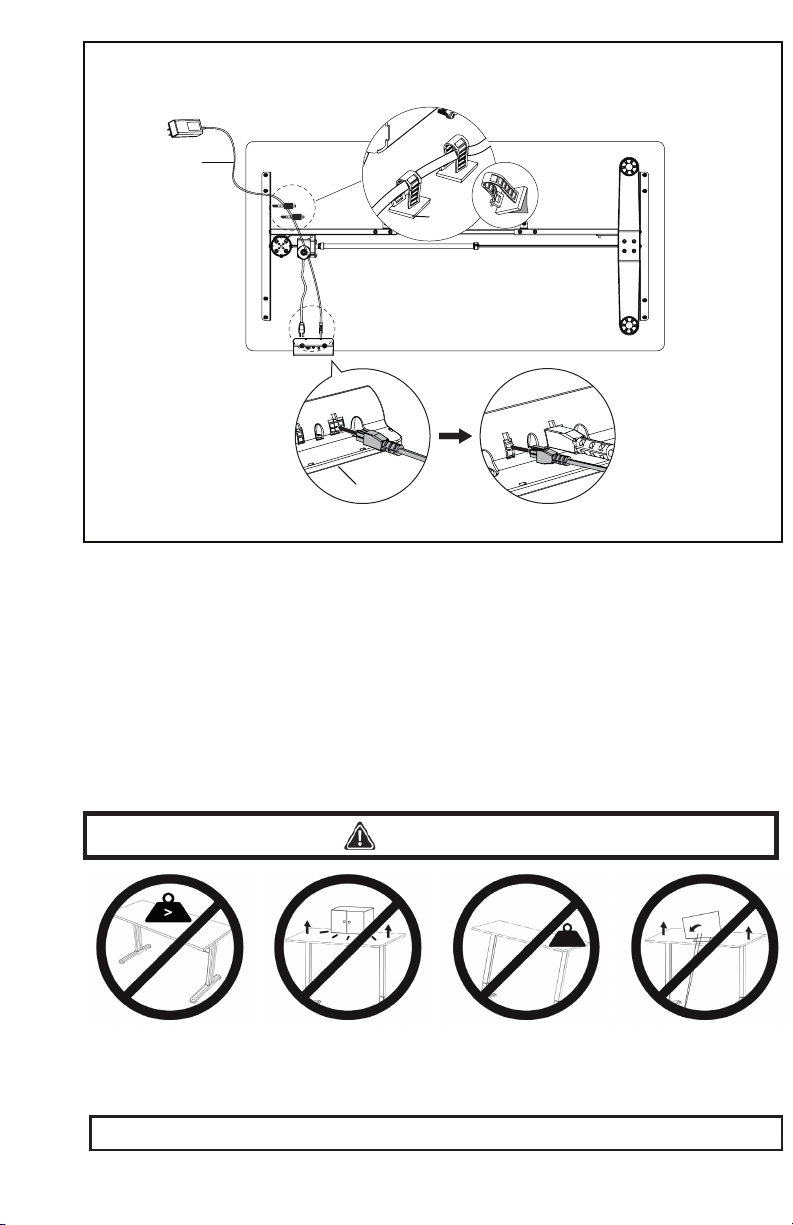

Connect cable from Motorized Leg (A) and Power Cable (J) to Control Panel (I) (L) to
CAUTION!
Do not exceed desk
Keep area of vertical
motion free of
Keep weight on desk
balanced for correct
operation and longer
Leave enough slack in
cables to allow for full
J
I
L
