Vivo MOUNT-E-FD70S Bedienungsanleitung
Black Electric Flip Down / Swivel Ceiling TV Mount
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/mount-e-fd70s
Instruction Manual
SKU: MOUNT-E-FD70S
ASSEMBLY VIDEO AVAILABLE:
309-278-5303
2
Contact Us First!
PERSONABLE CUSTOMER SUPPORT
Our friendly product support team is here to help!
DO NOT RETURN ITEM
We’re Here for You!
Missing a Part?
Our customer-minded support team is here for YOU,
Monday-Friday 7am-7pm CST.
We oer immediate assistance with rapid response times
from customer service agents and product techncians to
help you every step of the way!
Monday-Friday
Chat Us:
www.vivo-us.com
Give us a Call:
309-278-5303
Email Us:
If any parts are received damaged / defective OR you are
missing a part, please reach out to us within 30 days of
product delivery to have it replaced at no cost.
We are happy to replace parts to ensure you have a fully
functioning product
7AM - 7PM
3
If you do not understand these directions, or if you have any doubts about the
safety of the installation, please call a qualified technician. Check carefully to
make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that
is not explicitly specified in this manual. Do not exceed weight capacity. We
cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
PRE-ASSEMBLY | BEFORE YOU BEGIN
Product Warranty
Returns | Product Didn’t Work Out?
For the most up to date details on your product’s warranty, please visit
the product’s listing on our website or reach out to customer support.
vivo-us.com/products/mount-e-fd70s
We oer a hassle-free 30 day return on all products. Contact customer
ordered in error or no longer needed, the return shipping charges will
be at the buyer’s expense.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS
REQUIRED.
WEIGHT CAPACITY
DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury.
77lbs
(35kg)
!
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE
WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If
or call us at 309-278-5303.
!
PITCH CEILING WARNING:
DO NOT attempt to install on a pitched ceiling. Mount will not operate as intended.
4
PACKAGE CONTENTS
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
M-F (x4)
Small Spacer
M-D (x4)
M8x35mm Screw
M-E (x4)
M8 Washer
M-A (x4)
M6x14mm Screw
M-B (x4)
M8x16mm Screw
M-C (x4)
M6x30mm Screw
Please consult the parts list below and ensure you have everything you need to assemble
your product. If parts are missing or damaged, please contact us.
Phillips Screwdriver
|
TOOLS NEEDED:
A (x1)
Mount
B(x1)
Center Plate
C(x1)
Ceiling Template
H(x1)
Remote
D (x2)
Mounting Bracket
E (x2)
VESA Bracket
F (x2)
Bracket Rail
G (x1)
AC Adapter
DIFFICULTY LEVEL
Drill Pencil
M-G (x4)
Large Spacer
W-A (x4)
ST6.3x55mm
Screw
W-B (x4)
Concrete Anchor
W-C (x2)
Washer
I(x4)
Cable Tie
J(x2)
Cable Clip
T-A (x1)
3mm Allen Wrench
S-A (x4)
M6x10mm
Set Screw
S-B (x4)
M6x25mm Screw
S-C (x4)
M6 Washer
S-D (x4)
M6 Nut
S-E (x4)
M4x8mm Screw
Wrench Stud Finder
S-F (x4)
M6x10mm Screw
T-B (x1)
4mm Allen Wrench
5
S-F (x4)
M6x10mm Screw
T-B (x1)
4mm Allen Wrench
ASSEMBLY STEPS
D (x2)
Mounting Bracket
A(x1)
Mount
D
A
S-F T-B
STEP 1: Installing the Mounting Brackets
For wooden joist mounting, determine what direction the joists run and the direction you want
the display mounted. Using the layout images, assemble Mounting Brackets (D) to Mount (A)
using M6x10mm Screws (S-F) and 4mm Allen Wrench (T-B). For concrete ceilings, Mounting
Brackets (D) can be assembled in either orientation.
Joists
Joists
D
A
TV Direction
OR
Joists
Joists
A
D
NOTE: The remaining steps will
be using this mounting style
6

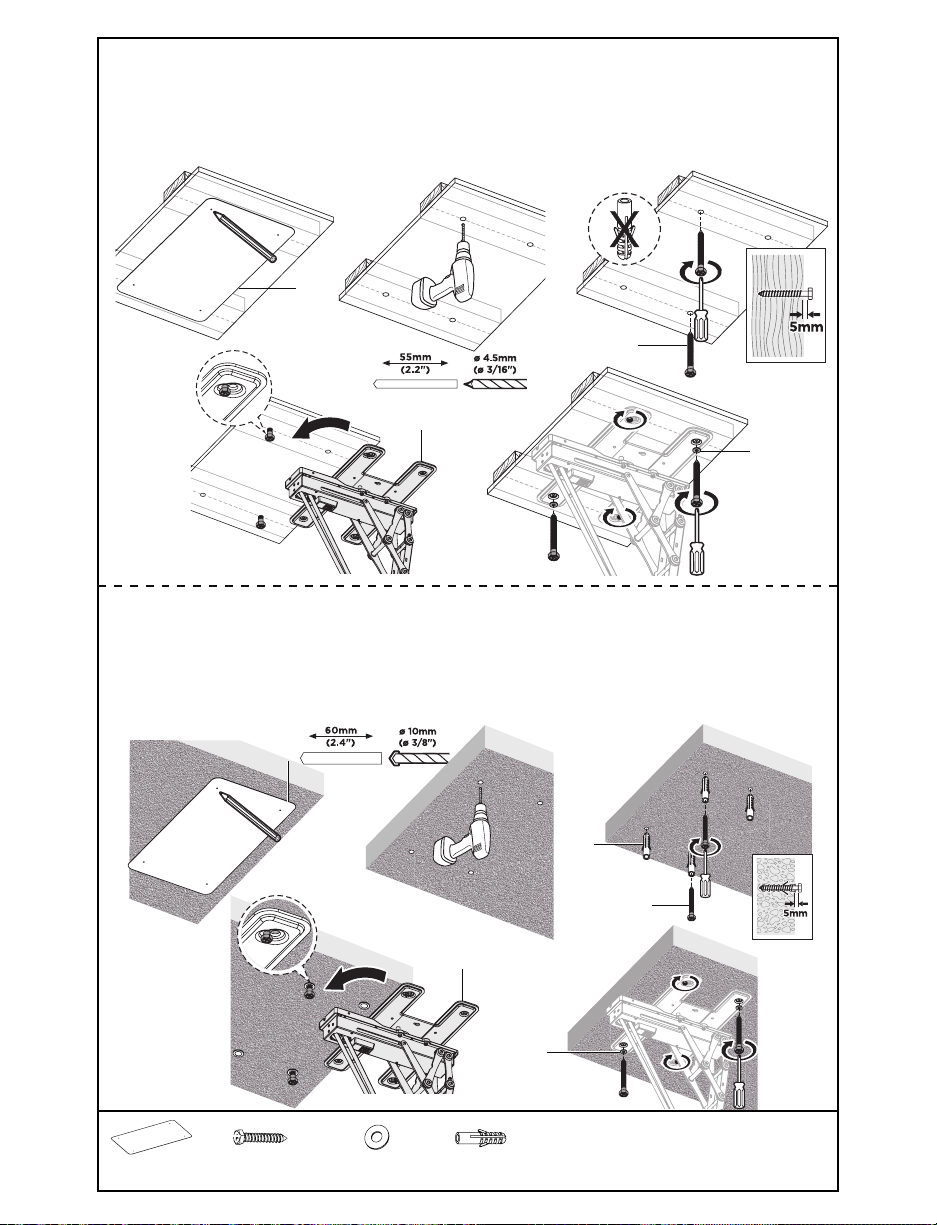

OPTION B: Concrete Ceiling
Using Ceiling Template (C), mark exact location of mounting holes. Drill pilot holes 2.4” (60mm) deep, using a
3/8” (10mm) drill bit. Insert Concrete Anchors (W-B) into drilled holes. Insert two ST6.3x55mm Screws (W-A)
inline with the keyhole slots on the mount, leaving a 5mm gap from ceiling. Hang Mounting Brackets (D)
so that the screws fit into the keyhole openings, then then slightly rotate the mount so the screw heads are
resting on the smaller hole. Tighten screws and secure using additional additional ST6.3x55mm Screws (W-A)
and Washers (W-C).
W-A (x4)
ST6.3x55mm Screw
W-C (x2)
Washer
C (x1)
Template
W-B (x4)
Concrete Anchor
CC
W-AW-A
W-B
W-C
D
STEP 2: Mounting VESA Assembly
OPTION A: Wood Beam Ceiling
Using Ceiling Template (C), mark exact location of mounting holes. Drill pilot holes 2.2” (55mm) deep using
a 3/16” (4.5mm) drill bit. Insert two ST6.3x55mm Screws (W-A) inline with the keyhole slots on the mount,
leaving a 5mm gap from ceiling. Hang Mounting Brackets (D) so that the screws fit into the keyhole openings,
then then slightly rotate the mount so the screw heads are resting on the smaller hole. Tighten screws and
secure using additional additional ST6.3x55mm Screws (W-A) and Washers (W-C).
C
W-A
D
W-C
7
STEP 3: Assembling VESA Components
Assemble Bracket Rails (F) to Center Plate (B) using M6x25mm Screws (S-B), M6 Washers (S-C)
and M6 Nuts (S-D). While holding M6 Nuts (S-D) with a wrench, use a Phillips screwdriver to
tighten M6x25mm Screws (S-B). Slide VESA Brackets (E) onto Bracket Rails (F) and secure using
M4x8mm Screws (S-E) and 3mm Allen Wrench (T-A).
S-C (x4)
M6 Washer
F(x2)
Bracket Rail
B (x1)
Center Plate
E(x2)
VESA Bracket
S-B (x4)
M6x25mm Screw
STEP 4: Adjusting VESA Assembly
Adjust VESA Brackets (E) spacing to match TV mounting holes, and lock in place using M6x10mm
Set Screw (S-A) and 3mm Allen Wrench (T-A).
S-A (x4)
M6x10mm Set Screw
STEP 5: Removing VESA Screws
F
B
S-B
S-CS-D
E
S-E
T-A
S-D (x4)
M6 Nut
S-E (x4)
M4x8mm Screw
T-A (x1)
3mm Allen Wrench
Remove the four pre-installed screws from Center Plate (B) and loosen the center screw until 5mm
of thread is exposed.
S-A
T-A
E
B
8
STEP 6: Mounting VESA Assembly
STEP 7: Place TV on Mount
Attach VESA assembly to TV using appropriate mounting Screws (M-A through M-D), M8 Washers (M-E), and
Spacers (M-F, M-G).
Place the TV with VESA bracket assembly on Mount (A) by inserting the center screw on Center Plate (B) into
the keyhole on Mount (A) at the desired height. Secure using previously removed screws (STEP 5) and tighten
with a Phillips screwdriver. Clearance between the ceiling and top edge of TV should be no less than 15mm
when TV is in the fully lowered position.
M-G (x4)
Large Spacer
M-A (x4)
M6x14mm Screw
M-B (x4)
M8x16mm Screw
M-C (x4)
M6x30mm Screw
M-D (x4)
M8x35mm Screw
M-E (x4)
M8 Washer
M-F (x4)
Small Spacer
B
A
9

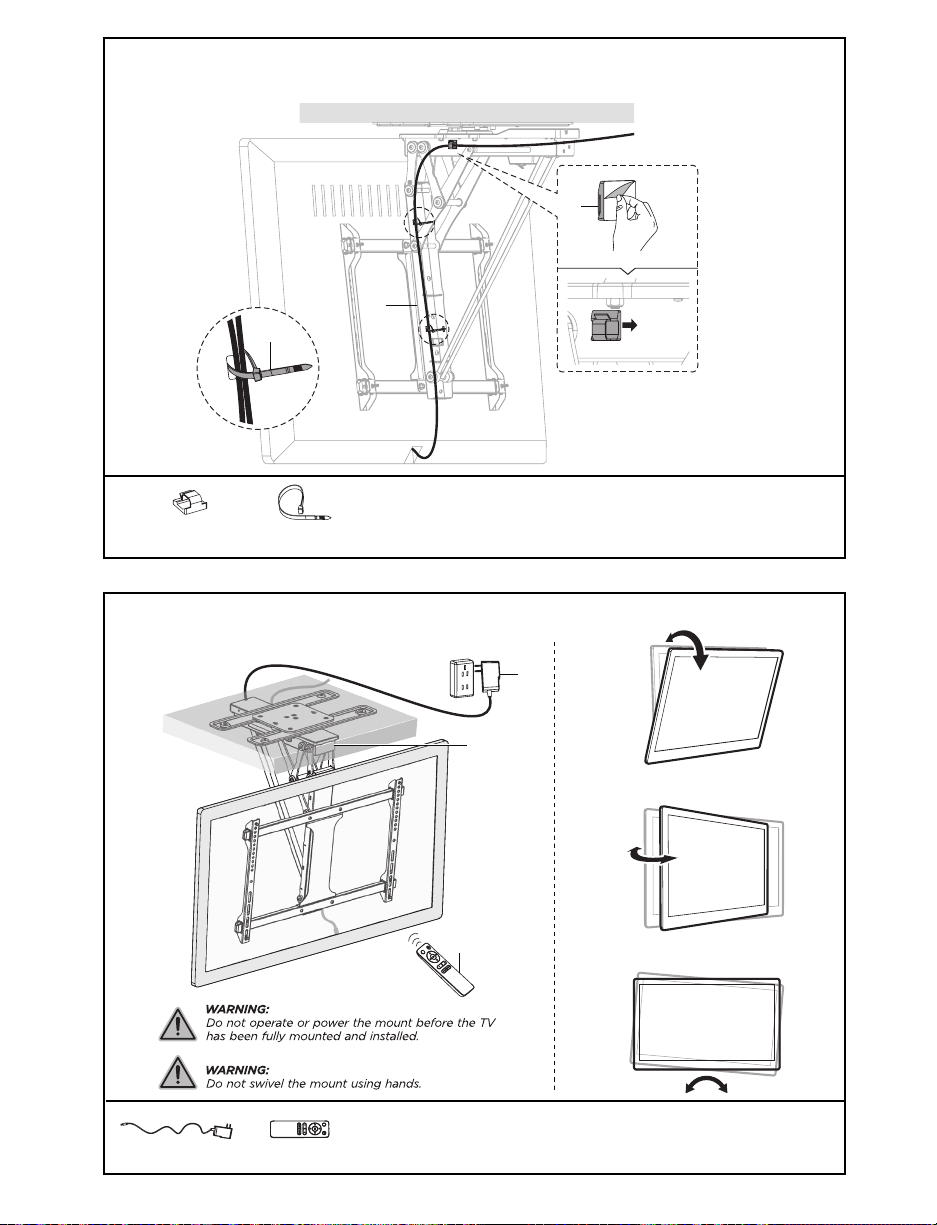

STEP 8: Manage Cables
STEP 9: Connect AC Adapter
Remove the adhesive backing from Cable Clips (J) and place them on the side of Mount (A).
Route Cables through Cable Clips (J) and use Cable Ties (I) to fasten cables to the side of the arm.
J (x2)
Cable Clip
I(x4)
Cable Tie
Plug AC Adapter (G) into Mount (A), and connect to AC outlet. Follow Remote (H) instructions for
operation.
H(x1)
Remote
G (x1)
AC Adapter
A
J
I
A
G
H
10
CHECK OUT OTHER GREAT PRODUCTS FROM
EXPLORE MORE AT VIVO-US.COM
WHO WE ARE
VIVO is more than a brand of ergonomic oice furniture. We are a team of
creative and innovative indivuduals working together to oer high quality,
aordable ergonomic solutions. We think and work outside of the box to serve
you, our customer, to the best of our abilitiy.
We oer a wide array of home & oice products
to fit your needs. From height adjustable desks to
monitor mounts to keyboard trays and more!
HEIGHT
ADJUSTABLE DESKS
MONITOR
MOUNTS
SPEAKER MOUNTS
& STANDS
We oer electric & manual
crank standing desks,
corner frames, desk & top
combos, and more!
From single monitor
mounts to hex mount,
gromment or clamp-ons,
we’ve got a mounting
solution for your setup.
Whether you’re mounting
a soundbar or surround
sound system, we’ve got
a mounting solution to fit
your needs
