Vivo MOUNT-PB1 Bedienungsanleitung

Single Monitor Pegboard Panel Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pb1

SKU: MOUNT-PB1

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

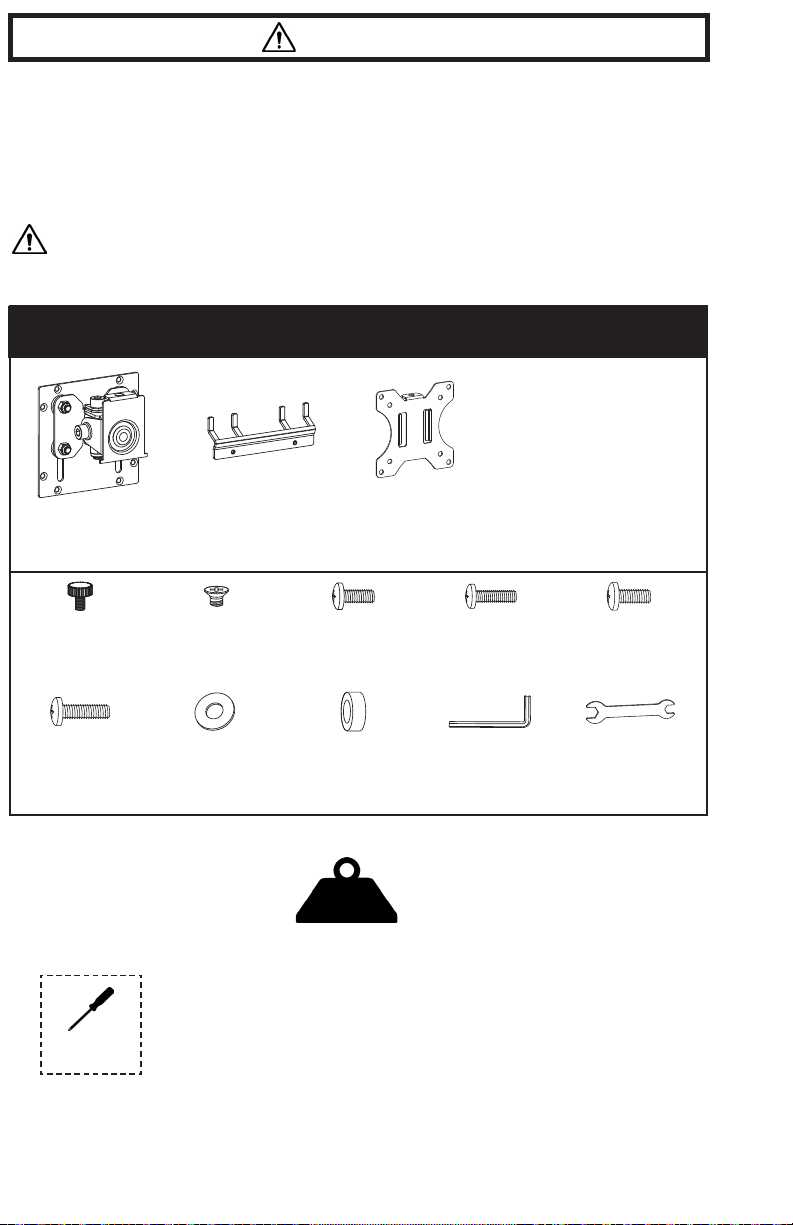

PACKAGE CONTENTS

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

A (x1)

Mount Base

B(x2)

Mounting

Prongs

C(x1)

VESA Plate

S-A (x1)

M6x10mm

Screw

S-B (x4)

M4x8mm

Screw

M-A (x4)

M4x12mm

Screw

M-B (x4)

M4x16mm

Screw

M-C (x4)

M5x12mm

Screw

M-D (x4)

M5x16mm

Screw

M-E (x4)

M5 Washer

M-F (x4)

Spacer

T-A (x1)

6mm Allen

Wrench

T-B (x1)

Wrench

17.6lbs

(8kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

TOOLS NEEDED

Phillips

Screwdriver

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

ASSEMBLY STEPS

Horizontal

Adjustments

Allows for greater

tilt adjustment

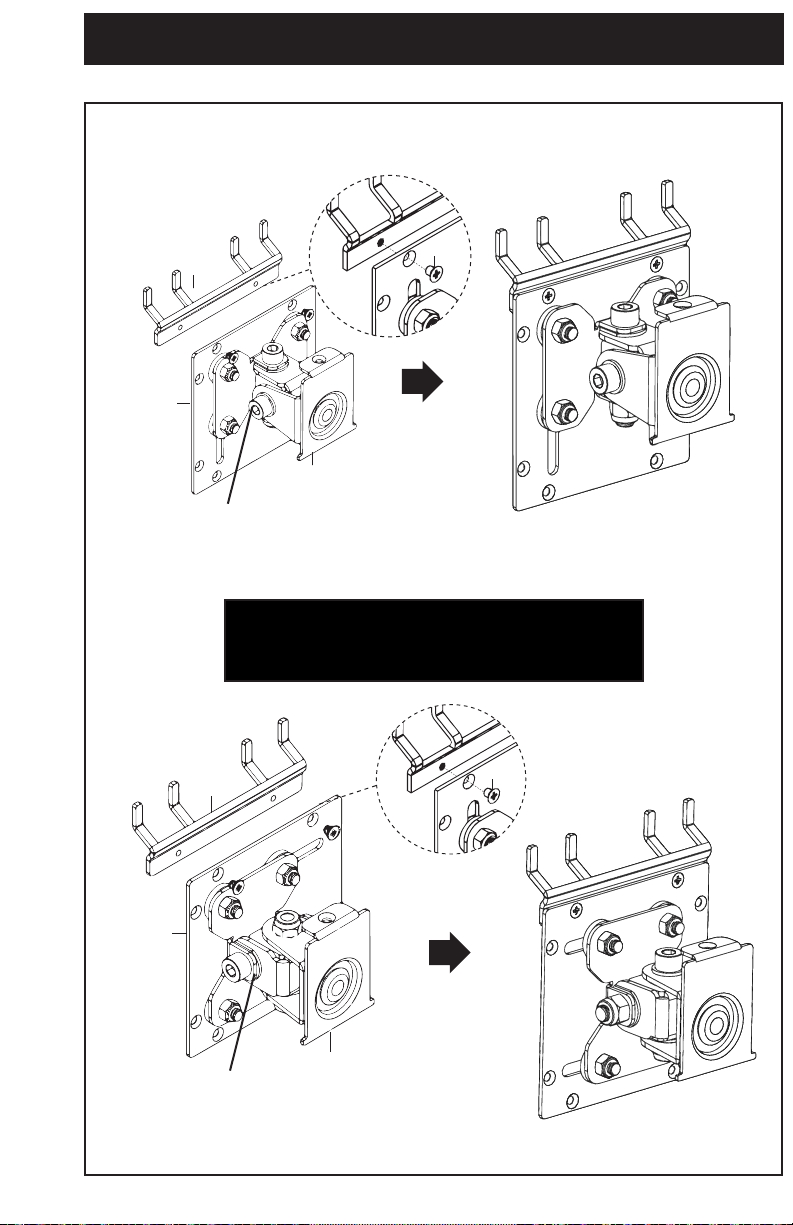

STEP 1

Attach one set of Prongs (B) to the top of Mount Base (A) using M4x8mm Screws (S-B) and a Phillips

head screwdriver. Ensure that VESA Head (A1) is pointing up as shown below.

Prongs can be installed in two dierent orientations

to allow for additional adjustment in the horizontal or

vertical direction, as noted in images.

Vertical

Adjustments

S-B

Allows for greater

side rotation adjustment

STEP 2

STEP 3

Attach Mounts Base (A) with Prongs (B) to the pegboard. Instal remaining set of Prongs (B) to

pegboard, slightly liing Mount Base (A) forward to get the Prongs behind the Base. Secure

Prongs (B) using M4x8mm Screws (S-B) and a Phillips head screwdriver.

Secure VESA Plate (C) to monitor using appropriate Screws (M-A thru M-D), Washers (M-E), and a

Phillips head screwdriver. Spacers (M-F) may be required.

S-B

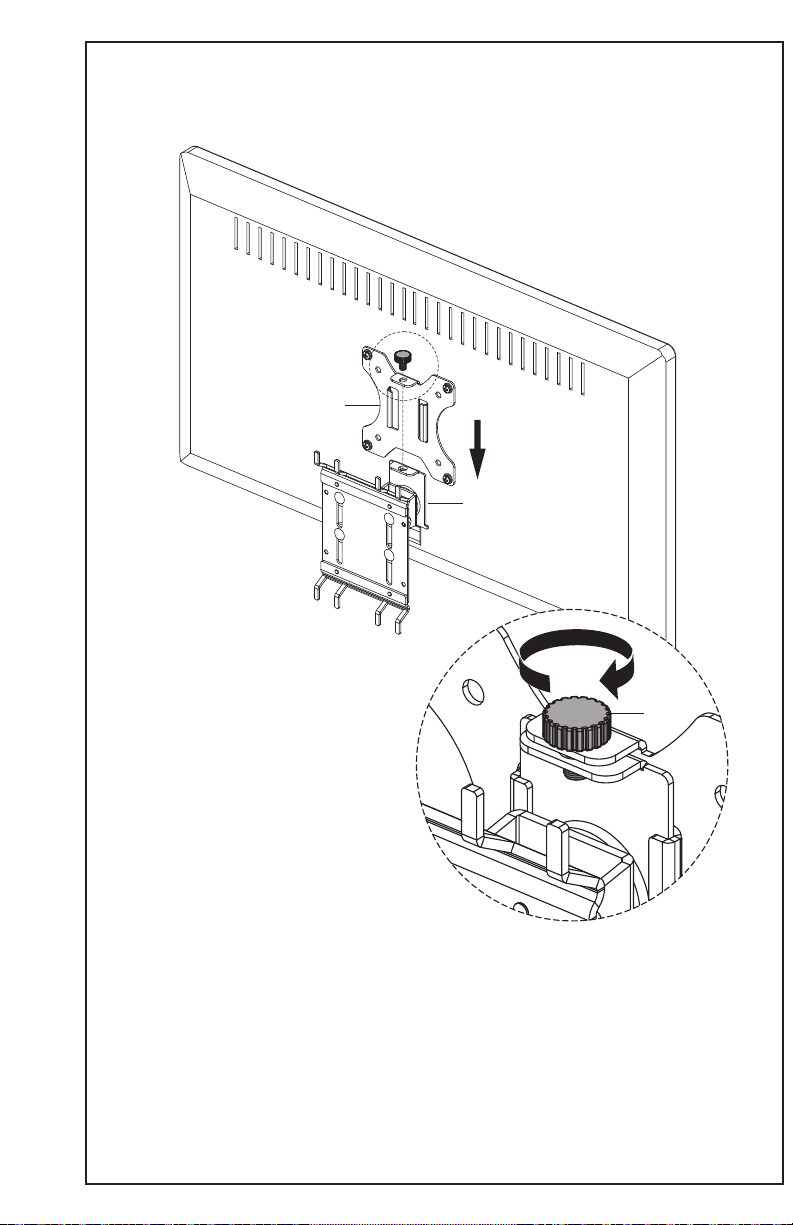

STEP 4

Slide monitor with VESA Plate (C) onto the Mount Base (A). Secure VESA Plate (C) in place using

M6x10mm Thumbscrew (S-A).

S-A

Adjust as Desired

If monitor is sagging or adjustments need to be made, use 6mm Allen Wrench (T-A) to tighten or

loosen swivel joint on VESA Head (A1).

Adjust the positioning of monitor by loosen the four nuts on the Mount Base (A) using the

Wrench (T-B).

T-A

T-B

[ THIS PAGE INTENTIONALLY LEFT BLANK ]

LAST UPDATED: 06/15/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
