Vivo MOUNT-PLAY3B Bedienungsanleitung

Dua Wa Moun Designe

fo SONOS PLA  Backes

Instruction Manual

Email: [email protected]

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

- Moe MOUN PLAB

oos Re uie

phillips screwdriver

Package Conens

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

A (x2)

Mount

B (x2)

Bolt

C (x4)

Push

D (x4)

-W A (x6)

Screw

- W B (x6)

Anchor

- -hps//vivo us.com/poucs/moun payb

Assemby Seps

Sep 1

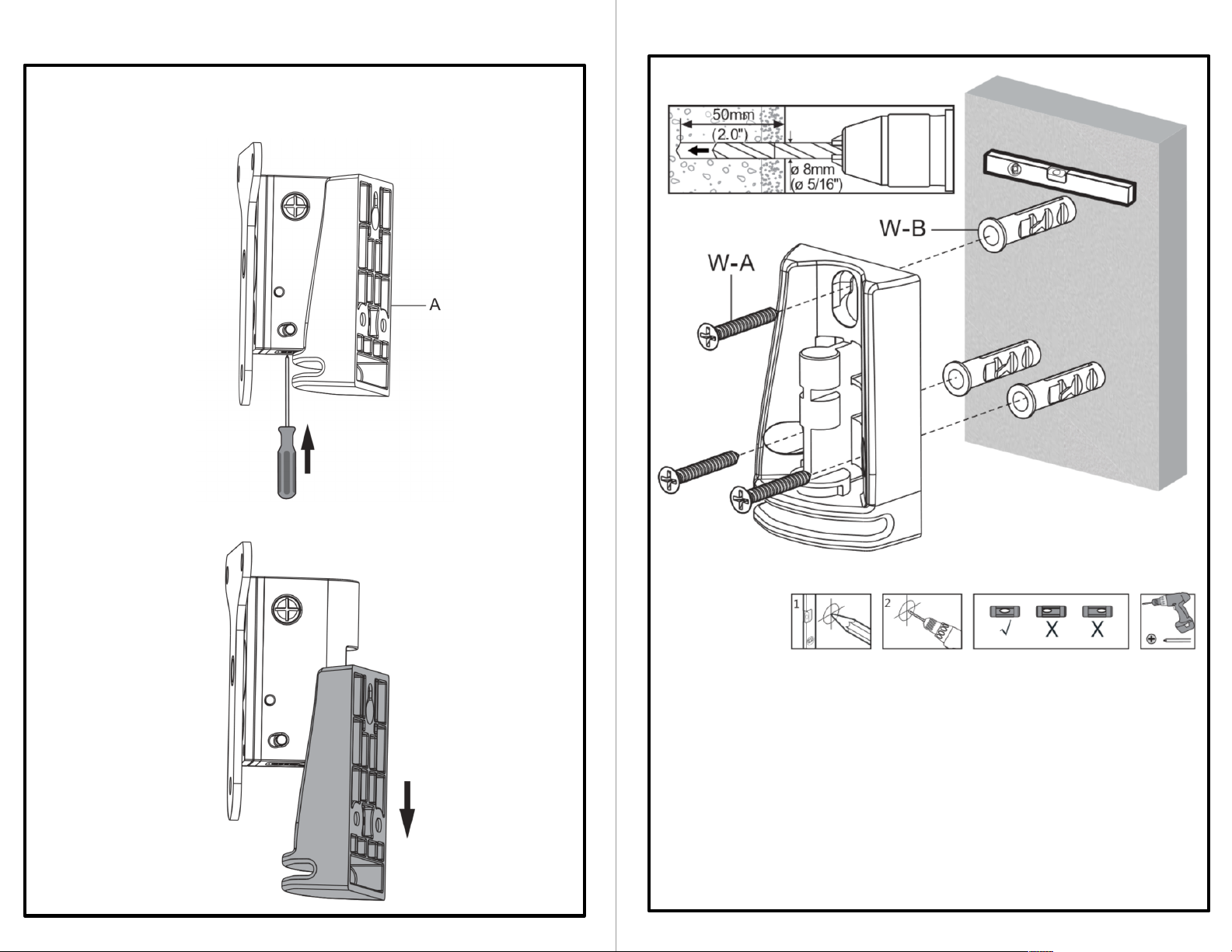

Use screwdriver to release the latch and separate the wall mount (A)

from the support bracket.

Sep 2

Using the wall mount (A) as a template, mark drilling locations on wall

with a pencil. Use of a level is recommended.

Opion A Woo Wa Insaaion

For wood stud installation, drill 2” ( 0mm) deep holes using a 1/8”

(3mm) drill bit and secure wall mount (A) using screws (W-A).

Opion B Concee/Bick Wa Insaaion

For concrete/brick installation, drill 2.2” ( mm) deep holes using a

/16” (8mm) drill bit and secure wall mount (A) using screws (W-A)

and anchors (W-B).

Sep 4

Slide the support bracket with speaker onto the wall mount (A) until it

clicks into place.

Sep 5

Adjust tilt and swivel as desired.

Sep 

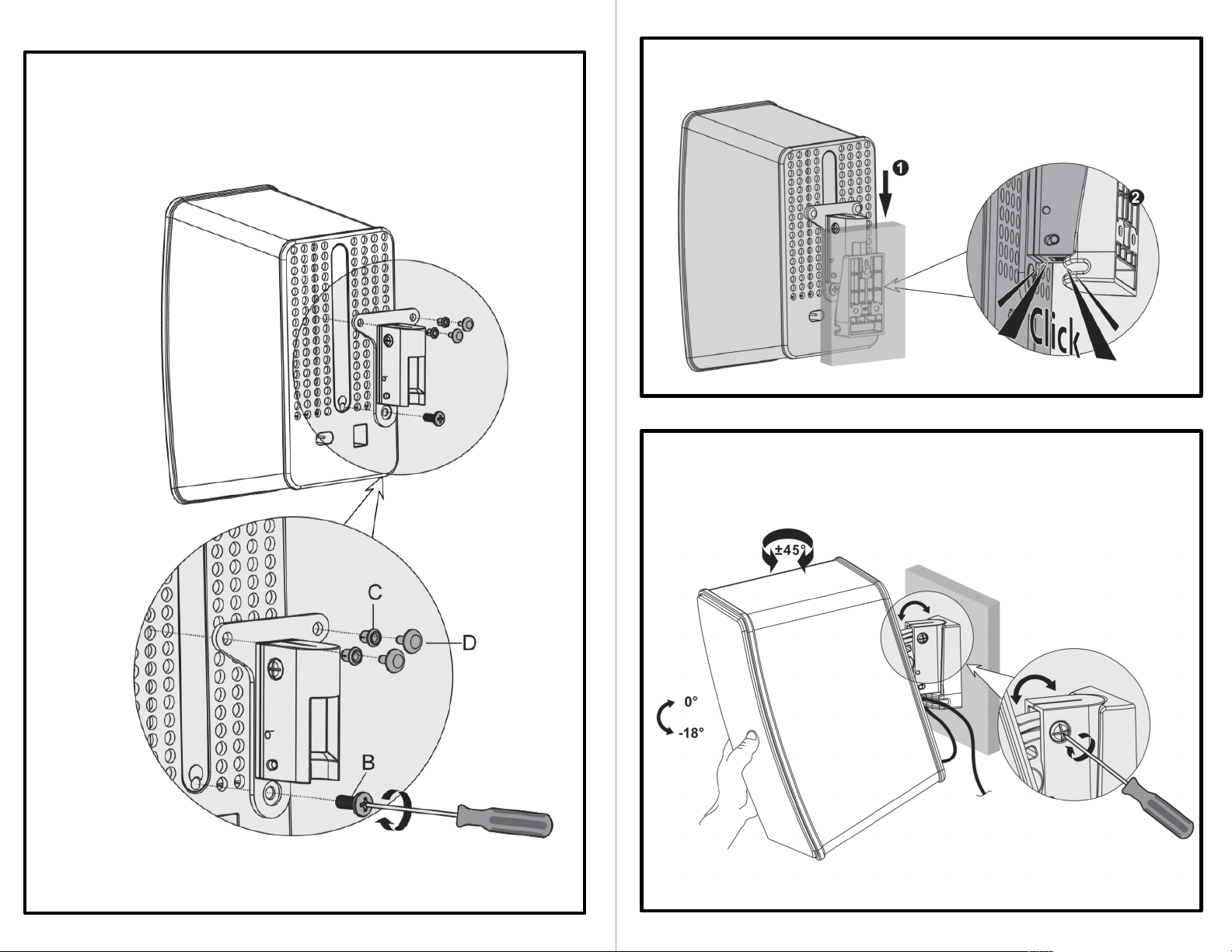

Attach support bracket to Sonos PLAY 1 speaker using bolt (B) and

push pin system (C+D).

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by incorrect

assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

Safey Waning

Conac us a

Last updated: 06/0 /18

Sep 6

Rotate speaker as desired.
