Vivo MOUNT-E-MT100 Bedienungsanleitung
Electric TV Wall Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-e-mt100
SKU: MOUNT-E-MT100
2
PACKAGE CONTENTS
110lbs
(49.90kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
A (x1)
Level
B(x2)
M6x80
C(x2)
M5x10
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
D(x2)
Stopper
E (x1)
Allen Wrench
F (x4)
M6x12
G (x4)
M6x25
H(x4)
M8x12
I(x4)
M8x25
J(x4)
Washer
K (x4)
Spacer
L (x4)
M8x63.5 and
M8 Washer
M (x4)
Anchor
N(x8)
M8x10
AA (x1)
Wallboard
Plate
BB (x2)
VESA Bracket
CC (x2)
Wallboard
Bracket
DD (x1)
Beam
EE (x1)
Motorized Arm
FF (x2)
Wallboard
Cover
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3
PRE-ASSEMBLY
STEP 1
Temperature at the front edge of mantel should
never exceed 110°F (43°C).
STEP 2
If the main wall is wood frame, the spacing
between the studs center must be no more than
16.5” (42cm) if there is no center stud. The wall
covering (such as plaster or drywall) must be
no more than 5/8” (16mm) thick, and the wall
covering alone must never be used to support
the mount. All mounting screws must be secured
into a wood stud for proper support. NOTE: “CL”
= center line
STEP 3
Mantel must not extend from mounting surface
more than 14 inches.
110°F
MAX.
C
L
14 inches
MAXIMUM
If Mantle Extends: Wallboard Height Above Mantel:
< 8 inches 8 inches
8 - 10 inches 9 inches
10 -12 inches 10 inches
12 - 14 inches 11 inches
TOOLS NEEDED
3/8” Drill Bit Pencil
Phillips
Screwdriver
Drill 3/16” Drill Bit
Hammer Ruler Stud Finder
4
C
L
C
L
C
L
6mm(3/16”)
STEP 1
Measure the centerline of the mantel. Mark
with tape on the wall.
STEP 2
Locate studs using a stud finder and mark
locations with a pencil or marker. Make sure
markings are in line with the center of the
studs. Minimum stud spacing from, stud center
to stud center is 5”, and maximum spacing is
16.5”.
STEP 3
Please reference the table in Pre-Assembly for proper locations of mounting holes, making sure there
are no more than minor deviations from the diagram. Drill 2.7” (68mm) deep holes using a 3/16” (6mm)
drill bit. NOTE: Do not mount into drywall alone.
ASSEMBLY STEPS
`
i
Cutout shown
for reference
68mm
(2.7”)
6mm
(3/16”)
5
STEP 4
If the main wall is brick or concrete, plastic anchors (M) must be used. Please reference the table
in Pre-Assembly for proper locations of mounting holes, making sure there are no more than minor
deviations from the diagram. Drill 2.7” (68mm) deep holes using a 3/8” (10mm) drill bit, then press
plastic anchors into holes.
STEP 6
STEP 5
Assemble the Wallboard Brackets (CC) to the Wallboard Plate
(AA) using M8x10 Bolts (N), and tighten with Allen Wrench (E).
CUTAWAY VIEW
INCORRECT
CORRECT
wall plate
plaster/
drywall
concrete
wall plate concrete
plaster/
drywall
CAUTION
Do not drill into mortar joints!
`
i
10mm(3/8”)
M
10mm
(3/8”)
In order to have a better installa-
tion,it is necessary to inlay one
wire cassette on the wall.
Refer
to S3 for the location
68mm
(2.7”)
Mount assembled Wallboard with M8x63.5 Bolts + M8 Washers (L), using Level (A) to ensure Wallboard
is perfectly level.
A
6
STEP 7
Mount Motorized Arm (EE) to Wallboard using
M8x10 Bolts (N), and tighten with the Allen
Wrench (E).
STEP 10
Hang TV with VESA Brackets over Beam. Flip lower hooks on VESA Brackets up, and secure with M5x10
Bolts (C).
STEP 9
Mount VESA Brackets (BB) to TV.
For Flat Back TVs, use M6 Bolts (F) with Washers (J)
or M8 Bolts (H) .
For Curved or Recessed back TVs, use M6 Bolts
(G) with Washers (J) and Spacers (K) or M8 Bolts (I)
with Spacers (K).
STEP 8
Assemble Beam (DD) to Motorized Arm using
M6x80 Bolts (B) and tighten with the Allen
Wrench (E). Insert Stoppers (D) into ends
of Beam. Slide Wallboard Covers (FF) onto
Wallboard.
E
7
STEP 11

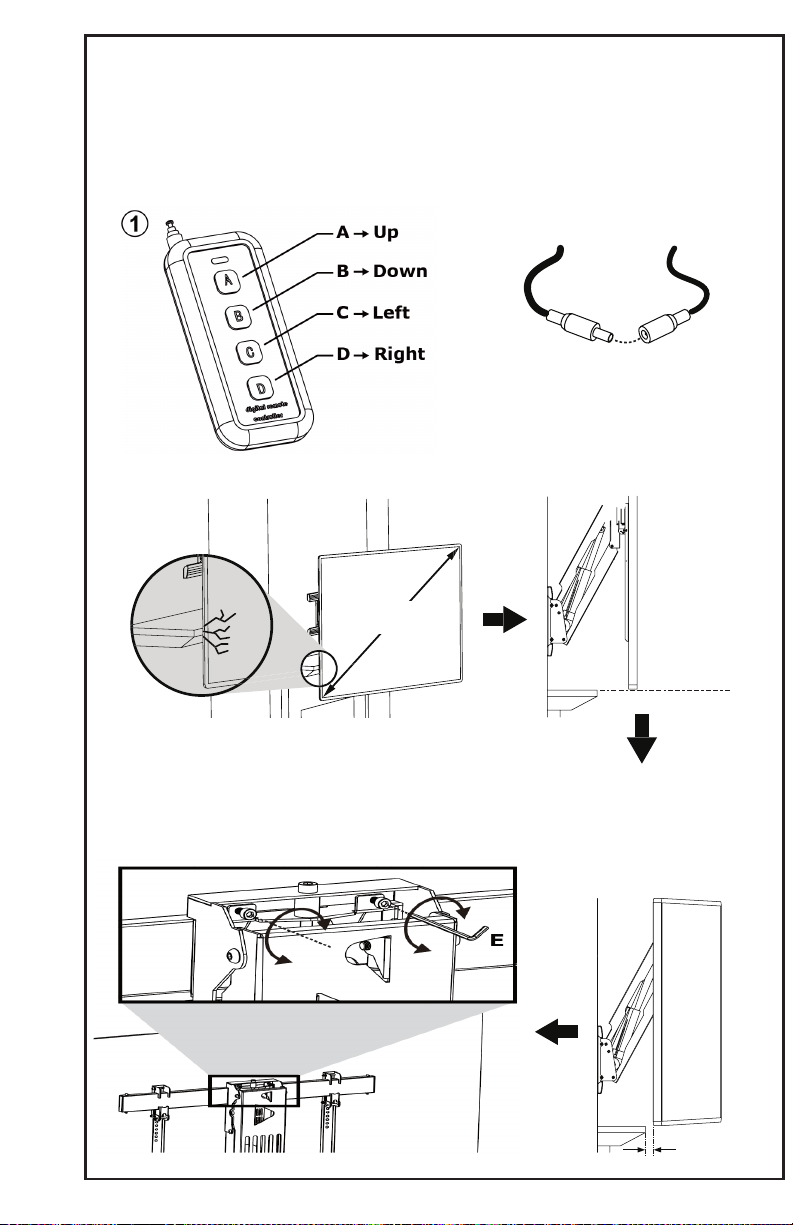

Plug the connected power adapter into the wall, then operate the mount using the included Remote.
“A” raises the TV, “B” lowers the TV, “C” swivels the TV to the le, and “D” swivels the TV to the right.
If needed, adjust the swivel motion limit as shown using the Allen Wrench (E). Tighten the screws to
reduce swivel motion limit, and loosen the screws to increase the limit.
NOTE: The best control distance is 3.28 to 22.97 feet (1m to 7m).
safe distance 2’’
NOTE: Make sure the TV will avoid impact
when swiveling side to side.
LEVEL
LAST UPDATED: 10/11/2019
Open Monday-Friday from 7:00am-7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times.
If any parts are received damaged or defective, please contact us.
We are happy to replace parts to ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
www.vivo-us.com
309-278-5303
AVG. RESPONSE TIME (within oice hrs): 1HR 8M
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
AVG. RESOLUTION TIME (within oice hrs): < 15 M
