Vivo MOUNT-E-UP65A/AW Bedienungsanleitung

Motorized TV Stand with Remote Control

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-e-up65a

SKU: MOUNT-E-UP65A/AW

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please contact our product support team at 309-278-5303 or [email protected]om for further assistance.

Check carefully to make sure there are no missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this

manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper

mounting, incorrect assembly or inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

132 lbs

(60 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PACKAGE CONTENTS

A (x1)

Motorized Li

E (x1)

TV Bracket

I (x1)

Adapter Cover

J (x1)

Power Cable

K (x1)

Remote

S-A (x16)

ST5.5x16mm

Screw

M-A (x4)

M6x14mm

Screw

M-B (x4)

M8x16mm

Screw

M-C (x4)

M6x30mm

Screw

M-D (x4)

M8x35mm

Screw

M-E (x4)

M8 Washer

M-F (x4)

Small Spacer

M-G (x4)

Large Spacer

T-A (x1)

4mm Allen

Wrench

T-B (x1)

6mm Allen

Wrench

T-C (x1)

17mm Wrench

S-B (x2)

ST4.2x20mm

Screw

S-C (x12)

M6x12mm

Screw

S-D (x4)

M10x20mm

Screw

S-E (x4)

M10 Nut

F (x2)

VESA Bracket

G (x1)

Control Unit

H (x1)

AC Adapter

B (x1)

Mounting

Plate

C (x2)

Shelf Support

D (x1)

Shelf

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

TOOLS NEEDED

Phillips

Screwdriver

PRE-ASSEMBLY

When fabricating custom cabinetry for your motorized TV mount, ensure there will be at least 50mm

of clearance on the sides and front of the TV along with at least 10mm of clearance on the top.

Building or Selecting a Custom Cabinet

ASSEMBLY STEPS

Connect cable from Motorized Li (A) to Control Unit (G). Place AC Adapter Cover (I) over

AC Adapter (H). Connect Control Unit (G) cable and Power Cable (J) to AC Adapter (H).

STEP 1

STEP 2

Slide Mounting Plate (B) onto Motorized Li (A) and secure using M6x12mm Screws (S-C) and

4mm Allen Wrench (T-A) . Connect Shelf Supports (C) to the sides of Motorized Li (A) using

M6x12mm Screws (S-C) and 4mm Allen Wrench (T-A). Attach Shelf (D) to top of Shelf Supports

T-A

S-C S-C

S-C

Attach Shelf (D) to top of Shelf Supports (C) using M6x12mm Screws (S-C) and 4mm Allen

Wrench (T-A).

STEP 3

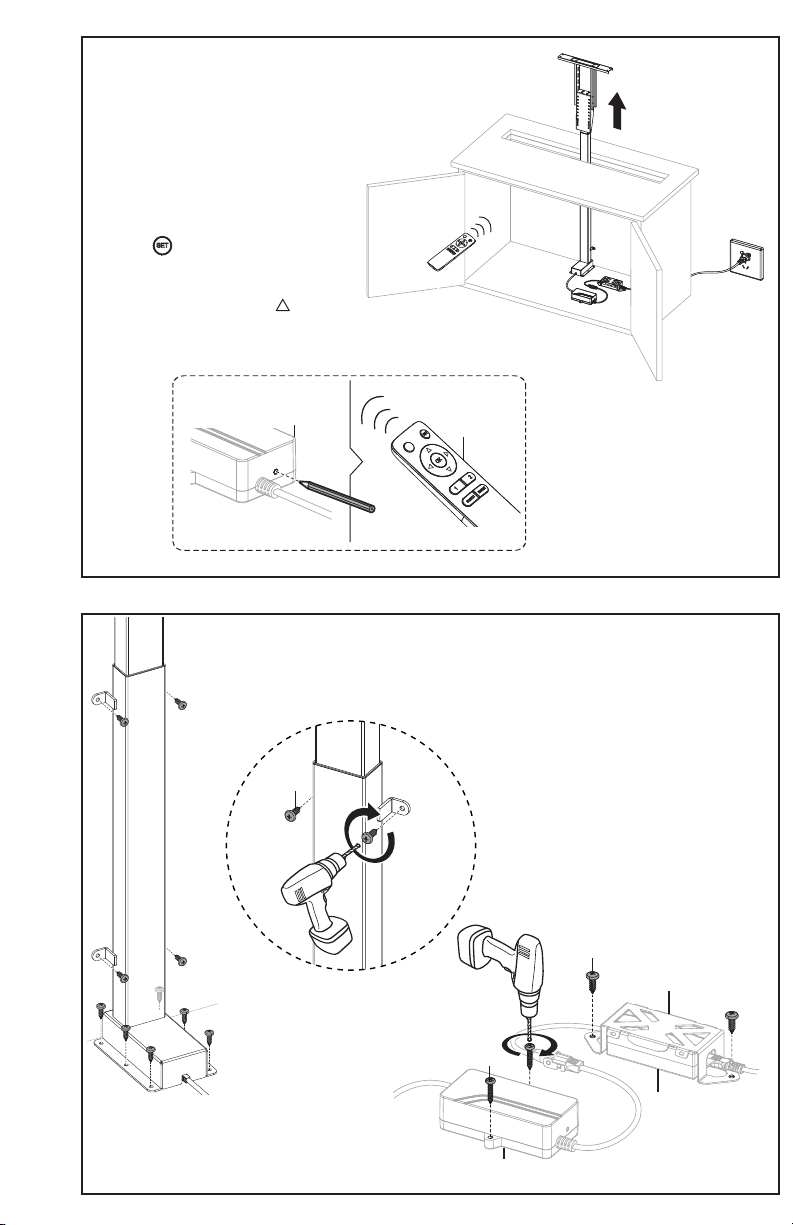

Place the li assembly inside of your

custom cabinetry and plug into nearby

outlet.

Press the side button on Control Unit

(G) using a pencil or small tool. The

li will beep once, indicating the li

is ready to be paired with the Remote

(K).

Press the button on the remote.

Remote will beep for 10 seconds, and

then emit one final beep to indicate

successful paring. Press the arrow to

raise the li.

STEP 4

Secure li assembly to inside of cabinet by installing ST5.5x16mm Screws (S-A)

into the tabs on li using a drill. Secure Control Unit (G) and AC Adapter with

Cover (H, I) using ST4.2x20mm Screws (S-B) and ST5.5x16mm Screws (S-A) and

a drill.

S-A

S-B

STEP 5

Attach TV Bracket (E) to Mounting Plate (B) using M10x20mm Screws (S-D), M10 Nuts (S-E), 6mm

Allen Wrench (T-B), and 17mm Wrench (T-C).

Secure custom cabinet cutout to Shelf (D) using ST5.5x16mm Screws (S-A) and a drill.

T-B

S-E

T-C

S-D

S-A

STEP 6

STEP 7

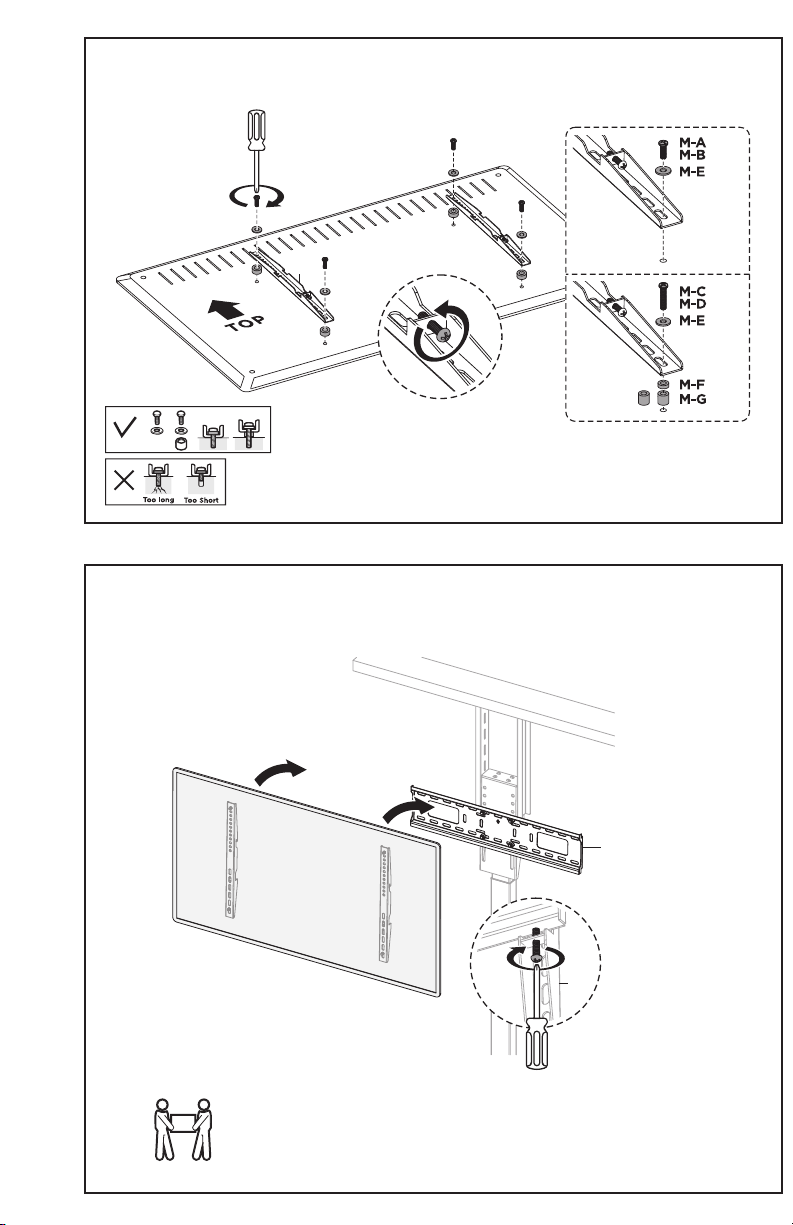

Install VESA Brackets (F) to TV using appropriate Screws (M-A, M-B, M-C, M-D), M8 Washers (M-E),

Spacers (M-F, M-G) and a Phillips screwdriver.

Place TV with VESA Brackets (F) onto TV Bracket (E). Tighten set screw on VESA Brackets (F) with

Phillips screwdriver to secure.

NOTE:

For heavier TV’s, it is recommended to have a

second person assist with placing the TV.

STEP 8

Motorized li is now ready for use.
