Vivotek IP8152 Bedienungsanleitung
Keep the Network Camera away
from water. If the Network Camera
becomes wet, power off immediately.
Refer to your user's manual for the
operating temperature.
Power off the Network Camera as
soon as smoke or unusual odors are
detected.
Do not place the Network Camera
around heat sources, such as a
television or oven.
Keep the Network Camera away from
direct sunlight.
Do not place the Network Camera in
high humidity environments.
Warning Before Installation
Do not place the Network Camera on
unsteady surfaces.
Do not touch the Network Camera
during a lightning storm.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
1Package Contents
IP8152 CS-mount Lens
Camera Stand
Quick Installation Guide
Warranty Card
Software CD
5
1
0
0
0
0
2
2
1
G
L-type Hex Key Wrench Screws
EN - 2
2Physical Description
Ethernet 10/100
RJ45 Socket
Recessed Reset Button
General I/O Terminal
Block
Front Panel
Rear Panel
Lens
Focus Controller
Zoom Controller
Status LED
MicroSD/
SDHC/
SDXC
Card Slot
Lens
Iris Control Cable Socket
1 2 3 4 5 6 7
GND
DI
RS485_N
RS485_P
GND_AUDIO
MIC_IN
AUDIO_OUT
Mounting Hole
Mount ring
adjustment
EN - 3
English
1. Mount the lens by turning it clockwise onto the camera mount until it stops.
2. Connect the iris control cable to the socket. Connect the iris control cable before
power-on. Otherwise, you will not be able to access the exposure related
settings.
3Mounting the Lens to the Camera
2
1
4Mounting the Camera to Stand
1. Use the holes on the camera stand to mark drill holes on the wall. Drill holes on your
preferred location.
2. Hammer in the included plastic anchors.
3. Install the camera stand to wall or ceiling
by driving screws through it.
4. Attach the camera to stand by turning
the stand and the fastening rings.
EN - 4
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
Non-PoE Switch
PoE Power Injector
(optional)

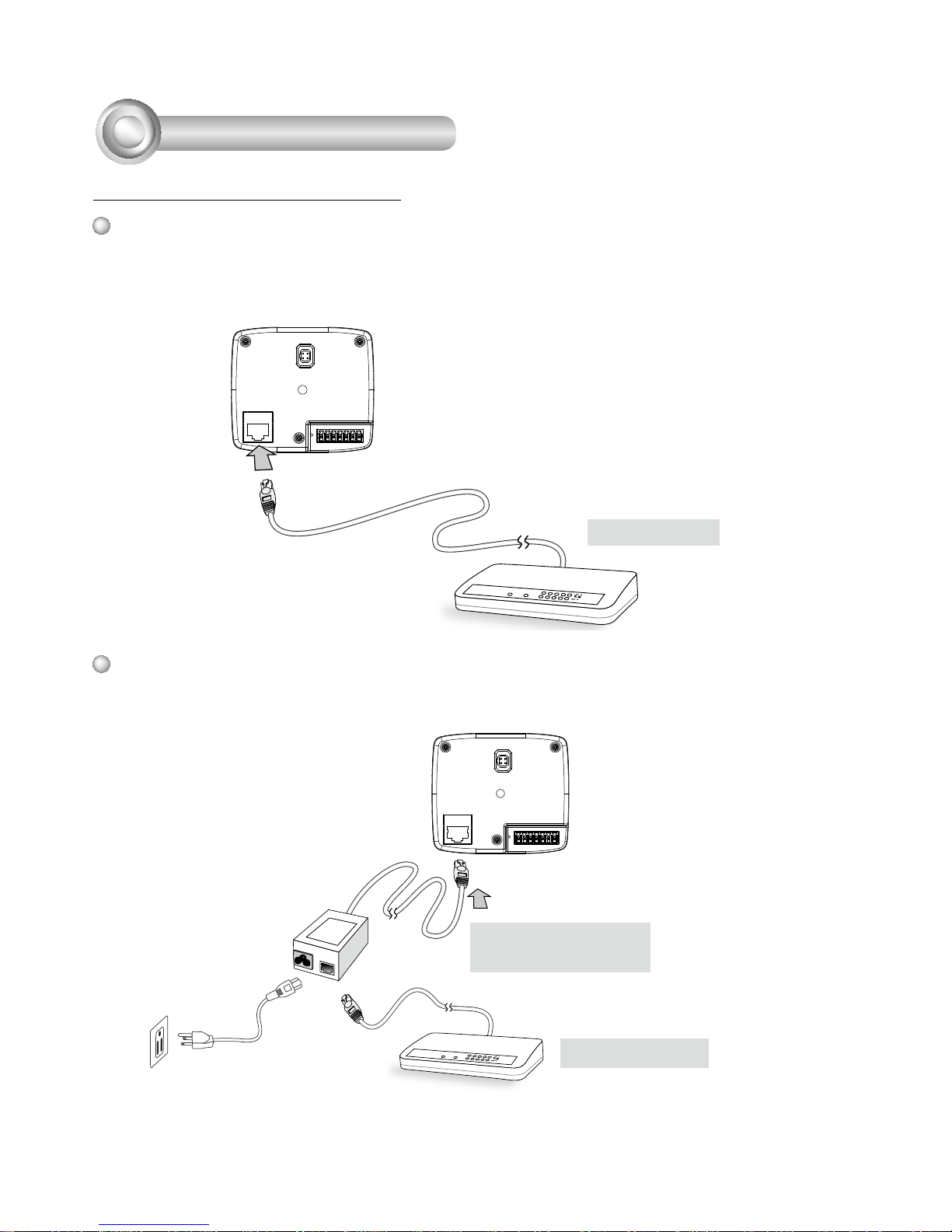

5Network Deployment
Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via
a single Ethernet cable. Follow the below illustration to connect the Network Camera
to a PoE-enabled switch via Ethernet cable.
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
PoE Switch
EN - 5
English
For further setup, please refer to the user’s manual on the software CD.
Ready to Use
7
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the
32-channel recording software from the software CD in a deployment consisting of
multiple cameras. For its installation details, please refer to its related documents.
6Assigning an IP Address
1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network
is analyzed, please click on the "Next" button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After a brief search, the main installer window will pop up. Double-click on the MAC
address that matches the one printed on the camera label or the S/N number on the
package box label to open a browser management session with the Network Camera.
EN - 6
If you prefer other lens for your IP8152, please notice the specications below.
1. If you select a different lens, the distance between the ange of the lens and the IR
cut lter on the camera should be smaller than 7.5mm. If the lens protrudes too much
from the bottom of the lens module, it may hit the IR Cut Filter, or result in out of focus
when adjusting the focus controller.
2. A vari-focal lens may protrude from the bottom of screw mount when tuning the focus
puller.
IR Cut
Filter
NOTE:
mm
3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the
zoom controller.
4. Unscrew the focus controller to adjust the focus range. Upon completion, tighten the
focus controller.
N
3
4W
∞
T
Lens
protrudes from
the screw
mount
Screw mount
3. Use the included hex wrench to make adjustments to CS-mount ring only when you
experience compatibility issue with lens focal length.
