VMP C-13B Bedienungsanleitung

For more information, please contact us at:

325 Log Canoe Circle, Stevensville, Maryland 21666

(T) 410.643.6390 / (F) 410.643.6615

www.videomount.com

VIDEO MOUNT PRODUCTS

Instruction Sheet For:

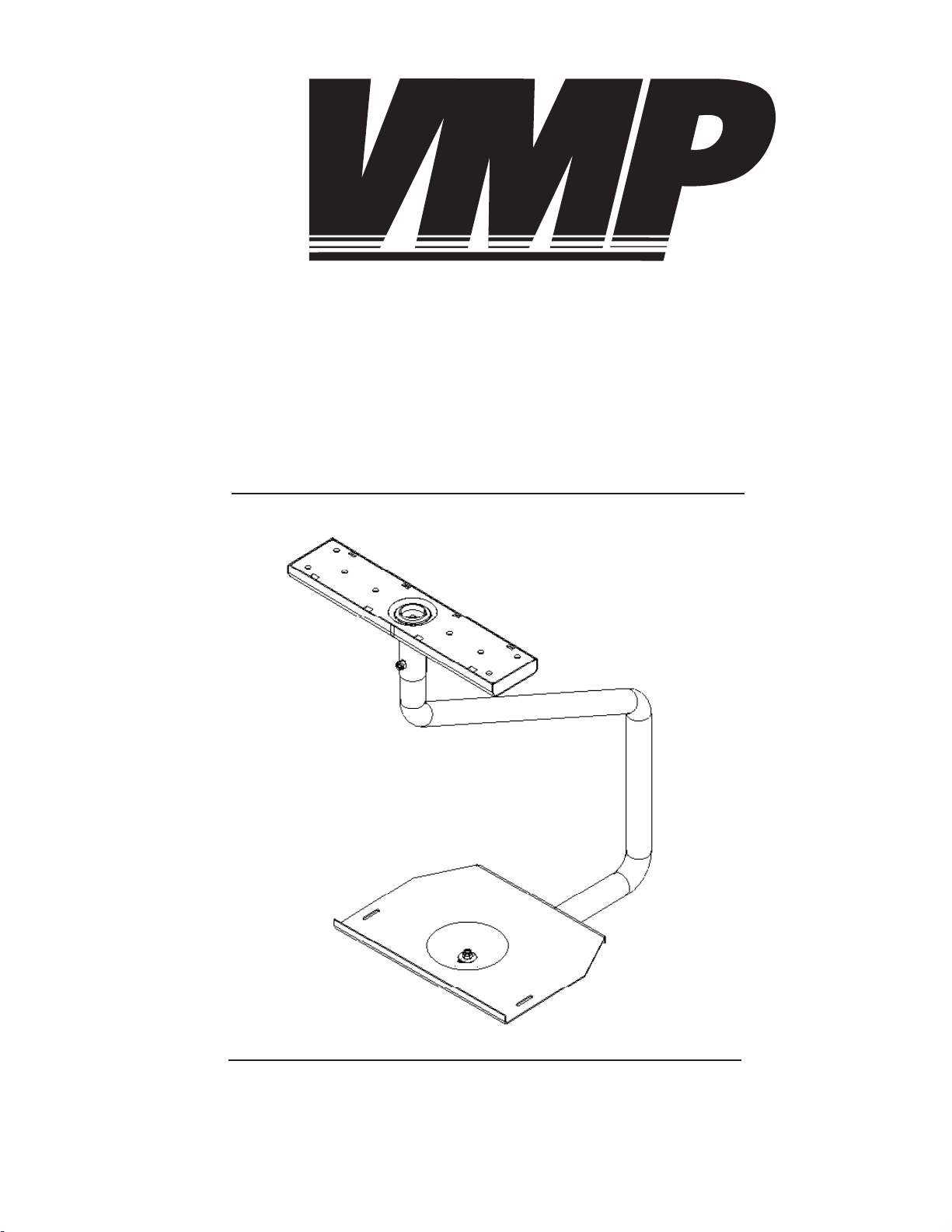

C-13B & C-13W

Step 1

Before starting, lay out all parts to your mount and match them to

the parts list provided. Verify that you have all your parts before at-

tempting to assemble the mount.

Note: Parts 12 and 15 will not be used in this assembly.

Step 2

Insert the ceiling tube into the center hole of the ceiling plate

. Mark the ceiling or desired mounting surface in preparation of

installation of ceiling plate . Pre-drill if necessary and mount the

ceiling plate to desired surface.

Warning: Please verify that your mounting surface will support the

combined weight of your mount, mounting hardware, and moni-

tor. Also verify that the mounting surface is safe to drill through. If in

doubt, please contact a professional installer.

Step 3

Attach the plastic connector to the support tube using the

M5 screw .

Step 4

Insert the longer 5/16” screw up through the bottom of the sup-

port tube so it comes out the top of the plastic connector .

Place the platform onto the 5/16” screw and secure the

platform using the washer and nylon nut . Attach the plastic

swivel to the plastic connector .

Step 5

Attach the support tube to the ceiling tube using the shorter

5/16” screw and nylon nut .

Step 6

Snap both halves of the plastic cover onto the ceiling plate .

Please verify that all nuts and screws are securely tightened. After doing

so, place the TV on the platform and use the safety strap by insert-

ing the end without the grip through the slot on either side of the platform

going over your TV through the other slot in the platform and wrap-

ping under the platform and cinching the strap tight.

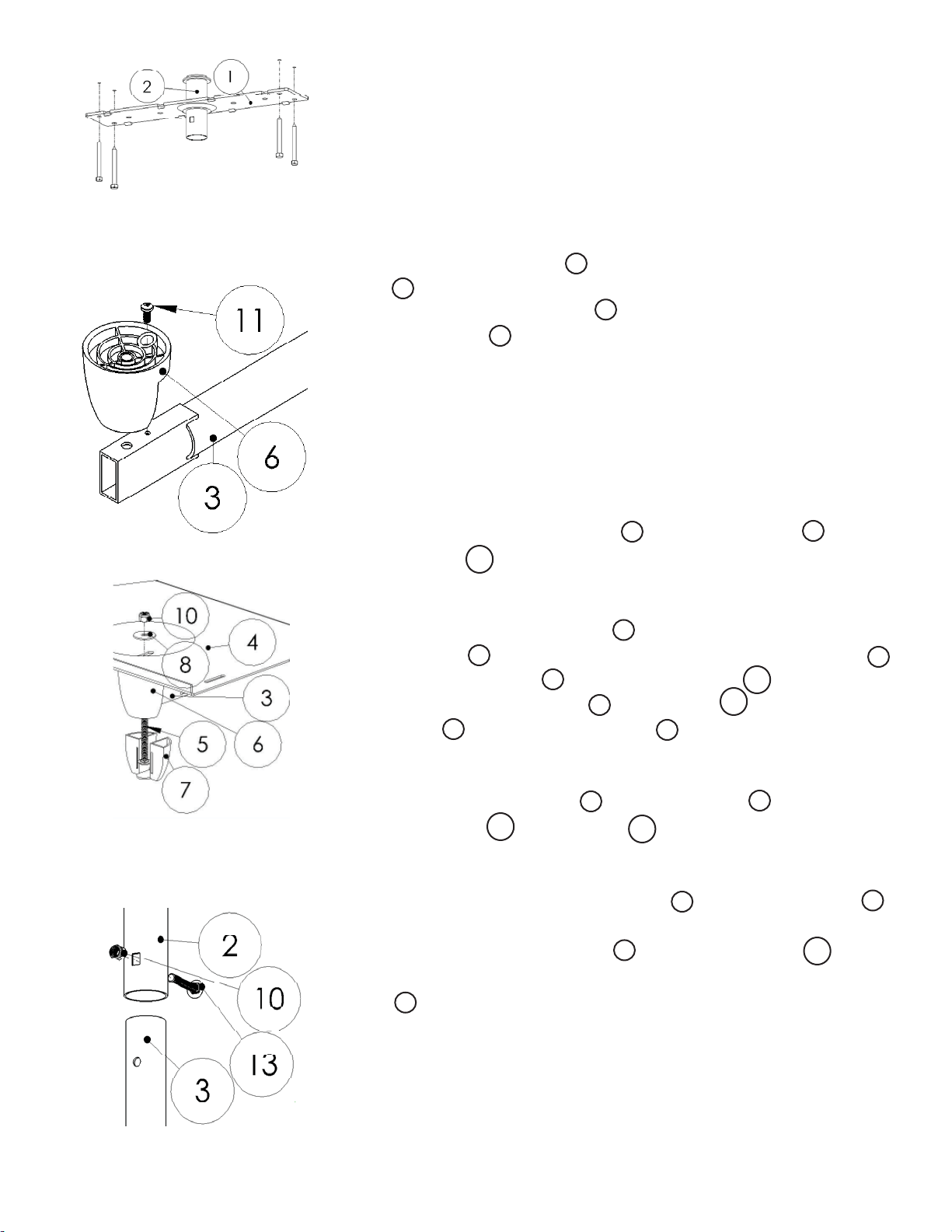

Step 2: Attaching the ceiling plate to the

ceiling (Lag screws are not included)

Step 3: Attaching the plastic connector

2

Step 5 : Attaching the support

tube to the ceiling tube

11

1

63

11

46

3

5

10 11

8

6

7

32

10

13

WARNING: The installer of these products must verify that the mount-

ing surface, ceiling or wall, will safely support the combined weight

of all attached equipment and hardware. Video Mount roducts will

not be held liable for the improper use or installation of its products.

Enjoy Your Mount!

Step 4: Attaching the platform

4

4

1

9

14
