VMP LCD-FT Bedienungsanleitung

For more information, please contact us at:

325 Log Canoe Circle, Stevensville, Maryland 21666

(T) 410.643.6390 / (F) 410.643.6615

www.videomount.com

VIDEO MOUNT PRODUCTS

Instruction Sheet For:

LCD-FT & LCD-FTB

Step1

Before starting, lay out all parts to your mount and match them to the

parts list provided. Verify that you have all your parts before attempt-

ing to assemble the mount.

Step 2

Mark the wall or desired mounting surface in preparation of installa-

tion of wall plate . Pre-drill if necessary and mount wall plate to

desired surface. Make sure the mounting hardware just loose enough

that you can slide the LCD-FT out using the keyhole slots cut into the

wall plate . Warning: Please verify that your mounting surface will

support the combined weight of your mount, mounting hardware, and

monitor. Also verify that the mounting surface is safe to drill through. If

in doubt, please contact a professional installer.

Step 3

Take the LCD-FT off the wall by sliding the mount up until you can use

the keyholes to free the wall plate of the mounting hardware. Then

mount the mounting plate to the back of the monitor using the M4

or M5 screws provided with the LCD-FT. Note: Make sure the top

of the keyholes are pointing to the top of the monitor. Place the LCD-FT

back on the wall using the keyholes slots.

Step 4

To adjust tilt adjustment tension simple take a Philips head screw driv-

er and tighten or loosen the top M6 screw on each side to desired

tension.

Please verify that all nuts and screws are securely tightened.

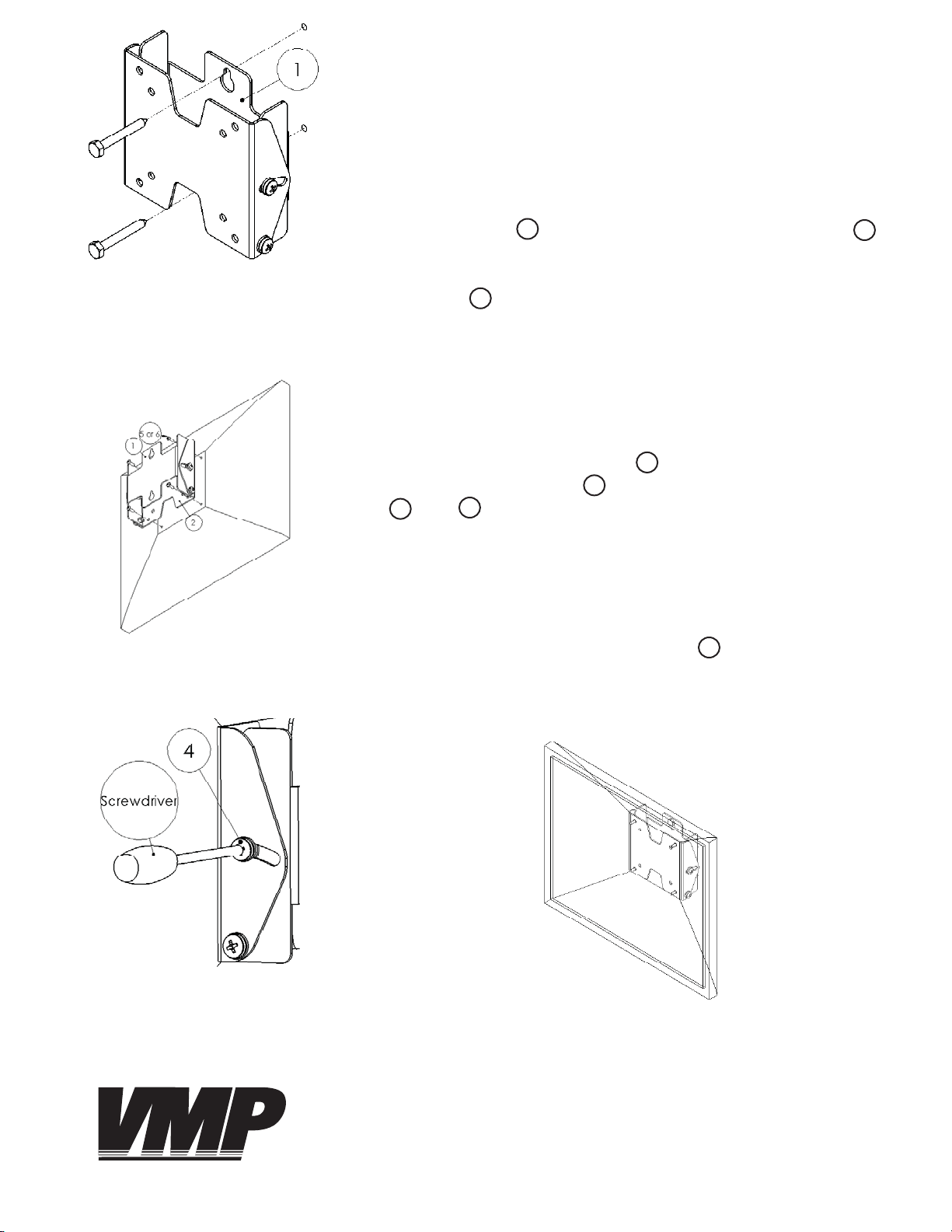

Step 2: Attaching the wall

plate to the wall

(Lag screws are not included)

Step 3: Attaching your monitor

to a mounting plate

VIDEO MOUNT PRODUCTS

Step 4: Adjusting the tilt

adjustment tension

WARNING: The installer of these products must verify that the mount-

ing surface, ceiling or wall, will safely support the combined weight

of all attached equipment and hardware. Video Mount roducts will

not be held liable for the improper use or installation of its products.

Enjoy Your Mount!
