Volt VPL- 398 Bedienungsanleitung

VOLT®Low Voltage Landscape Lighting

VOLT®Innovator Top Dog Mini Path & Area Light

VPL- 398

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Innovator Top Dog Mini Path & Area Light

VPL- 398

Important: Please Read Before Installation

IMPORTANT SAFETY INSTRUCTIONS

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes and the

National Electric Code (NEC). Failure to adhere to these codes and instructions

may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transformer)

rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that is suitable for

outdoor use.

5. Position the low voltage wire and wire connector so that it is located within 6

inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6 inches

(152 mm)

7. If additional lengths of low voltage cable is required, please contact www.

voltlighting.com or call 1-813-978-3700.inches (152 mm)

8. If additional lengths of low voltage cable is required, please contact www.

voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damage shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com

A. (1) Luminaire

B. (1) Inner Shield

C. (1) Outer Shield

D. (1) Set Screw

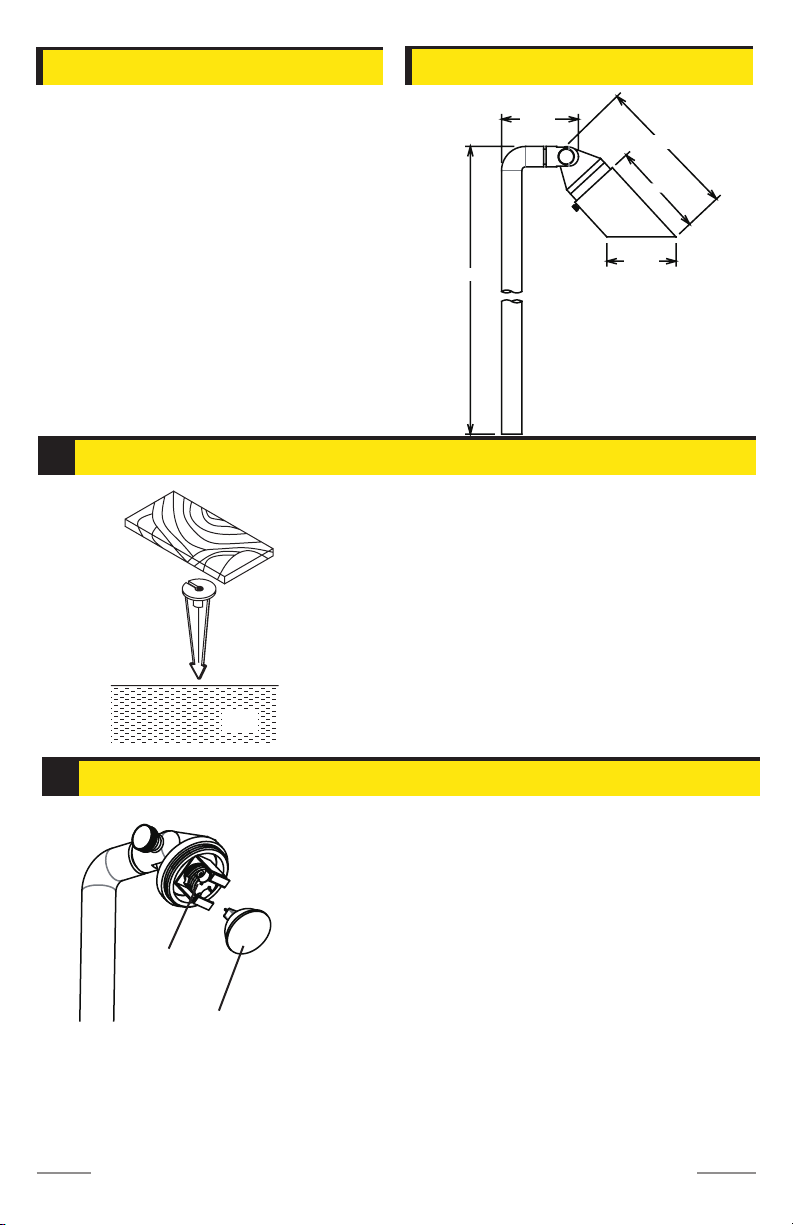

Install Stake

[email protected] • 813.978.3700

Determine the desired location for mounting

the luminaire. Hammer the stake into the

ground until ange of stake is ush to grade.

To avoid damage to the stake, place a board

on top of the stake while hammering.

NOTE: If the ground is hard and the stake

is difcult to install, make a crosscut in the

ground using a at shovel.

Insert the lamp (sold separately), with the

correct wattage and type as marked on the

luminaire label.

CAUTION: Do not exceed maximum wattage

marked on luminaire label.

NOTE: DO NOT TOUCH halogen lamp with

bare hands. Use soft cloth to handle lamp.

Not for use with the VOLT® LED Bi-Pin Lamp.

Install Lamp

23”

1.65”

3 1/4”

Board

Stake

Lamp

Soil

Ground

Socket

Product Dimensions

Package Contents

3.37”- 4.72”

2.94”

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Innovator Top Dog Mini Path & Area Light

VPL- 398

Install Inner Shield

Install Outer Shield

Screw the inner shield onto the

luminaire and hand tighten until snug.

Place the glare shield over the inner

shield and secure with the set screw.

Inner Shield

Glare Shield

Set Screw

Inner Shield

Luminaire

Install Luminaire to Stake

Clear away an area in the ground at

the wireway slot on top of the stake.

Lay the luminaire pigtail into the

wireway slot and screw the stem onto

the stake.

If the assembly does not look

straight, adjust by pushing or pulling

on the stake only.

Use a bubble level against the side

of the stem to ensure the stem is

perpendicular to the ground.

Pigtail

Stem

Stake

Wireway Slot

[email protected] • 813.978.3700

Wire Connections

Strip both of the leads from the luminaire pigtail. Using two wire

connectors (sold separately), connect the leads from the luminaire to

the main low voltage supply cable leads.

Luminaire Wires

Main Low Voltage

Supply Cable

Wire

Connectors

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Innovator Top Dog Mini Path & Area Light

VPL- 398

Adjust Angle of the Shield

Using a screwdriver, loosen the knuckle

set screw then move the shield to the

desired angle. Retighten the screw.

Maintenance – Install/Replace Lamp

Unscrew then remove the inner shield to expose the lamp. Replace it with

the correct wattage and type marked on the luminaire label. Reinstall the

inner shield.

IMPORTANT: Halogen lamps must be protected from moisture and dust at all

times. Always reinstall the shade and lens when moved.

Knuckle

Set Screw

Shield

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

is-VPL-398-ver3.pdf

is-VPL-398-ver3

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
