Volt VHS-6726-8-BRB Bedienungsanleitung

Specications and product details subject to change without notice.

served. [email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT® Low Voltage Landscape Lighting

VOLT® RGBW BuddyPro™ Brass LED Puck Light

VHS-6726-8-BRB

INSTALLATION INSTRUCTIONS

- 1 -

VOLT® RGBW BuddyPro™ Brass LED Puck Light

VHS-6726-8-BRB

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Important: Please Read Before Installation

IMPORTANT SAFETY INFORMATION

- 2 -

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes

and instructions may result in serious injury, property damage and void

the warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet

(3.05M) or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors

that are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than

6 inches (152 mm).

[email protected] • 813.978.3700

Package Contents

Product Dimensions

- 3 -

A. (1) Puck Light

Parts Required (Sold Separately)

A. (1) Transformer

1.5”

0.75”

*** NOTE***

PUCK LIGHT MUST BE MOUNTED IN AN INVERTED POSITION

- FACING DOWNWARD

Surface Mounted

Anchor (Optional)

Puck Light

SURFACE

Lock Screw

Attach the puck light to the at

surface (under railings, shelves,

counters, benches, or any other niche

location). Secure with lock screws.

Note: Wall anchors are required for

certain installation conditions (brick

and/or concrete surfaces). Place a

mark on the surface where the holes

are located on the puck light. Remove

the puck light and drill proper holes

on the at surface, then insert the

anchors.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 4 -

VOLT® RGBW BuddyPro™ Brass LED Puck Light

VHS-6726-8-BRB

Recessed Mounted

1.5”D Hole

Lock Screw

Using a 1.5” core drill bit, drill a hole

in the desired at surface. Attach the

puck light into the drilled hole and

secure with lock screws.

Note: Wall anchors are required for

certain installation conditions (brick

and/or concrete surfaces). Place a

mark on the surface where the holes

are located on the puck light. Remove

the puck light and drill proper holes

on the at surface, then insert the

anchors.

Puck Light

Anchor (Optional)

SURFACE

Wire Connections

Lay the supply cable out from the transformer. Strip both leads from

the luminaire pigtail. Connect the leads from the luminaire supply

cable to the transformer (sold separately).

Pigtail

Transformer

(Sold Separately)

Supply Cable

Puck Light

[email protected] • 813.978.3700

- 5 -

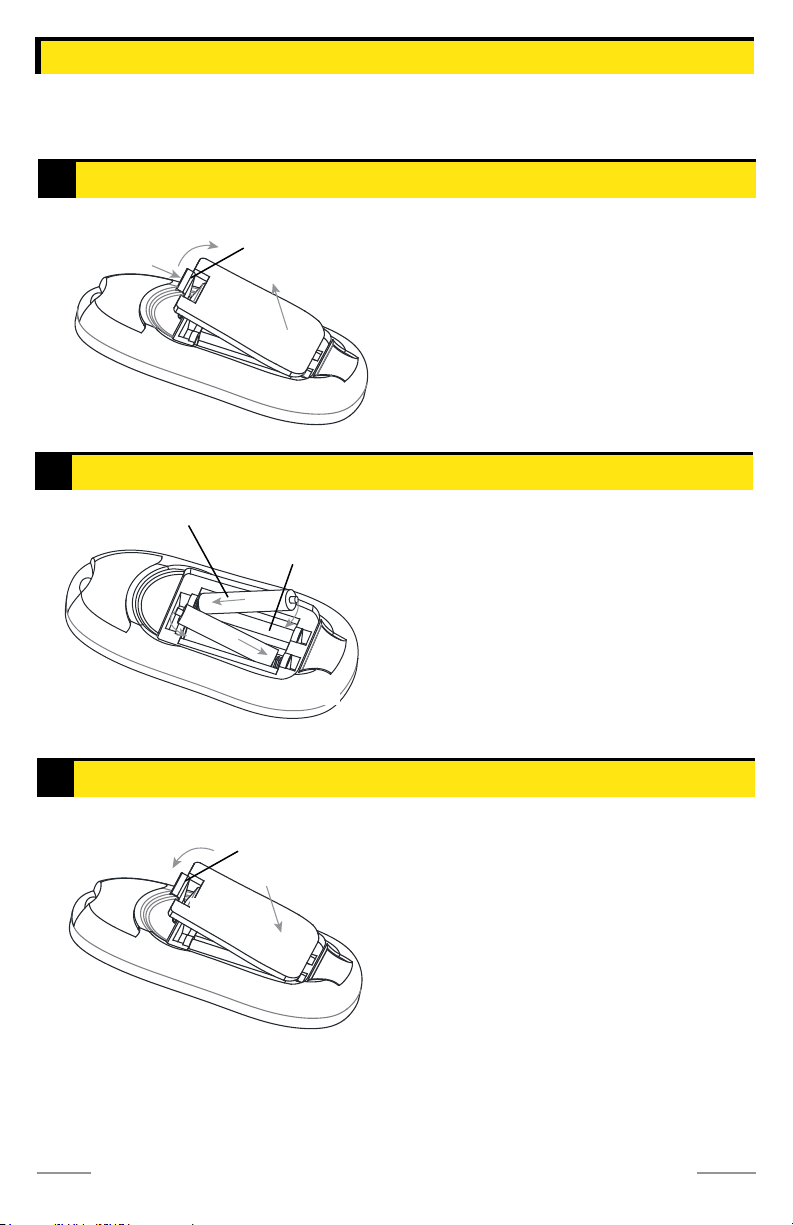

IR Remote (Optional)

An IR Remote is optional for this xture. The IR remote requires two AAA

batteries.

Remove the Battery compartment Cover

Press the tab and lift the battery

compartment cover to remove it

from the IR Remote.

Ta b

Cover

Backing

IR Remote

Install Two AAA Batteries

Place two AAA batteries into the

battery compartment properly.

AAA Battery Battery

Compartment

Backing

IR Remote

Install the Battery compartment Cover

2Place the battery compartment

cover back onto the IR Remote.

Ta b

Cover

Backing

IR Remote

www.voltlighting.com

- 6 -

IR Remote Functions

OFF ON

R B

FLASH

FADE

SMOOTH

STROBE

1. On

2. Off

3. Brightness Control

4. 16 color selections

5. Flash

A. Mode 1: Repeats Red,

Green, Blue + color cycle for

1 second duration of each of

the seven colors within this

mode.

A. Mode 2: Hit ash a second

time and this mode slowly

blends the same seven col-

ors from mode one, mixing

them together.

6. Strobe

A. Mode 1: Pick any color on the remote, then press strobe and that

color will strobe every second alternating between on and off.

A. Mode 2: Hit strobe a second time and this mode will strobe a

blended white color at the same speed as before.

7. Fade

A. Mode 1: Pick any color on the remote, then press fade and that

color will slowly fade on and off every second.

A. Mode 2: Hit fade a second time and it will fade a blended white

color on and off at the same speed as before.

8. Smooth

A. Mode 1: Repeats a ash cycle of Red, Green, and Blue only.

A. Mode 2: Hit smooth a second time and this mode slowly blends

Red, Green, and Blue only; on and off at the same speed.

[email protected] • 813.978.3700

- 7 -

IS-VHS-6726-8-BRB-ver1.pdf

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 8 -
