Volt VWL-510 Series Bedienungsanleitung

VOLT®Low Voltage Landscape Lighting

VOLT® Articulator Cast Brass Integrated LED In-Ground

Well Light

VWL-510 Series

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT® Articulator Cast Brass Integrated LED In-Ground

Well Light

VWL-510 Series

Important Safety Instructions: Read Before Installation

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. Warning: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that is suitable

for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire, or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm)

7. If additional lengths of low voltage cable is required, please contact

www.voltlighting.com or call 1-813-978-3700.

www.voltlighting.com

SAVE THESE INSTRUCTIONS

Package Contents

Product Dimensions

A. (1) Luminaire

B. (1) PVC Tube

[email protected] • 813.978.3700

5.5”

6.3”

3”

0.7”

6.7”

Dig Hole

Dig a hole in the ground. Make sure

there are approximately 3” spaces

surrounding the PVC tube for pea

gravel or sand.

PVC Tube

Hole

Soil

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT® Articulator Cast Brass Integrated LED In-Ground

Well Light

VWL-510 Series

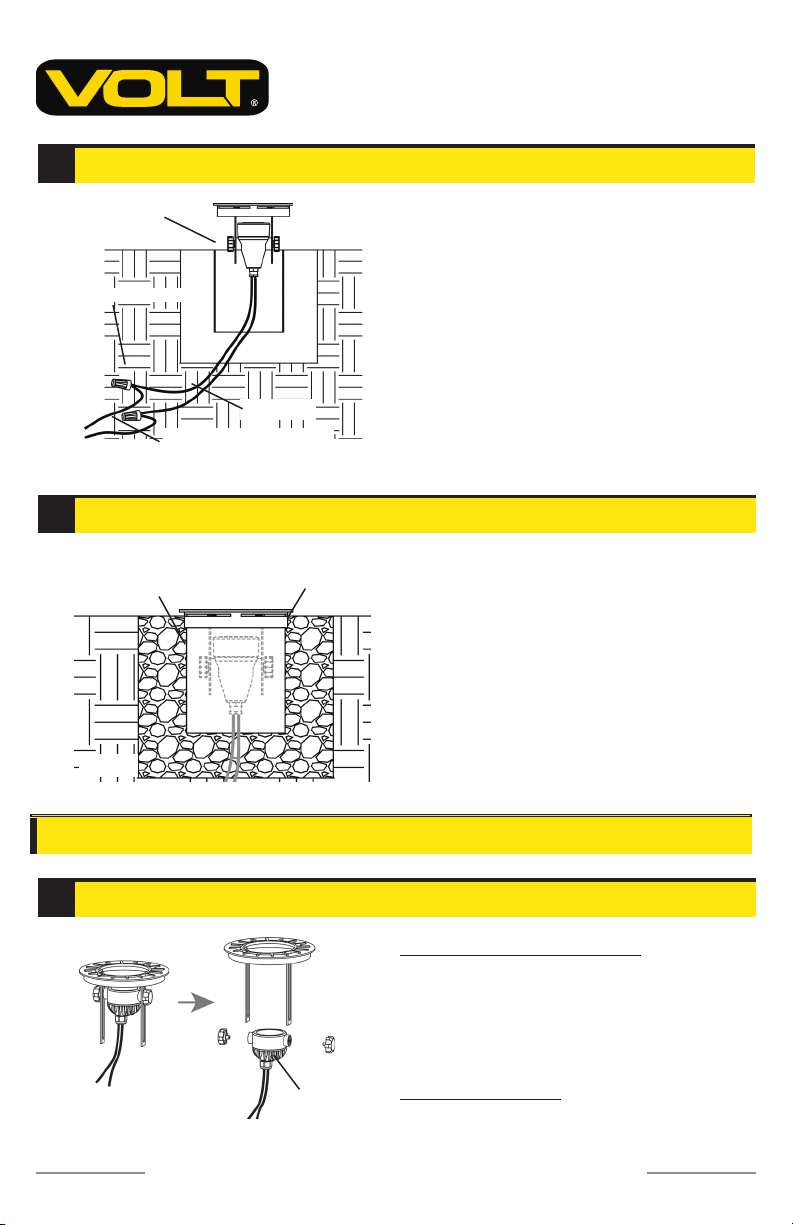

Place the luminaire into the PVC

tube. Pass the luminaire pigtail

through the PVC tube.

Strip both of the leads from the

luminaire pigtail. Using two wire

connectors (sold separately),

connect the leads from the luminaire

to the main low voltage supply cable

leads.

Wire Connection

Adjust Position of Light and Change Optics

Pigtail

Luminaire

PVC Tube

Wire Connector

Main Low Voltage

Supply Cable

Install the PVC tube with the

luminaire in the hole and ll the hole

with pea gravel or sand.

To Adjust Position of Light:

Loosen the knobs. Adjust the LED

housing to desired position. Tighten

the knobs, and place the luminaire

back into the PVC tube.

To Change Optics:

Loosen the knobs and remove the

LED housing from the holder.

Fill Pea Gravel or Sand

Remove Housing

Pea Gravel

or Sand

PVC Tube with

Luminaire

Grate

Knob

LED

Housing

Soil

[email protected] • 813.978.3700

Unscrew the cover and remove it

from the housing.

Remove Cover

Cover

Housing

Remove the screw cap at the center

of the optic. Unscrew the screw and

remove the optic from the luminaire.

Put a new optic into the luminaire.

Reverse steps 4 through 6 to reinstall

removed parts.

Replace Optic

Screw Cap

Optic

Housing

Screw

is-vwl-51023-ver3.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
