Volvo 31265663 Bedienungsanleitung
Instruction No Version Part. No.
31265459 1.4 31265663, 31265673, 31265668
Tow hitch, fixed
J8903199
Instruction No Version Part. No.
31265459 1.4 31265663, 31265673, 31265668
Tow hitch, fixed
J8903199
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 1 / 13
Equipment
A0000162 IMG-281883 IMG-239664 IMG-240693
IMG-261183
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 2 / 13

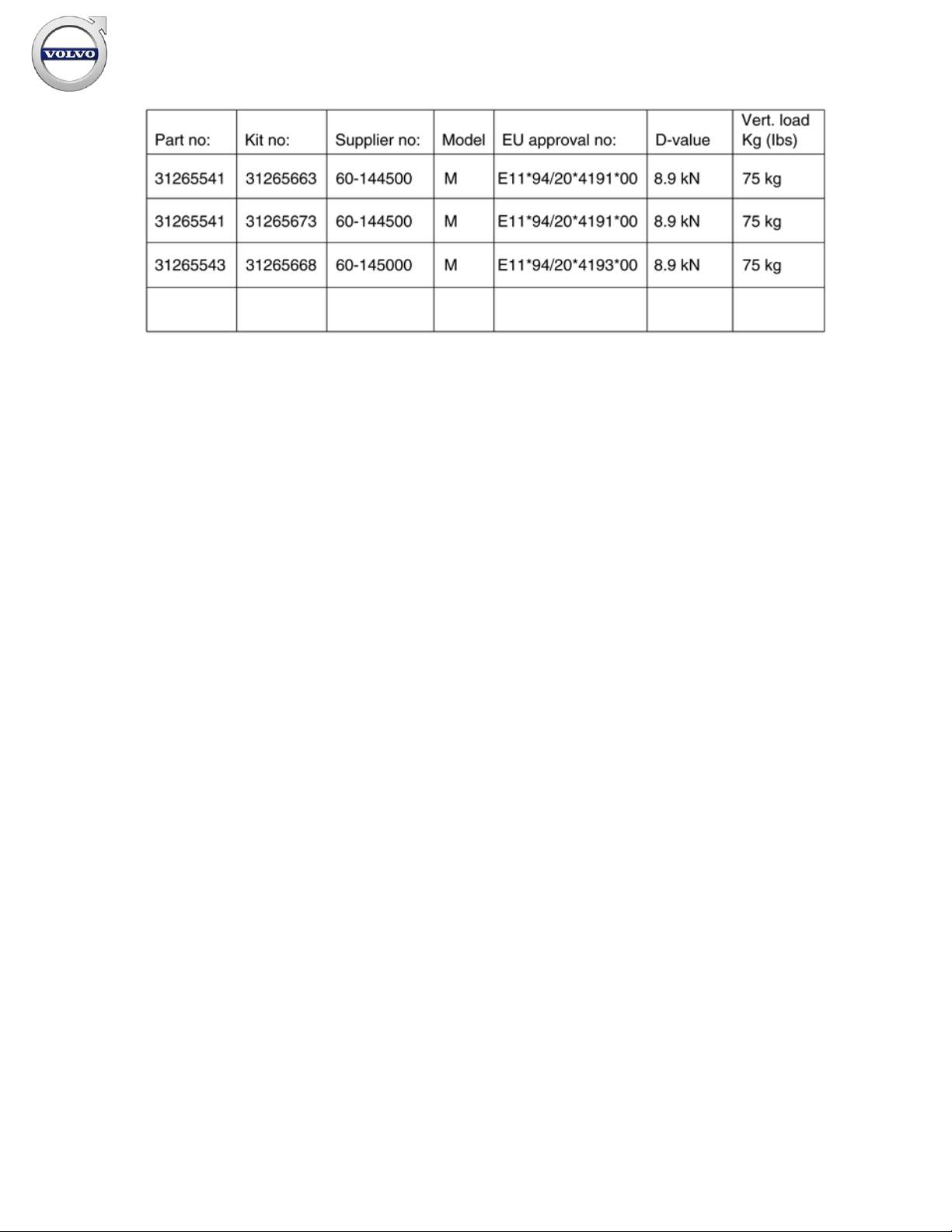

IMG-262084
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 3 / 13
INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Preparations
1
J8601089

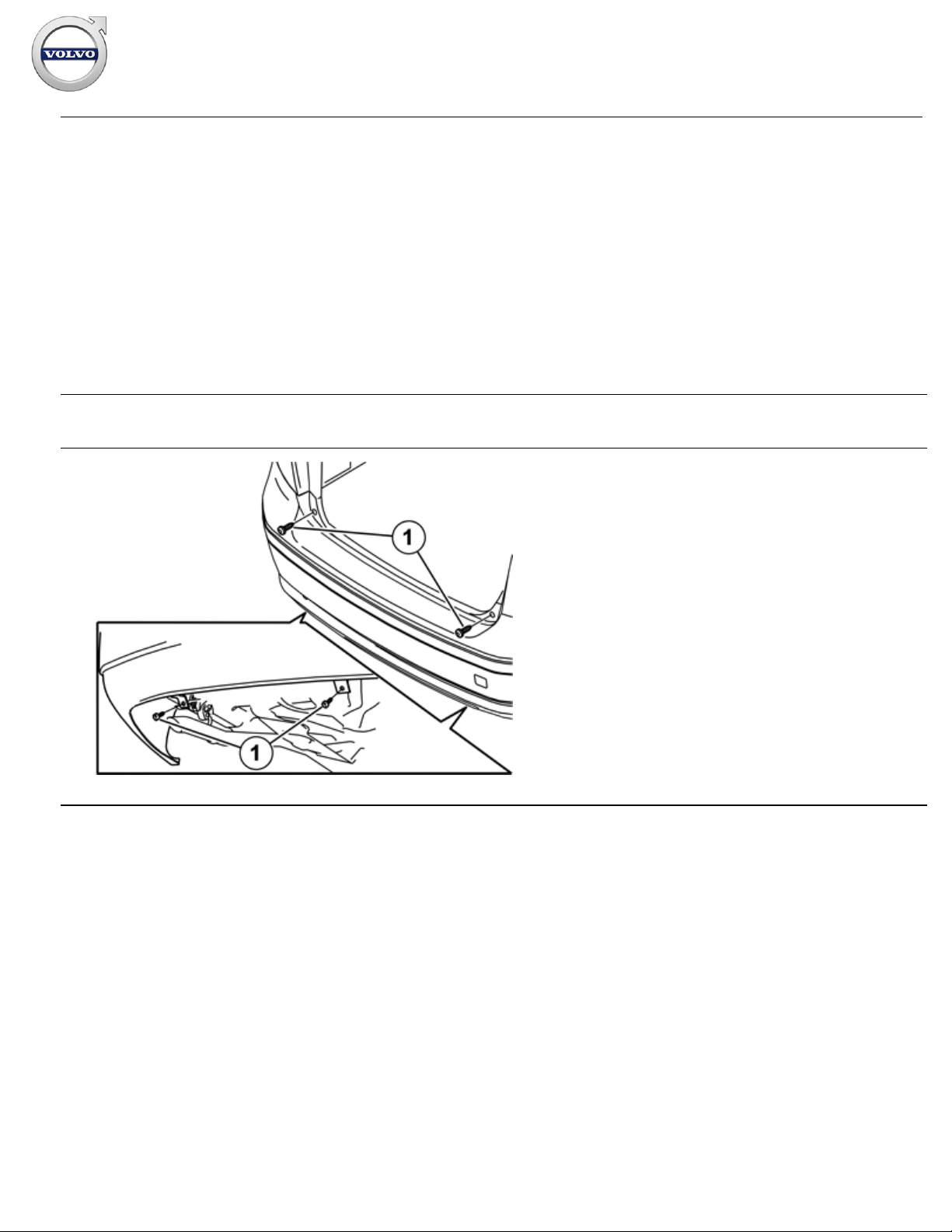

Preparations
Remove the four screws (1) for the bumper cover. The screws
are underneath/on the sides of the tailgate opening and in the
lower edge of the bumper.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 4 / 13
2
IMG-280924
Carry out on both the left and right-hand sides:
Remove the six screws (1) holding the bumper cover at the rear
edge of the wing liner in the rear wheel arch.
3
J8504526
Carry out on both the left and right-hand sides:
Detach the end of the bumper cover by grasping it inside the
wing liner and carefully pulling until the catches at the top edge
release.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 5 / 13
4
J8504527
Remove the bumper cover by pulling it straight backwards.
Disconnect any parking assistance connectors.
5
IMG-227760
Clean any underseal and dirt from the inner member of the
bumper where the L-profile for the tow hitch is to be located.
Clean the metal flange on the inside and outside where the
reinforcement stay is to be located.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 6 / 13
6
J8903194
Install the L profile on the inner member of the bumper with four
M10x25 flange screws and corresponding flanged nuts. Do not
tighten yet.
7
IMG-261184
Fit the tow hitch retainer on the L profile using two M14x110
flanged screws and corresponding flanged nuts. Do not tighten
yet.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 7 / 13
8
IMG-241888
Applies to cars with 5-cylinder engines
Place a support under the silencer.
Detach the silencer's rubber mounting from its brackets on the
right-hand and left-hand side.
9
IMG-242363
Applies to cars with 5-cylinder engines
Remove the screws and brackets of the silencer mounting on
the right and left side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 8 / 13
10
J8903549
Applies to cars with 4-cylinder engines
Detach the rubber mounting for the end pipes from the bracket
on the underside of the left-hand side member.
Remove the screw and the bracket.
Installation
11
IMG-241900
Installation
Insert the reinforcement stay from the back over the silencer.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 9 / 13
12
IMG-280925
Install three M8x30 screws with washers on each side of the
reinforcement stay. Do not tighten yet. Install in the order
illustrated.
13
IMG-280926
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4
Page 10 / 13
