Volvo C30 2007 Bedienungsanleitung

S40 (04

) /

V50 / C70 (06

) /

C30

Section

Group

Weight(Kg/Pounds)

Year

Month

881

0.5 / 1

2006

C30 2007, C30 2008, C30 2009, C30 2010, C30 2011A, C70 (06

2006, C70 (06

2007, C70 (06

2008, C70 (06

2009, C70 (06

2010, C70 (06

2011A, S40 (04-) 2004, S40 (04-) 2005, S40 (04-) 2006, S40 (04-) 2007, S40 (04-) 2008, S40 (04-) 2009, S40 (04-) 2010, V50 2004, V50 2005,

V50 2006, V50 2007, V50 2008, V50 2009, V50 2010

J8504529

S40 (04

) /

V50 / C70 (06

) /

C30

Section

Group

Weight(Kg/Pounds)

Year

Month

881

0.5 / 1

2006

C30 2007, C30 2008, C30 2009, C30 2010, C30 2011A, C70 (06

2006, C70 (06

2007, C70 (06

2008, C70 (06

2009, C70 (06

2010, C70 (06

2011A, S40 (04-) 2004, S40 (04-) 2005, S40 (04-) 2006, S40 (04-) 2007, S40 (04-) 2008, S40 (04-) 2009, S40 (04-) 2010, V50 2004, V50 2005,

V50 2006, V50 2007, V50 2008, V50 2009, V50 2010

J8504529

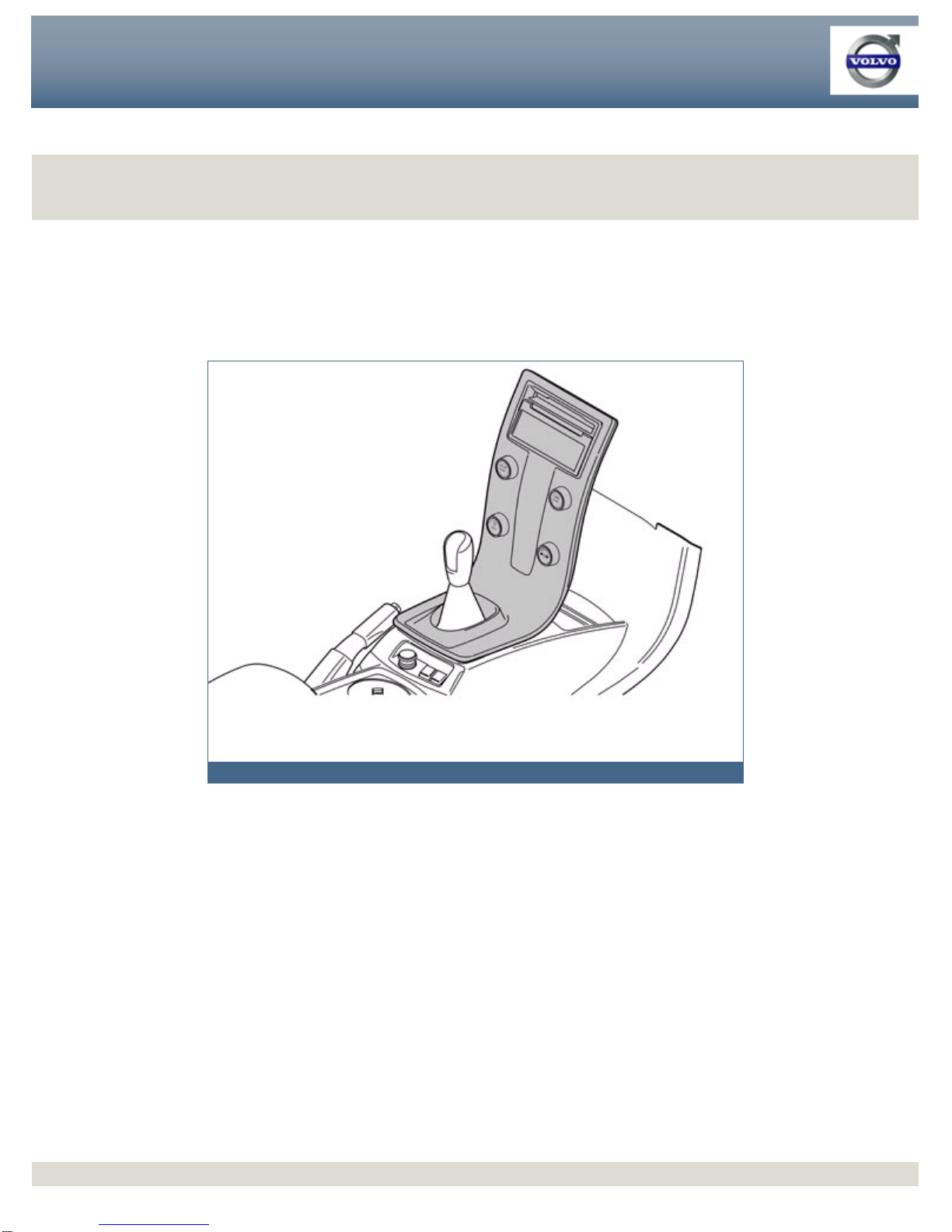

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

VolvoCar Corporation, 2006 Printed in Sweden

30766454

VolvoCar Corporation, 2006 Printed in Sweden

30766454

Page 1 of 7

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

VolvoCar Corporation, 2006 Printed in Sweden

30766454

VolvoCar Corporation, 2006 Printed in Sweden

30766454

Page 2 of 7

Required tools

A0000162


-213320

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

VolvoCar Corporation, 2006 Printed in Sweden

30766454

VolvoCar Corporation, 2006 Printed in Sweden

30766454

Page 3 of 7

INTRODUCTION

●NOTE! Read through the whole installation instruction

before starting the work.

●The front page gives the date of this edition and the edition it

replaces

●The second page shows the tools needed for the installation and

the contents of the installation kit

●The illustrations display the procedure in order of operation. The

order of operation is repeated in the text section

●Cut out the text page in order to follow the illustrations and text at

the same time.

Trim panel centre stack

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

VolvoCar Corporation, 2006 Printed in Sweden

30766454

VolvoCar Corporation, 2006 Printed in Sweden

30766454

Page 4 of 7

●

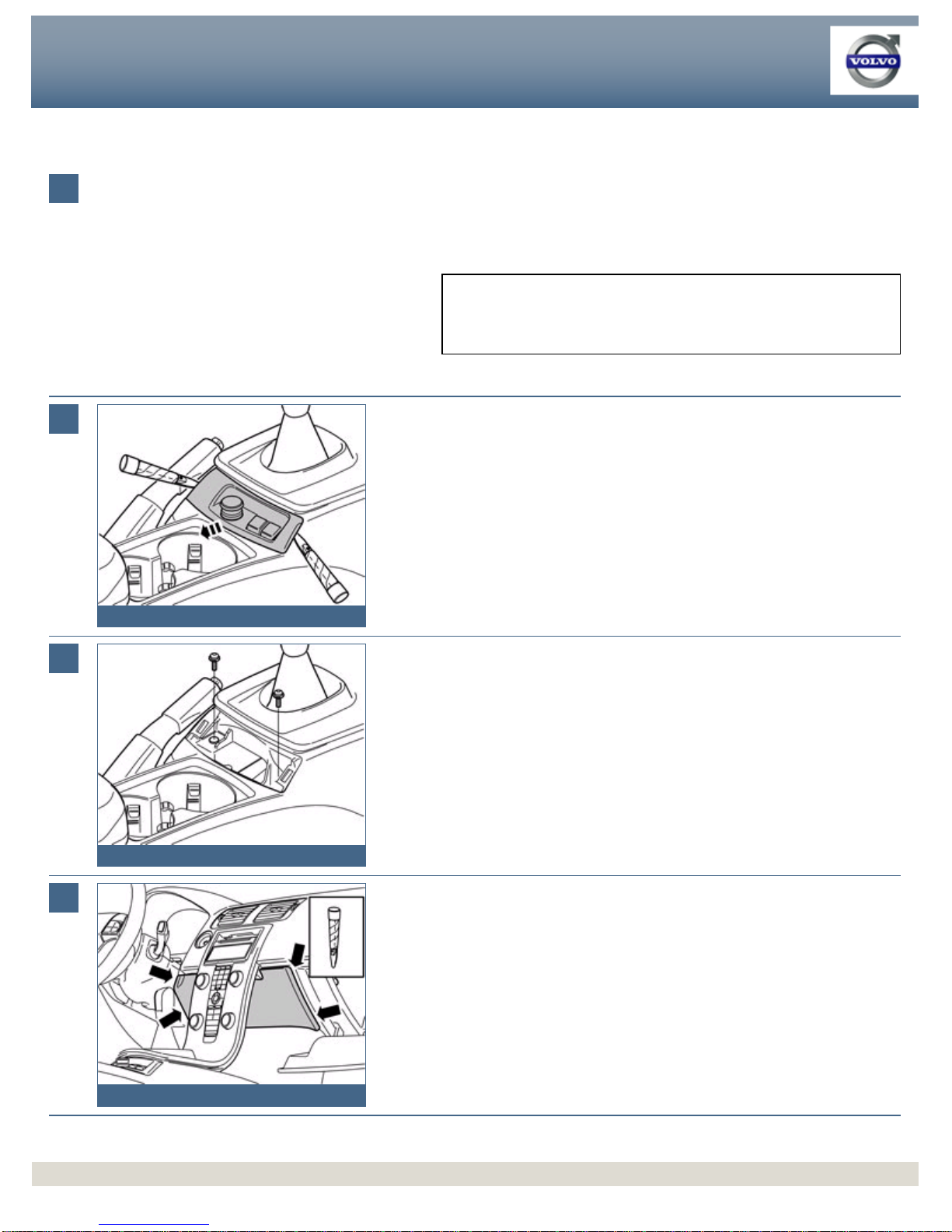

Turn the ignition key to position 0.

●Remove the ignition key from the ignition switch.

Note!

Wait at least five minutes before disassembling the connectors or removing

other electrical equipment.

J8504530

Detach the panel at the rear edge of the centre console:

●Use a plastic weatherstrip tool to pry loose the panel. The panel is secured by a

catch on each short side.

●Move the panel to the side, to access the two screws underneath.

J8504531

●Remove the two screws holding the centre console at the rear edge.

J8504532

Remove the panel on the rear of the centre console:

●

Open the glove compartment.

●Use a plastic weatherstrip tool to pry loose the panel. The panel is secured by

two catches on each long side.

●Pull the panel off downwards.

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

VolvoCar Corporation, 2006 Printed in Sweden

30766454

VolvoCar Corporation, 2006 Printed in Sweden

30766454

Page 5 of 7

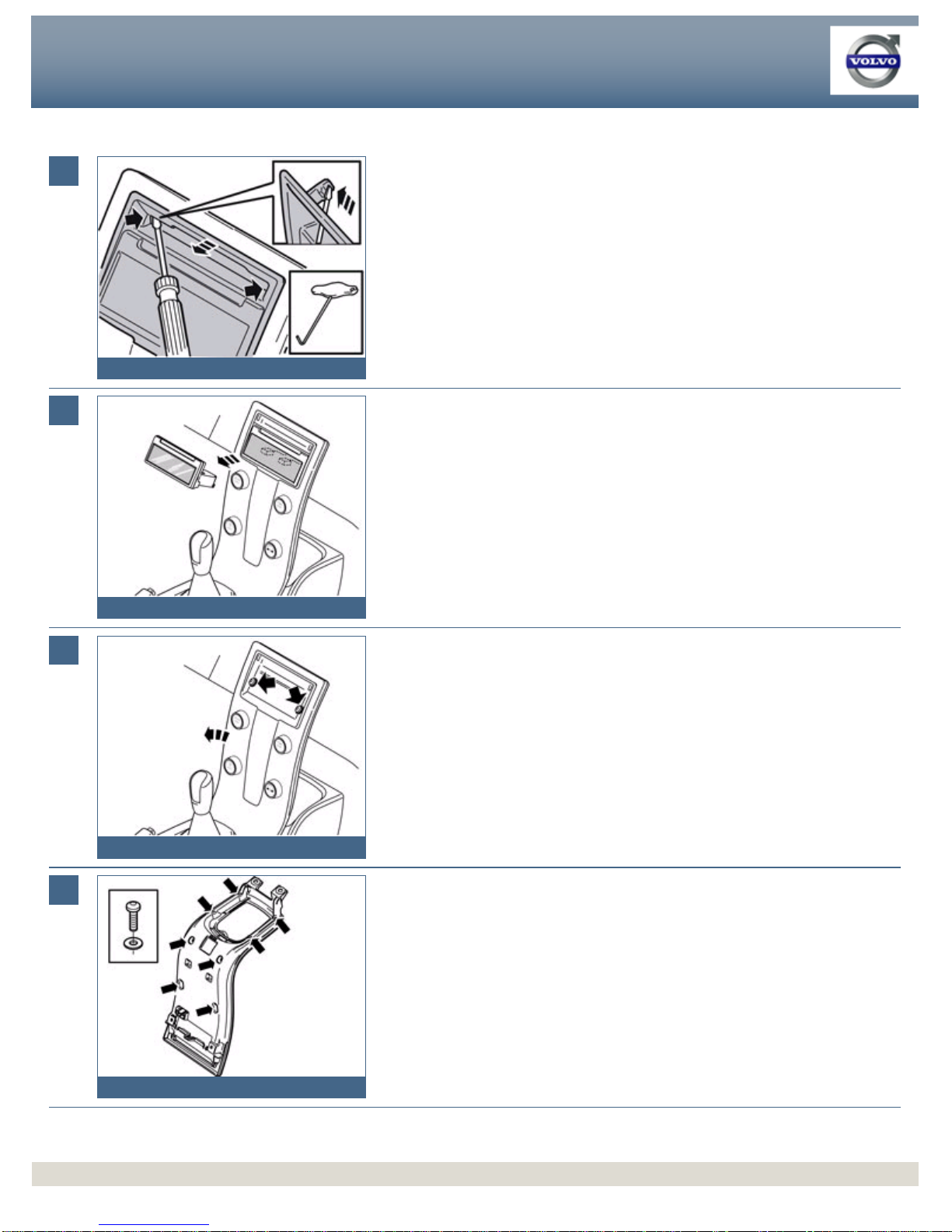

J8504638

Remove the surround for the display and the CD player:

●Press in the catches in the edges of the CD player's cover with a small

screwdriver, fold the surround back and pull it up.

J8504534

●Press out the display from the rear of the centre console.

●Disconnect the two connectors. Put the display to one side.

J8504535

●Remove the two screws holding the centre console to the dashboard.

●Remove the connector on the reverse of the dashboard environment panel.

●Remove the centre console from the dashboard and tunnel console.

J8504537

●Remove the eight screws on the rear of the centre console. Remove the rear

section.

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

VolvoCar Corporation, 2006 Printed in Sweden

30766454

VolvoCar Corporation, 2006 Printed in Sweden

30766454

Page 6 of 7

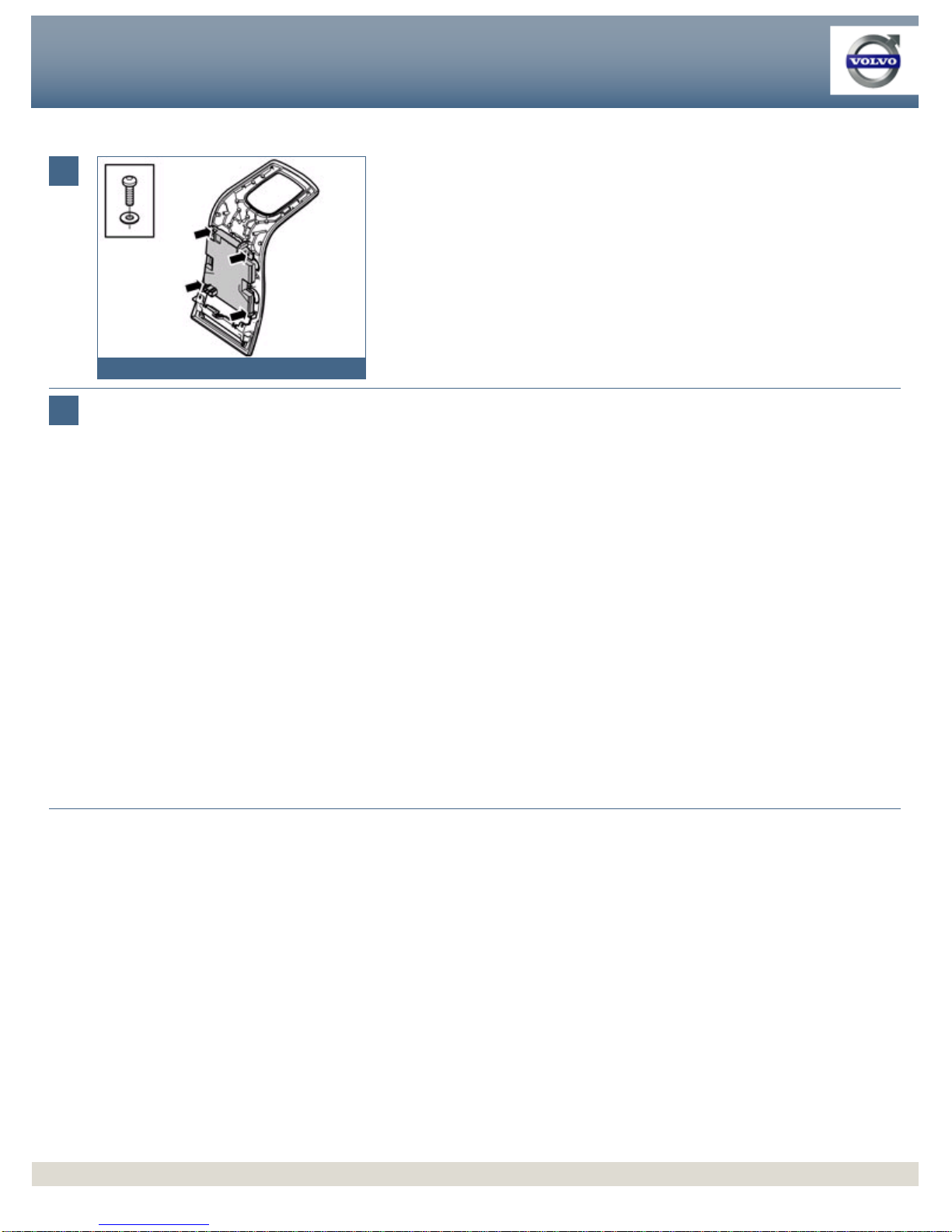

J8504536

●Remove the four screws for the dashboard environment panel.

●

Remove the dashboard environment panel. Put it to one side.

●Remove the panel from the centre console. A new panel is in the kit.

Take the new panel. Reinstall:

●dashboard environment panel

●rear section

●the centre console for the dashboard and tunnel console

●the connector for the dashboard environment panel

●the connectors for the display

●the display

●the surround for the display and CD player

●the panel on the rear of the centre console

●the panel at the rear edge of the centre console.

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

Installation instructions, accessories

Trim panel centre stack

Volvo Car Corporation G

öteborg, Sweden

VolvoCar Corporation, 2006 Printed in Sweden

30766454

VolvoCar Corporation, 2006 Printed in Sweden

30766454

Page 7 of 7
